System And Components

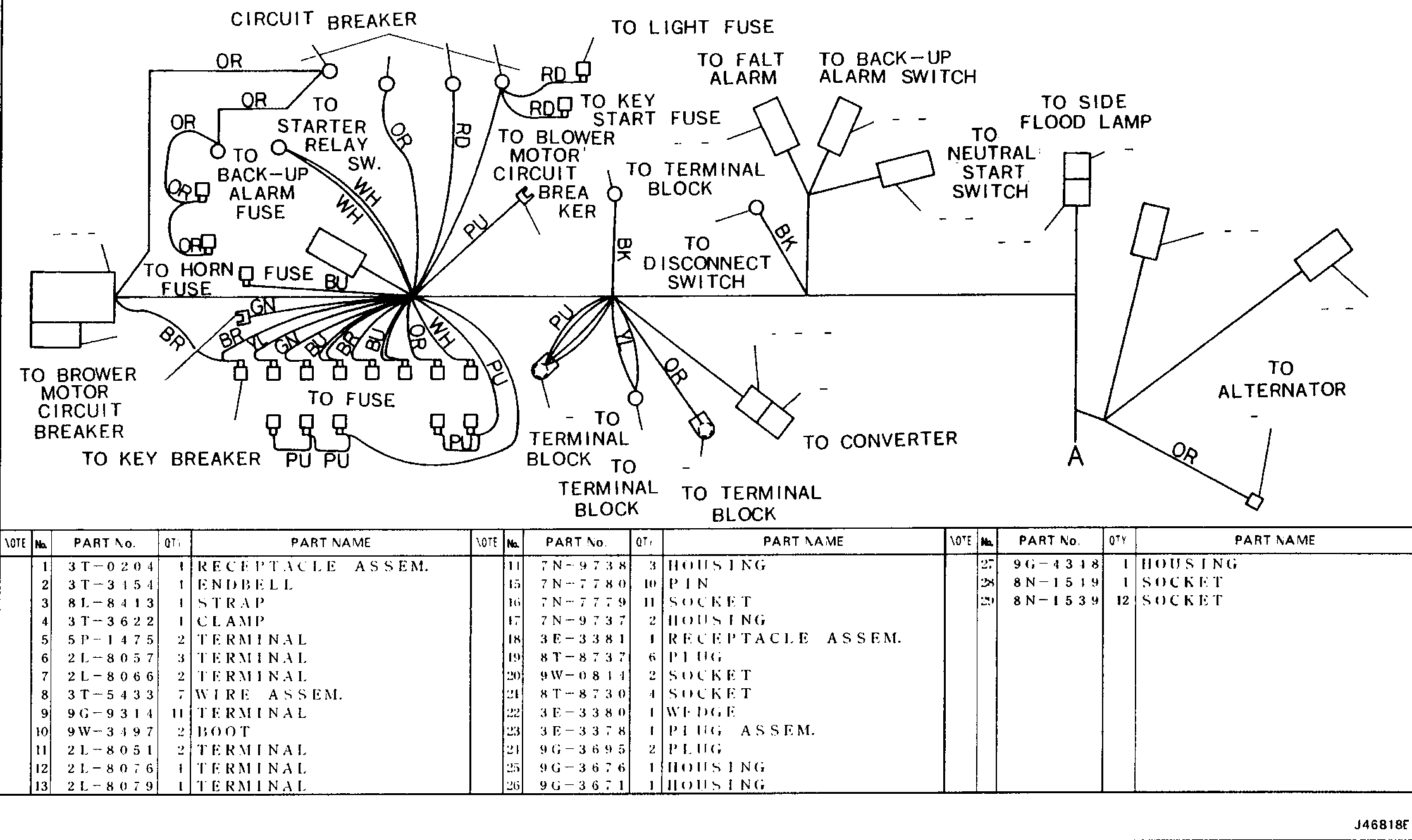

4Y7468 HARNESS ASSEMBLY--Part 1 of 3Part of 9U8978--Page 103
Group No: 4Y7468
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3T0204 | 1 RECEPTACLE ASSEM. | 1 | |
| 3T3454 | 2 ENDBELL | 1 | |
| 8L8413 | 3 STRAP | 1 | |
| 3T3622 | 4 CLAMP | 1 | |
| 5P1475 | 5 TERMINAL | 2 | |
| 2L8057 | 6 TERMINAL | 3 | |
| 2L8066 | 7 TERMINAL | 2 | |
| 3T5433 | 8 WIRE ASSEM. | 7 | |
| 9G9314 | 9 TERMINAL | 11 | |
| 9W3497 | 10 BOOT | 2 | |
| 2L8051 | 11 TERMINAL | 2 | |
| 2L8076 | 12 TERMINAL | 1 | |
| 2L8079 | 13 TERMINAL | 1 | |
| 7N9738 | 14 HOUSING | 3 | |
| 7N7780 | 15 PIN | 10 | |
| 7N7779 | 16 SOCKET | 11 | |
| 7N9737 | 17 HOUSING | 2 | |
| 3E3381 | 18 RECEPTACLE ASSEM. | 1 | |
| 8T8737 | 19 PLUG | 6 | |
| 9W0844 | 20 SOCKET | 2 | |
| 8T8730 | 21 SOCKET | 4 | |
| 3E3380 | 22 WEDGE | 1 | |
| 3E3378 | 23 PLUG ASSEM. | 1 | |
| 9G3695 | 24 PLUG | 2 | |
| 9G3676 | 25 HOUSING | 1 | |
| 9G3671 | 26 HOUSING | 1 | |
| 9G4348 | 27 HOUSING | 1 | |
| 8N1549 | 28 SOCKET | 1 | |
| 8N1539 | 29 SOCKET | 12 |
