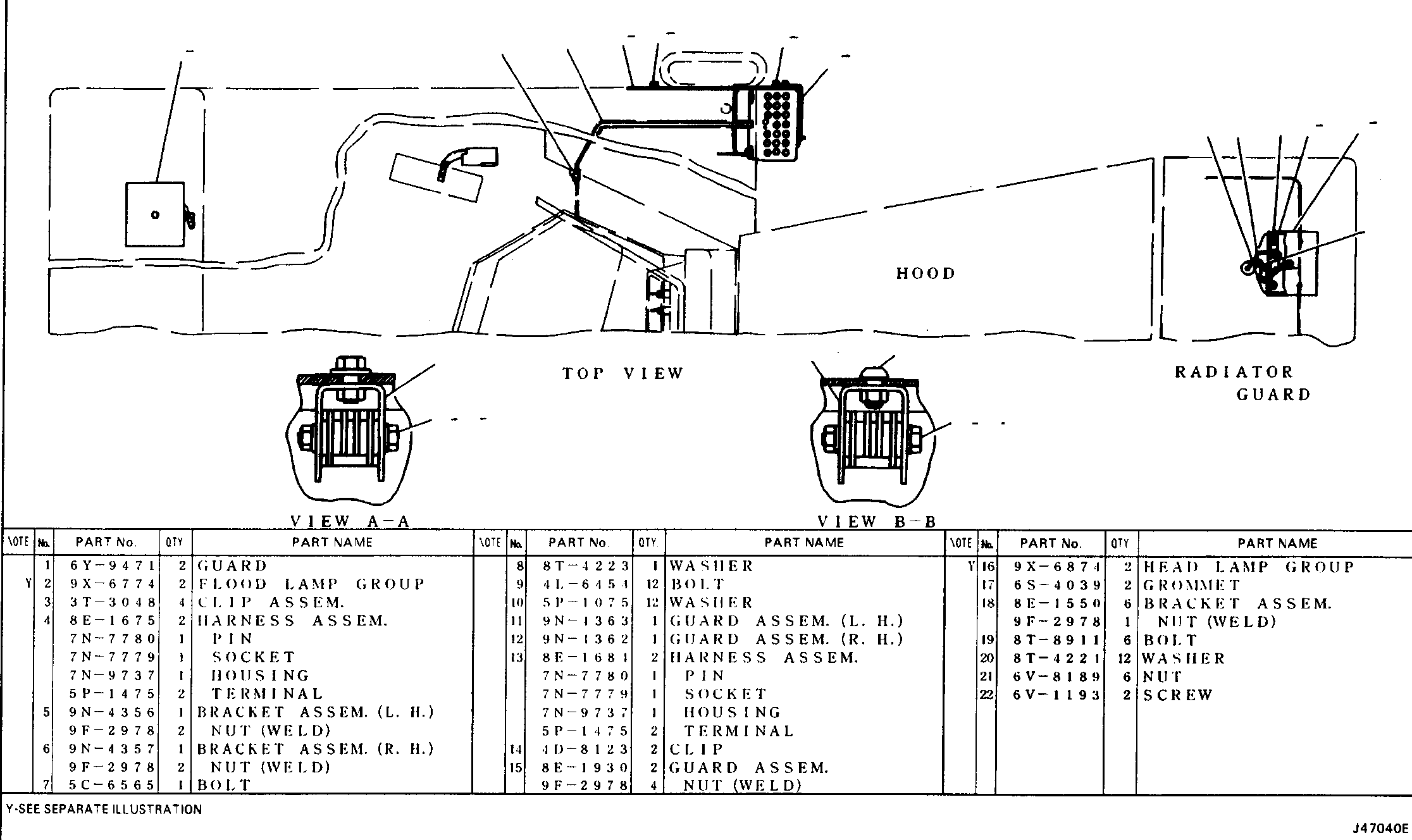

LIGHTING (4Y7076 N/S)--Part 2 of 29X6774 Page 113, 9X6874 Page 113

Group No: LIGHTING
Part NumberPart NameQty
6Y94711 GUARD2
9X67742 FLOOD LAMP GROUP2
3T30483 CLIP ASSEM.4
8E16754 HARNESS ASSEM.2
7N7780PIN1
7N7779SOCKET1
7N9737HOUSING1
5P1475TERMINAL2
9N43565 BRACKET ASSEM. (L. H.)1
9F2978NUT (WELD)2
9N43576 BRACKET ASSEM. (R. H.)1
9F2978NUT (WELD)2
5C65657 BOLT1
8T42238 WASHER1
4L64549 BOLT12
5P107510 WASHER12
9N436311 GUARD ASSEM. (L. H.)1
9N436212 GUARD ASSEM. (R. H.)1
8E168113 HARNESS ASSEM.2
7N7780PIN1
7N7779SOCKET1
7N9737HOUSING1
5P1475TERMINAL2
4D812314 CLIP2
8E193015 GUARD ASSEM.2
9F2978NUT (WELD)4
9X687416 HEAD LAMP GROUP2
6S403917 GROMMET2
8E155018 BRACKET ASSEM.6
9F2978NUT (WELD)1
8T891119 BOLT6
8T422420 WASHER12
6V818921 NUT6
6V119322 SCREW2
