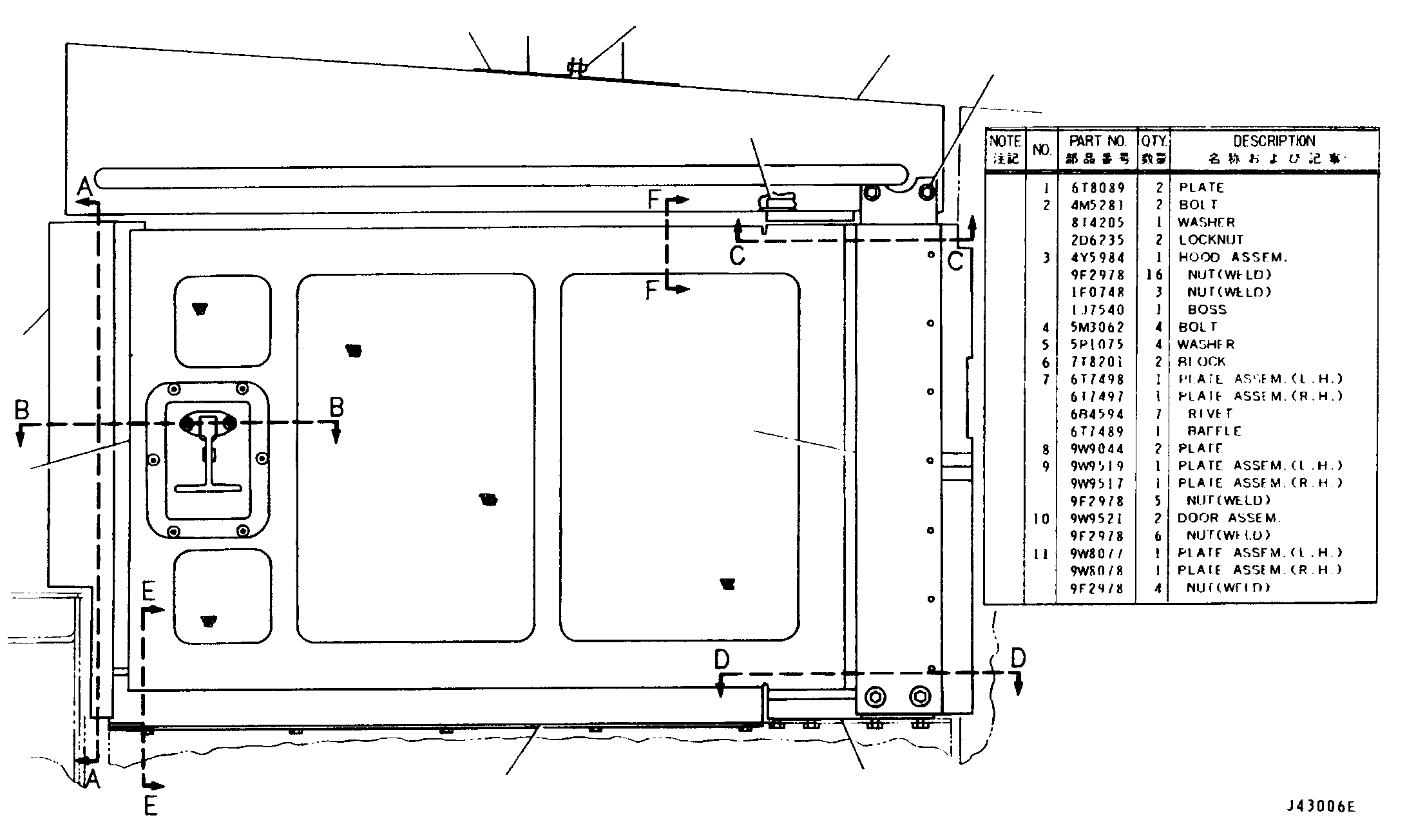

ENGINE ENCLOSURE (9W9513 N/S)--Open R.O.P.S.--Part 1 of 2AN ATTACHMENT

Group No: ENGINE
Part NumberPart NameQty
6T80891 PLATE2
4M52812 BOLT2
8T4205WASHER1
2D6235LOCKNUT2
4Y59843 HOOD ASSEM.1
9F2978NUT (WELD)16
1F0748NUT (WELD)3
1J7540BOSS1
5M30624 BOLT4
5P10755 WASHER4
7T82016 BLOCK2
6T74987 PLATE ASSEM. (L.H.)1
6T7497PLATE ASSEM. (R.H.)1
6B4594RIVET7
6T7489BAFFLE1
9W90448 PLATE2
9W95199 PLATE ASSEM. (L.H.)1
9W9517PLATE ASSEM. (R.H.)1
9F2978NUT (WELD)5
9W952110 DOOR ASSEM.2
9F2978NUT (WELD)6
9W807711 PLATE ASSEM. (L.H.)1
9W8078PLATE ASSEM. (R.H.)1
9F2978NUT (WELD)4
