System And Components

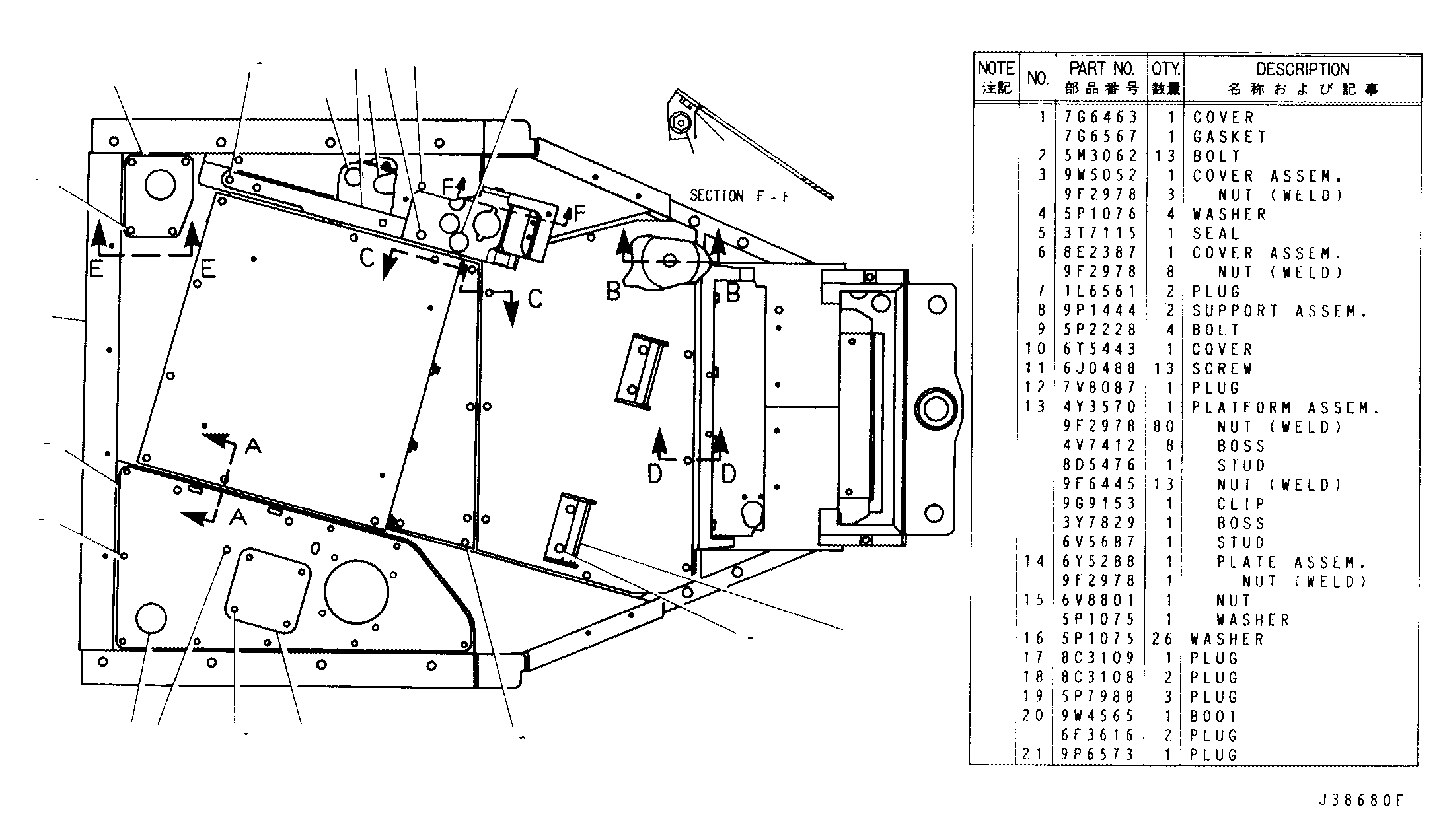

PLATFORM (9W9419 N/S)--Part 1 of 2Part of 4Y6819--Page 329, 4Y6835--Page 330
Group No: PLATFORM
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7G6463 | 1 COVER | 1 | |
| 7G6567 | GASKET | 1 | |
| 5M3062 | 2 BOLT | 13 | |
| 9W5052 | 3 COVER ASSEM. | 1 | |
| 9F2978 | NUT (WELD) | 3 | |
| 5P1076 | 4 WASHER | 4 | |
| 3T7115 | 5 SEAL | 1 | |
| 8E2387 | 6 COVER ASSEM. | 1 | |
| 9F2978 | NUT (WELD) | 8 | |
| 1L6561 | 7 PLUG | 2 | |
| 9P1444 | 8 SUPPORT ASSEM. | 2 | |
| 5P2228 | 9 BOLT | 4 | |
| 6T5443 | 10 COVER | 1 | |
| 6J0488 | 11 SCREW | 13 | |
| 7V8087 | 12 PLUG | 1 | |
| 4Y3570 | 13 PLATFORM ASSEM. | 1 | |
| 9F2978 | NUT (WELD) | 80 | |
| 4V7412 | BOSS | 8 | |
| 8D5476 | STUD | 1 | |
| 9F6445 | NUT (WELD) | 13 | |
| 9G9153 | CLIP | 1 | |
| 3Y7829 | BOSS | 1 | |
| 6V5687 | STUD | 1 | |
| 6Y5288 | 14 PLATE ASSEM. | 1 | |
| 9F2978 | NUT (WELD) | 1 | |
| 6V8801 | 15 NUT | 1 | |
| 5P1075 | WASHER | 1 | |
| 5P1075 | 16 WASHER | 26 | |
| 8C3109 | 17 PLUG | 1 | |
| 8C3109 | 18 PLUG | 1 | |
| 5P7988 | 19 PLUG | 3 | |
| 9W4565 | 20 BOOT | 1 | |
| 6F3616 | PLUG | 2 | |
| 9P6573 | 21 PLUG | 1 |
