System And Components

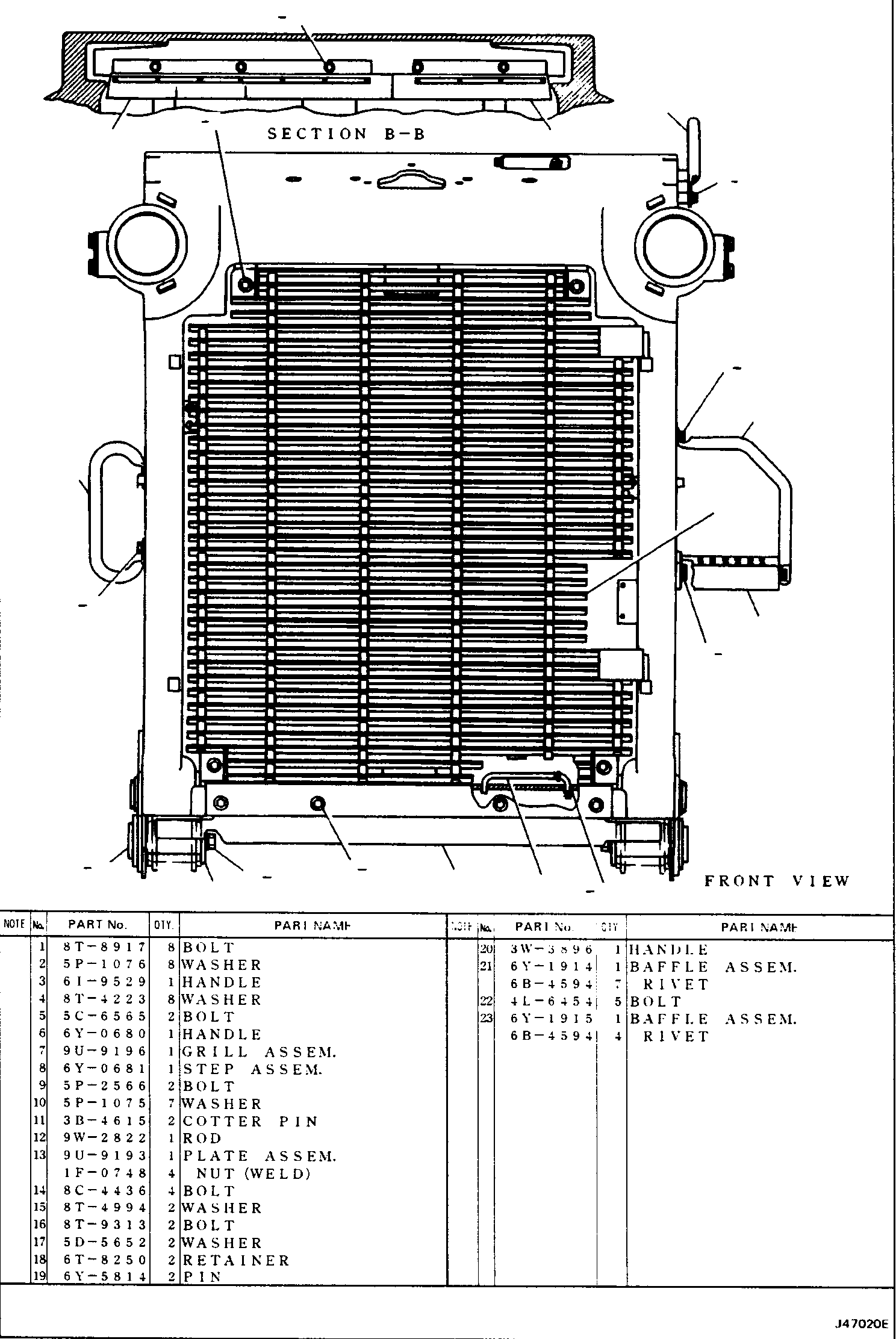

RADIATOR GUARD (8E9517 N/S)--Part 1 of 2
Group No: RADIATOR
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8T8917 | 1 BOLT | 8 | |
| 5P1076 | 2 WASHER | 8 | |
| 6I9529 | 3 HANDLE | 1 | |
| 8T4223 | 4 WASHER | 8 | |
| 5C6565 | 5 BOLT | 2 | |
| 6Y0680 | 6 HANDLE | 1 | |
| 9U9196 | 7 GRILL ASSEM. | 1 | |
| 6Y0681 | 8 STEP ASSEM. | 1 | |
| 5P2566 | 9 BOLT | 2 | |
| 5P1075 | 10 WASHER | 7 | |
| 3B4615 | 11 COTTER PIN | 2 | |
| 9W2822 | 12 ROD | 1 | |
| 9U9193 | 13 PLATE ASSEM. | 1 | |
| 1F0748 | NUT (WELD) | 4 | |
| 8C4436 | 14 BOLT | 4 | |
| 8T4994 | 15 WASHER | 2 | |
| 8T9313 | 16 BOLT | 2 | |
| 5D5652 | 17 WASHER | 2 | |
| 6T8250 | 18 RETAINER | 2 | |
| 6Y5814 | 19 PIN | 2 | |
| 3W3896 | 20 HANDLE | 1 | |
| 6Y1914 | 21 BAFFLE ASSEM. | 1 | |
| 6B4594 | RIVET | 7 | |
| 4L6454 | 22 BOLT | 5 | |
| 6Y1915 | 23 BAFFLE ASSEM. | 1 | |
| 6B4594 | RIVET | 4 |
