System And Components

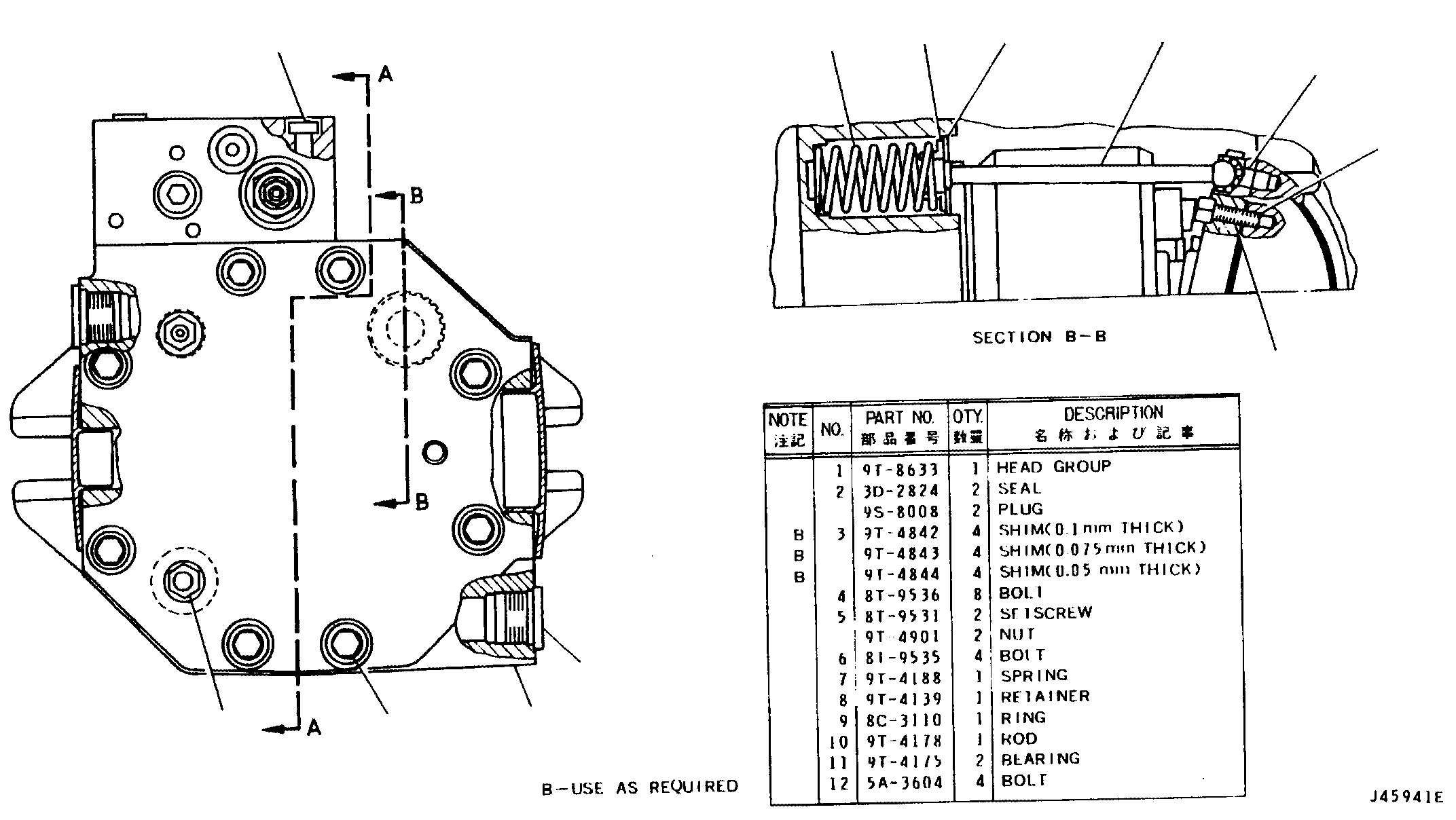

9T8647 HYDRAULIC PISTON PUMP GROUP--Part 1 of 2Part of 4Y6715--Page 226
Group No: 9T8647
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9T8633 | 1 HEAD GROUP | 1 | |
| 3D2824 | 2 SEAL | 2 | |
| 9S8008 | PLUG | 2 | |
| 9T4842 | 3 SHIM (0.1 mm THICK) | 4 | |
| 9T4843 | SHIM (0.075 mm THICK) | 4 | |
| 9T4844 | SHIM (0.05 mm THICK) | 4 | |
| 8T9536 | 4 BOLT | 8 | |
| 8T9531 | 5 SETSCREW | 2 | |
| 9T4901 | NUT | 2 | |
| 8T9535 | 6 BOLT | 4 | |
| 9T4188 | 7 SPRING | 1 | |
| 9T4139 | 8 RETAINER | 1 | |
| 8C3110 | 9 RING | 1 | |
| 9T4178 | 10 ROD | 1 | |
| 9T4175 | 11 BEARING | 2 | |
| 5A3604 | 12 BOLT | 4 |
