System And Components

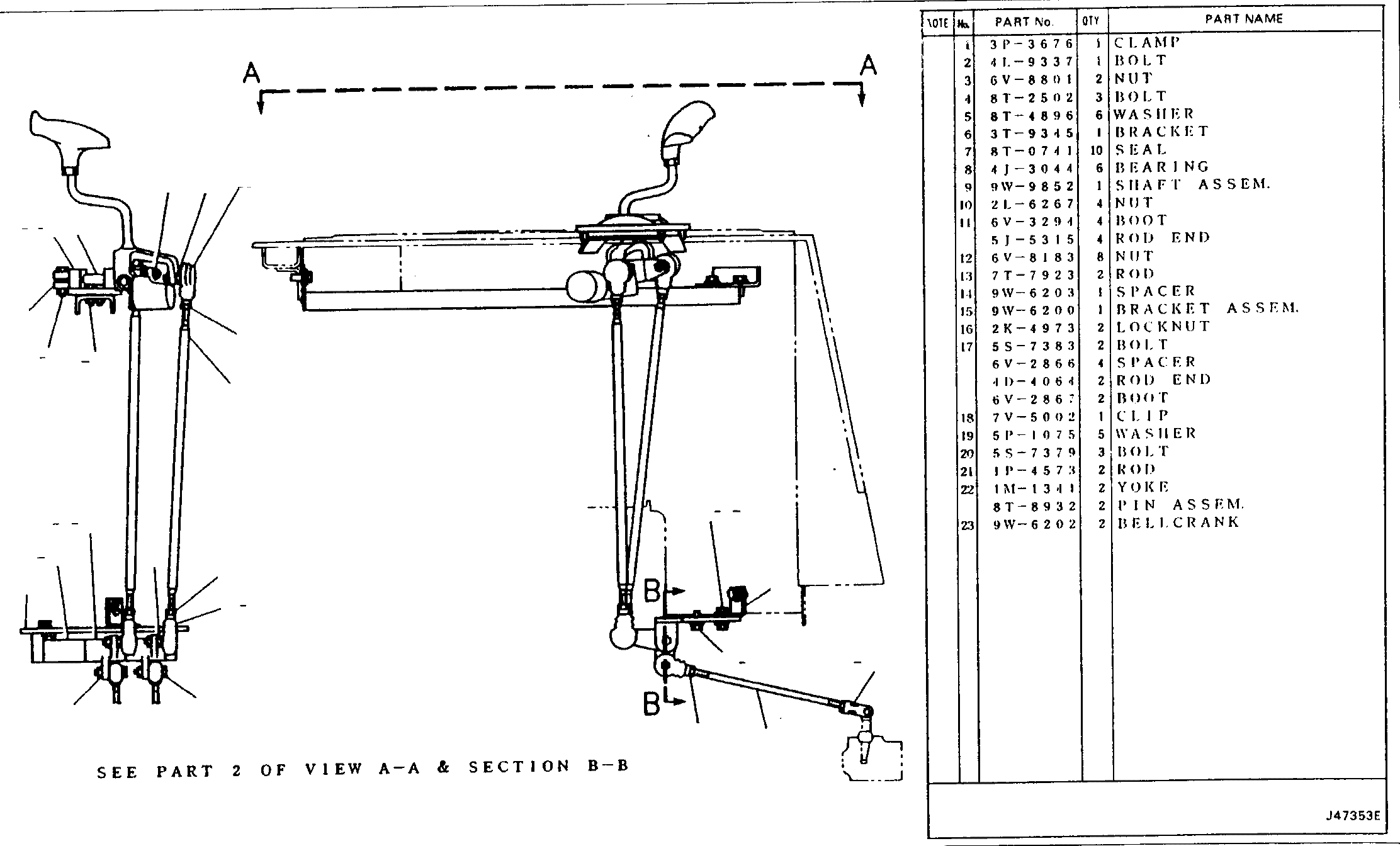

9W4953 IMPLEMENT LINKAGE--Bulldozer & Tilt--Part 1 of 2Part of 4Y6715--Page 226
Group No: 9W4953
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3P3676 | 1 CLAMP | 1 | |
| 4L9337 | 2 BOLT | 1 | |
| 6V8801 | 3 NUT | 2 | |
| 8T2502 | 4 BOLT | 3 | |
| 8T4896 | 5 WASHER | 6 | |
| 3T9345 | 6 BRACKET | 1 | |
| 8T0741 | 7 SEAL | 10 | |
| 4J3044 | 8 BEARING | 6 | |
| 9W9852 | 9 SHAFT ASSEM. | 1 | |
| 2L6267 | 10 NUT | 4 | |
| 6V3294 | 11 BOOT | 4 | |
| 5J5315 | ROD END | 4 | |
| 6V8183 | 12 NUT | 8 | |
| 7T7923 | 13 ROD | 2 | |
| 9W6203 | 14 SPACER | 1 | |
| 9W6200 | 15 BRACKET ASSEM. | 1 | |
| 2K4973 | 16 LOCKNUT | 2 | |
| 5S7383 | 17 BOLT | 2 | |
| 6V2866 | SPACER | 4 | |
| 4D4064 | ROD END | 2 | |
| 6V2867 | BOOT | 2 | |
| 7V5002 | 18 CLIP | 1 | |
| 5P1075 | 19 WASHER | 5 | |
| 5S7379 | 20 BOLT | 3 | |
| 1P4573 | 21 ROD | 2 | |
| 1M1341 | 22 YOKE | 2 | |
| 8T8932 | PIN ASSEM. | 2 | |
| 9W6202 | 23 BELLCRANK | 2 |
