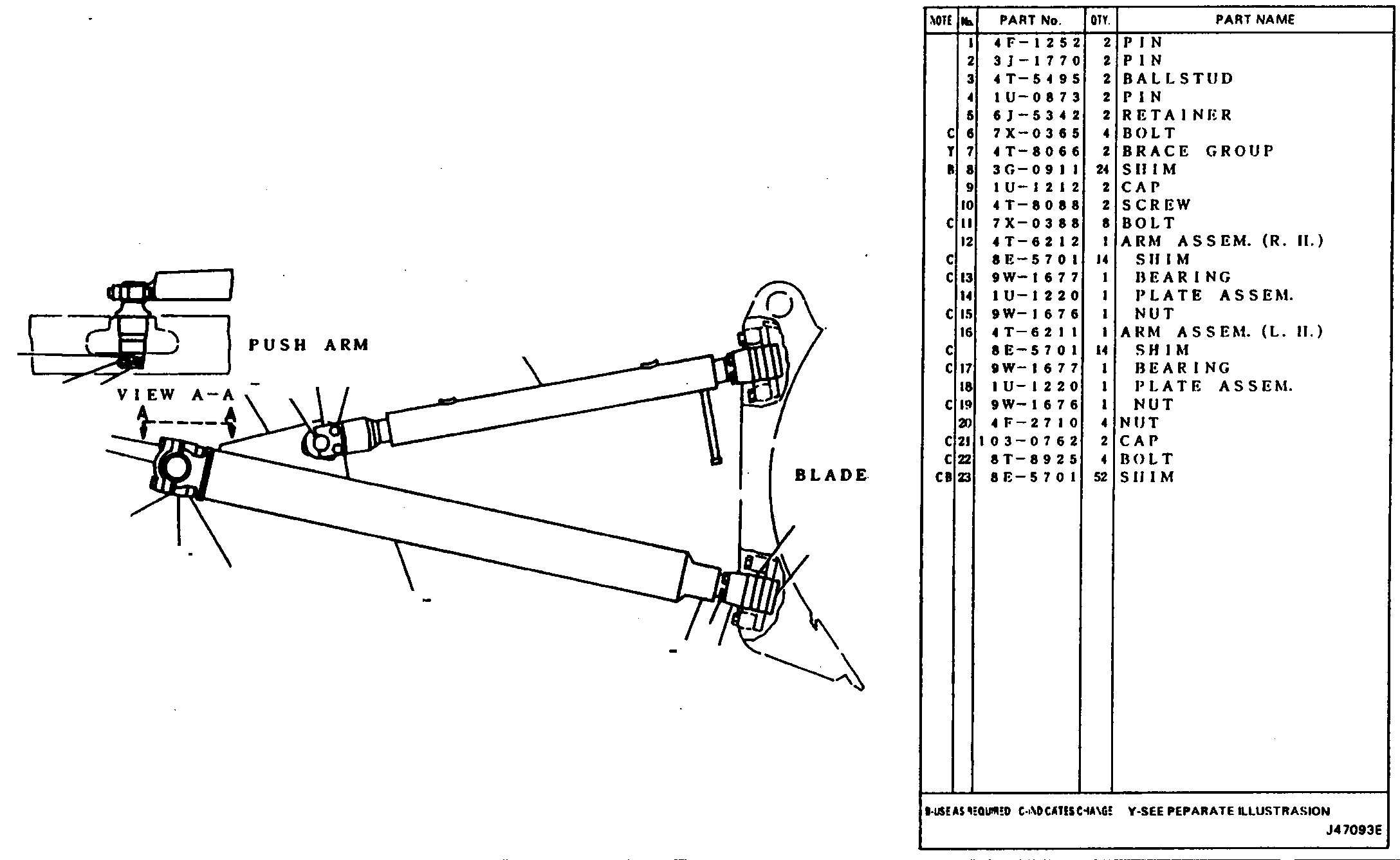

BULLDOZER BRACE (4T6137 N/S)Part of 9U8550--Page 281
Group No: BULLDOZER
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4F1252 | 1 PIN | 2 | |
| 3J1770 | 2 PIN | 2 | |
| 4T5495 | 3 BALLSTUD | 2 | |
| 1U0873 | 4 PIN | 2 | |
| 6J5342 | 5 RETAINER | 2 | |
| 7X0365 | 6 BOLT | 4 | |
| 4T8066 | 7 BRACE GROUP | 2 | |
| 3G0911 | 8 SHIM | 24 | |
| 1U1212 | 9 CAP | 2 | |
| 4T8088 | 10 SCREW | 2 | |
| 7X0388 | 11 BOLT | 8 | |
| 4T6212 | 12 ARM ASSEM. (R. H.) | 1 | |
| 8E5701 | SHIM | 14 | |
| 9W1677 | 13 BEARING | 1 | |
| 1U1220 | 14 PLATE ASSEM. | 1 | |
| 9W1676 | 15 NUT | 1 | |
| 4T6211 | 16 ARM ASSEM. (L. H.) | 1 | |
| 8E5701 | SHIM | 14 | |
| 9W1677 | 17 BEARING | 1 | |
| 1U1220 | 18 PLATE ASSEM. | 1 | |
| 9W1676 | 19 NUT | 1 | |
| 4F2710 | 20 NUT | 4 | |
| 1030762 | 21 CAP | 2 | |
| 8T8925 | 22 BOLT | 4 | |
| 8E5701 | 23 SHIM | 52 |
