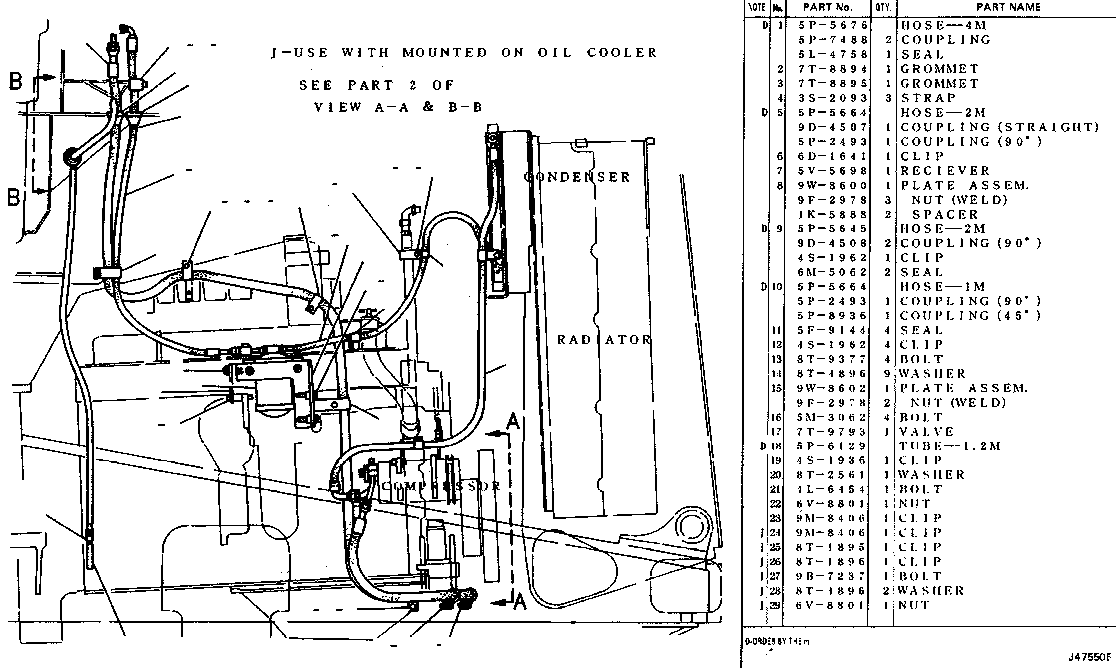

AIR CONDITIONER LINES (1034940 N/S)--Part 1 of 2Part of 1024231--Page 356A
Group No: AIR
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5P5676 | 1 HOSE--4M | ||
| 5P7488 | COUPLING | 2 | |
| 5L4758 | SEAL | 1 | |
| 7T8894 | 2 GROMMET | 1 | |
| 7T8895 | 3 GROMMET | 1 | |
| 3S2093 | 4 STRAP | 3 | |
| 5P5664 | 5 HOSE--2M | ||
| 9D4507 | COUPLING (STRAIGHT) | 1 | |
| 5P2493 | COUPLING (90 DEGREES) | 1 | |
| 6D1641 | 6 CLIP | 1 | |
| 5V5698 | 7 RECEIVER | 1 | |
| 9W8600 | 8 PLATE ASSEM. | 1 | |
| 9F2978 | NUT (WELD) | 3 | |
| 1K5888 | SPACER | 2 | |
| 5P5645 | 9 HOSE--2M | ||
| 9D4508 | COUPLING (90 DEGREES) | 2 | |
| 4S1962 | CLIP | 1 | |
| 6M5062 | SEAL | 2 | |
| 5P5664 | 10 HOSE--1M | ||
| 5P2493 | COUPLING (90 DEGREES) | 1 | |
| 5P8936 | COUPLING (45 DEGREES) | 1 | |
| 5F9144 | 11 SEAL | 4 | |
| 4S1962 | 12 CLIP | 4 | |
| 8T9377 | 13 BOLT | 4 | |
| 8T4896 | 14 WASHER | 9 | |
| 9W8602 | 15 PLATE ASSEM. | 1 | |
| 9F2978 | NUT (WELD) | 2 | |
| 5M3062 | 16 BOLT | 4 | |
| 7T9793 | 17 VALVE | 1 | |
| 5P6129 | 18 TUBE--1.2M | ||
| 4S1936 | 19 CLIP | 1 | |
| 8T2561 | 20 WASHER | 1 | |
| 4L6454 | 21 BOLT | 1 | |
| 6V8801 | 22 NUT | 1 | |
| 9M8406 | 23 CLIP | 1 | |
| 9M8406 | 24 CLIP | 1 | |
| 8T1895 | 25 CLIP | 1 | |
| 8T1896 | 26 CLIP | 1 | |
| 9B7237 | 27 BOLT | 1 | |
| 8T1896 | 28 WASHER | 2 | |
| 6V8801 | 29 NUT | 1 |
