System And Components

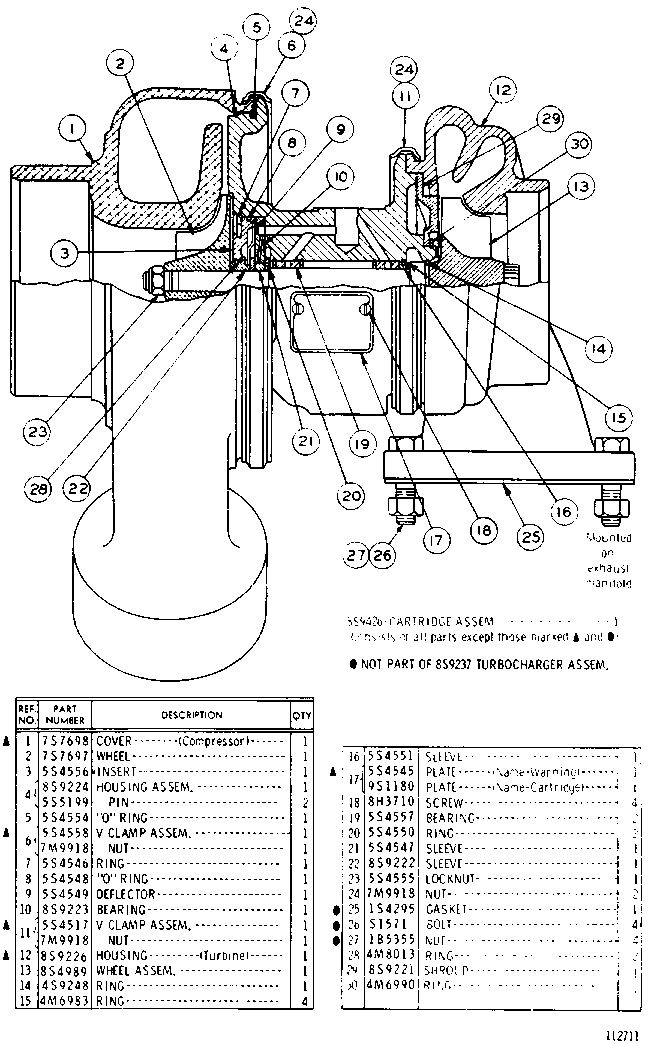

8S9237 TURBOCHARGER ASSEMBLY (7S1701 N/S)Serial No. 25U1 to 25U1181
Group No: 8S9237
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7S7698 | 1 COVER (Compressor) | 1 | |
| 7S7697 | 2 WHEEL | 1 | |
| 5S4556 | 3 INSERT | 1 | |
| 8S9224 | 4 HOUSING ASSEM. | 1 | |
| 5S5199 | PIN | 2 | |
| 5S4554 | 5 "O" RING | 1 | |
| 5S4558 | 6 V CLAMP ASSEM. | 1 | |
| 7M9918 | NUT | 1 | |
| 5S4546 | 7 RING | 1 | |
| 5S4548 | 8 "O" RING | 1 | |
| 5S4549 | 9 DEFLECTOR | 1 | |
| 8S9223 | 10 BEARING | 1 | |
| 5S4517 | 11 V CLAMP ASSEM. | 1 | |
| 7M9918 | NUT | 1 | |
| 8S9226 | 12 HOUSING (Turbine) | 1 | |
| 8S4989 | 13 WHEEL ASSEM. | 1 | |
| 4S9248 | 14 RING | 1 | |
| 4M6983 | 15 RING | 4 | |
| 5S4551 | 16 SLEEVE | 1 | |
| 5S4545 | 17 PLATE (Name-Warning) | 1 | |
| 9S1180 | PLATE (Name-Cartridge) | 1 | |
| 8H3710 | 18 SCREW | 4 | |
| 5S4557 | 19 BEARING | 2 | |
| 5S4550 | 20 RING | 2 | |
| 5S4547 | 21 SLEEVE | 1 | |
| 8S9222 | 22 SLEEVE | 1 | |
| 5S4555 | 23 LOCKNUT | 1 | |
| 7M9918 | 24 NUT | 2 | |
| 1S4295 | 25 GASKET | 1 | |
| 0S1571 | 26 BOLT | 4 | |
| 1B5355 | 27 NUT | 4 | |
| 4M8013 | 28 RING | 2 | |
| 8S9221 | 29 SHROUD | 1 | |
| 4M6990 | 30 RING | 1 |
