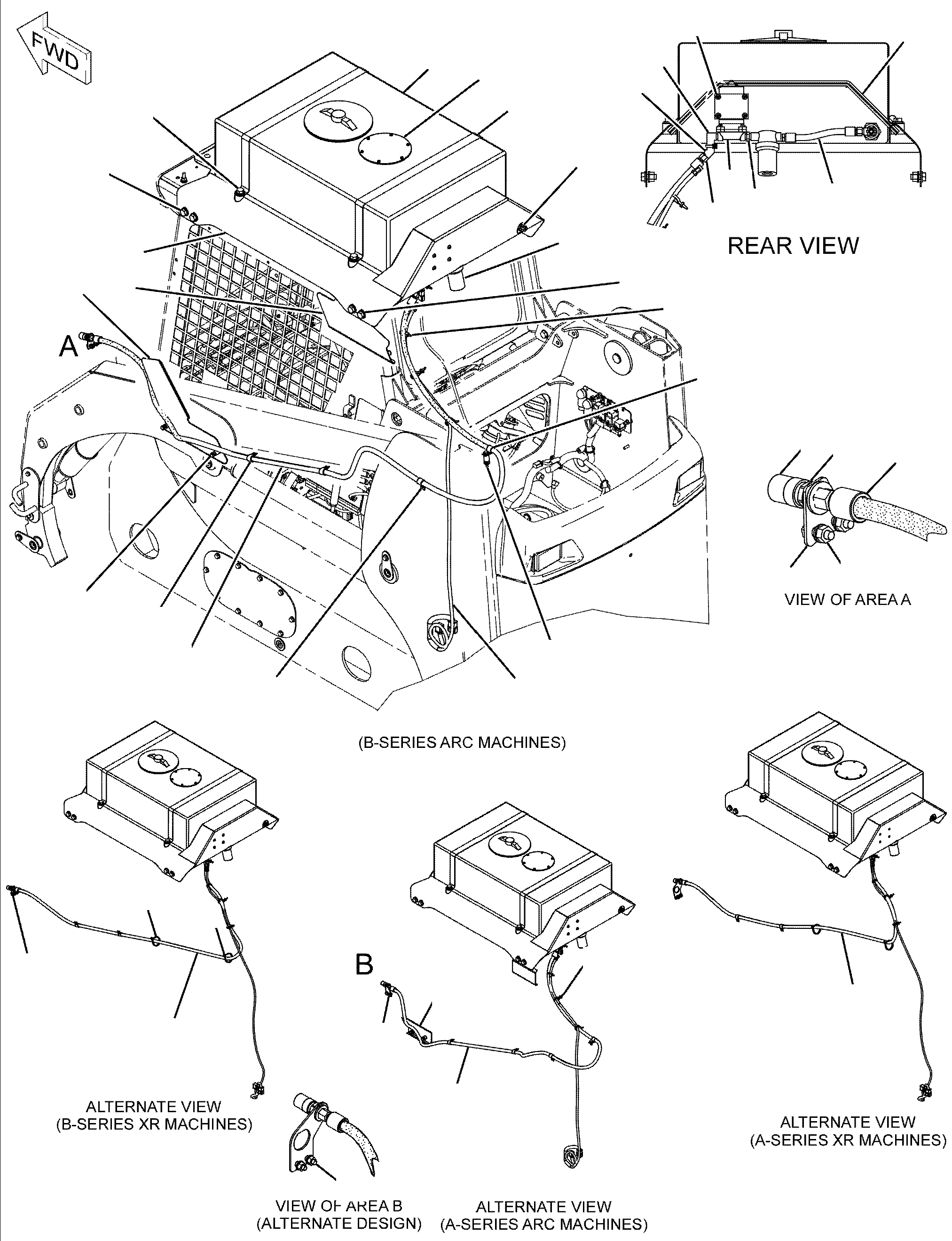

252-0386 TANK & MTG GP-WATER -KITS/N CAB1-UP; CMB1-UP; 4NZ3400-UP; 5FZ6700-UP

Group No: 252-0386
Part NumberPart NameQty
3B72551 BUSHING-REDUCER1
3S20932 STRAP-CABLE4
4E07243 SPACER (9X20X28-MM THK)1
7X04954 ADAPTER1
8T07375 VALVE-SHUTOFF (WATER TANK)1
11620016 STRAINER GP-WATER1
12419167 COUPLING-PERMANENT1
12419178 COUPLING-PERMANENT1
16548949 HARNESS AS-WORK TOOL (WATER TANK)1
1261767PIN-CONNECTOR (14-GA TO 16-GA)8
1552265KIT-CONNECTING PLUG (8-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)1
1028806KIT-RECEPTACLE (8-PIN)1
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)10
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(13-CM)
166255110 TANK GP-WATER1
166255211 HOSE AS1
166255712 PLATE1
166255813 COUPLING1
166255914 BRACKET2
218584715 PLATE1
218597516 BRACKET AS1
233571917 PUMP GP-DIAPHRAGM (WATER TANK)1
233589218 PLATE AS1
233589319 PLATE AS1
003214320 ELBOW1
067255121 CLIP2
095091222 CLIP2
111462723 SCREW-MACHINE (M6X1X30-MM)4
119385924 SCREW-PAN HEAD (10-16X0.75-IN)6
129317825 LOCKNUT (M6X1-THD)4
1L227926 ELBOW1
5C726127 NUT (M8X1.25-THD)3
5P411628 WASHER-HARD (8.8X20.5X2-MM THK)1
5P824629 WASHER-HARD (15.5X29X3-MM THK)2
8T412230 WASHER-HARD (17X32X3.5-MM THK)16
8T413231 NUT (M16X2-THD)4
8T420532 WASHER-HARD (7.2X14.5X2-MM THK)6
8T422433 WASHER-HARD (8.8X16X2-MM THK)8
8T477934 BOLT (M16X2X35-MM)12
8T490835 BOLT (M8X1.25X25-MM)6
8T686936 BOLT (M8X1.25X60-MM)1
122686937 HOSE-HYDRAULIC (142-IN)
142750538 PLATE AS2
166255639 BRACKET1
167060840 SEAL (82-CM)
195669641 PLATE1
7K118142 STRAP-CABLE2
8T412143 WASHER-HARD (11X21X2.5-MM THK)7
8T413344 NUT (M10X1.5-THD)2
8T413645 BOLT (M10X1.5X25-MM)2
8T413746 BOLT (M10X1.5X20-MM)5
8T419147 BOLT (M10X1.5X16-MM)2
