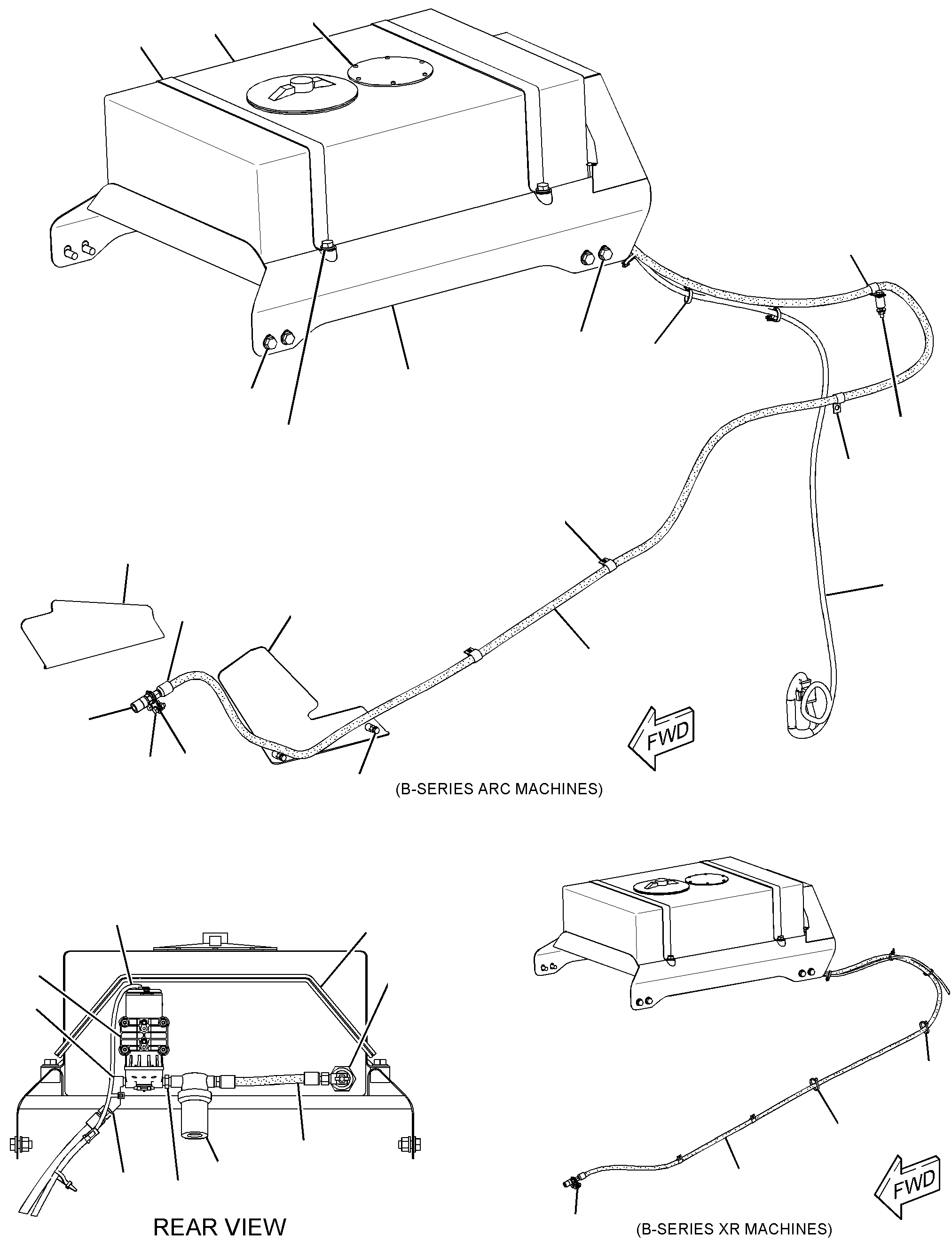

Assembly
100%

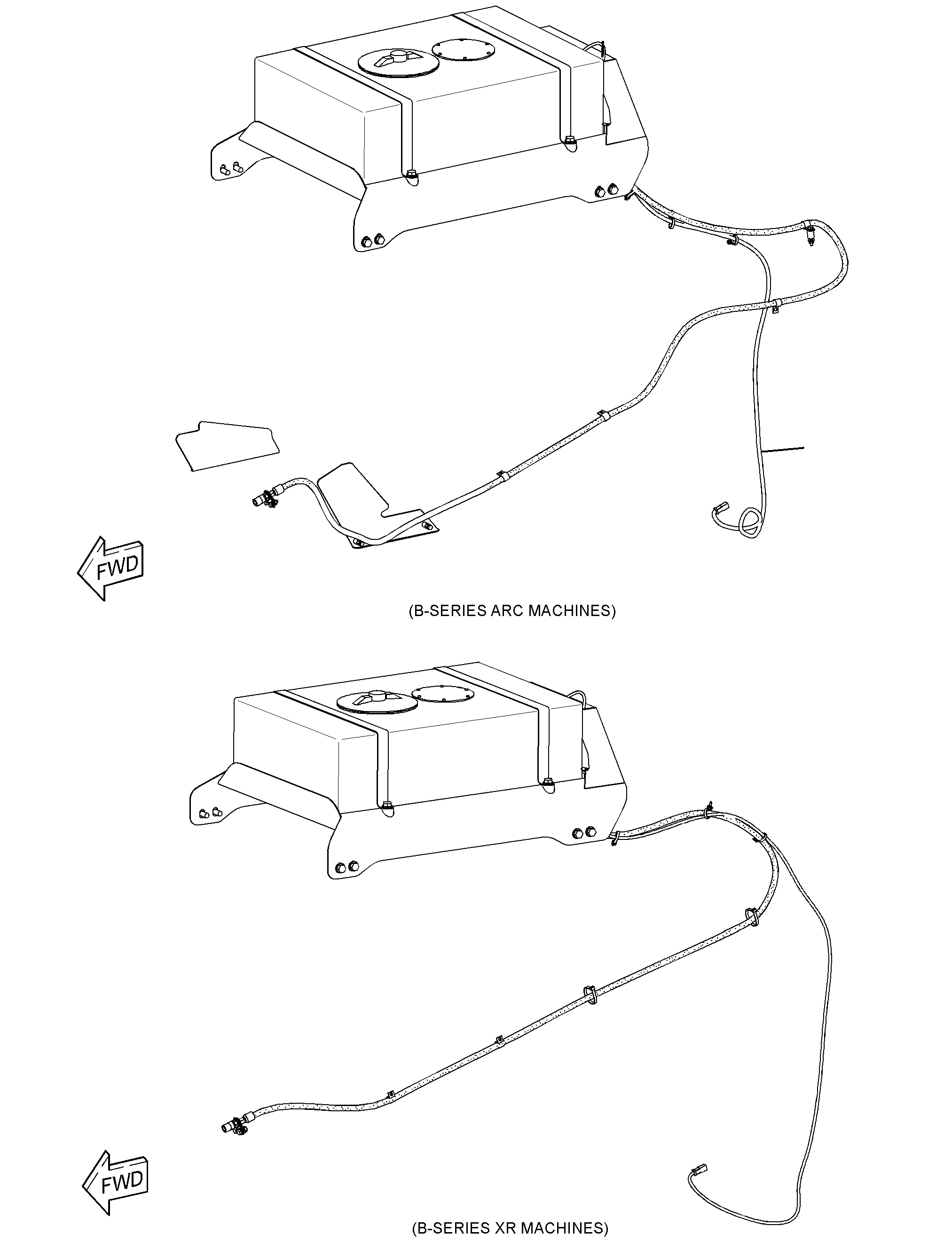

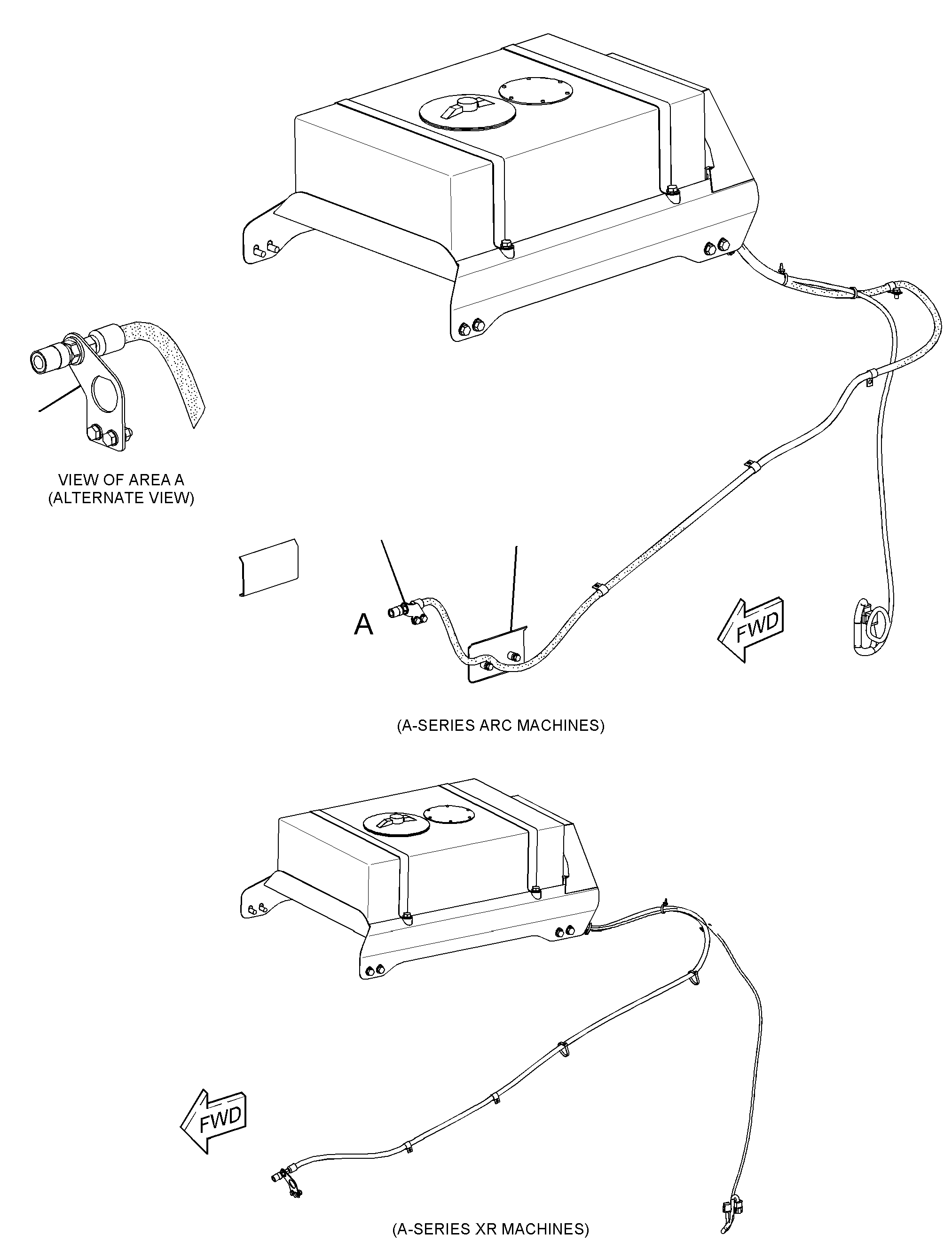

346-1834 TANK & MTG GP-WATER -KITS/N CAB1224-UP; CMB1646-UP; 4NZ5805-UP; 5FZ11443-UP

Group No: 346-1834
Part NumberPart NameQty
3B72551 BUSHING-REDUCER1
3S20932 STRAP-CABLE4
4E07243 SPACER (9X20X28-MM THK)1
7X04954 ADAPTER1
8T07375 VALVE-SHUTOFF (WATER TANK)1
11620016 STRAINER GP-WATER1
12419167 COUPLING-PERMANENT1
12419178 COUPLING-PERMANENT1
16548949 HARNESS AS-WORK TOOL (WATER TANK)1
1261767PIN-CONNECTOR (14-GA TO 16-GA)8
1552270KIT-CONNECTING PLUG (2-PIN)1
1552265KIT-CONNECTING PLUG (8-PIN)1
1028806KIT-RECEPTACLE (8-PIN)1
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)10
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(13-CM)
166255110 TANK GP-WATER1
166255211 HOSE AS1
166255712 PLATE1
166255813 COUPLING1
166255914 BRACKET2
218584715 PLATE1
233589216 PLATE AS1
233589317 PLATE AS1
346183218 PUMP GP-DIAPHRAGM (WATER TANK)1
346183619 BRACKET AS1
003214320 ELBOW1
067255121 CLIP2
095091222 CLIP2
101286723 WASHER-HARD (7.2X25X2-MM THK)4
111462724 SCREW-MACHINE (M6X1X30-MM)4
119385925 SCREW-PAN HEAD (10-16X0.75-IN)6
129317826 LOCKNUT (M6X1-THD)4
1L227927 ELBOW1
5C726128 NUT (M8X1.25-THD)3
5P411629 WASHER-HARD (8.8X20.5X2-MM THK)1
5P824630 WASHER-HARD (15.5X29X3-MM THK)2
8T412231 WASHER-HARD (17X32X3.5-MM THK)16
8T413232 NUT (M16X2-THD)4
8T420533 WASHER-HARD (7.2X14.5X2-MM THK)2
8T422434 WASHER-HARD (8.8X16X2-MM THK)8
8T477935 BOLT (M16X2X35-MM)12
8T490836 BOLT (M8X1.25X25-MM)6
8T686937 BOLT (M8X1.25X60-MM)1
122686938 HOSE-HYDRAULIC (140.2-IN)
1226869HOSE-HYDRAULIC (113-IN)
1226869HOSE-HYDRAULIC (120.1-IN)
167060839 SEAL (82-CM)
7K118140 STRAP-CABLE2
8T412141 WASHER-HARD (11X21X2.5-MM THK)7
8T413342 NUT (M10X1.5-THD)2
8T413643 BOLT (M10X1.5X25-MM)2
195669644 PLATE1
142750545 PLATE AS2
166255646 BRACKET1
8T419147 BOLT (M10X1.5X16-MM)2
8T413748 BOLT (M10X1.5X20-MM)5
356611249 HARNESS AS-WORK TOOL (WATER PUMP)1
1028802KIT-RECEPTACLE (2-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)2
1552270KIT-CONNECTING PLUG (2-PIN)1
