System And Components

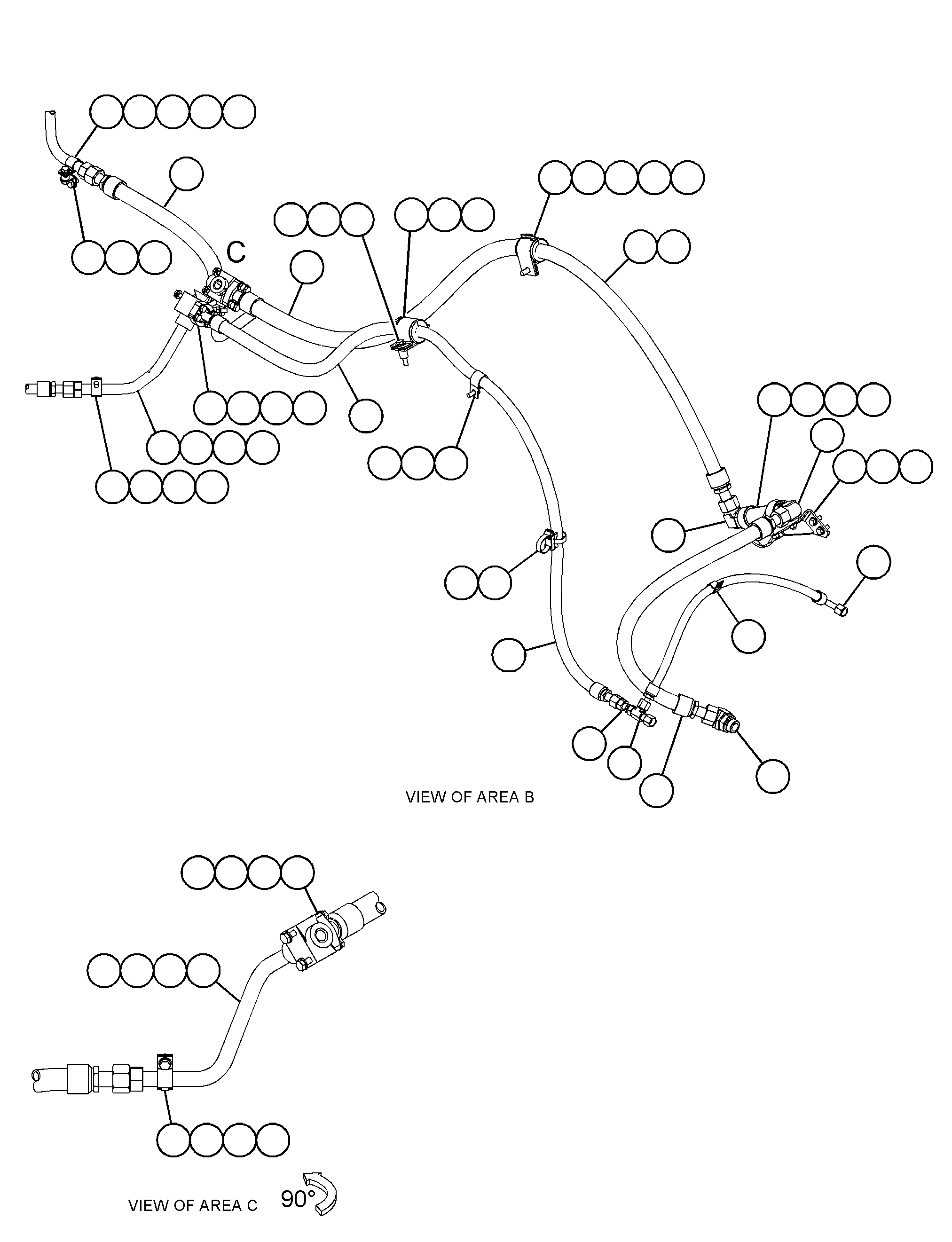

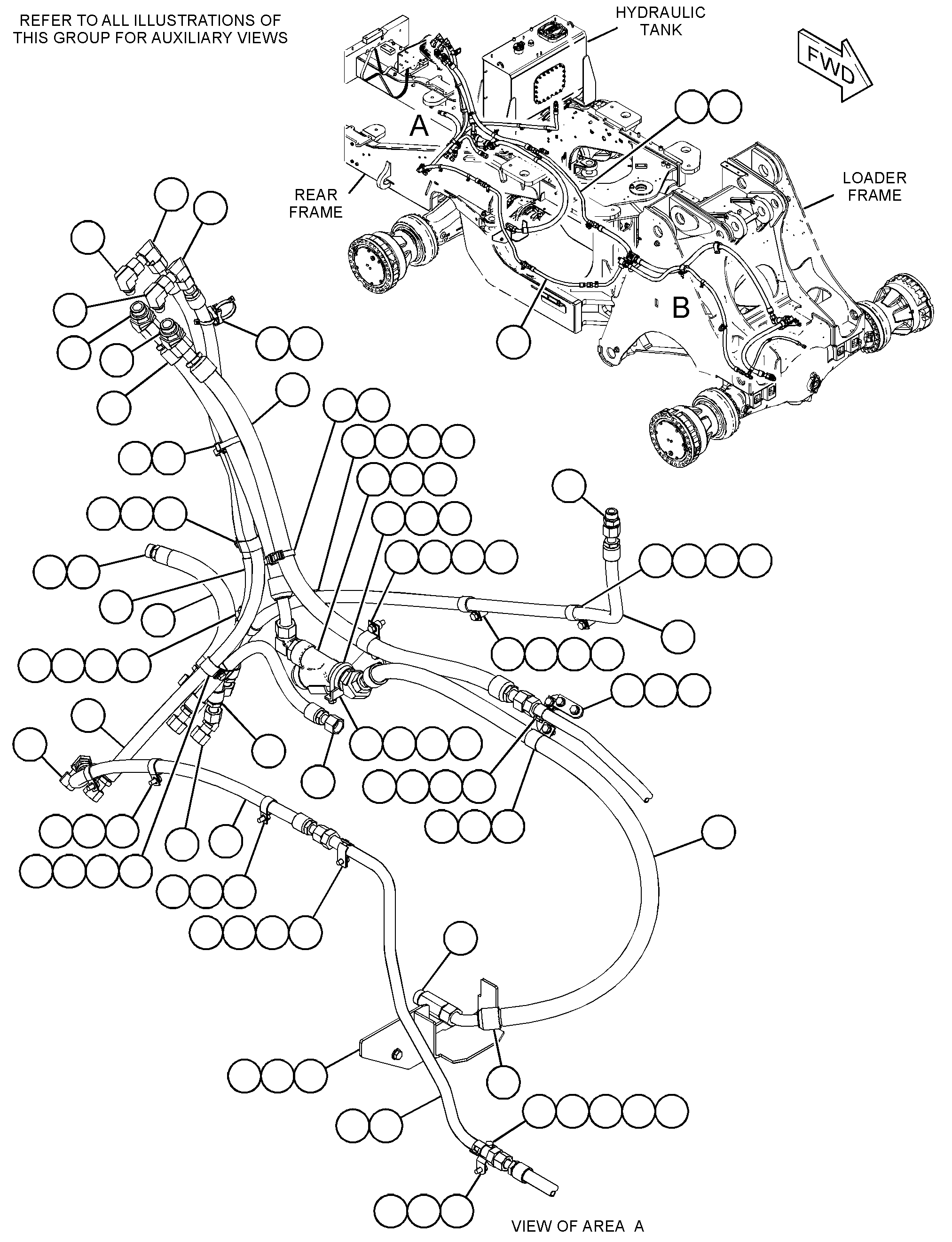

457-3214 LINES GP-AXLE OIL COOLERS/N WMD1-UP
Group No: 457-3214
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7K1181 | 1 STRAP-CABLE | 2 | |
| 8C3206 | 2 FLANGE-HALF | 4 | |
| 1243019 | 3 BRACKET AS | 2 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 1488327 | 4 CONNECTOR AS | 1 | |
| 6V8637 | CONNECTOR | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488355 | 5 ELBOW AS | 3 | |
| 6V9005 | ELBOW | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488388 | 6 ELBOW AS | 2 | |
| 6V8629 | ELBOW | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488391 | 7 ELBOW AS | 3 | |
| 8T8987 | ELBOW | 1 | |
| 2S4078 | SEAL-O-RING | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 1488392 | 8 ELBOW AS | 3 | |
| 6V9853 | ELBOW | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488444 | 9 TEE AS-SWIVEL | 1 | |
| 6V9837 | TEE-SWIVEL | 1 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 1552027 | 10 CONNECTOR AS | 1 | |
| 8T8898 | CONNECTOR | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1645662 | 11 ELBOW AS | 1 | |
| 1434281 | ELBOW | 1 | |
| 2S4078 | SEAL-O-RING | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 1716723 | 12 ELBOW AS | 1 | |
| 8T8899 | ELBOW | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 2058113 | 13 BRACKET AS | 1 | |
| 2516351 | 14 FILTER-MAGNETIC (AXLE OIL COOLER) | 2 | |
| 4543154 | 15 GUARD AS | 1 | |
| 3894254 | 16 HOSE AS | 1 | |
| 3894256 | 17 HOSE AS | 1 | |
| 3894257 | 18 HOSE AS | 1 | |
| 3894263 | 19 HOSE AS | 1 | |
| 3894293 | 20 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 4 | |
| 3894376 | 21 HOSE AS | 1 | |
| 4264060 | 22 ADAPTER AS | 1 | |
| 4264059 | ADAPTER | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 4419437 | 23 HOSE AS | 1 | |
| 4419439 | 24 HOSE AS | 1 | |
| 4419440 | 25 HOSE AS | 1 | |
| 4419441 | 26 TUBE AS | 1 | |
| 4419442 | 27 TUBE AS | 1 | |
| 4419443 | 28 TUBE AS | 1 | |
| 4419444 | 29 TUBE AS | 1 | |
| 4419445 | 30 HOSE AS | 1 | |
| 4419446 | 31 HOSE AS | 1 | |
| 4419452 | 32 HOSE AS | 1 | |
| 4419453 | 33 HOSE AS | 1 | |
| 4772991 | 34 BRACKET AS | 1 | |
| 4772993 | 35 HOSE AS | 1 | |
| 4772994 | 36 HOSE AS | 1 | |
| 4832517 | 37 CLIP (LOOP) | 1 | |
| 4848857 | 38 HOSE AS | 1 | |
| 0919035 | 39 SPACER (11X25X20-MM THK) | 2 | |
| 1336934 | 40 SPACER (11X20X25-MM THK) | 3 | |
| 1497738 | 41 CLIP (LOOP) | 8 | |
| 1628352 | 42 U-BOLT | 2 | |
| 1984777 | 43 WASHER-HARD (11X25X10-MM THK) | 1 | |
| 1S0994 | 44 CLIP (LOOP) | 1 | |
| 2006345 | 45 SADDLE-MOUNTING (DUAL SWIVEL) | 4 | |
| 2042281 | 46 STRAP-CABLE | 6 | |
| 3445675 | 47 NUT (M10X1.5-THD) | 7 | |
| 3979301 | 48 WASHER-HARD (11.5X20X15-MM THK) | 3 | |
| 4D7388 | 49 CLIP | 2 | |
| 4J0520 | 50 SEAL-O-RING | 2 | |
| 5K9090 | 51 SEAL-O-RING | 3 | |
| 5P7468 | 52 CLIP (SLOT) | 2 | |
| 5P7469 | 53 CLIP (TAB) | 2 | |
| 6V1889 | 54 CLIP (LOOP) | 3 | |
| 6V4349 | 55 GROMMET | 1 | |
| 6V9746 | 56 SEAL-O-RING | 4 | |
| 7X7729 | 57 WASHER (11X25X3-MM THK) | 3 | |
| 8T1889 | 58 CLIP (SLOT) | 6 | |
| 8T1890 | 59 CLIP (TAB) | 6 | |
| 8T4121 | 60 WASHER-HARD (11X21X2.5-MM THK) | 43 | |
| 8T4136 | 61 BOLT (M10X1.5X25-MM) | 3 | |
| 8T4137 | 62 BOLT (M10X1.5X20-MM) | 8 | |
| 8T4139 | 63 BOLT (M12X1.75X30-MM) | 2 | |
| 8T4182 | 64 BOLT (M10X1.5X45-MM) | 2 | |
| 8T4186 | 65 BOLT (M10X1.5X40-MM) | 2 | |
| 8T4195 | 66 BOLT (M10X1.5X30-MM) | 5 | |
| 8T4196 | 67 BOLT (M10X1.5X35-MM) | 15 | |
| 8T4223 | 68 WASHER-HARD (13.5X25.5X3-MM THK) | 3 | |
| 8T4956 | 69 BOLT (M12X1.75X35-MM) | 1 | |
| 8T5005 | 70 BOLT (M10X1.5X70-MM) | 2 | |
| 8T6466 | 71 BOLT (M10X1.5X60-MM) | 1 | |
| 8T7087 | 72 GROMMET (34-MM ID) | 1 | |
| 7Y5074 | 73 GUARD-HOSE (95-CM) | ||
| 7Y5074 | 73A GUARD-HOSE (140-CM) | ||
| 7Y5074 | 73B GUARD-HOSE (105-CM) | ||
| 7Y5074 | 73C GUARD-HOSE (37-CM) | ||
| 7Y5074 | 73D GUARD-HOSE (16-CM) |
