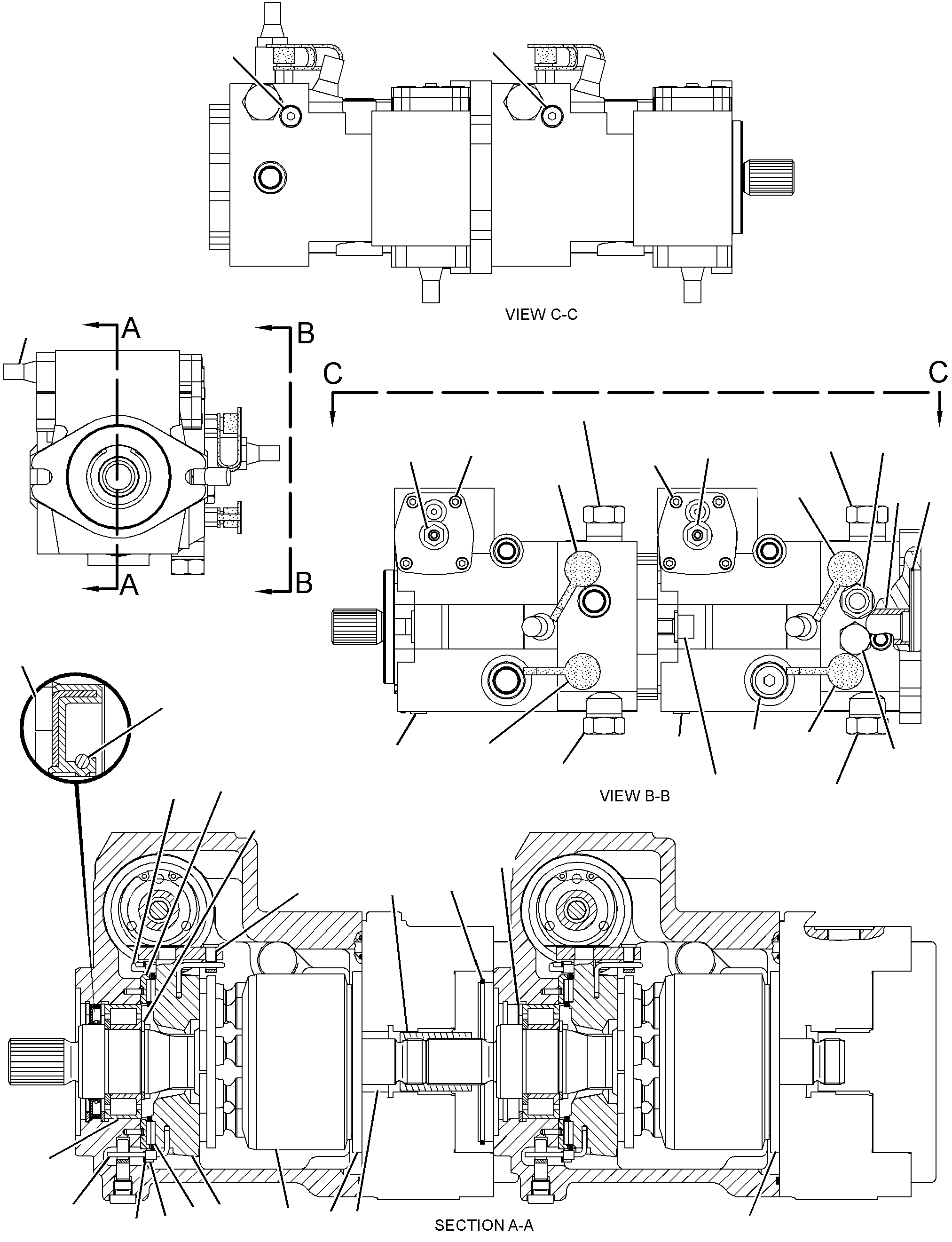

Assembly
100%

180-3006 PUMP GP-PISTONS/N 4YZ769-3999; 5SZ651-3999

Group No: 180-3006
Part NumberPart NameQty
6E50601 CAP AS (TAMPERPROOF)3
6V08522 CAP-DUST4
16777133 RING-BACKUP4
17703374 KIT-PUMP REPAIR2
17703365 PLATE-CONTROL2
20414546 PIN-THREADED2
20414557 NUT-SEALING (M8X1-THD)2
20414568 SHIM (1.8-MM THK)1
26819219 CARTRIDGE AS-VALVE1
121487010 VALVE-RELIEF4
212667911 VALVE GP-RELIEF1
212668012 COUPLING2
110634913 FITTING AS (QUICK DISCONNECT)4
2M978014 SEAL-O-RING1
3J190715 SEAL-O-RING2
3J735416 SEAL-O-RING2
3K071517 SEAL-O-RING2
6V532618 SEAL-O-RING4
6V558619 SEAL-O-RING2
6V835220 SEAL-O-RING1
8T026721 BOLT-SOCKET HEAD (M6X1X12-MM)8
8T422322 WASHER-HARD (13.5X25.5X3-MM THK)2
8T495623 BOLT (M12X1.75X35-MM)2
9S800224 PLUG (7/16-20-THD)2
9S800425 PLUG (9/16-18-THD)2
9S800626 PLUG (7/8-14-THD)1
9X660627 NUT-HEX (M10X1-THD)2
126563728 WIRE2
204145229 RING-RETAINING3
140180230 SEAL-RING1
107030931 BEARING2
126564032 BEARING-ROLLER2
1G341033 ROD2
6E072534 ROLLER4
107030735 CRADLE-BEARING2
192425536 BODY2
121445937 BEARING-ROLLER2
108356538 CLIP2
126563539 ROLLER2
112465740 PIN2
2689528KIT-SEAL1
