System And Components

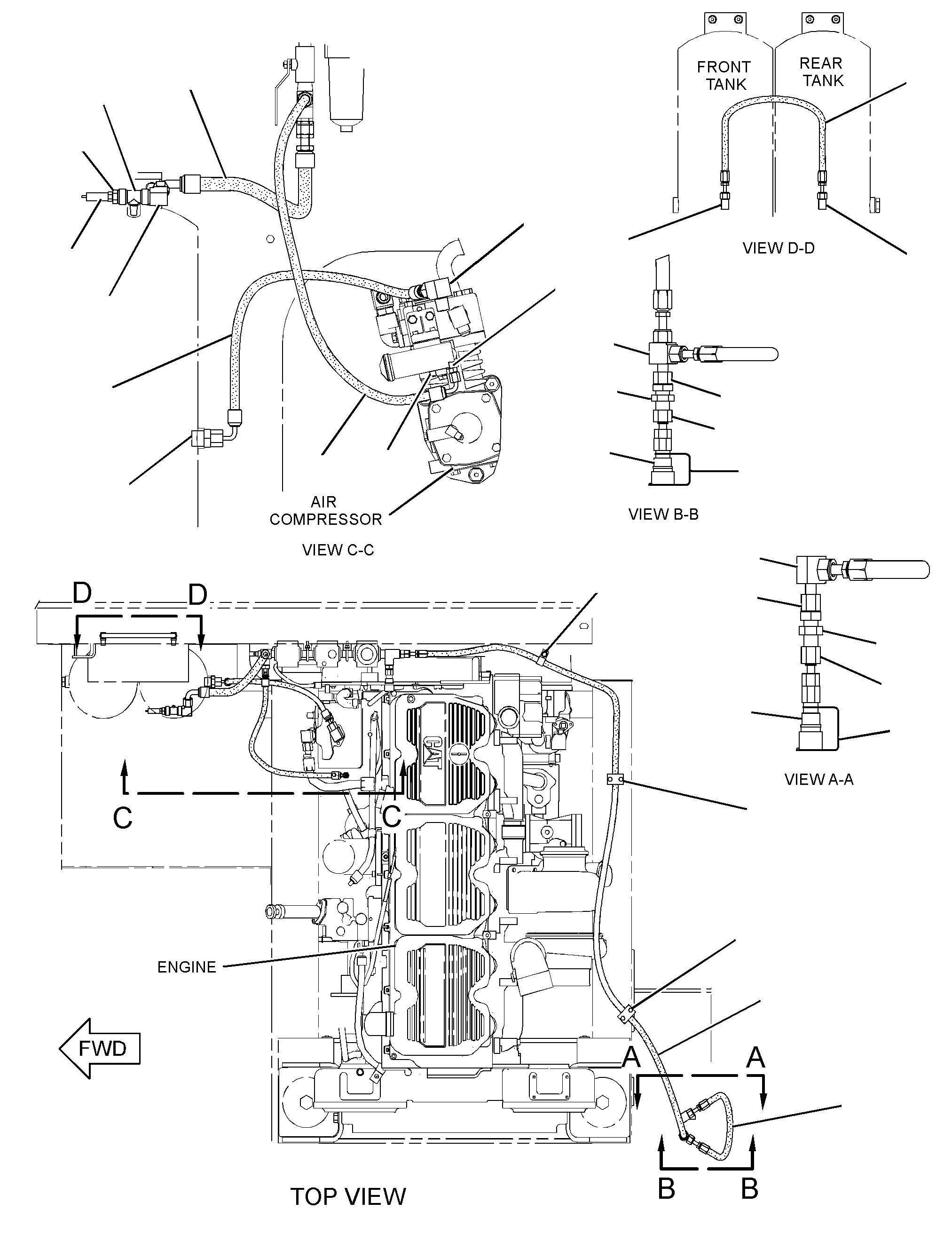

247-4484 LINES GP-AIR COMPRESSORS/N PNM1-UP
Group No: 247-4484
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3T9693 | 1 HOSE AS | 1 | |
| 6B9664 | 2 VALVE-AIR RELIEF | 1 | |
| 7R7907 | 3 CLAMP | 4 | |
| 7V5628 | 4 PLATE (TOP) | 2 | |
| 8C7993 | 5 COVER-DUST | 2 | |
| 0025299 | 6 TEE-PIPE | 1 | |
| 1079385 | 7 HOSE AS | 1 | |
| 1079388 | 8 HOSE AS | 1 | |
| 1079391 | 9 HOSE AS | 1 | |
| 1082706 | 10 COUPLING | 2 | |
| 1216194 | 11 HOSE AS | 1 | |
| 1382583 | 12 HOSE AS | 1 | |
| 1837258 | 13 ELBOW AS | 2 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 7X5331 | ELBOW | 1 | |
| 2081629 | 14 ELBOW AS | 1 | |
| 2T2396 | ELBOW | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 0047626 | 15 CONNECTOR (FLARED) | 1 | |
| 1488367 | 16 ELBOW AS | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9850 | ELBOW | 1 | |
| 1488433 | 17 TEE AS (ORFS) | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V9836 | TEE-SWIVEL | 1 | |
| 1495452 | 18 UNION AS (STRAIGHT)(ORFS) | 2 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8994 | UNION (STRAIGHT) | 1 | |
| 1503070 | 19 ADAPTER AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 7X3163 | ADAPTER-SWIVEL | 1 | |
| 6D4246 | 20 CLIP (LOOP) | 1 | |
| 2N3378 | 21 ELBOW-FLARED | 1 | |
| 3B7722 | 22 BUSHING-PIPE | 1 | |
| 4M5282 | 23 BOLT (1/4-20X1.5-IN) | 4 | |
| 8T4908 | 24 BOLT (M8X1.25X25-MM) | 1 | |
| 5P4116 | 25 WASHER-HARD (8.8X20.5X2-MM THK) | 1 | |
| 6V9168 | 26 NUT (11/16-16-THD) | 2 | |
| 8L6557 | 27 CONNECTOR (FLARED) | 1 | |
| 9F2247 | 28 PLUG-PIPE (1/8-27-THD) | 1 |
