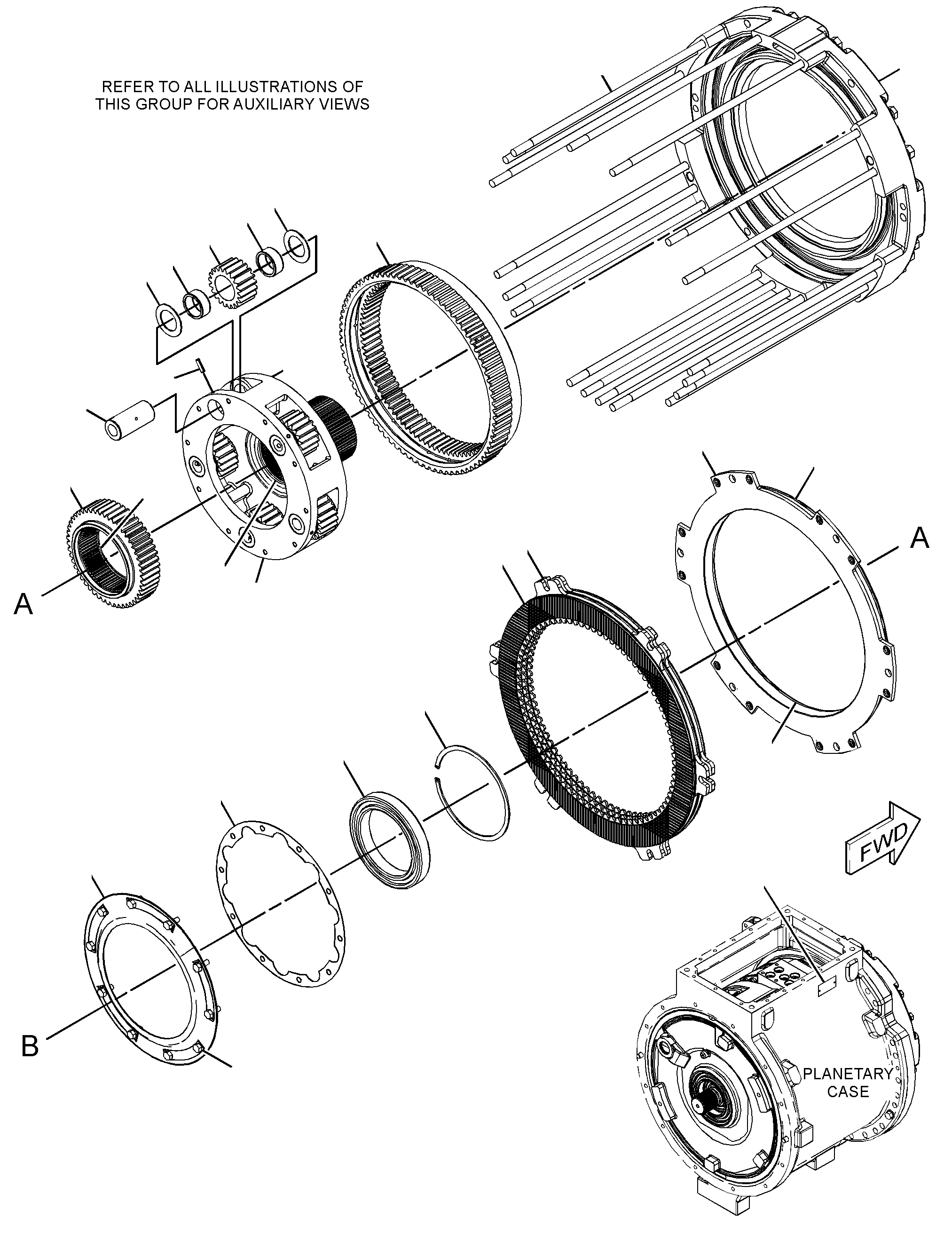

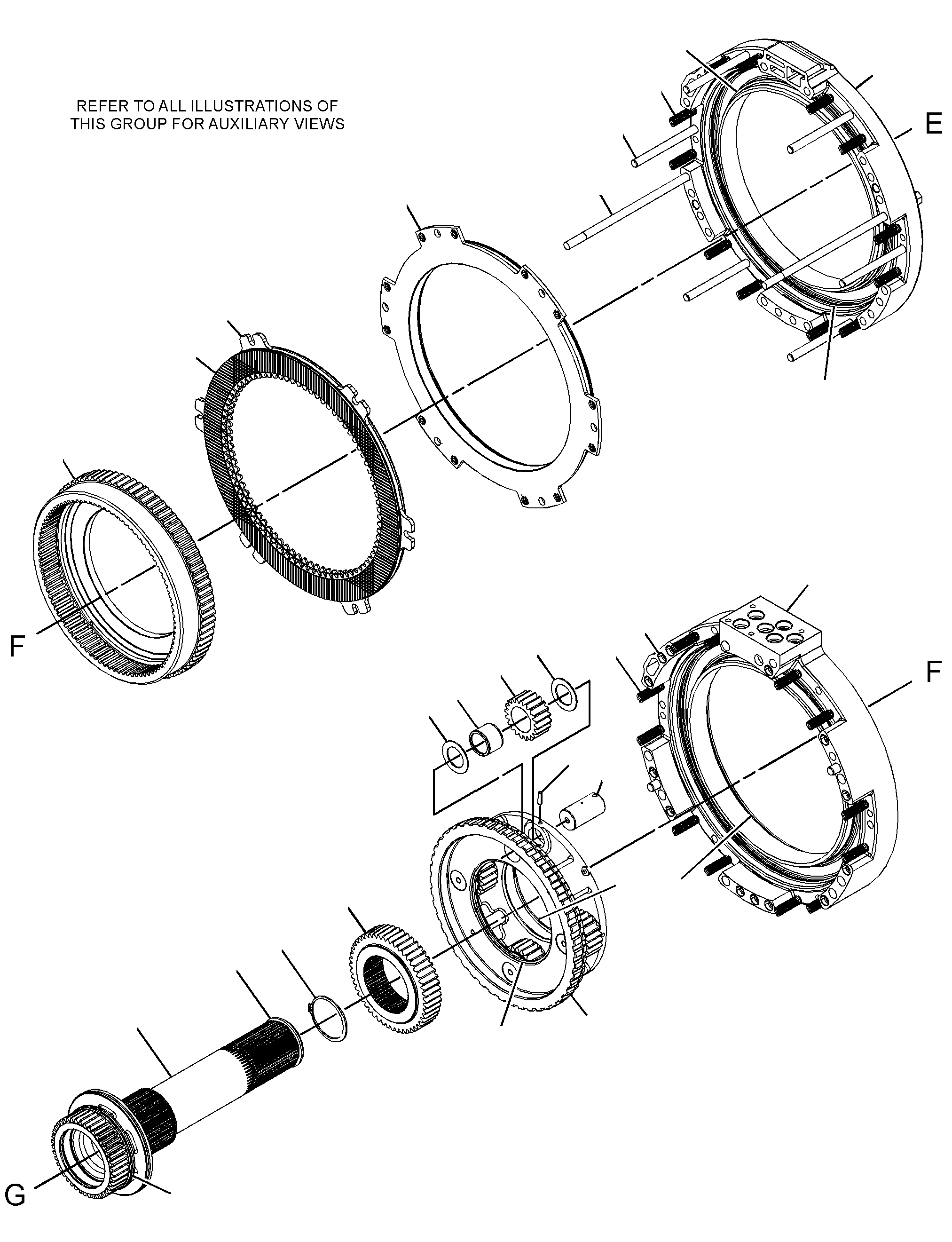

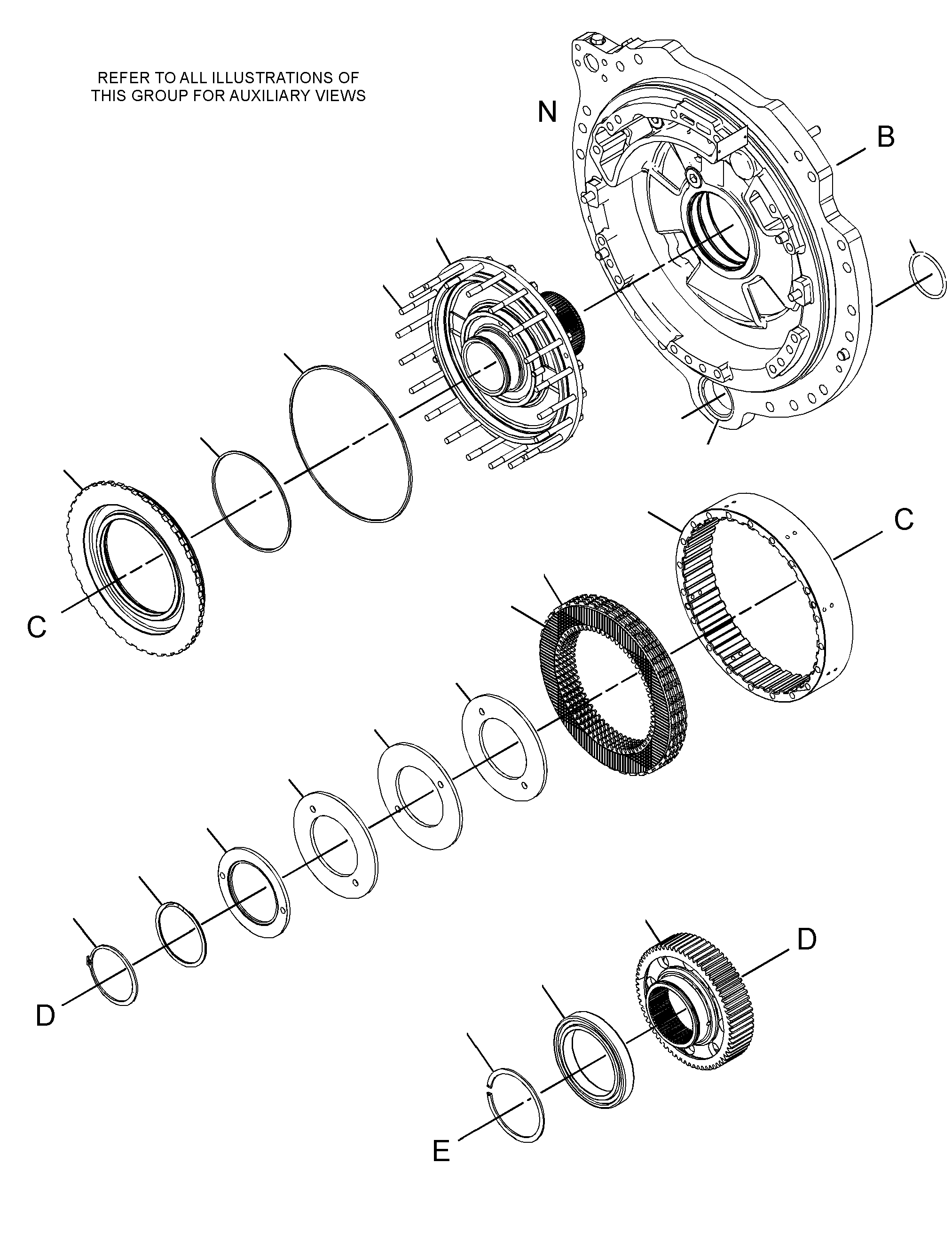

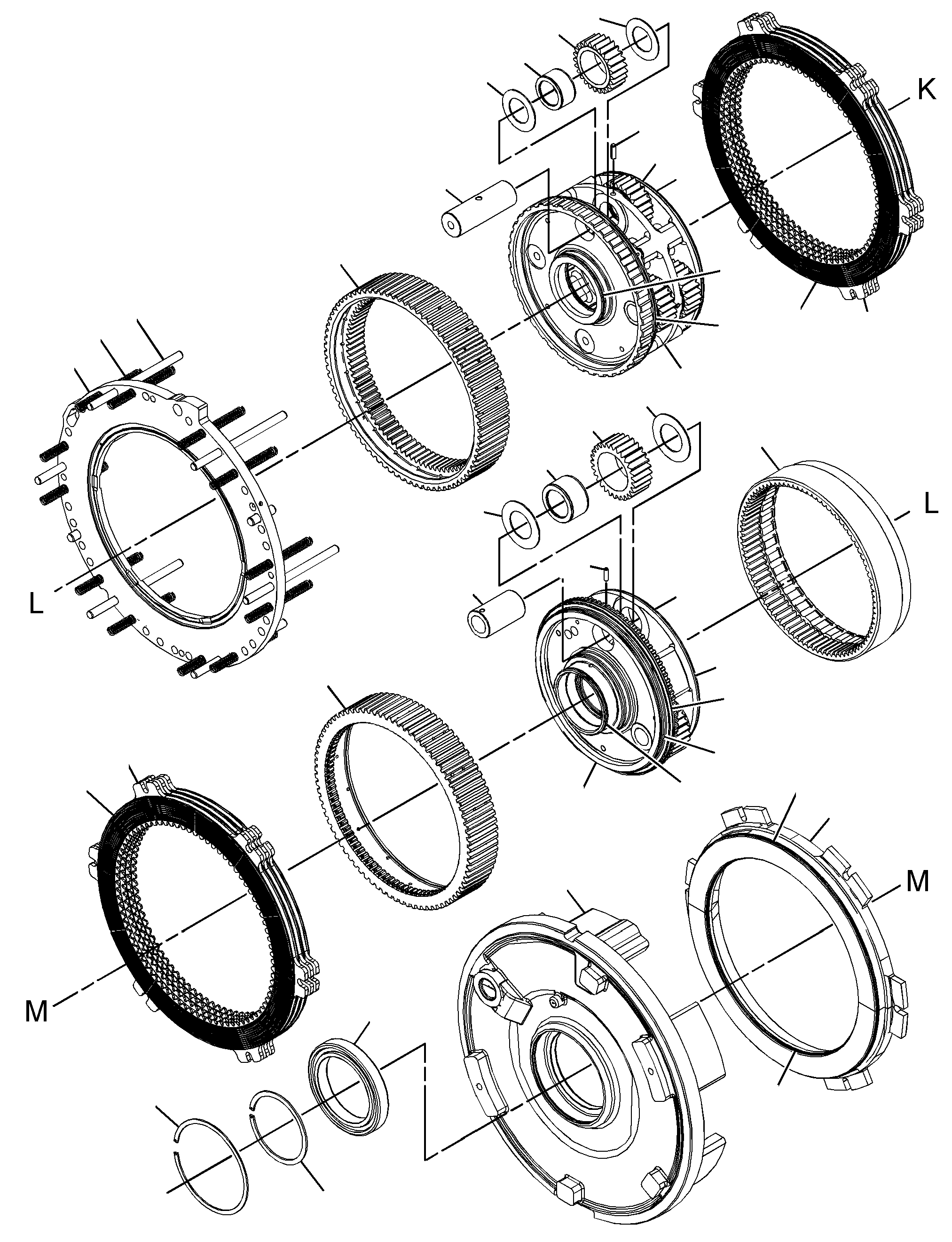

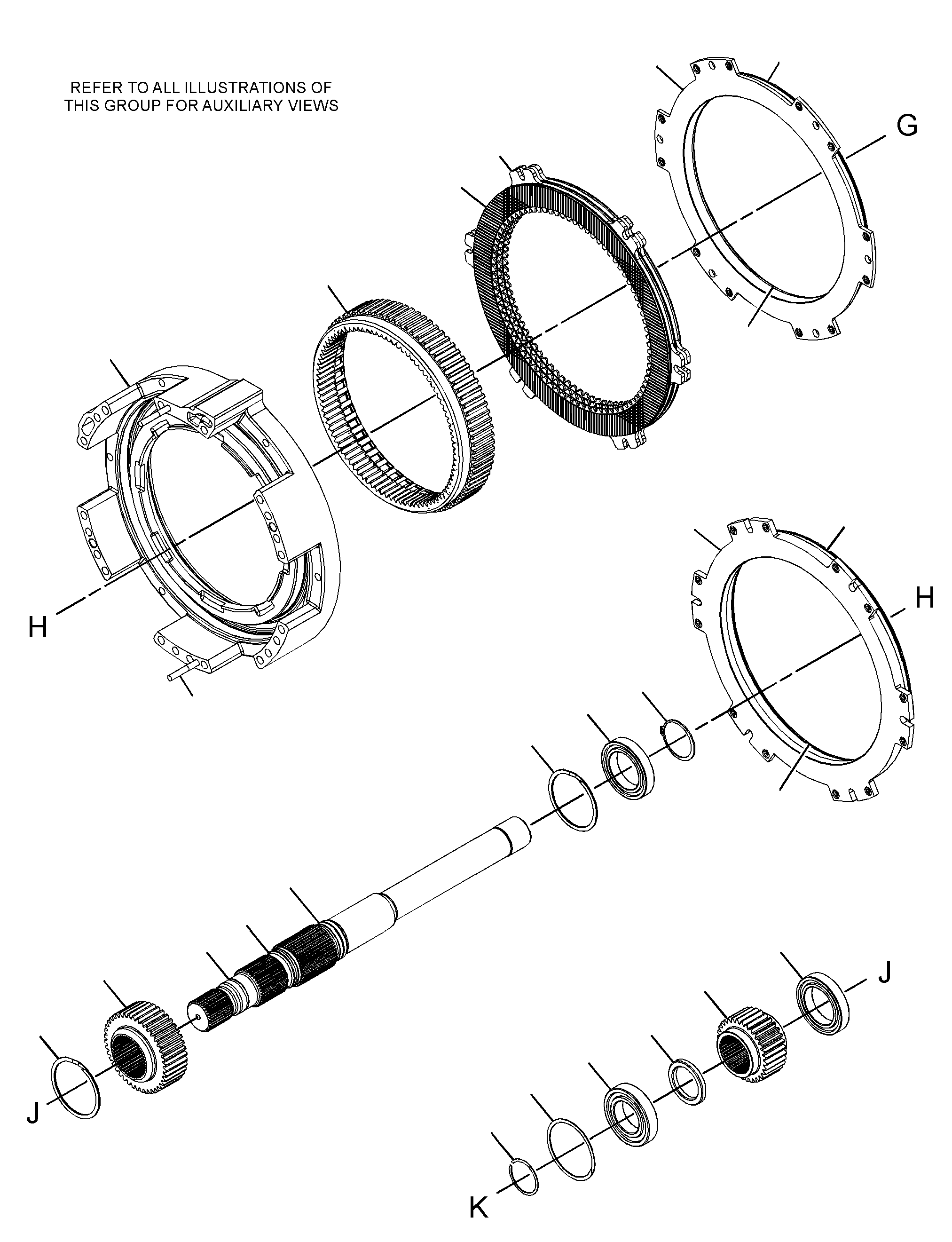

System And Components
366-9917 PLANETARY GP-TRANSMISSIONS/N MKZ1-UP
Group No: 366-9917
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5M2054 | 1 BEARING | 10 | |
| 5M6126 | 2 BEARING AS-ROLLER | 4 | |
| 1P3958 | 3 ROLLER AS-SPECIAL | 3 | |
| 5M7925 | 4 BEARING AS-ROLLER | 8 | |
| 6Y3484 | 5 BALL BEARING | 3 | |
| 1067798 | 6 BALL BEARING | 2 | |
| 1P0014 | 7 RING-LOCK | 1 | |
| 3P2685 | 8 PISTON-CLUTCH | 3 | |
| 3P2761 | 9 HOUSING-CLUTCH | 1 | |
| 3P2768 | 10 PISTON-CLUTCH | 1 | |
| 3P2791 | 11 HOUSING-CLUTCH | 1 | |
| 3P2983 | 12 GEAR-SUN (32-TEETH) | 1 | |
| 3P3059 | 13 GEAR-SUN (42-TEETH) | 1 | |
| 3P3060 | 14 GEAR-SUN (50-TEETH) | 1 | |
| 3P3098 | 15 GEAR-RING (90-TEETH) | 1 | |
| 3P3242 | 16 SHAFT-PLANETARY | 5 | |
| 3P3246 | 17 SHAFT-PLANETARY | 3 | |
| 3P3304 | 18 PLATE-RETAINER | 1 | |
| 3P3321 | 19 SEAL-METAL RING | 2 | |
| 3P3418 | 20 GEAR-RING (88-TEETH) | 1 | |
| 3P3735 | 21 HOUSING AS-CARRIER | 1 | |
| 4S8537 | DOWEL | 1 | |
| 6B6863 | PIN-SPRING | 1 | |
| 6P7705 | CARRIER-RING | 1 | |
| 1644891 | 22 PLATE AS | 1 | |
| 2D6642 | BALL | 2 | |
| 7M8479 | DOWEL | 2 | |
| 3P4050 | 23 SPACER (2.9X3.3X0.125-IN THK) | 1 | |
| 3P7447 | 24 PLATE-CLUTCH | 6 | |
| 3T7138 | 25 GEAR-RING (80-TEETH) | 1 | |
| 5M6187 | 26 RING-METAL SEAL | 1 | |
| 6F0156 | 27 RING-METAL SEAL | 1 | |
| 6P3458 | 28 SPACER (2.179X3X0.366-IN THK) | 1 | |
| 6P5751 | 29 GEAR-RING (90-TEETH) | 1 | |
| 6P6739 | 30 SHAFT-PLANETARY | 4 | |
| 6P7379 | 31 HOUSING AS | 1 | |
| 8B1312 | DOWEL | 3 | |
| 6T3720 | 32 GEAR-RING (80-TEETH) | 1 | |
| 6V0836 | 33 RING-RETAINING | 3 | |
| 6V1720 | 34 PLATE-SERIAL NUMBER (TRANSMISSION) | 1 | |
| 6Y1616 | 35 CARRIER AS | 1 | |
| 4S8537 | DOWEL | 1 | |
| 6Y5793 | 36 RING-SEAL | 2 | |
| 7G0283 | 37 GEAR-RING (80-TEETH) | 1 | |
| 2825042 | 38 DISC-THRUST | 16 | |
| 7G2476 | 39 GEAR-PLANETARY (20-TEETH) | 4 | |
| 7G2486 | 40 GEAR-PLANETARY (20-TEETH) | 5 | |
| 7G3457 | 41 GEAR (25-TEETH) | 8 | |
| 7G5746 | 42 HOUSING-CLUTCH | 1 | |
| 7G6772 | 43 CARRIER AS | 1 | |
| 2D6642 | BALL | 2 | |
| 7H7658 | 44 SPRING | 12 | |
| 8C6761 | 45 RING-RETAINING | 1 | |
| 8E8304 | 46 DISC-THRUST | 18 | |
| 8E8316 | 47 DISC-THRUST | 6 | |
| 8P4617 | 48 SEAL-METAL RING | 1 | |
| 8T1141 | 49 RING-RETAINING | 2 | |
| 9F3788 | 50 RING-METAL SEAL | 1 | |
| 9H5537 | 51 SPRING | 36 | |
| 9M1503 | 52 RING-METAL SEAL | 1 | |
| 9M4355 | 53 DAMPER-BOLT | 20 | |
| 9P5531 | 54 GEAR-SUN (50-TEETH) | 1 | |
| 9W2977 | 55 HUB AS | 1 | |
| 4S8537 | DOWEL | 1 | |
| 9W3898 | 56 GEAR (28-TEETH) | 3 | |
| 9W9856 | 57 DISC AS-FRICTION | 8 | |
| 1082735 | 58 RING-LOCK | 1 | |
| 1082736 | 59 RING-LOCK | 2 | |
| 1124511 | 60 PIN-SPRING | 4 | |
| 1127308 | 61 CARRIER-PLANETARY | 1 | |
| 1127309 | 62 SHAFT-PLANETARY | 4 | |
| 1364838 | 63 CARRIER-PLANETARY | 1 | |
| 1364839 | 64 LOCK | 5 | |
| 1364840 | 65 SLINGER | 1 | |
| 1364841 | 66 GASKET | 1 | |
| 1600595 | 67 MANIFOLD AS | 1 | |
| 7M8480 | 67A DOWEL | 4 | |
| 3F3442 | 67B DOWEL | 1 | |
| 9S8008 | 67C PLUG (1-1/16-12-THD) | 2 | |
| 3D2824 | 67D SEAL-O-RING | 2 | |
| 6T6052 | 67E PLUG-ORIFICE | 1 | |
| 9S4191 | 67F PLUG (9/16-18-THD) | 1 | |
| 3J1907 | 67G SEAL-O-RING | 1 | |
| 1643302 | 68 PISTON-CLUTCH | 1 | |
| 1643303 | 69 PISTON-CLUTCH | 1 | |
| 1645079 | 70 SHAFT AS-OUTPUT | 1 | |
| 3P3103 | CARRIER-RING | 1 | |
| 5P0403 | BEARING-ROLLER | 1 | |
| 4326778 | 71 HOUSING AS | 1 | |
| 9S1343 | PLUG-CUP | 1 | |
| 2311270 | 72 HOUSING AS-CLUTCH | 1 | |
| 7M8480 | DOWEL | 4 | |
| 2339748 | 73 DISC-FRICTION | 8 | |
| 3708590 | 75 PLATE-CLUTCH | 5 | |
| 3708592 | 76 PLATE-CLUTCH | 4 | |
| 0S1617 | 77 BOLT (5/16-18X0.75-IN) | 10 | |
| 0T0065 | 78 BOLT (3/8-16X3.5-IN) | 20 | |
| 1332904 | 79 RING-RETAINING (89.5-MM ID) | 1 | |
| 1488407 | 80 PLUG AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 1N5410 | 81 RING-RETAINING | 1 | |
| 1P9261 | 82 SEAL-RING | 1 | |
| 1S9989 | 83 DOWEL-REACTION | 6 | |
| 2346707 | 84 DISC-FRICTION | 5 | |
| 2D5658 | 85 BALL BEARING | 1 | |
| 2D8363 | 86 SEAL-O-RING | 1 | |
| 3384562 | 87 BOLT-12 POINT HEAD (1/2-13X3.5 IN) | 2 | |
| 3P2792 | 88 SEAL-RING | 1 | |
| 3P2793 | 89 SEAL-RING | 5 | |
| 3P2794 | 90 SEAL-RING | 3 | |
| 3736708 | 91 SPRING-DISC | 3 | |
| 3P3743 | 92 RING-RETAINING | 1 | |
| 3S2708 | 93 PIN-SPRING | 12 | |
| 5M2894 | 94 WASHER-HARD (10.2X18.5X2.5-MM THK) | 20 | |
| 5P8245 | 95 WASHER-HARD (13.5X25.5X3-MM THK) | 20 | |
| 6J6721 | 96 BOLT (1/2-13X19.25-IN) | 18 | |
| 6S1753 | 97 RING-RETAINING | 1 | |
| 7F2122 | 98 SEAL-O-RING | 2 | |
| 7G4817 | 99 RING-SEAL | 1 | |
| 7G4818 | 100 RING-SEAL | 1 | |
| 8F8544 | 101 BOLT (3/8-16X6.25-IN) | 2 | |
| 8K2692 | 102 RING-RETAINING | 1 | |
| 8M4390 | 103 SEAL-O-RING | 2 | |
| 8M5661 | 104 SEAL-O-RING | 1 | |
| 8S6212 | 105 BOLT (1/2-13X13-IN) | 2 | |
| 8S9104 | 106 RING-RETAINING | 2 | |
| 9M2095 | 107 RING-RETAINING | 1 | |
| 9W8297 | 108 DOWEL | 6 | |
| 9W8298 | 109 DOWEL | 6 |
