System And Components

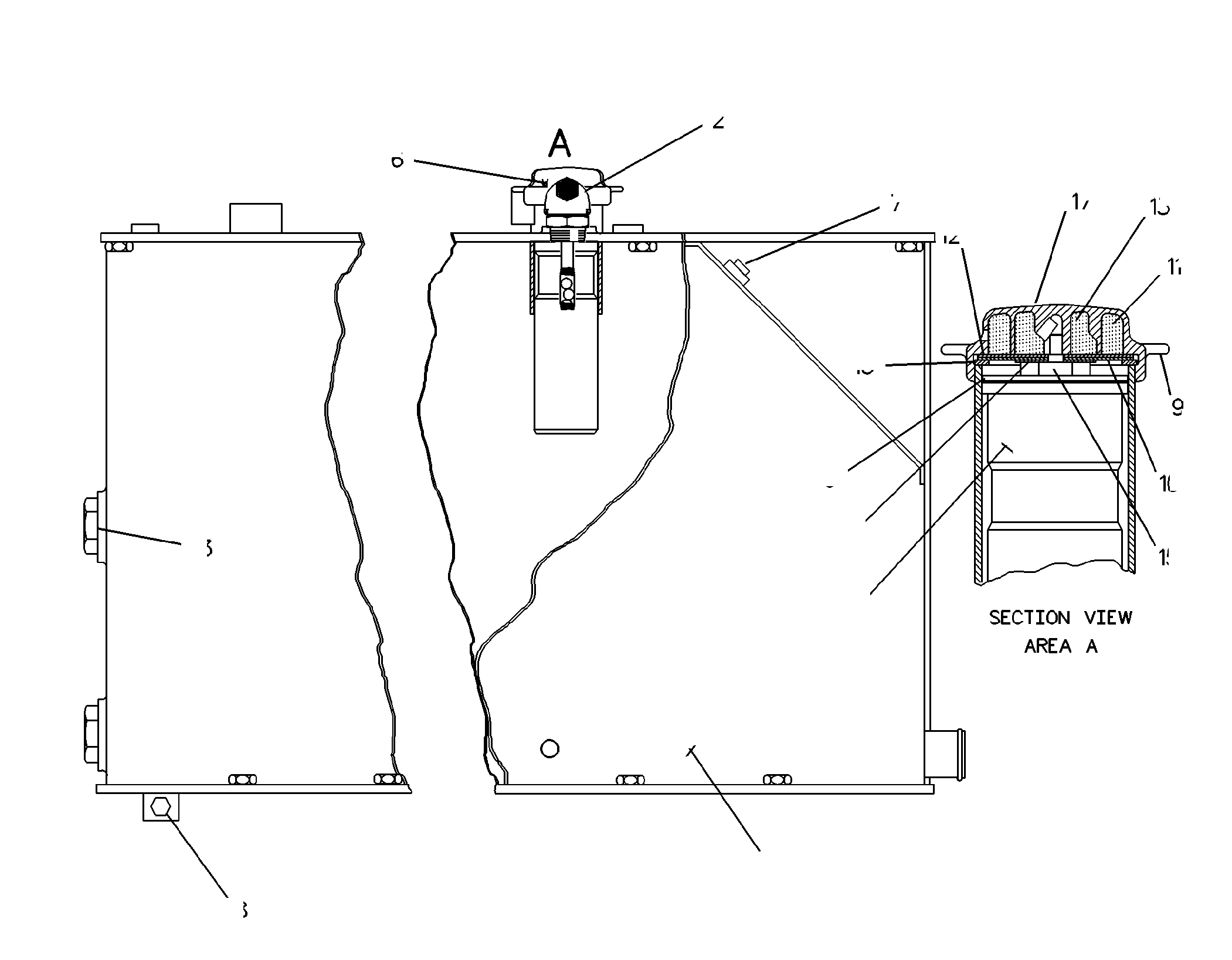

8X-6694 TANK GP-FUEL -LHS/N 9YF1-UP
Group No: 8X-6694
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8X1345 | 1 TANK AS (LH) | 1 | |
| 1H8305 | BLOCK | 1 | |
| 3W3506 | FITTING | 1 | |
| 5T0456 | TUBE | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 9 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 12 | |
| 5V6106 | 2 VENT AS | 1 | |
| 8X1365 | 3 GAUGE-SIGHT | 2 | |
| 9P7121 | 4 STRAINER-FUEL | 1 | |
| 8H3497 | 5 RING-RETAINING | 1 | |
| 2A5687 | 6 PIN | 1 | |
| 3B0551 | 7 PLUG-PIPE | 1 | |
| 1H8306 | 8 SCREW-PURGE (1/2-20X1.625-IN) | 1 | |
| 7T2036 | 9 CAP AS-FILLER (FUEL) | 1 | |
| 3F4134 | 10 BAFFLE (FUEL TANK FILL CAP) | 1 | |
| 4B1663 | 11 FILTER ELEMENT-FUEL (FUEL CAP) | 1 | |
| 4B5423 | 12 GASKET | 1 | |
| 4B5949 | 13 FILTER ELEMENT-FUEL (FUEL CAP) | 1 | |
| 7B2002 | 14 WASHER (10.2X44.5X3-MM THK) | 1 | |
| 7T2009 | 15 VALVE AS | 1 | |
| 7T2037 | 16 GASKET | 1 | |
| 8P0408 | 17 CAP-FILLER (FUEL TANK) | 1 | |
| 5T8645 | KIT-VENT (FUEL TANK) | 1 |
