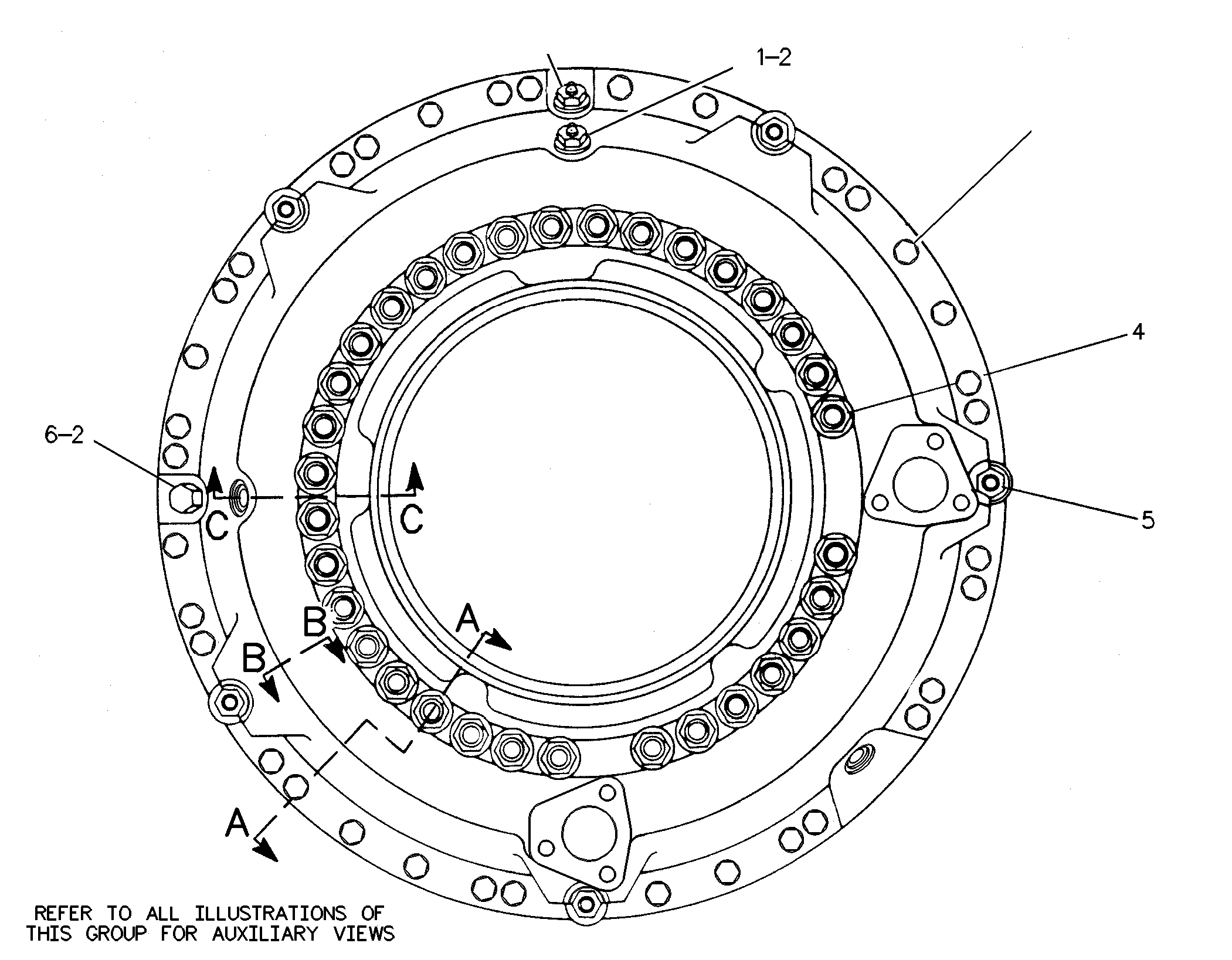

2A-7070 BRAKE GP-SERVICE & PARKINGS/N 7XJ200-UP

Group No: 2A-7070
Part NumberPart NameQty
9D61251 ADAPTER4
9F2167SCREW-PURGE (3/8-24X1.164-IN)4
2M97802 SEAL-O-RING6
9X64173 BOLT (5/8-11X3.75-IN)70
5P8247WASHER-HARD (17X32X3.5-MM THK)70
13947824 STUD-TAPERLOCK (7/8-9X3.15-IN)66
5P8249WASHER-HARD (24X41.5X4-MM THK)66
2J3505NUT-FULL (7/8-9-THD)66
5P42825 STUD-TAPERLOCK (5/8-11X8.858-IN)10
9D7989NUT (5/8-11-THD)10
9S41906 PLUG-O-RING (7/8-14-THD)2
7D30137 DAMPER AS4
15301958 PLATE2
0S15889 BOLT (3/8-16X1.25-IN)16
5M2894WASHER-HARD (10.2X18.5X2.5-MM THK)16
7D751910 SEAL-O-RING2
153019611 RETAINER-SEAL2
9X730712 RING-SEAL2
1232941SEAL-RING2
145603413 SEAL GP-DUO-CONE2
1456043RING-TORIC2
9W701714 DISC-FRICTION18
169644215 SEAL GP-DUO-CONE2
1576183RING-TORIC2
136700116 HUB-BRAKE2
5D480917 STUD-TAPERLOCK (5/8-11X4.213-IN)18
9D7989NUT (5/8-11-THD)18
109551018 HOUSING2
9D798719 SEAL2
1243520SEAL-RING2
9D798620 SEAL2
1237268SEAL-RING2
6M521821 SEAL-O-RING2
9D784922 PISTON2
109550823 ANCHOR-BRAKE2
9D911824 SPRING-GUIDE8
6M9155PIN8
9D912125 SPRING8
123727126 SEAL-RING2
9D7988SEAL2
2G120327 SEAL-RING2
2G348228 PISTON2
123727229 SEAL-RING2
5P5010SEAL-RING2
6D135530 SEAL-O-RING2
163936631 PLATE-OUTER16
5T637832 RING2
5P407633 SEAL-O-RING2
0S162534 BOLT (5/8-11X2.5-IN)70
5P8247WASHER-HARD (17X32X3.5-MM THK)70
9D798435 SEAL4
9D609336 SPRING56
9D613537 SPRING48
