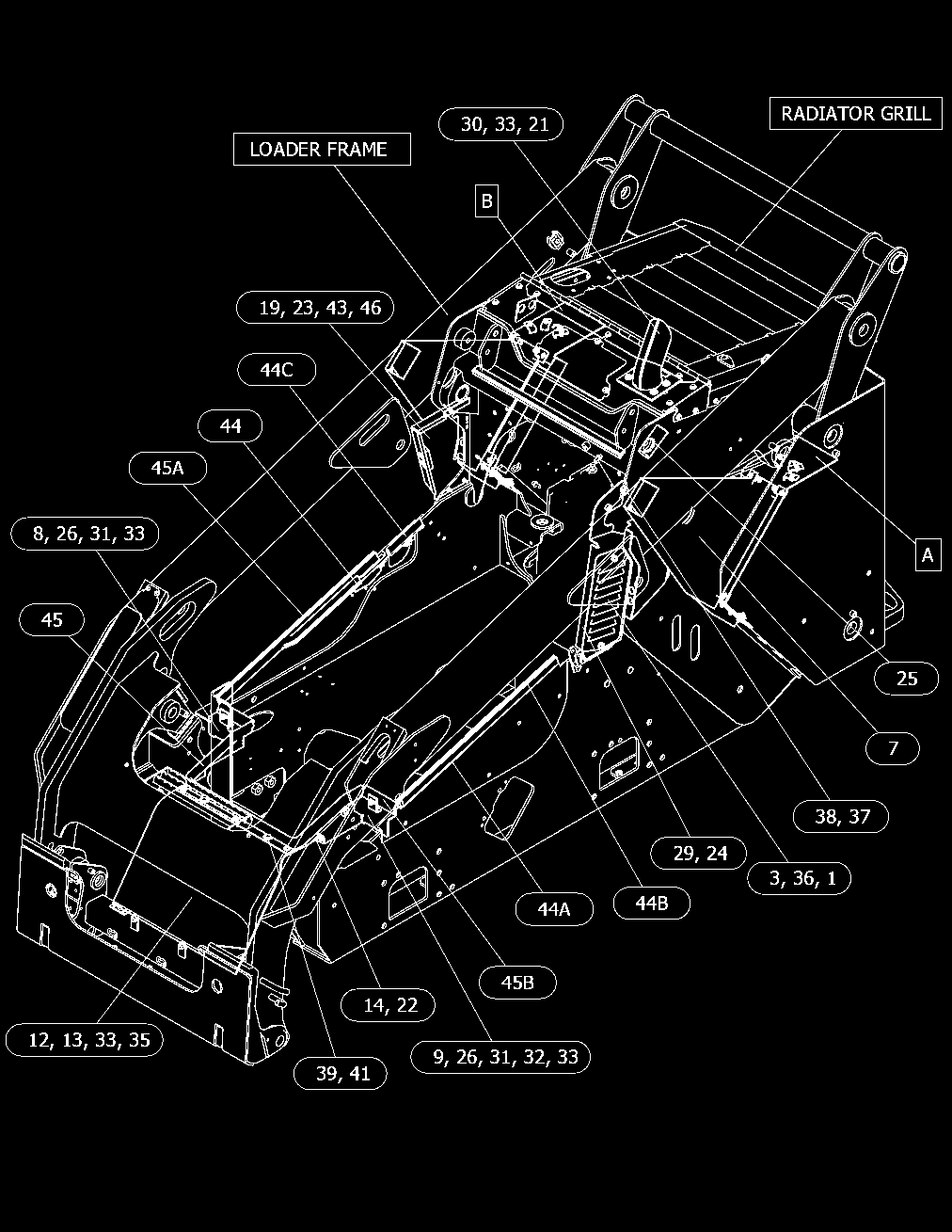

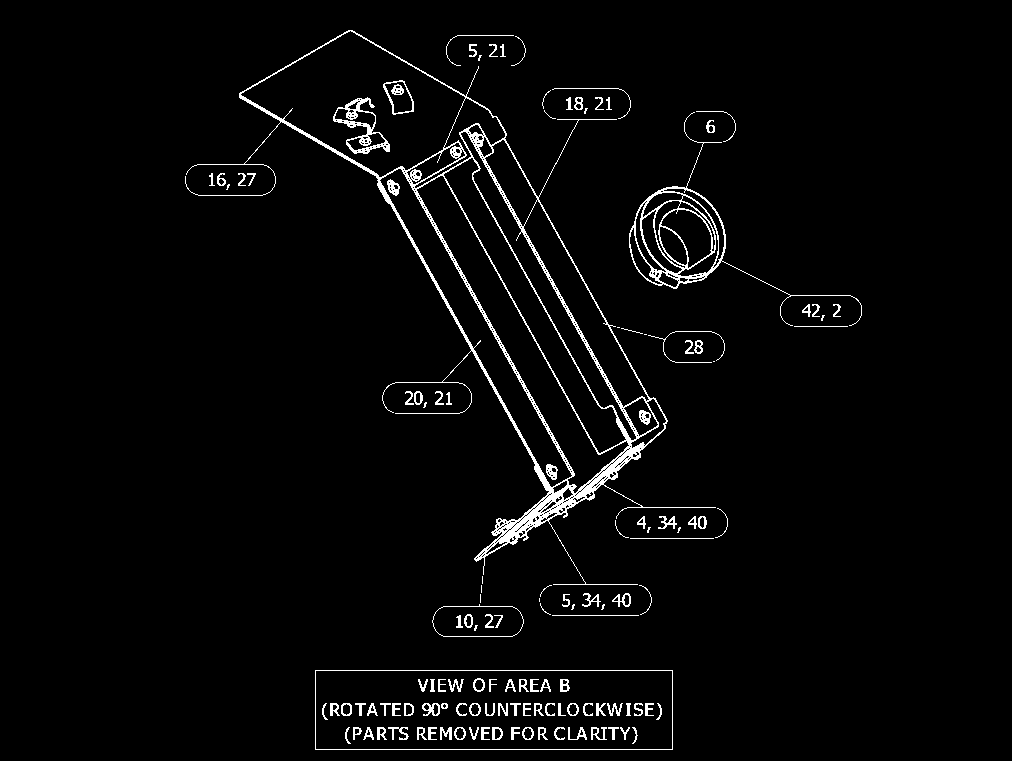

586-3141 ENCLOSURE GP -DEBRISS/N AN91-UP; BX91-UP; CY91-UP; DY91-UP

Group No: 586-3141
Part NumberPart NameQty
7K32621 SCREW2
32333092 CAP2
43750423 COVER1
44495324 PLATE (BOOT)4
44495335 PLATE (BOOT)4
44496806 GROMMET2
45860647 BOOT AS2
46259988 PLATE AS (RH)1
46259999 PLATE AS (LH)1
1599540NUT-WELD (M8X1.25-THD)1
471996710 SUPPORT AS (RH)1
471996811 SUPPORT AS (LH)1
1403943STUD (M6X1X16-MM)8
1599539NUT-WELD (M6X1-THD)4
473935612 GASKET1
473935713 PLATE1
473935814 PLATE AS1
3E6908STUD-WELD (M8X1.25X20-MM)3
476738615 SUPPORT AS (LH)1
476738716 SUPPORT AS (RH)1
1599539NUT-WELD (M6X1-THD)7
476738817 BRACKET1
476738918 BRACKET1
493796619 COVER AS1
506174620 PLATE2
113869421 BOLT (M6X1X20-MM)16
174919422 BOLT (M8X1.25X16-MM)2
266331423 BOLT-FLANGE HEAD (M6X1X20.5-MM)6
266331624 BOLT-FLANGE HEAD (M10X1.5X25-MM)2
282227025 STRAINER-FUEL1
342992226 BOLT-FLANGE HEAD (M8X1.25X25-MM)2
343407227 BOLT-FLANGE HEAD (M6X1X25-MM)10
345586728 INSULATION2
493796529 PLATE AS (LH)1
7K4201NUT-SPEED2
9R2821BOSS (M10X1.5X15-MM)2
0337291RIVET-POP4
558487030 COVER AS-EXHAUST1
5C726131 NUT (M8X1.25-THD)2
5H974332 GROMMET1
5P411633 WASHER-HARD (8.8X20.5X2-MM THK)9
6V774334 LOCKNUT (M6X1-THD)16
6V918935 LOCKNUT (M8X1.25-THD)3
7X203136 RETAINER2
8T412137 WASHER-HARD (11X21X2.5-MM THK)1
8T413638 BOLT (M10X1.5X25-MM)1
8T418339 BOLT (M12X1.75X40-MM)2
8T420540 WASHER-HARD (7.2X14.5X2-MM THK)16
8T422341 WASHER-HARD (13.5X25.5X3-MM THK)2
8T672642 CLAMP-HOSE2
9X203843 WASHER (7X19X2-MM THK)6
132850244 SEAL (71-CM EACH)
132850244A SEAL (52.2-CM)
132850244B SEAL (18-CM)
132850244C SEAL (16.5-CM)
123382745 SEAL (119-CM)
123382745A SEAL (79.5-CM EACH)
123382745B SEAL (15-CM EACH)
9X209246 TRIM-EDGE (43-CM)
