System And Components

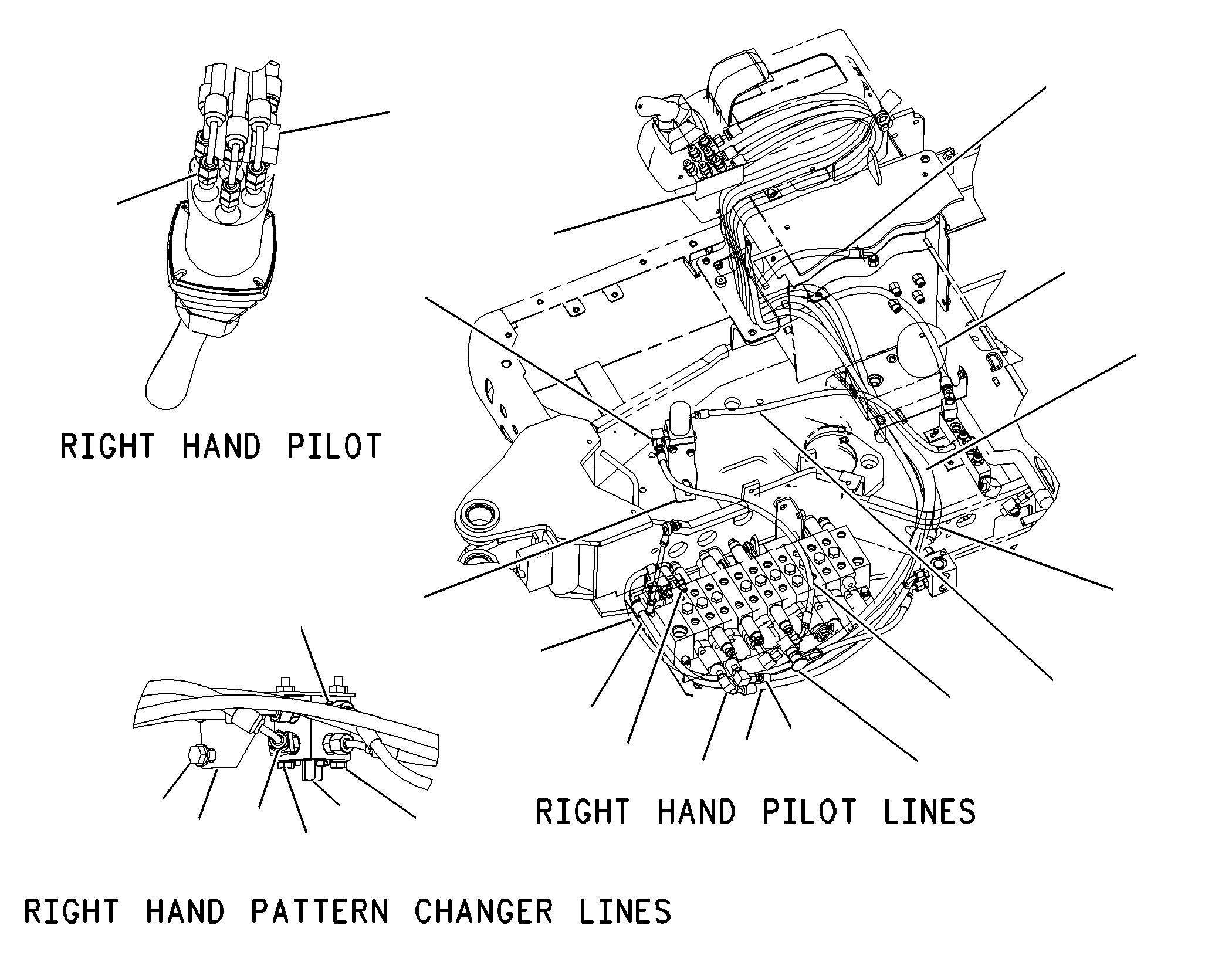

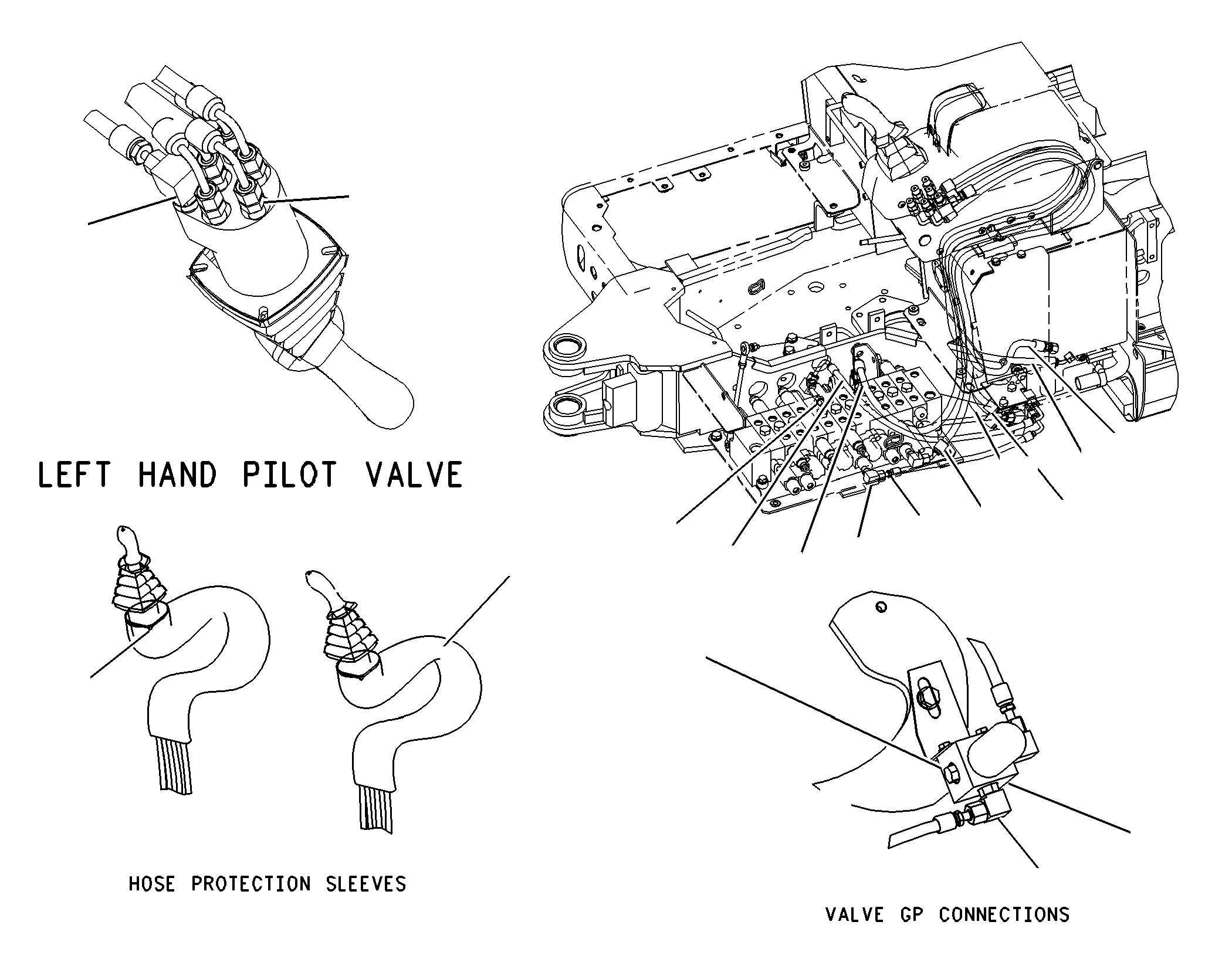

165-7199 LINES GP-PILOTS/N BFA1-UP; BDH1-UP; 3YW1-UP
Group No: 165-7199
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6K0806 | 1 STRAP-CABLE | 2 | |
| 6V0852 | 2 CAP-DUST | 1 | |
| 1432269 | 3 VALVE GP-SOLENOID | 1 | |
| 1488493 | 4 BRACKET | 1 | |
| 1553624 | 5 PLUG AS | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 9S4182 | PLUG (7/16-20-THD) | 1 | |
| 1642274 | 6 VALVE GP-SELECTOR (2-WAY) | 1 | |
| 1645567 | 7 COUPLER AS-QUICK DISCONNECT (MALE) | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 1649156 | 8 HOSE AS | 1 | |
| 1649157 | 9 HOSE AS | 1 | |
| 1649160 | 10 HOSE AS | 1 | |
| 1649161 | 11 HOSE AS | 1 | |
| 1649164 | 12 HOSE AS | 1 | |
| 1649165 | 13 HOSE AS | 1 | |
| 1649166 | 14 HOSE AS | 1 | |
| 1649167 | 15 HOSE AS | 1 | |
| 1652055 | 16 ELBOW AS | 2 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 1652016 | ELBOW | 1 | |
| 1653915 | 17 HOSE AS | 1 | |
| 1657935 | 18 HOSE AS | 1 | |
| 1657936 | 19 HOSE AS | 1 | |
| 1657937 | 20 HOSE AS | 1 | |
| 1657938 | 21 HOSE AS | 1 | |
| 1657939 | 22 HOSE AS | 1 | |
| 1657940 | 23 HOSE AS | 1 | |
| 1657941 | 24 HOSE AS | 1 | |
| 1657942 | 25 HOSE AS | 1 | |
| 1660433 | 26 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 2 | |
| 1662033 | 27 TEE AS | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 7X2444 | TEE-SWIVEL | 1 | |
| 1700535 | 28 FILM-INSTRUCTION (CONTROL PATTERN) | 1 | |
| 1488316 | 29 CONNECTOR AS | 4 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 6V8647 | CONNECTOR | 1 | |
| 1488325 | 30 CONNECTOR AS | 10 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 6V8641 | CONNECTOR | 1 | |
| 1488368 | 31 ELBOW AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 6V8627 | ELBOW | 1 | |
| 1488369 | 32 ELBOW AS | 12 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 6V8628 | ELBOW | 1 | |
| 1488385 | 33 ELBOW AS | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 6V9000 | ELBOW | 1 | |
| 1516227 | 34 HOSE AS | 1 | |
| 8T3647 | 35 BOLT (M8X1.25X80-MM) | 2 | |
| 8T4121 | 36 WASHER-HARD (11X21X2.5-MM THK) | 2 | |
| 8T4171 | 37 BOLT (M6X1X12-MM) | 2 | |
| 8T4195 | 38 BOLT (M10X1.5X30-MM) | 2 | |
| 8T4205 | 39 WASHER-HARD (7.2X14.5X2-MM THK) | 2 | |
| 8T4224 | 40 WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 1602252 | 41 SLEEVE-ABRASION (102 INCH) |
