System And Components
Assembly
100%

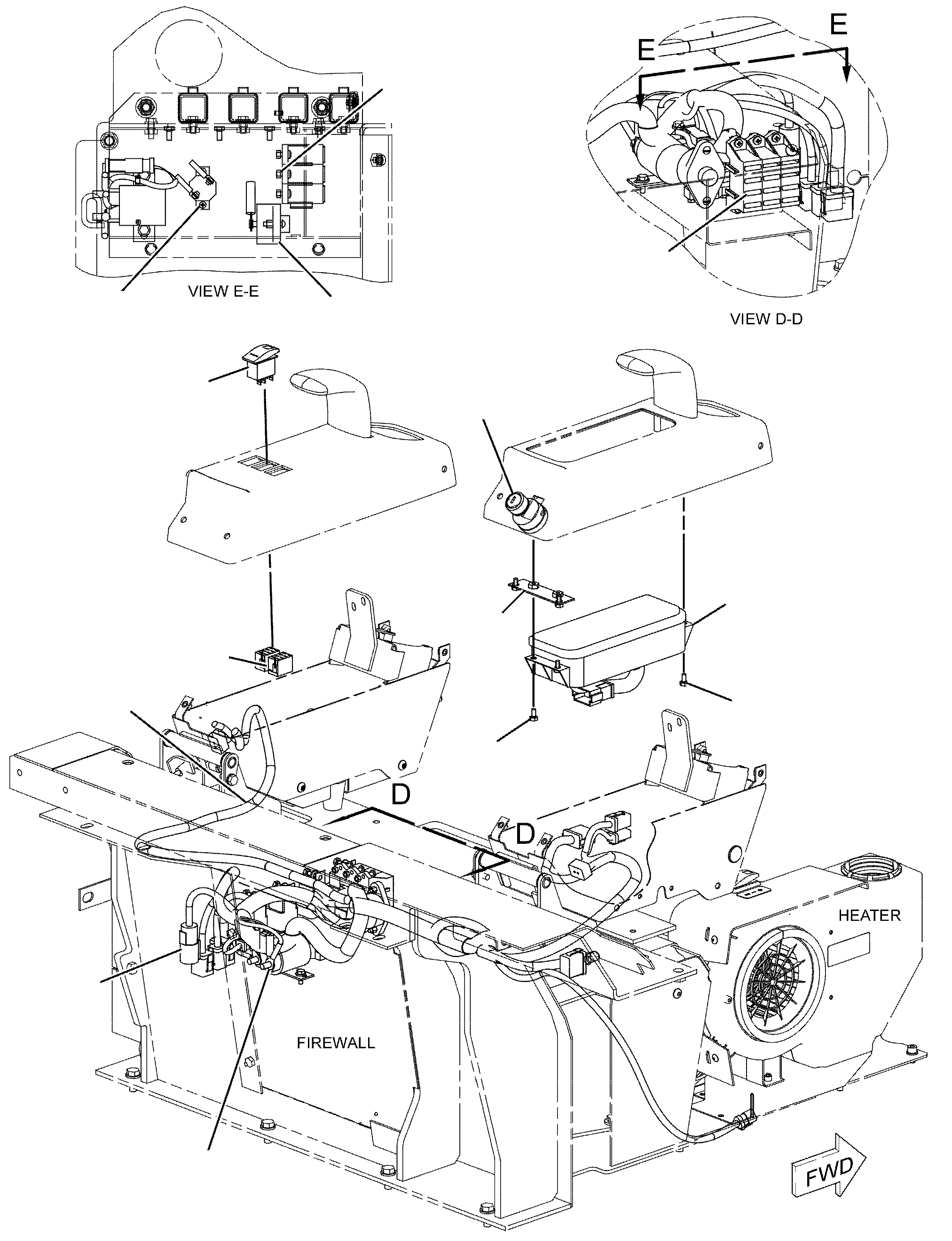

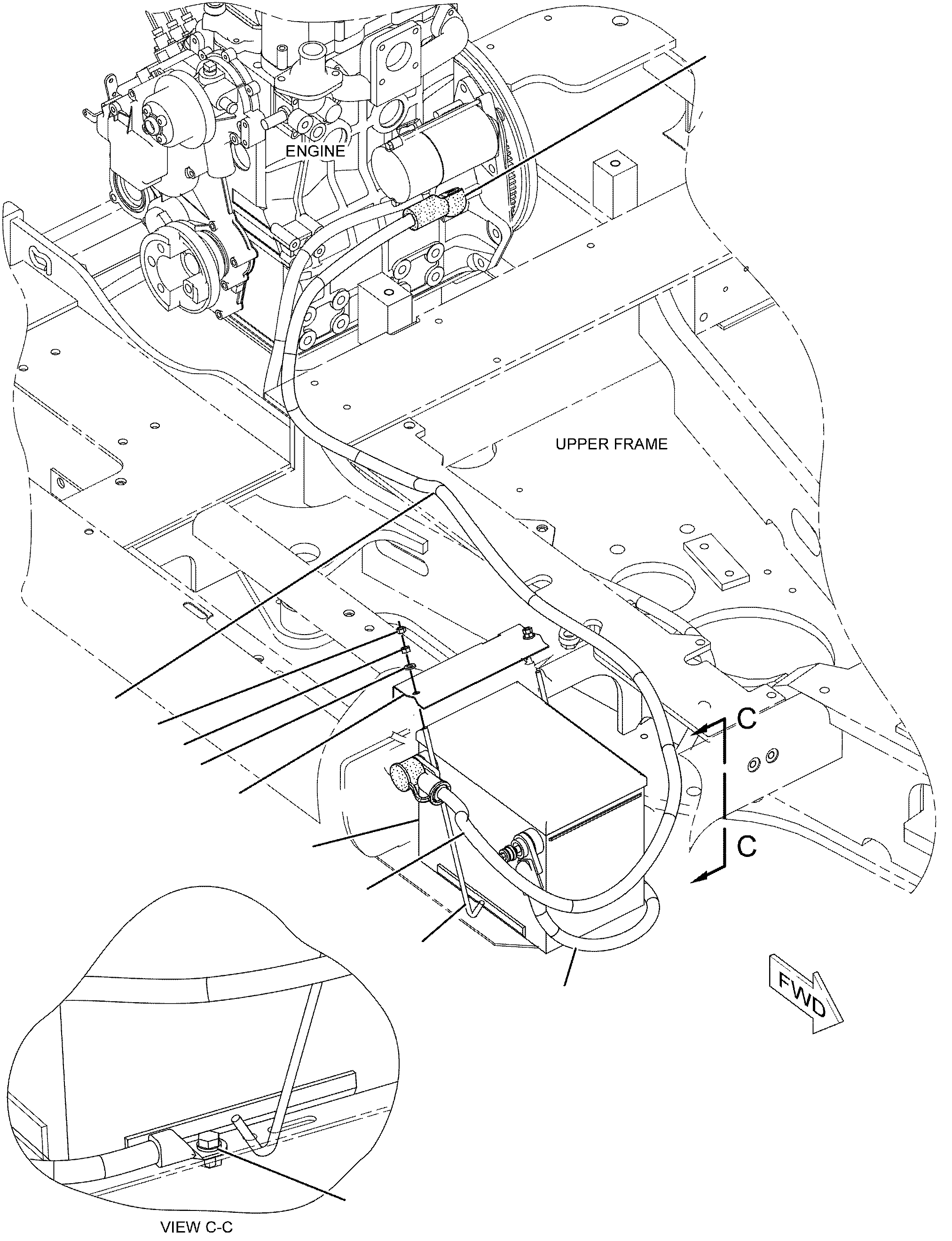

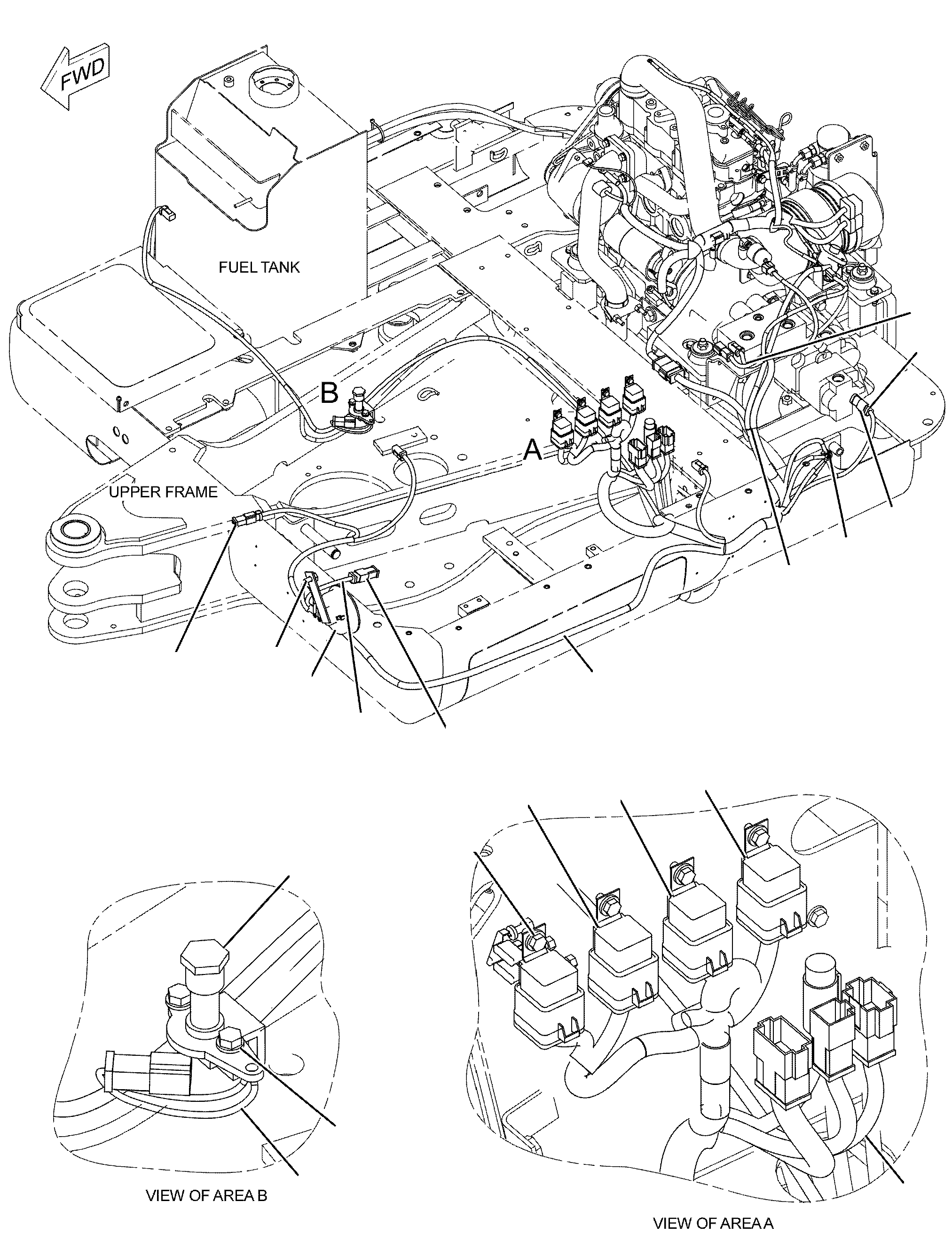

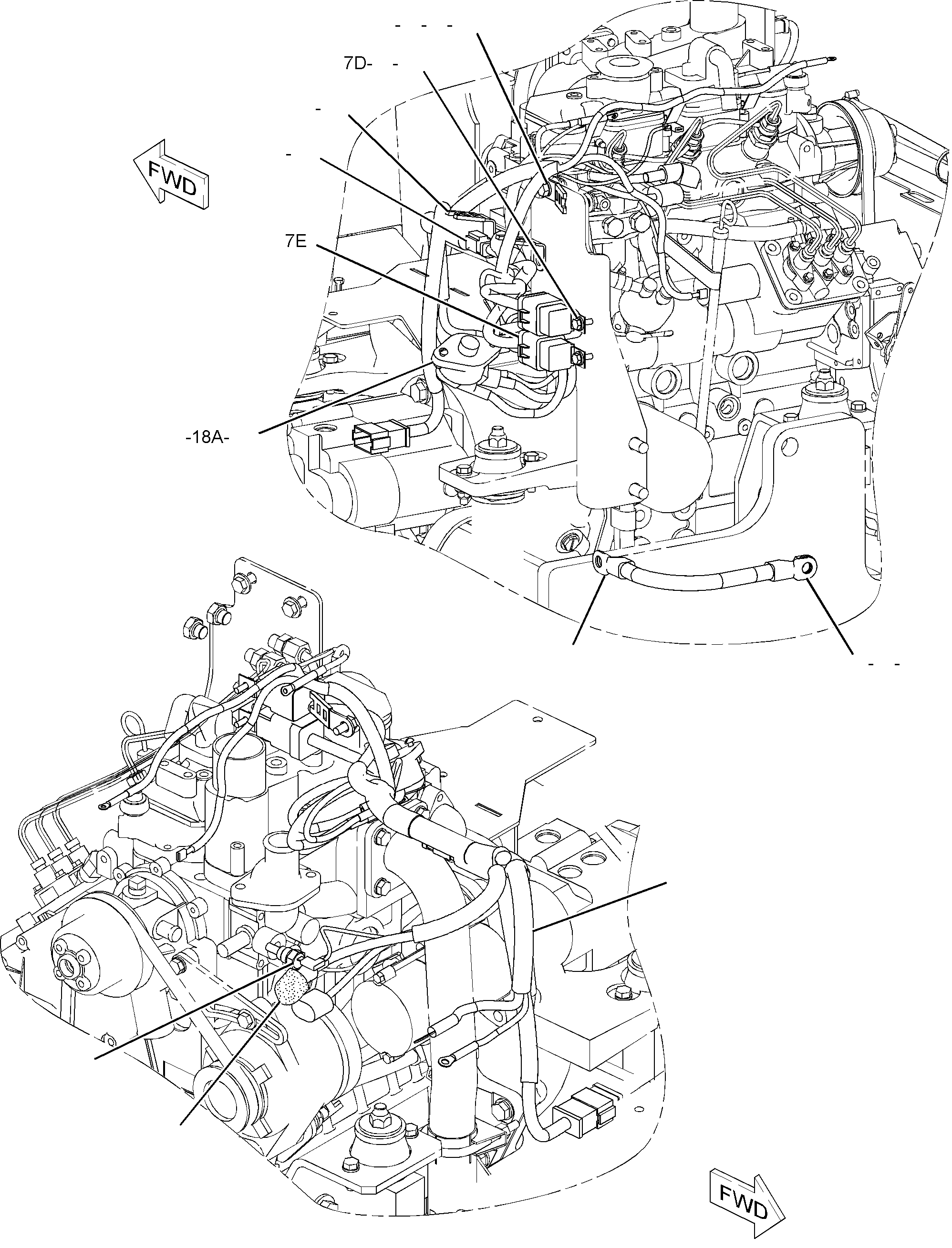

154-2597 BATTERY & WIRING GPS/N 4AZ3848-5768

Group No: 154-2597
Part NumberPart NameQty
7T06351 HORN AS (12-VOLT)1
8C7581SCREW-MACHINE (M4X0.7X8-MM)2
9B7233LOCKWASHER2
0966166WASHER-HARD (4.5X9X1-MM THK)2
8I46412 CABLE AS1
8T87993 BOOT (RED)3
9W14424 FUSE (10-AMPERE)9
18931585 SUPPRESSOR-ARC1
10923506 SWITCH AS-ROCKER (WARNING BEACON, POWER RECEP)1
1117899GASKET1
11516157 RELAY AS (12-VOLT)(LAMP)1
11516157A RELAY AS (12-VOLT)(HYDRAULIC DISABLE)1
11516157B RELAY AS (12-VOLT)(START DISABLE)1
11516157C RELAY AS (12-VOLT)(BOOM LOWER)1
11516157D RELAY AS (12-VOLT)(START AID)1
11516157E RELAY AS (12-VOLT)(START)1
12006678 SENDER-TEMPERATURE (COOLANT)1
13949729 SPACER AS1
153566010 BATTERY (12-VOLT)(MAINTENANCE FREE)1
154319711 SWITCH GP-START (KEY)1
159448012 HARNESS AS-ENGINE1
1073134HOUSING-CONNECTOR1
9X3401PIN-CONNECTOR (16-GA TO 18-GA)9
9X1054PLUG AS-CONNECTOR (4-PIN)2
9G3695PLUG-SEAL3
1073136PLUG-SEAL3
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)2
2L8067TERMINAL-RING (10-GA TO 12-GA, 1/4-IN SCREW)3
2L8075TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW)1
1284190TERMINAL AS3
6H3586TERMINAL-RING (6-GA TO 8-GA, 1/4-IN SCREW)1
6V9023TUBE-HEAT SHRINK (12.7-MM DIA)(4-CM)
9G9314TERMINAL-BLADE (14-GA TO 16-GA)1
2L8065TERMINAL-RING (10-GA TO 12-GA, NO. 8 SCREW)1
1284168TERMINAL AS1
6H3592TERMINAL-RING (6-GA TO 8-GA, 5/16-IN SCREW)1
6V9023TUBE-HEAT SHRINK (12.7-MM DIA)(4-CM)
5P4571TERMINAL-BLADE (14-GA TO 16-GA)1
1073135TERMINAL (16-GA TO 20-GA)2
9X1055TERMINAL-RECEPTACLE (12-GA)4
1005041TERMINAL-RECEPTACLE (18-GA TO 20-GA)4
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM)
1028801KIT-RECEPTACLE (12-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)1
159448213 CABLE AS1
5P0761CABLE (00-GA, RED)(200-CM)
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)(STARTER)1
8Y8081TUBE-CONVOLUTED
1690452BOLT (3/8-16X1.1-IN)1
1690453COVER (RED)1
1690448TERMINAL AS1
159448314 CABLE AS1
1690449TERMINAL AS1
5P0747CABLE (00-GA, BLACK)(40-CM)
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
1690452BOLT (3/8-16X1.1-IN)1
168790815 SWITCH GP-MAGNETIC (12-VOLT)(MAIN POWER RELAY)1
1552270KIT-CONNECTING PLUG (2-PIN)1
4F2294NUT-JAM (5/16-24-THD)2
1863736SOCKET-CONNECTOR (16-GA TO 18-GA)2
168867516 ROD2
168867617 PLATE1
171220818 CIRCUIT BREAKER AS (60-AMPERE)(MAIN)1
171220818A CIRCUIT BREAKER AS (60-AMPERE)(ALTERNATOR)1
6V8187NUT (1/4-28-THD)2
8T4205WASHER-HARD (7.2X14.5X2-MM THK)2
2532111LOCKWASHER1
203231119 GAUGE GP-CLUSTER1
208753320 HARNESS AS-CHASSIS1
1237615CONNECTOR (1-PIN)1
9X3401PIN-CONNECTOR (16-GA TO 18-GA)19
9W0852PIN-CONNECTOR (14-GA TO 16-GA)3
3E5519PLUG AS-CONNECTOR (5-PIN)2
9X1054PLUG AS-CONNECTOR (4-PIN)2
1003320PLUG AS-CONNECTOR (2-PIN)1
1275483PLUG AS-CONNECTOR (1-PIN)1
8T8737PLUG-SEAL12
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)23
8N1547SOCKET-CONNECTOR (6-GA)1
3055362TERMINAL AS (18-GA)2
9X0196TERMINAL AS (16-GA)1
2L8075TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW)2
1284190TERMINAL AS1
6H3586TERMINAL-RING (6-GA TO 8-GA, 1/4-IN SCREW)1
6V9023TUBE-HEAT SHRINK (12.7-MM DIA)(4-CM)
2L8069TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW)3
2L8079TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW)1
9X1056TERMINAL-RECEPTACLE (14-GA TO 16-GA)7
1005041TERMINAL-RECEPTACLE (18-GA TO 20-GA)10
7T6374PLATE2
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(7-CM)
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(25-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM)
1028802KIT-RECEPTACLE (2-PIN)2
1028801KIT-RECEPTACLE (12-PIN)1
1028806KIT-RECEPTACLE (8-PIN)1
1028805KIT-RECEPTACLE (6-PIN)1
1552255KIT-CONNECTING PLUG (12-PIN)1
1552260KIT-CONNECTING PLUG (3-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)4
1552271KIT-CONNECTING PLUG (4-PIN)1
147138021 SWITCH AS-FOOT (SPEED SELECTION-TRAVEL)1
1028802KIT-RECEPTACLE (2-PIN)1
1863735PIN-CONNECTOR (16-GA TO 18-GA)2
187649522 HARNESS AS-PANEL1
9W2035BLOCK-FUSE3
1117898CONNECTOR (8-PIN)2
9X3401PIN-CONNECTOR (16-GA TO 18-GA)2
8N1546PIN-CONNECTOR (6-GA)1
1761477PLUG AS (2-PIN)2
9G3695PLUG-SEAL15
1851861SEAL-WIRE4
1275484RECEPTACLE AS-CONNECTOR (1-PIN)1
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)45
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)5
1761521TERMINAL4
1284178TERMINAL AS3
1G2044TERMINAL1
5P6006TUBE-HEAT SHRINK (9.52-MM DIA)(0.1-M)
2L8075TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW)2
1284190TERMINAL AS1
6H3586TERMINAL-RING (6-GA TO 8-GA, 1/4-IN SCREW)1
6V9023TUBE-HEAT SHRINK (12.7-MM DIA)(4-CM)
1284168TERMINAL AS2
6H3592TERMINAL-RING (6-GA TO 8-GA, 5/16-IN SCREW)1
6V9023TUBE-HEAT SHRINK (12.7-MM DIA)(4-CM)
2L8078TERMINAL-RING (14-GA TO 16-GA, 5/16-IN SCREW)1
9R9806TERMINAL-BLADE (18-GA TO 20-GA)10
9W2033TERMINAL-BLADE (14-GA TO 16-GA)1
9W2034TERMINAL-BLADE (10-GA TO 12-GA)3
1129611TERMINAL-BLADE (18-GA TO 20-GA)8
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(25-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(25-CM)
1028802KIT-RECEPTACLE (2-PIN)1
1552255KIT-CONNECTING PLUG (12-PIN)3
1552260KIT-CONNECTING PLUG (3-PIN)1
1552265KIT-CONNECTING PLUG (8-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)2
1552274KIT-CONNECTING PLUG (6-PIN)2
102880223 KIT-RECEPTACLE (2-PIN)1
102880324 KIT-RECEPTACLE (3-PIN)1
102880425 KIT-RECEPTACLE (4-PIN)1
4P758126 CLIP (LADDER)1
4P813427 CLIP (LADDER)2
5C287428 NUT (M5X0.8-THD)6
5C289029 NUT (M6X1-THD)4
5C831230 NUT (M4X0.7-THD)2
5C955331 BOLT (M6X1X16-MM)4
5L450732 SCREW-MACHINE (10-32X0.875-IN)4
6V132233 BOLT (1/4-20X0.375-IN)2
6V967234 SCREW-MACHINE (M4X0.7X16-MM)2
6V967435 SCREW-MACHINE (M5X0.8X14-MM)6
8N086936 COVER-TERMINAL (RED)1
8T412137 WASHER-HARD (11X21X2.5-MM THK)3
8T413338 NUT (M10X1.5-THD)1
8T413739 BOLT (M10X1.5X20-MM)1
8T417140 BOLT (M6X1X12-MM)10
8T420041 BOLT (M8X1.25X16-MM)2
8T420542 WASHER-HARD (7.2X14.5X2-MM THK)12
8T422343 WASHER-HARD (13.5X25.5X3-MM THK)1
8T422444 WASHER-HARD (8.8X16X2-MM THK)2
8T424445 NUT (M12X1.75-THD)1
9G369546 PLUG-SEAL9
9H195847 CIRCUIT BREAKER GP (20-AMPERE)(LIGHTING)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
197380048 LOOM (15-CM)
7K118149 STRAP-CABLE21
