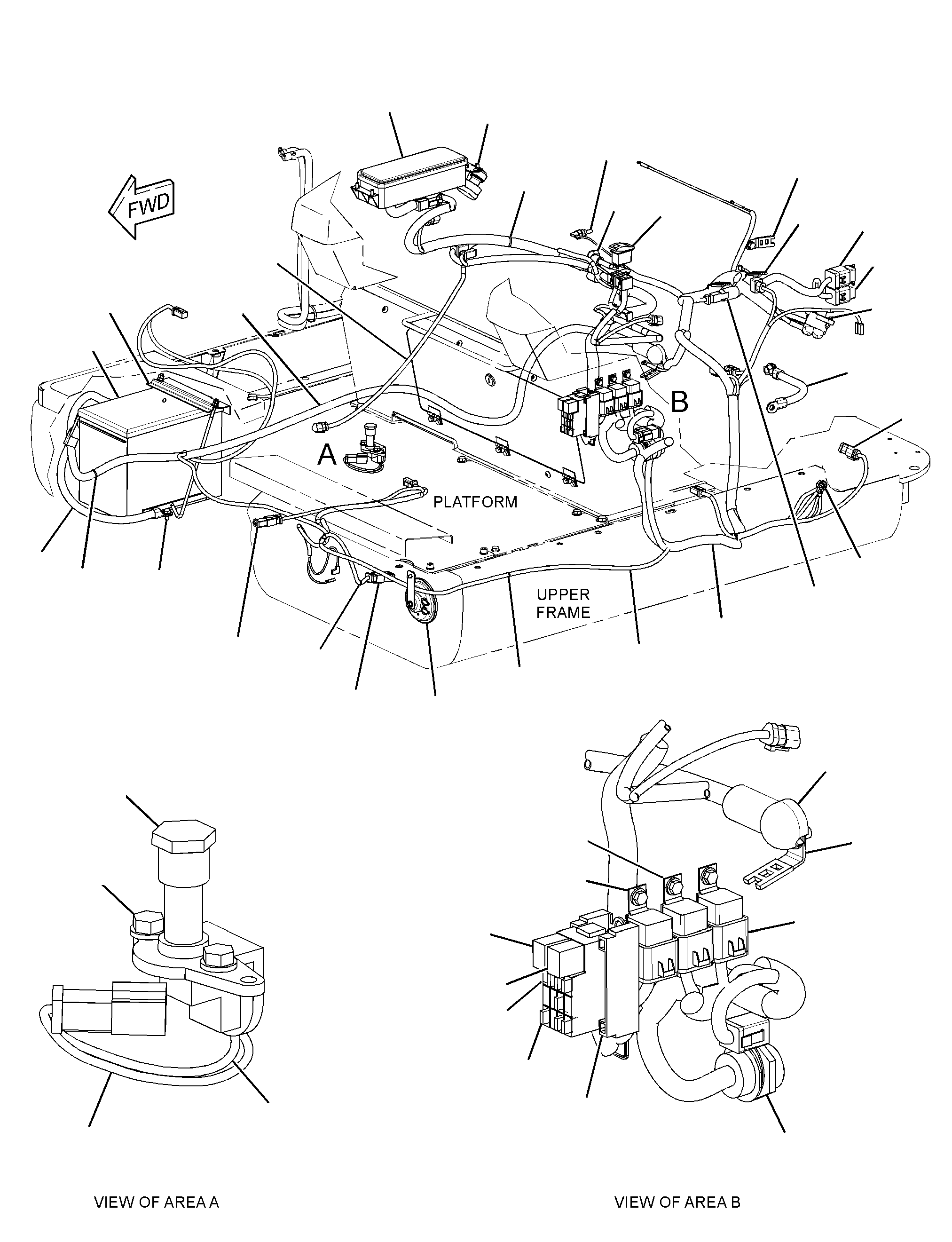

231-2858 BATTERY & WIRING GPS/N 4AZ5769-UP

Group No: 231-2858
Part NumberPart NameQty
8I46411 CABLE AS1
8T87372 PLUG-SEAL9
10687043 SUPPRESSOR AS-ARC (GLOW PLUG)1
1028802KIT-RECEPTACLE (2-PIN)1
1863735PIN-CONNECTOR (16-GA TO 18-GA)2
1552270KIT-CONNECTING PLUG (2-PIN)1
10923504 SWITCH AS-ROCKER (WARNING BEACON, POWER RECEP)1
1117899GASKET1
11384905 FUSE (10-AMPERE)8
11384926 FUSE (20-AMPERE)1
11516157 RELAY AS (12-VOLT)(STARTER)1
11516157A RELAY AS (12-VOLT)(STARTING AID)1
11516157B RELAY AS (12-VOLT)(LAMP)1
11516157C RELAY AS (12-VOLT)(MAIN A)1
11516157D RELAY AS (12-VOLT)(MAIN B)1
12006678 SENDER-TEMPERATURE (COOLANT)1
12842499 LOCKWASHER1
131379810 BASE1
139497211 SPACER AS1
146943912 RELAY AS (12-VOLT)(START DISABLE)1
146943912A RELAY AS (12-VOLT)(BOOM LOWER)1
153566013 BATTERY (12-VOLT)(MAINTENANCE FREE)1
154319714 SWITCH GP-START1
159448215 CABLE AS1
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
5P0761CABLE (00-GA, RED)(200-CM)
8Y8081TUBE-CONVOLUTED (190-CM)
1690452BOLT (3/8-16X1.1-IN)1
1690453COVER1
1716958TERMINAL1
1733161TERMINAL1
159448316 CABLE AS1
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
5P0747CABLE (00-GA, BLACK)(40-CM)
1690452BOLT (3/8-16X1.1-IN)1
1716958TERMINAL1
1733161TERMINAL1
168867517 ROD2
168867618 PLATE1
171220819 CIRCUIT BREAKER AS (60-AMPERE)(STARTING AID)1
8T4205WASHER-HARD (7.2X14.5X2-MM THK)2
6V8187NUT (1/4-28-THD)2
2532111LOCKWASHER2
203231120 GAUGE GP-CLUSTER1
211005221 NUT (1-11/16-18-THD)1
231186122 HARNESS AS-CONSOLE1
1117898CONNECTOR (8-PIN)2
1863735PIN-CONNECTOR (16-GA TO 18-GA)11
7T0093PIN-CONNECTOR (12-GA TO 14-GA)5
1552255KIT-CONNECTING PLUG (12-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)3
1552265KIT-CONNECTING PLUG (8-PIN)2
1552260KIT-CONNECTING PLUG (3-PIN)3
1552274KIT-CONNECTING PLUG (6-PIN)1
9X1054PLUG AS-CONNECTOR (4-PIN)3
8T8737PLUG-SEAL16
1028802KIT-RECEPTACLE (2-PIN)1
1028803KIT-RECEPTACLE (3-PIN)1
1977259RECEPTACLE AS-CONNECTOR (19-PIN)1
1863736SOCKET-CONNECTOR (16-GA TO 18-GA)39
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)2
8L8413STRAP-CABLE (WHITE)52
0912436TERMINAL-BLADE (18-GA TO 22-GA)8
1041995TERMINAL-BLADE (14-GA TO 18-GA)3
1164160TERMINAL-BLADE (12-GA TO 14-GA)2
1164161TERMINAL-BLADE (16-GA TO 18-GA)20
9X1055TERMINAL-RECEPTACLE (12-GA)4
9X1056TERMINAL-RECEPTACLE (14-GA TO 16-GA)2
1005041TERMINAL-RECEPTACLE (18-GA TO 20-GA)6
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(39-CM)
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(15-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM)
1552258WEDGE-PLUG LOCK (12-PIN)1
1552259WEDGE-PLUG LOCK (8-PIN)2
3E3371WEDGE-RECEPTACLE LOCK (3-PIN)1
231186223 HARNESS AS-ENGINE1
1237615CONNECTOR (1-PIN)1
1073134HOUSING-CONNECTOR1
1761477PLUG AS (2-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)1
9X1054PLUG AS-CONNECTOR (4-PIN)2
1977261PLUG AS-CONNECTOR (19-PIN)1
8T8737PLUG-SEAL7
1073136PLUG-SEAL2
1689112SEAL1
1148843SLEEVE-PLASTIC (60-CM)
1863736SOCKET-CONNECTOR (16-GA TO 18-GA)1
7T0094SOCKET-CONNECTOR (12-GA TO 14-GA)5
8L8413STRAP-CABLE (WHITE)9
2L8067TERMINAL-RING (10-GA TO 12-GA, 1/4-IN SCREW)1
2L8075TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW)1
1284190TERMINAL AS5
9G9314TERMINAL-BLADE (14-GA TO 16-GA)1
2L8065TERMINAL-RING (10-GA TO 12-GA, NO. 8 SCREW)1
1284168TERMINAL AS1
2L8069TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW)1
2L8079TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW)2
5P4571TERMINAL-BLADE (14-GA TO 16-GA)1
0912436TERMINAL-BLADE (18-GA TO 22-GA)2
1073135TERMINAL (16-GA TO 20-GA)2
9X1055TERMINAL-RECEPTACLE (12-GA)4
9X1056TERMINAL-RECEPTACLE (14-GA TO 16-GA)1
1005041TERMINAL-RECEPTACLE (18-GA TO 20-GA)3
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(5-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM)
1257876TUBE-HEAT SHRINK (17.78-MM DIA)(15-CM)
231186524 HARNESS AS-PLATFORM1
1863735PIN-CONNECTOR (16-GA TO 18-GA)9
1552270KIT-CONNECTING PLUG (2-PIN)5
1552271KIT-CONNECTING PLUG (4-PIN)1
1552260KIT-CONNECTING PLUG (3-PIN)1
1552267PLUG AS-CONNECTOR (3-PIN)1
8T8737PLUG-SEAL4
1028802KIT-RECEPTACLE (2-PIN)1
1028806KIT-RECEPTACLE (8-PIN)1
1863736SOCKET-CONNECTOR (16-GA TO 18-GA)14
9G9314TERMINAL-BLADE (14-GA TO 16-GA)2
2L8069TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW)1
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(7-CM)
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(5-CM)
3E3389WEDGE-RECEPTACLE LOCK (8-PIN)1
147138025 SWITCH AS-FOOT (SPEED SELECT)1
1028802KIT-RECEPTACLE (2-PIN)2
1863735PIN-CONNECTOR (16-GA TO 18-GA)2
155001326 HORN (12-VOLT)1
102880227 KIT-RECEPTACLE (2-PIN)1
102880328 KIT-RECEPTACLE (3-PIN)1
102880429 KIT-RECEPTACLE (4-PIN)1
4P758130 CLIP (LADDER)1
4P813431 CLIP (LADDER)3
5C289032 NUT (M6X1-THD)4
5C955333 BOLT (M6X1X16-MM)2
5L450734 SCREW-MACHINE (10-32X0.875-IN)2
6V132235 BOLT (1/4-20X0.375-IN)2
8N086936 COVER-TERMINAL (RED)1
8T412137 WASHER-HARD (11X21X2.5-MM THK)3
8T413338 NUT (M10X1.5-THD)1
8T417139 BOLT (M6X1X12-MM)10
8T419140 BOLT (M10X1.5X16-MM)1
8T420041 BOLT (M8X1.25X16-MM)2
8T420542 WASHER-HARD (7.2X14.5X2-MM THK)10
8T422343 WASHER-HARD (13.5X25.5X3-MM THK)1
8T422444 WASHER-HARD (8.8X16X2-MM THK)2
8T424445 NUT (M12X1.75-THD)1
8T879946 BOOT (RED)3
197380047 LOOM (15-CM)
7K118148 STRAP-CABLE20
7X787749 STRIP-EDGE (10-CM)
