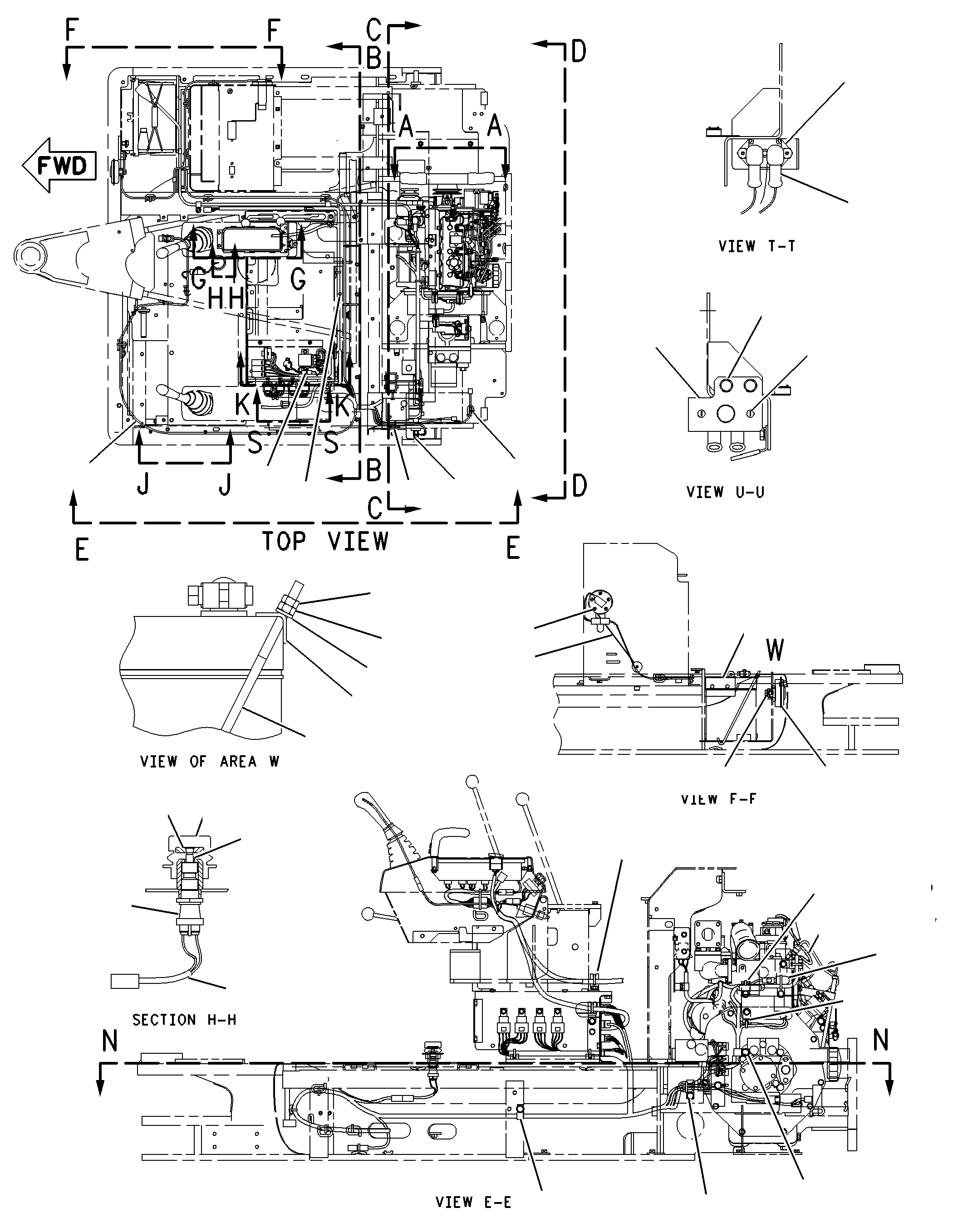

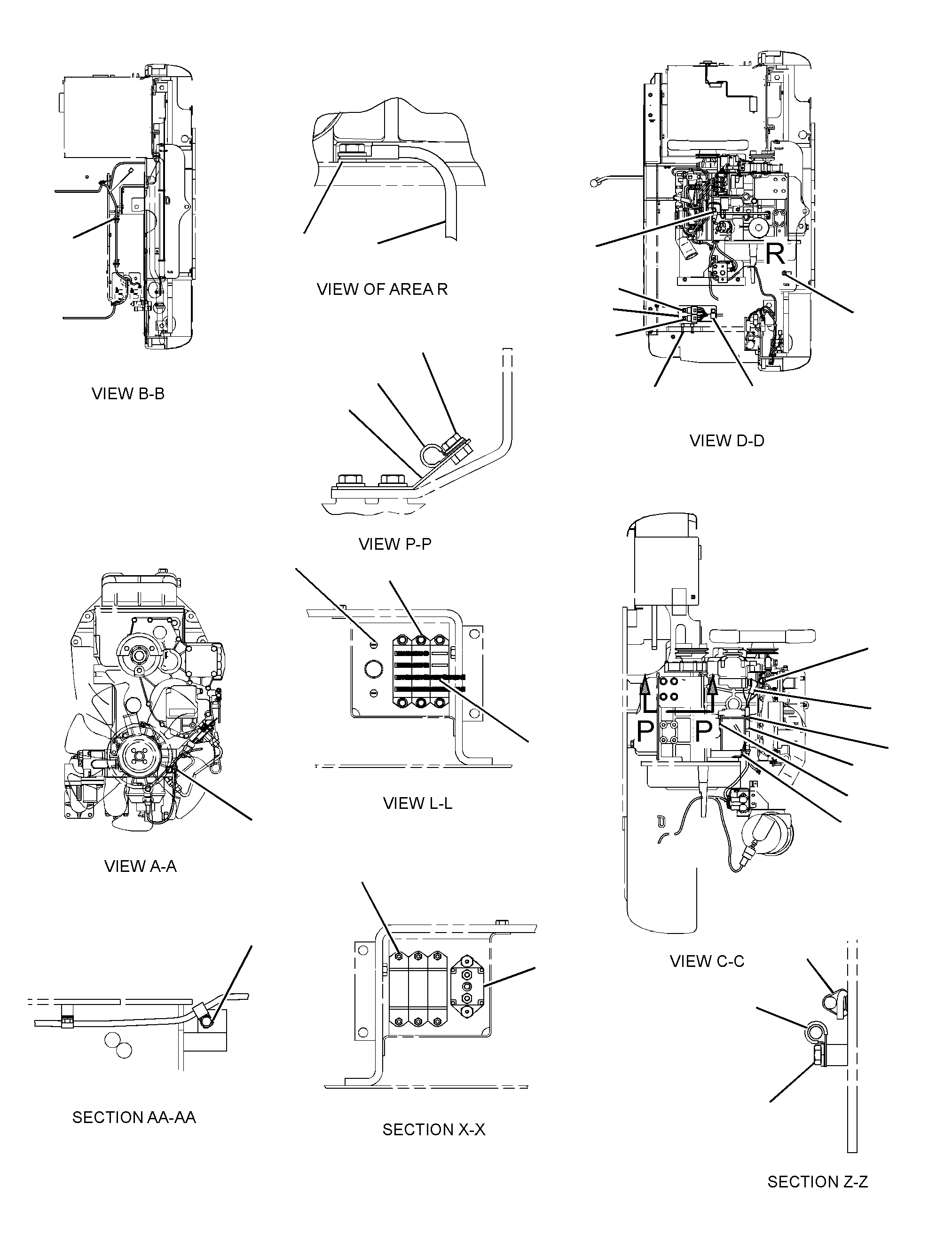

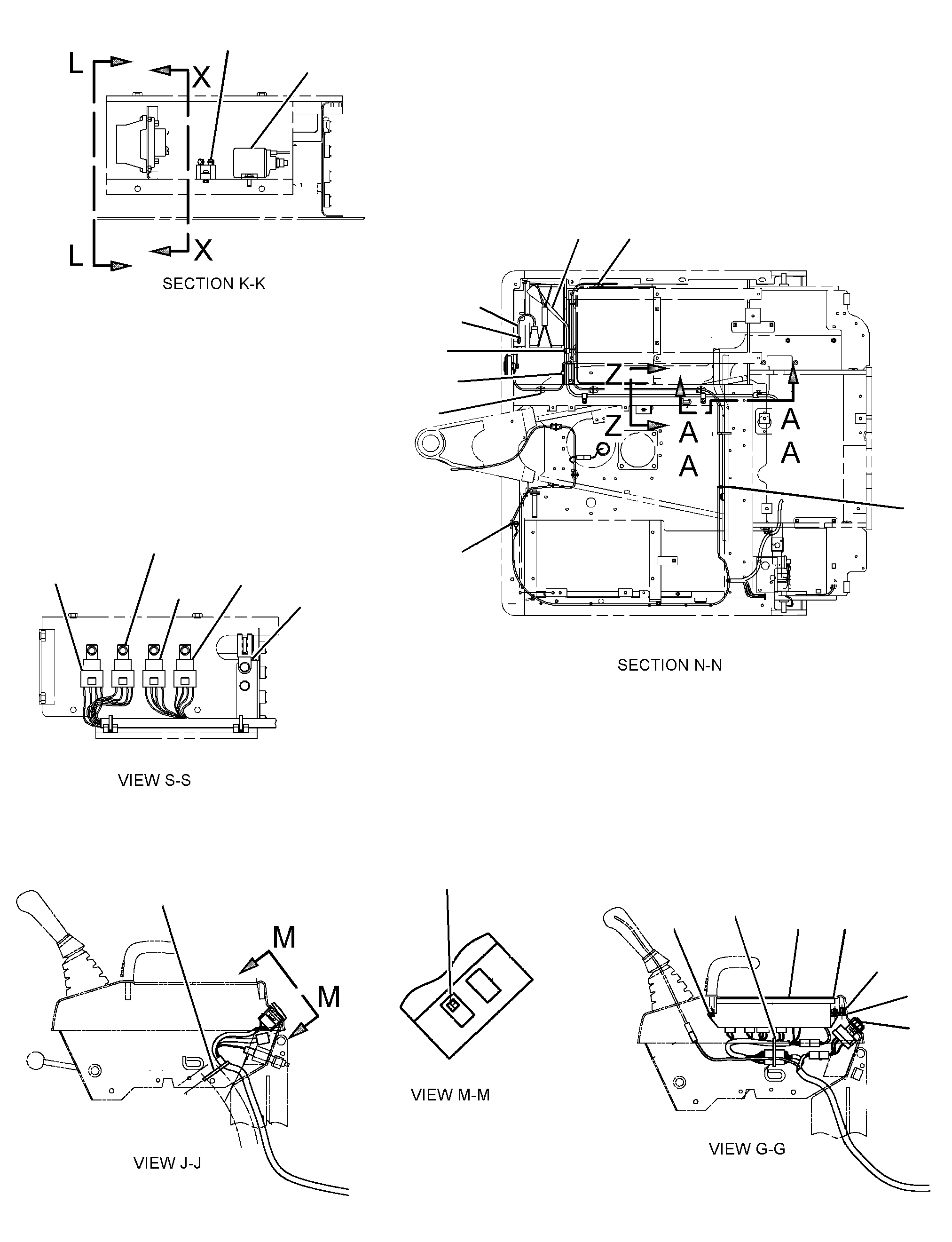

158-5723 BATTERY & WIRING GPS/N AFW1-UP

Group No: 158-5723
Part NumberPart NameQty
16398171 HARNESS AS-PANEL1
9W2035BLOCK-FUSE3
1117898CONNECTOR (8-PIN)2
8N1546PIN-CONNECTOR (6-GA)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)6
1761477PLUG AS (2-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)1
1552260KIT-CONNECTING PLUG (3-PIN)1
1552274KIT-CONNECTING PLUG (6-PIN)2
1552255KIT-CONNECTING PLUG (12-PIN)3
9G3695PLUG-SEAL26
1028802KIT-RECEPTACLE (2-PIN)1
1028803KIT-RECEPTACLE (3-PIN)1
1028801KIT-RECEPTACLE (12-PIN)1
1028805KIT-RECEPTACLE (6-PIN)1
1275484RECEPTACLE AS-CONNECTOR (1-PIN)1
1851861SEAL-WIRE1
8T8730SOCKET-CONNECTOR (16-GA TO 18-GA)39
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)5
1284168TERMINAL AS2
6H3592TERMINAL-RING (6-GA TO 8-GA, 5/16-IN SCREW)1
6V9023TUBE-HEAT SHRINK (12.7-MM DIA)(4-CM)
1284178TERMINAL AS3
2L8068TERMINAL-RING (10-GA TO 12-GA, 5/16-IN SCREW)1
5P6006TUBE-HEAT SHRINK (9.52-MM DIA)(0.1-M)
2L8075TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW)2
2L8078TERMINAL-RING (14-GA TO 16-GA, 5/16-IN SCREW)1
1284190TERMINAL AS1
6H3586TERMINAL-RING (6-GA TO 8-GA, 1/4-IN SCREW)1
6V9023TUBE-HEAT SHRINK (12.7-MM DIA)(4-CM)
1284168TERMINAL AS2
6H3592TERMINAL-RING (6-GA TO 8-GA, 5/16-IN SCREW)1
6V9023TUBE-HEAT SHRINK (12.7-MM DIA)(4-CM)
9W2033TERMINAL-BLADE (14-GA TO 16-GA)11
9W2034TERMINAL-BLADE (10-GA TO 12-GA)3
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(20-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(20-CM)
16398182 HARNESS AS-ENGINE1
1073134HOUSING-CONNECTOR1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)9
1552270KIT-CONNECTING PLUG (2-PIN)1
9X1054PLUG AS-CONNECTOR (4-PIN)2
9G3695PLUG-SEAL4
1028801KIT-RECEPTACLE (12-PIN)1
8T8730SOCKET-CONNECTOR (16-GA TO 18-GA)2
3S2093STRAP-CABLE1
2L8067TERMINAL-RING (10-GA TO 12-GA, 1/4-IN SCREW)3
2L8075TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW)1
1284190TERMINAL AS3
6H3586TERMINAL-RING (6-GA TO 8-GA, 1/4-IN SCREW)1
6V9023TUBE-HEAT SHRINK (12.7-MM DIA)(4-CM)
2L8065TERMINAL-RING (10-GA TO 12-GA, NO. 8 SCREW)1
1284168TERMINAL AS1
6H3592TERMINAL-RING (6-GA TO 8-GA, 5/16-IN SCREW)1
6V9023TUBE-HEAT SHRINK (12.7-MM DIA)(4-CM)
5P4571TERMINAL-BLADE (14-GA TO 16-GA)2
1073135TERMINAL (16-GA TO 20-GA)2
9X1055TERMINAL-RECEPTACLE (12-GA)4
1005041TERMINAL-RECEPTACLE (18-GA TO 20-GA)4
16398193 HARNESS AS-PLATFORM1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)17
9W0852PIN-CONNECTOR (14-GA TO 16-GA)3
1552270KIT-CONNECTING PLUG (2-PIN)4
1552260KIT-CONNECTING PLUG (3-PIN)1
1552274KIT-CONNECTING PLUG (6-PIN)1
1552271KIT-CONNECTING PLUG (4-PIN)1
1552255KIT-CONNECTING PLUG (12-PIN)1
3E5519PLUG AS-CONNECTOR (5-PIN)2
9X1054PLUG AS-CONNECTOR (4-PIN)2
1003320PLUG AS-CONNECTOR (2-PIN)1
1265011SEAL-CONNECTOR1
1275483PLUG AS-CONNECTOR (1-PIN)1
7G7918PLUG-SEAL1
9G3695PLUG-SEAL19
1028802KIT-RECEPTACLE (2-PIN)3
1028803KIT-RECEPTACLE (3-PIN)1
1028804KIT-RECEPTACLE (4-PIN)1
1028801KIT-RECEPTACLE (12-PIN)1
1028805KIT-RECEPTACLE (6-PIN)1
8N1517RECEPTACLE AS-CONNECTOR (25-PIN)1
8T8730SOCKET-CONNECTOR (16-GA TO 18-GA)25
3055362TERMINAL AS (18-GA)2
9X0196TERMINAL AS (16-GA)1
2L8075TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW)2
1284190TERMINAL AS1
6H3586TERMINAL-RING (6-GA TO 8-GA, 1/4-IN SCREW)1
6V9023TUBE-HEAT SHRINK (12.7-MM DIA)(4-CM)
2L8069TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW)1
2L8079TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW)1
9X1056TERMINAL-RECEPTACLE (14-GA TO 16-GA)7
1005041TERMINAL-RECEPTACLE (18-GA TO 20-GA)10
5P4571TERMINAL-BLADE (14-GA TO 16-GA)2
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(13-CM)
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(40-CM)
18817795 CABLE AS-BATTERY (POSITIVE)1
3S6049TERMINAL AS-BATTERY (POSITIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
1598049CABLE (00-GA, RED)(168-CM)
9X9825TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
8N1725COVER AS-TERMINAL (RED)1
16912256 CABLE AS (NEGATIVE)1
3S6050TERMINAL AS-BATTERY (NEGATIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
1598050CABLE (00-GA, BLACK)(40-CM)
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
7N5274COVER AS-TERMINAL (BLACK)1
18542027 CABLE AS1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)2
15878338 WIRE AS-SWITCH (SPEED SELECT)1
3T31329 SWITCH AS-LIMIT (SPEED SELECT, TRAVEL)1
2H3922LOCKWASHER1
6V8363SCREW (10-32X0.312-IN)2
6V8370NUT-HEX (3/4-32-THD)1
8F1434LOCKWASHER2
9X0199BOOT-SWITCH1
185810510 BRACKET AS1
153565611 BATTERY (12-VOLT, MAINTENANCE FREE, WET)1
174726812 BRACKET1
174729613 BRACKET AS1
6V9632NUT-WELD (M6X1-THD)4
9H195814 CIRCUIT BREAKER GP (20-AMPERE)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
9S017415 CIRCUIT BREAKER AS (60-AMPERE)(MAIN)2
2532111LOCKWASHER2
8T4205WASHER-HARD (7.2X14.5X2-MM THK)2
7X3182BOLT (1/4-28X0.5-IN)2
0S1570BOLT (1/4-28X0.625-IN)2
8N086916 COVER-TERMINAL (RED)1
120066717 SENDER-TEMPERATURE (COOLANT)1
143226718 GAUGE GP-CLUSTER1
7T063519 HORN AS (12-VOLT)1
8C7581SCREW-MACHINE (M4X0.7X8-MM)2
9B7233LOCKWASHER2
0966166WASHER-HARD (4.5X9X1-MM THK)1
115161520 RELAY AS (12-VOLT)(LAMP)1
115161520A RELAY AS (12-VOLT)(HYDRAULIC)1
115161520B RELAY AS (12-VOLT)(START DISABLE)1
115161520C RELAY AS (12-VOLT)(BOOM LOWER)1
115161520D RELAY AS (12-VOLT)(STARTING AID)1
115161520E RELAY AS (12-VOLT)(START)1
169123621 SENDER AS1
1547902GASKET1
1028802KIT-RECEPTACLE (2-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
138492322 SHAFT1
140344923 ROD2
144232124 PLATE1
9W144225 FUSE (10-AMPERE)9
169122326 CLAMP1
3S209327 STRAP-CABLE22
5P514828 STRAP-CABLE1
121369929 SEAL1
168790830 SWITCH GP-MAGNETIC (12-VOLT)(MAIN POWER RELAY)1
1552270KIT-CONNECTING PLUG (2-PIN)1
4F2294NUT-JAM (5/16-24-THD)2
8T8730SOCKET-CONNECTOR (16-GA TO 18-GA)2
4D779432 CLIP1
4D812333 CLIP (LOOP)1
4P758134 CLIP (LADDER)4
4P813435 CLIP (LADDER)5
8M277236 CLIP (LOOP)1
6D424637 CLIP (LOOP)1
8M277038 CLIP (LOOP)1
9M840639 CLIP (LOOP)2
144231740 BOOT1
8T879941 BOOT (RED)3
139497242 SPACER AS1
5L450743 SCREW-MACHINE (10-32X0.875-IN)4
6V967244 SCREW-MACHINE (M4X0.7X16-MM)2
6V967345 SCREW-MACHINE (M5X0.8X12-MM)5
6V967446 SCREW-MACHINE (M5X0.8X14-MM)6
5C831247 NUT (M4X0.7-THD)2
5C287448 NUT (M5X0.8-THD)6
5C289049 NUT (M6X1-THD)4
8T417150 BOLT (M6X1X12-MM)6
5C955351 BOLT (M6X1X16-MM)8
8C845152 BOLT (M6X1X40-MM)2
8T420053 BOLT (M8X1.25X16-MM)4
8T418954 BOLT (M8X1.25X20-MM)2
8T419155 BOLT (M10X1.5X16-MM)6
8T413756 BOLT (M10X1.5X20-MM)3
8T417957 BOLT (M12X1.75X20-MM)1
8T419958 BOLT (M8X1.25X12-MM)3
9X825659 WASHER (6.6X12X2-MM THK)10
8T422460 WASHER-HARD (8.8X16X2-MM THK)9
8T412161 WASHER-HARD (11X21X2.5-MM THK)10
8T422362 WASHER-HARD (13.5X25.5X3-MM THK)1
5P411563 WASHER-HARD (7.2X19X2-MM THK)2
154319764 SWITCH GP-START1
7I267365 STRAP-CABLE5
7K118166 STRAP-CABLE6
4K830267 CLIP (LOOP)2
6K817869 CLIP (LOOP)1
9X825070 CLIP (LOOP)1
6D463671 CLIP (LOOP)1
109235073 SWITCH AS-ROCKER (WARNING BEACON, POWER RECEP)1
1117899GASKET1
189315874 SUPPRESSOR-ARC1
