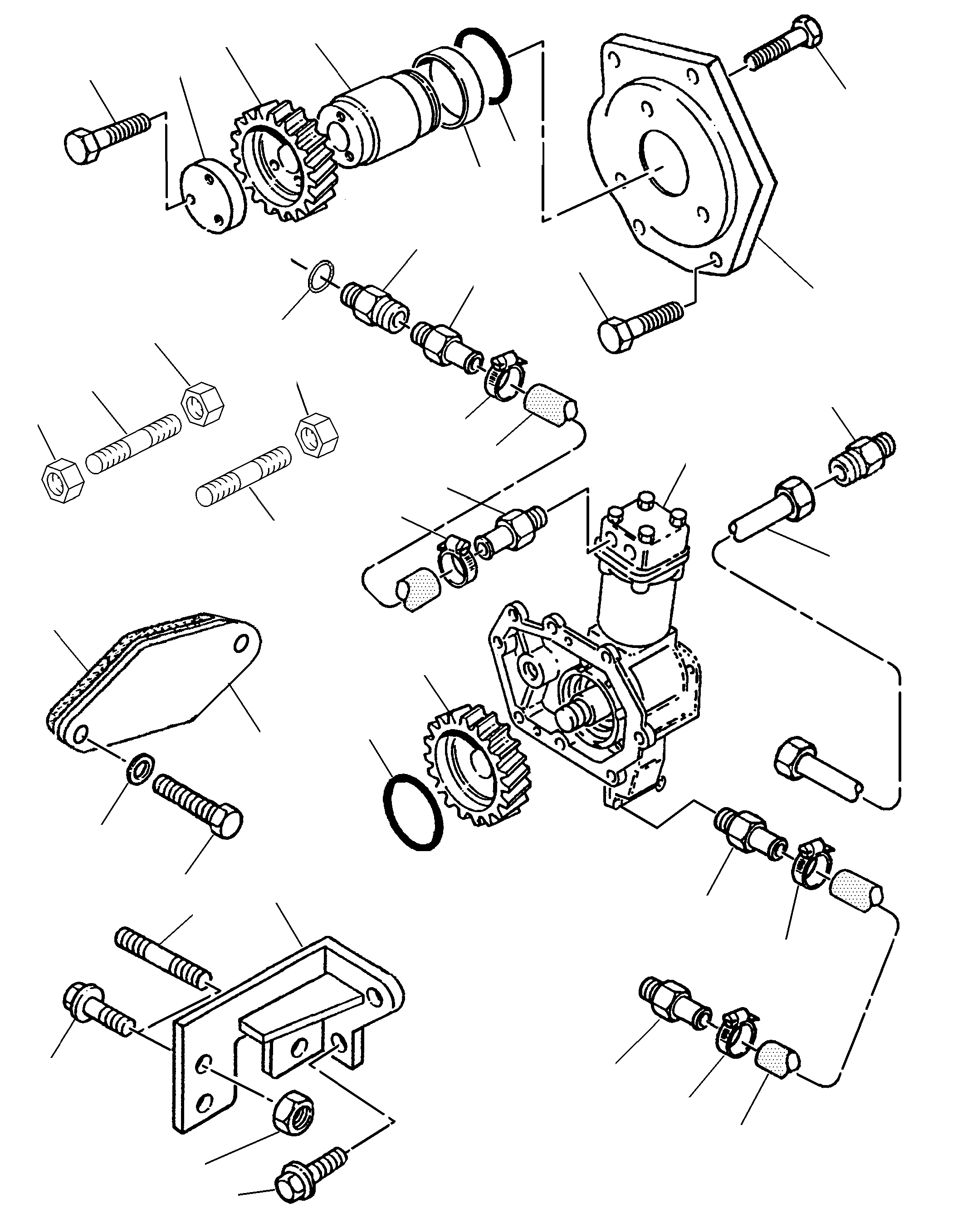

120-9920 AIR COMPRESSOR GP250 CC. INSTALLED IN TIMING GEAR HOUSING LH FRONT

Group No: 120-9920
Part NumberPart NameQty
6I02331 NUT (M12X1.75-THD)3
6I02602 BOLT (M8X1.25X25-MM)2
6I05943 NUT (M10X1.5-THD)2
6I42004 BOLT (M10X1.5X16-MM)2
12632175 STUD1
03572936 COVER1
03580177 UNION1
06768108 WASHER1
10037149 STUD2
101345010 CLAMP-HOSE4
101391711 WASHER (10.5X21X2-MM THK)2
101717812 BOLT (M10X1.5X55-MM)4
113460813 ADAPTER1
113461614 CONNECTOR2
113462615 GASKET1
124381516 BOLT (M8X1.25X16-MM)3
139532717 AIR COMPRESSOR GP1
126320418 GEAR (28-TEETH)1
126320519 BRACKET1
126320620 HUB1
126320721 SEAL-O-RING1
126320822 BEARING1
126320923 GEAR (32-TEETH)1
126321024 PLATE1
126321125 BOLT3
126321226 BOLT (M8X1.25X25-MM)4
126321327 TUBE AS1
126321828 BRACKET1
126321929 SEAL-O-RING1
148064930 HOSE1
126321531 HOSE1
126321632 STUD1
