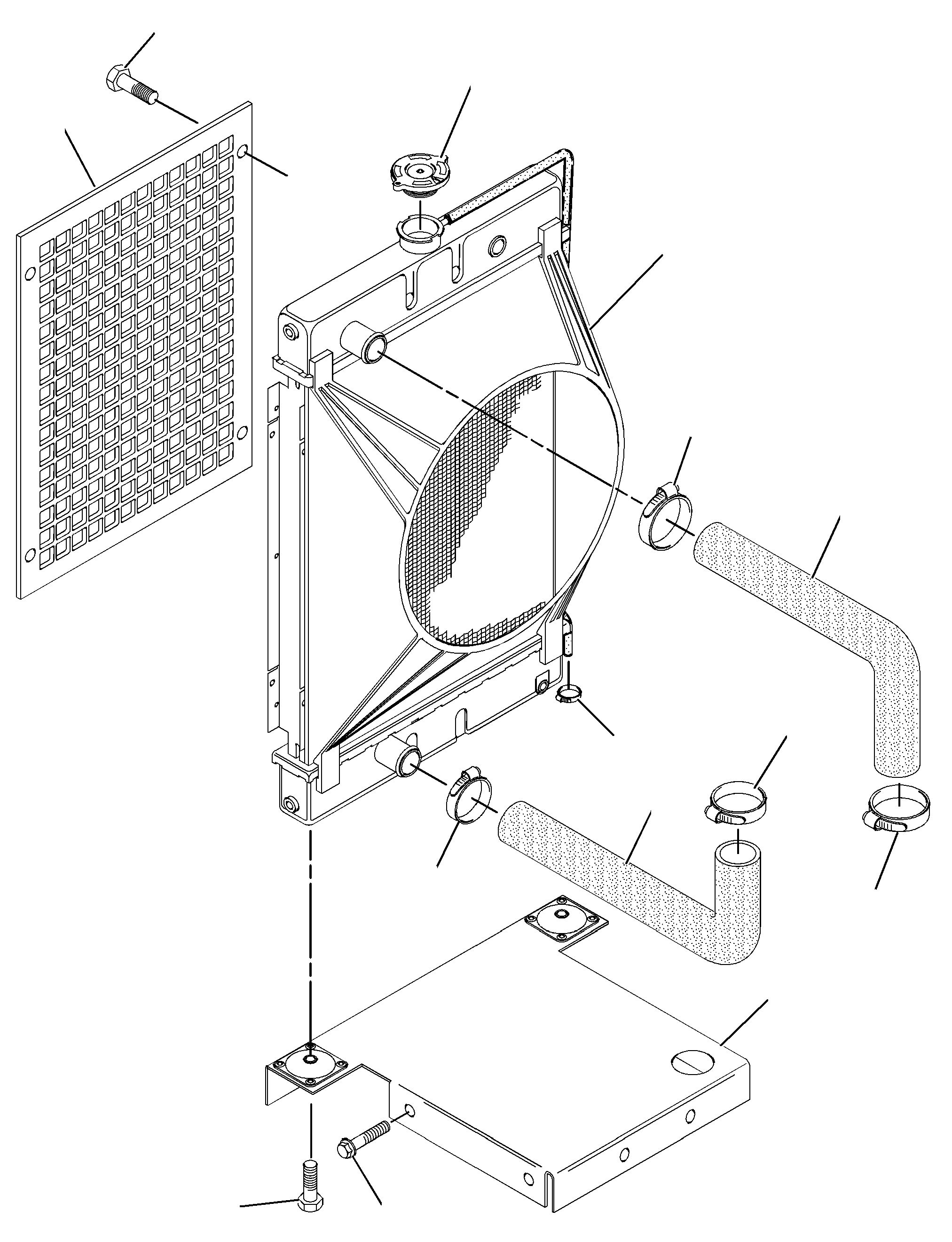

Assembly
100%

269-8237 RADIATOR GPType 1

Group No: 269-8237
Part NumberPart NameQty
6I02171 BOLT (M8X1.25X20-MM)4
06430582 CLAMP-HOSE4
15355923 NUT (M8X1.25-THD)2
15363754 BOLT AS1
15368615 BOLT AS2
18061186 BOLT (M8X1.25X12-MM)13
19826647 BOLT-HEAD (M14X1.5X25-MM)16
23666108 MOUNT1
23802659 HOSE-RADIATOR (UPPER)1
238026610 HOSE-RADIATOR (LOWER)1
238027111 RADIATOR AS1
202661611A CAP-RADIATOR1
239074312 SUPPORT1
239074413 GUARD1
239113714 BOLT (M10X1.25X25-MM)2
241675815 BRACKET-MOUNTING1
241675916 BRACKET-MOUNTING1
244325917 CLIP2
269823818 GUARD-RADIATOR (RH)1
269823919 GUARD-RADIATOR (LH)1
269824020 GUARD1
269824221 SUPPORT1
269824322 BRACKET-MOUNTING2
