System And Components

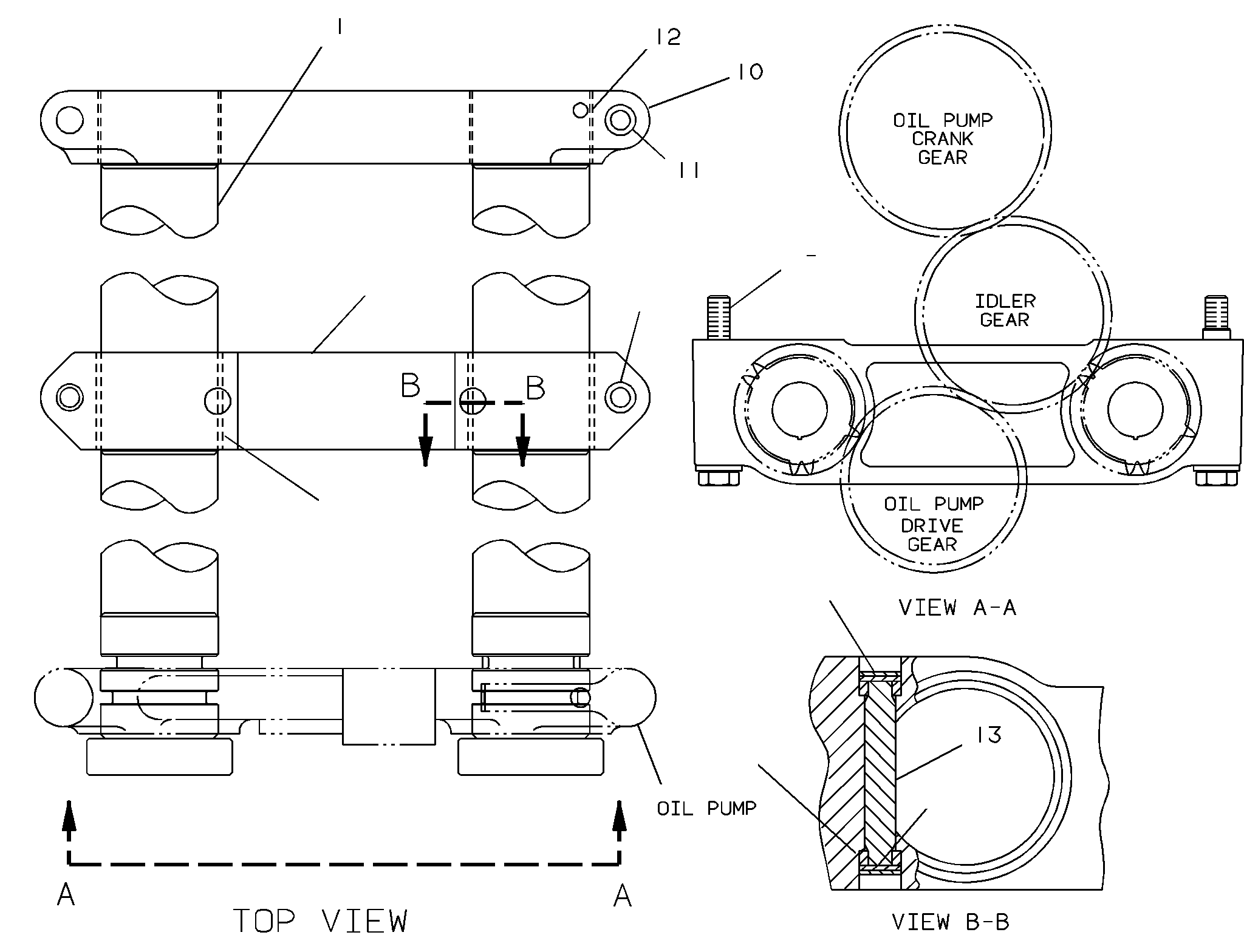

7E-3686 BALANCER GPS/N 2FG7200-UP
Group No: 7E-3686
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7W9941 | 1 SHAFT AS-BALANCE | 2 | |
| 3B2098 | KEY-WOODRUFF | 1 | |
| 4B9783 | BALL | 1 | |
| 8T0643 | 2 BOLT (M10X1.5X80-MM) | 4 | |
| 6V5839 | 3 WASHER (11X21X2.5-MM THK) | 4 | |
| 3D8358 | 4 RING-RETAINING | 4 | |
| 7E3409 | 5 ISOLATOR | 4 | |
| 9Y9918 | 6 PLATE | 4 | |
| 7C7199 | 7 SUPPORT AS-SHAFT | 1 | |
| 7C7197 | 8 BUSHING | 2 | |
| 7C7225 | 9 SLEEVE (10.8X12.54X27-MM) | 1 | |
| 7E3757 | 10 SUPPORT AS-SHAFT | 1 | |
| 7C7225 | 11 SLEEVE (10.8X12.54X27-MM) | 1 | |
| 7E2844 | 12 BEARING | 2 | |
| 7E2365 | 13 PIN-THRUST | 2 |
