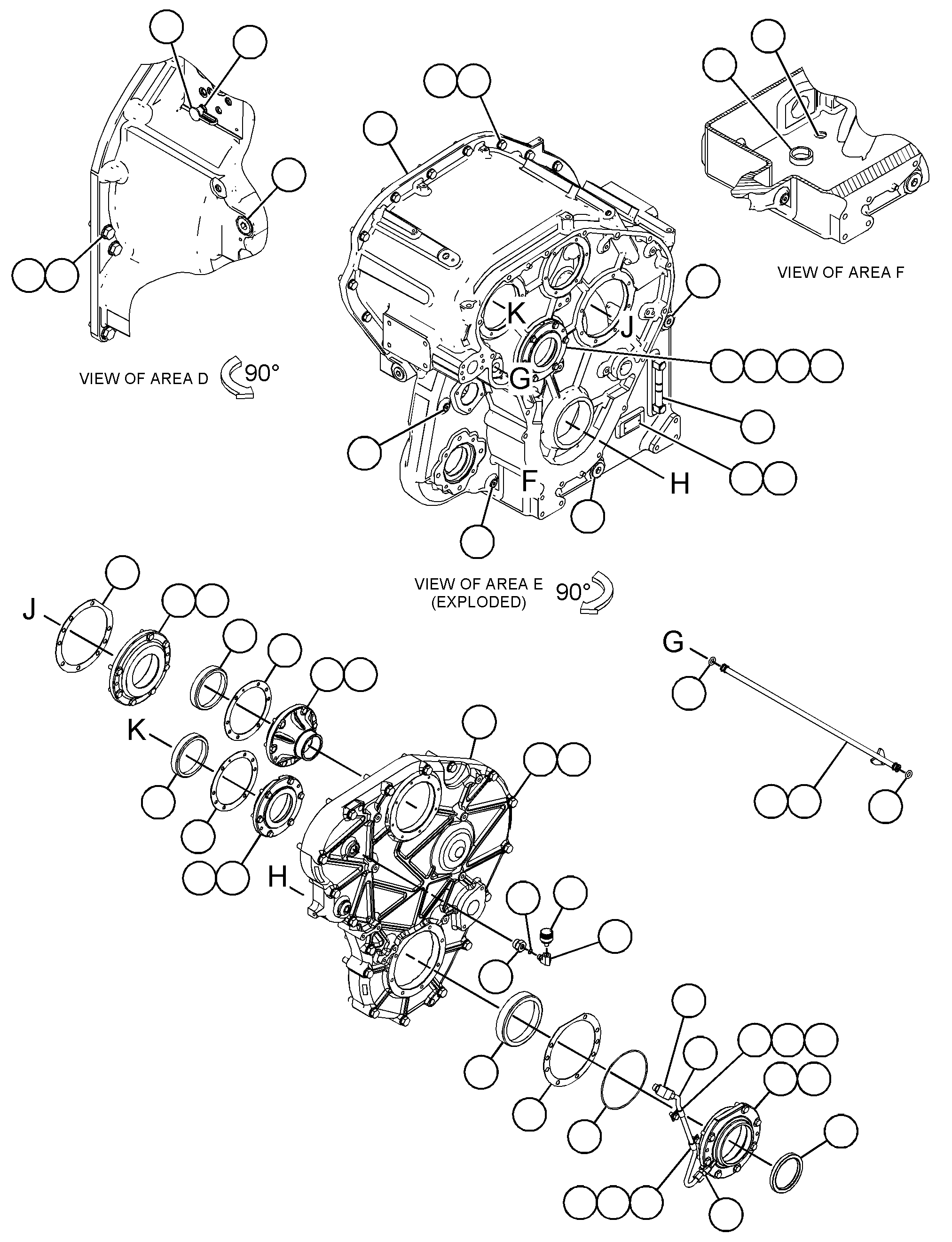

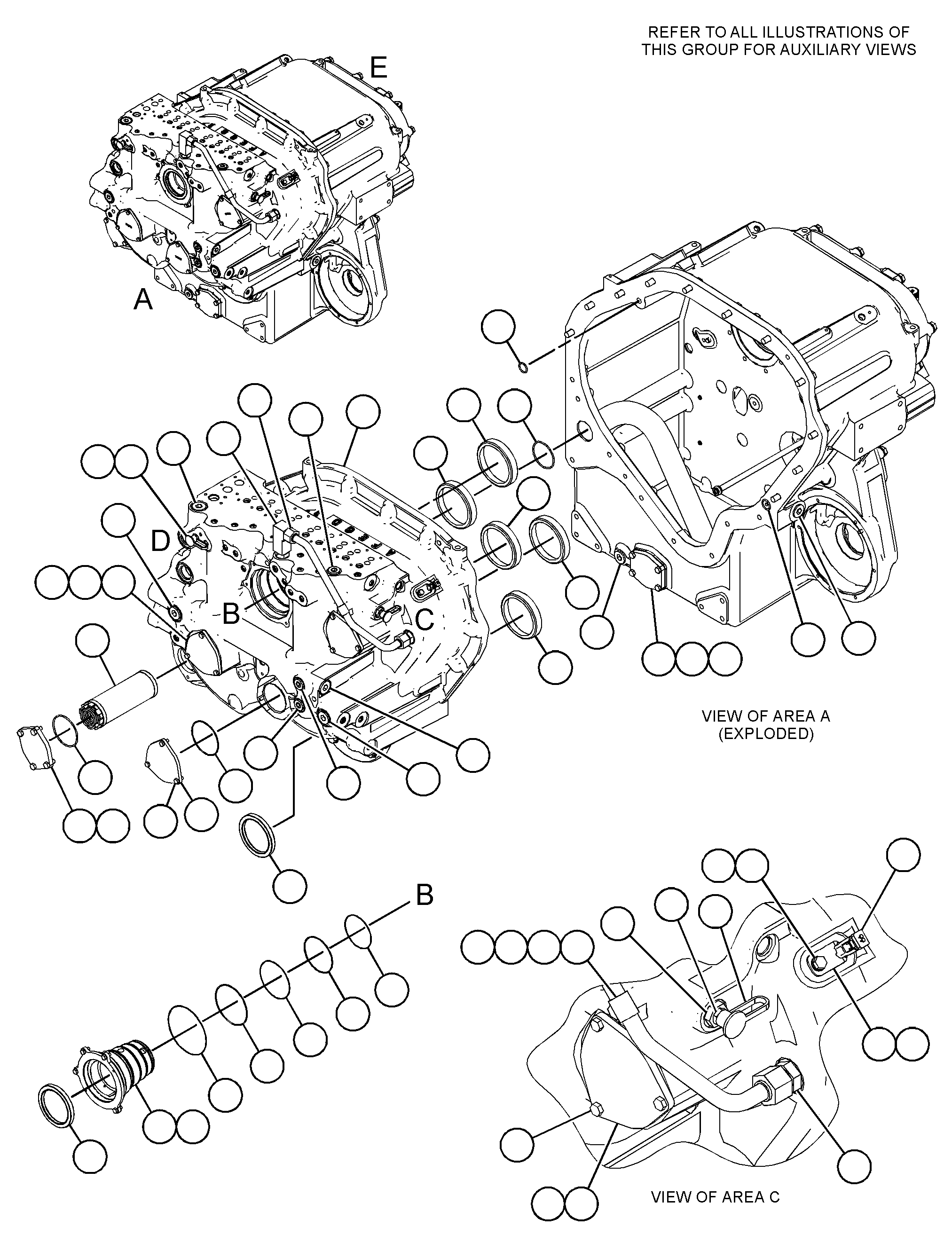

476-5277 CASE & PARTS GP-PLANETARYPART OF 476-1024 TRANSMISSION AR
Group No: 476-5277
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1T1068 | 1 SEAL-O-RING | 1 | |
| 3J1907 | 2 SEAL-O-RING | 1 | |
| 4F4097 | 3 SEAL-O-RING | 1 | |
| 5J3886 | 4 SEAL-O-RING | 1 | |
| 6V1720 | 5 PLATE-SERIAL NUMBER (TRANSMISSION) | 1 | |
| 6Y6329 | 6 SHIM PACK (INCLUDES 13-SHIMS) | 2 | |
| 8M7160 | 7 MAGNET | 1 | |
| 8T4224 | 8 WASHER-HARD (8.8X16X2-MM THK) | 1 | |
| 1062105 | 9 ELBOW | 1 | |
| 1488309 | 10 ADAPTER AS | 1 | |
| 2P8421 | ADAPTER-O-RING | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 1645567 | 11 COUPLER AS-QUICK DISCONNECT (MALE) | 3 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 1707290 | 12 COVER | 2 | |
| 1776741 | 13 CAGE-BEARING | 2 | |
| 1833873 | 14 BREATHER (TRANSMISSION) | 1 | |
| 1871376 | 15 SHIM PACK (INCLUDES 13-SHIMS) | 3 | |
| 1882128 | 16 PLUG AS | 1 | |
| 8T8737 | PLUG-SEAL | 2 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 1 | |
| 1882162 | 17 COVER | 3 | |
| 1918303 | 18 SENSOR GP-SPEED (TRANSMISSION OUTPUT) | 1 | |
| 5593864 | 19 GAUGE-SIGHT (FLUID LEVEL) | 1 | |
| 2075993 | 20 SCREEN-SUCTION (TRANSMISSION OIL) | 1 | |
| 2160273 | 21 SEAL-LIP TYPE | 3 | |
| 2655701 | 22 CASE AS-REAR | 1 | |
| 3F0957 | DOWEL (12.5-MM OD X 20.8-MM LG) | 2 | |
| 5B5821 | DOWEL (9.4-MM OD X 25.5-MM LG) | 1 | |
| 5M7937 | DOWEL (12.5-MM OD X 32-MM LG) | 2 | |
| 2655740 | 23 CAGE-BEARING | 1 | |
| 2676637 | 24 HOUSING-SEAL | 1 | |
| 2676638 | 25 TUBE AS | 1 | |
| 2734077 | 26 TUBE AS | 1 | |
| 2734084 | 27 CAGE-BEARING | 1 | |
| 2734104 | 28 COVER | 1 | |
| 2734106 | 29 TUBE AS | 1 | |
| 3008587 | 30 CAGE-BEARING | 1 | |
| 3072673 | 31 PLUG AS | 2 | |
| 2385080 | SEAL-O-RING | 1 | |
| 9S8005 | PLUG (3/4-16-THD) | 1 | |
| 3159859 | 32 PLUG AS | 3 | |
| 9S8008 | PLUG (1-1/16-12-THD) | 1 | |
| 2385082 | SEAL-O-RING | 1 | |
| 3196234 | 33 PLUG AS | 8 | |
| 9S9334 | PLUG | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3295455 | 34 PLUG AS | 1 | |
| 9S8010 | PLUG | 1 | |
| 2287096 | SEAL-O-RING | 1 | |
| 3763457 | 35 CASE AS-FRONT | 1 | |
| 3F0957 | DOWEL (12.5-MM OD X 20.8-MM LG) | 2 | |
| 5M7937 | DOWEL (12.5-MM OD X 32-MM LG) | 2 | |
| 0822817 | 36 TACK | 2 | |
| 1128988 | 37 CUP-BEARING | 1 | |
| 1313718 | 38 SEAL-O-RING | 2 | |
| 1327551 | 39 SPACER (11X19X6-MM THK) | 1 | |
| 2284947 | 40 SEAL-O-RING | 1 | |
| 2815972 | 41 CONNECTOR AS | 1 | |
| 6V8637 | CONNECTOR | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2385082 | SEAL-O-RING | 1 | |
| 3095133 | 42 PLUG AS | 1 | |
| 9S4181 | PLUG (1-5/16-12-THD) | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3196225 | 43 ELBOW AS | 1 | |
| 6V8625 | ELBOW | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3196240 | 44 CONNECTOR AS | 1 | |
| 6V9873 | CONNECTOR | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 3295459 | 45 ADAPTER AS | 1 | |
| 5P1404 | ADAPTER | 1 | |
| 2385081 | SEAL-O-RING | 1 | |
| 3309734 | 46 ELBOW AS | 1 | |
| 8C8400 | ELBOW | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2385082 | SEAL-O-RING | 1 | |
| 3P1155 | 47 SEAL-O-RING | 2 | |
| 3S8664 | 48 CLIP (LOOP) | 1 | |
| 4B8394 | 49 CUP-BEARING | 1 | |
| 5P4889 | 50 SEAL-O-RING | 1 | |
| 5P9299 | 51 CLIP (LOOP) | 2 | |
| 6D7146 | 52 SEAL-O-RING | 4 | |
| 6F2956 | 53 CUP-BEARING | 7 | |
| 6V0852 | 54 CAP-DUST | 3 | |
| 6V3907 | 55 SEAL-O-RING | 1 | |
| 6V3955 | 56 SEAL-O-RING | 2 | |
| 6V7350 | 57 SEAL-O-RING | 1 | |
| 6V8675 | 58 BOLT (M12X1.75X35-MM) | 14 | |
| 7X2556 | 59 BOLT (M16X2X100-MM) | 17 | |
| 8T4121 | 60 WASHER-HARD (11X21X2.5-MM THK) | 3 | |
| 8T4136 | 61 BOLT (M10X1.5X25-MM) | 9 | |
| 8T4137 | 62 BOLT (M10X1.5X20-MM) | 2 | |
| 8T4189 | 63 BOLT (M8X1.25X20-MM) | 14 | |
| 8T4193 | 64 BOLT (M16X2X50-MM) | 20 | |
| 8T4195 | 65 BOLT (M10X1.5X30-MM) | 18 | |
| 8T4200 | 66 BOLT (M8X1.25X16-MM) | 1 | |
| 9X8257 | 67 WASHER (17.5X30X3.5-MM THK) | 37 | |
| 1U8846 | SEALANT-GASKET | 1 |
