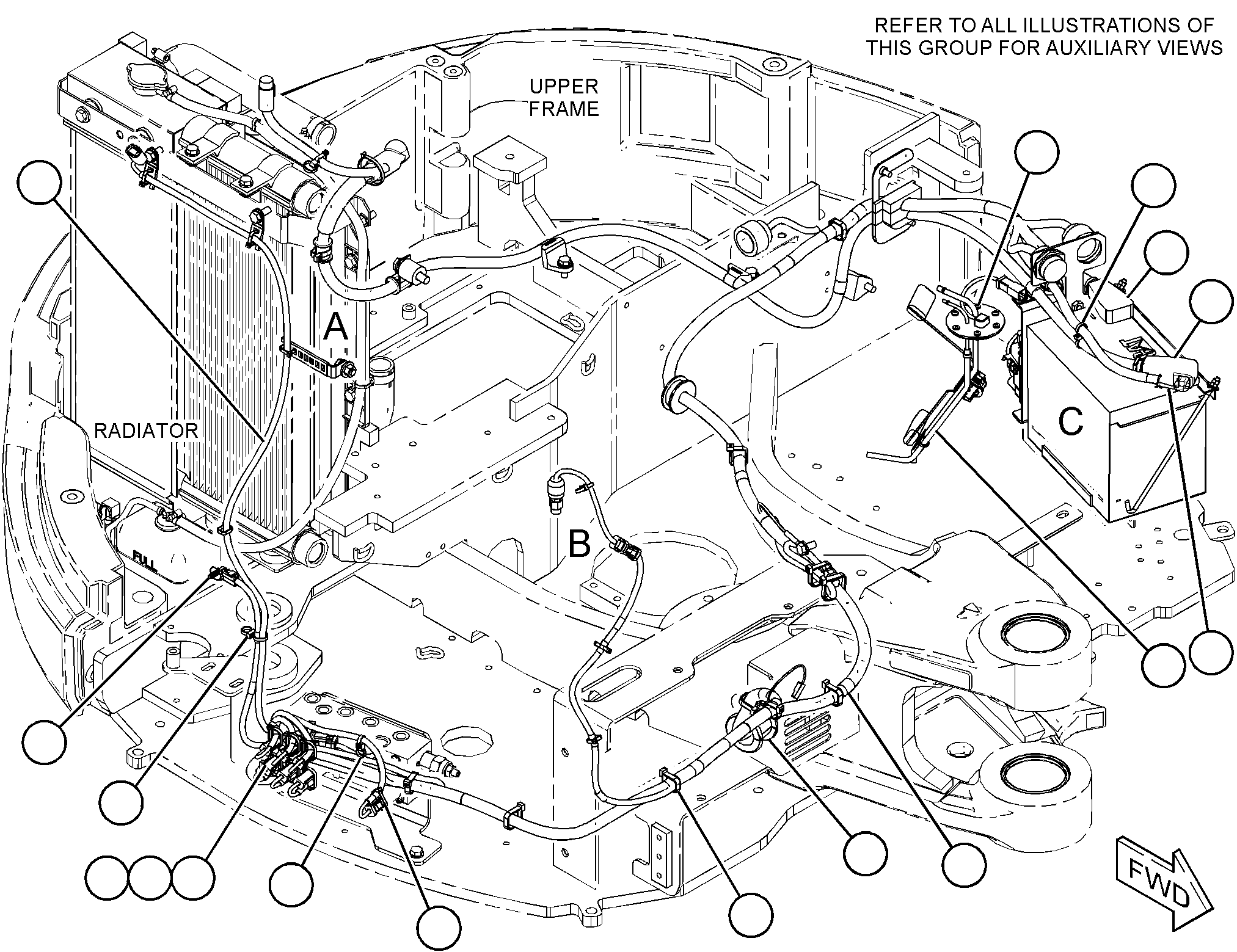

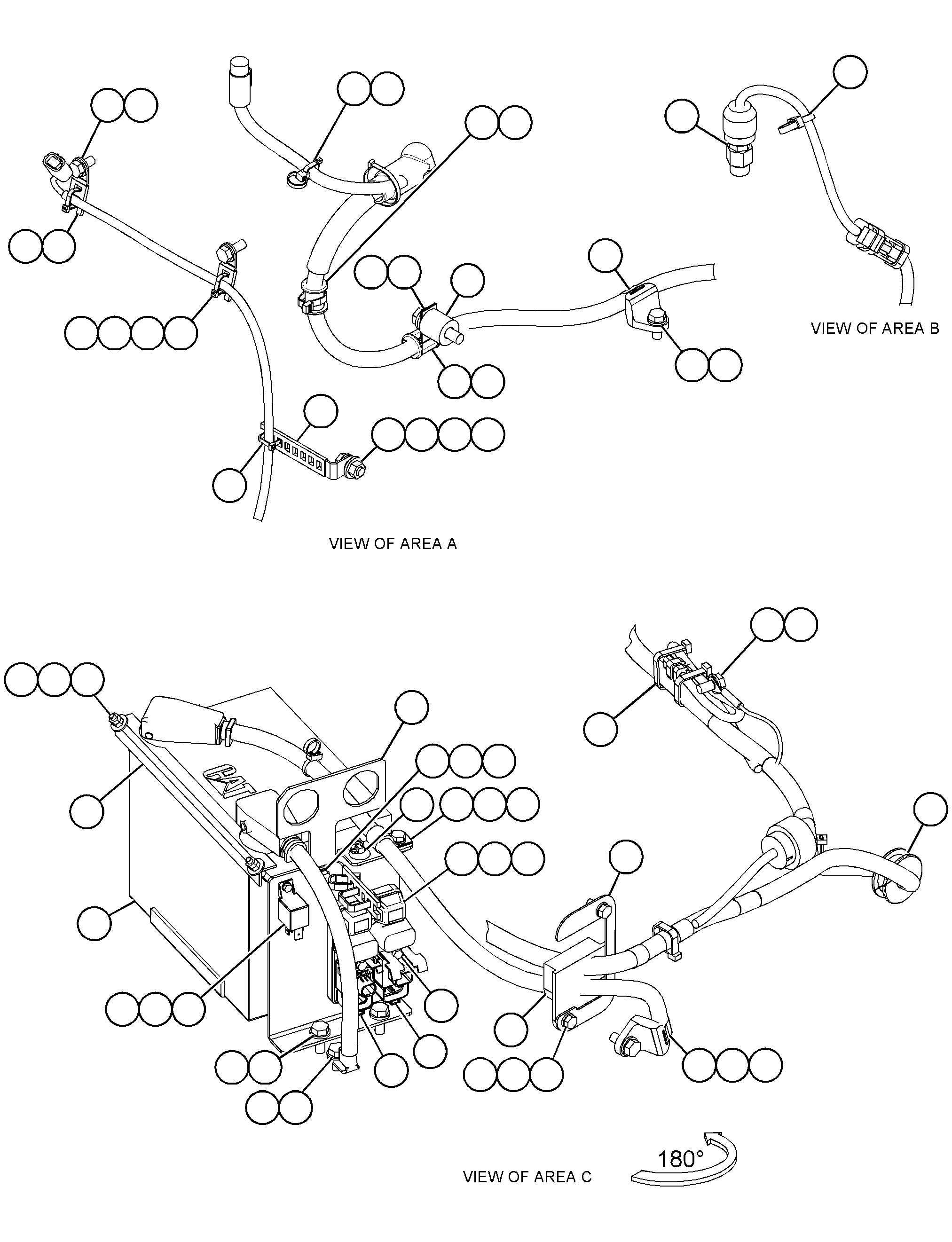

458-0685 BATTERY & WIRING GPPART OF 460-7557, 460-7558 CAB AR, 460-7555, 460-7556 CANOPY AR
Group No: 458-0685
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1S1150 | 1 SPACER (0.391X0.5X0.19-IN THK) | 2 | |
| 3S2093 | 2 STRAP-CABLE | 16 | |
| 7K1181 | 3 STRAP-CABLE | 15 | |
| 1114837 | 4 CLIP | 3 | |
| 1535656 | 5 BATTERY (12-VOLT, MAINTENANCE FREE, WET) | 1 | |
| 1636795 | 6 STRAP-CABLE | 2 | |
| 2153717 | 7 GROMMET | 1 | |
| 2666935 | 8 RELAY AS (12-VOLT) | 1 | |
| 2667379 | 9 STRAP-CABLE | 2 | |
| 2674767 | 10 CLAMP | 1 | |
| 2674768 | 11 ROD | 2 | |
| 2750553 | 12 BAR-BUS | 1 | |
| 2822151 | 13 GROMMET | 1 | |
| 2980663 | 14 CLIP (LADDER) | 2 | |
| 3276207 | 15 RELAY GP (12-VOLT)(GLOW PLUG) | 1 | |
| 3491812 | 16 SWITCH AS-PRESSURE (PILOT OIL) | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 1087516 | FITTING | 1 | |
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 1261768 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 2 | |
| 2304011 | PLUG AS-CONNECTOR (2-PIN) | 1 | |
| 2647029 | SEAL-CONNECTOR | 1 | |
| 3705366 | 17 CABLE AS-BATTERY (NEGATIVE) | 1 | |
| 3S6050 | TERMINAL AS-BATTERY (NEGATIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 7N5274 | COVER AS-TERMINAL (BLACK) | 1 | |
| 8L8413 | STRAP-CABLE (WHITE) | 1 | |
| 1598050 | CABLE (00-GA, BLACK)(33-CM) | ||
| 3118804 | TERMINAL | 1 | |
| 3769480 | 18 SENDER AS-FUEL LEVEL (FUEL TANK) | 1 | |
| 3792007 | GASKET | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 3986363 | 19 RELAY GP (12-VOLT)(MAIN POWER) | 1 | |
| 4715194 | 20 HARNESS AS-CHASSIS | 1 | |
| 4580726 | 21 PLATE AS | 1 | |
| 4641207 | 22 HARNESS AS-SENSOR | 1 | |
| 4794289 | 23 CABLE AS | 1 | |
| 9X4519 | BOOT (RED) | 1 | |
| 1598049 | CABLE (00-GA, RED)(220-CM) | ||
| 2922893 | CONDUIT (10.1-MM ID)(33-CM) | ||
| 8C5064 | CONDUIT-FLEXIBLE (17.75-MM ID, SPLIT)(10-CM) | ||
| 1275483 | PLUG AS-CONNECTOR (1-PIN) | 1 | |
| 3S6049 | TERMINAL AS-BATTERY (POSITIVE) | 1 | |
| 0319292 | RING-TERMINAL | 1 | |
| 4641210 | 24 GROMMET | 1 | |
| 4641211 | 25 PLATE | 1 | |
| 1193450 | 26 SPACER (13.5X30X30-MM THK) | 1 | |
| 1S1015 | 27 CLIP (LOOP) | 1 | |
| 2041611 | 28 STRAP-CABLE (DUAL) | 3 | |
| 2771873 | 29 CLIP (LADDER) | 1 | |
| 2V1771 | 30 GROMMET | 2 | |
| 4P7581 | 32 CLIP (LADDER) | 2 | |
| 5C2890 | 33 NUT (M6X1-THD) | 4 | |
| 5C7261 | 34 NUT (M8X1.25-THD) | 2 | |
| 5P4115 | 35 WASHER-HARD (7.2X19X2-MM THK) | 2 | |
| 6V8221 | 36 BOLT (M12X1.25X55-MM) | 1 | |
| 7I2272 | 37 BOLT (M5X0.8X12-MM) | 1 | |
| 7X7729 | 38 WASHER (11X25X3-MM THK) | 1 | |
| 8T0328 | 39 WASHER-HARD (5.5X10X1-MM THK) | 1 | |
| 0950736 | 40 SCREW-MACHINE (M5X0.8X10-MM) | 6 | |
| 8T4121 | 41 WASHER-HARD (11X21X2.5-MM THK) | 11 | |
| 8T4133 | 42 NUT (M10X1.5-THD) | 1 | |
| 8T4136 | 43 BOLT (M10X1.5X25-MM) | 7 | |
| 8T4137 | 44 BOLT (M10X1.5X20-MM) | 4 | |
| 8T4189 | 45 BOLT (M8X1.25X20-MM) | 2 | |
| 8T4200 | 46 BOLT (M8X1.25X16-MM) | 2 | |
| 8T4223 | 47 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 8T4224 | 48 WASHER-HARD (8.8X16X2-MM THK) | 6 | |
| 9M8406 | 49 CLIP (LOOP) | 1 | |
| 9X2480 | 50 BOLT (M6X1X45-MM) | 2 | |
| 8T8799 | 51 BOOT (RED) | 1 |
