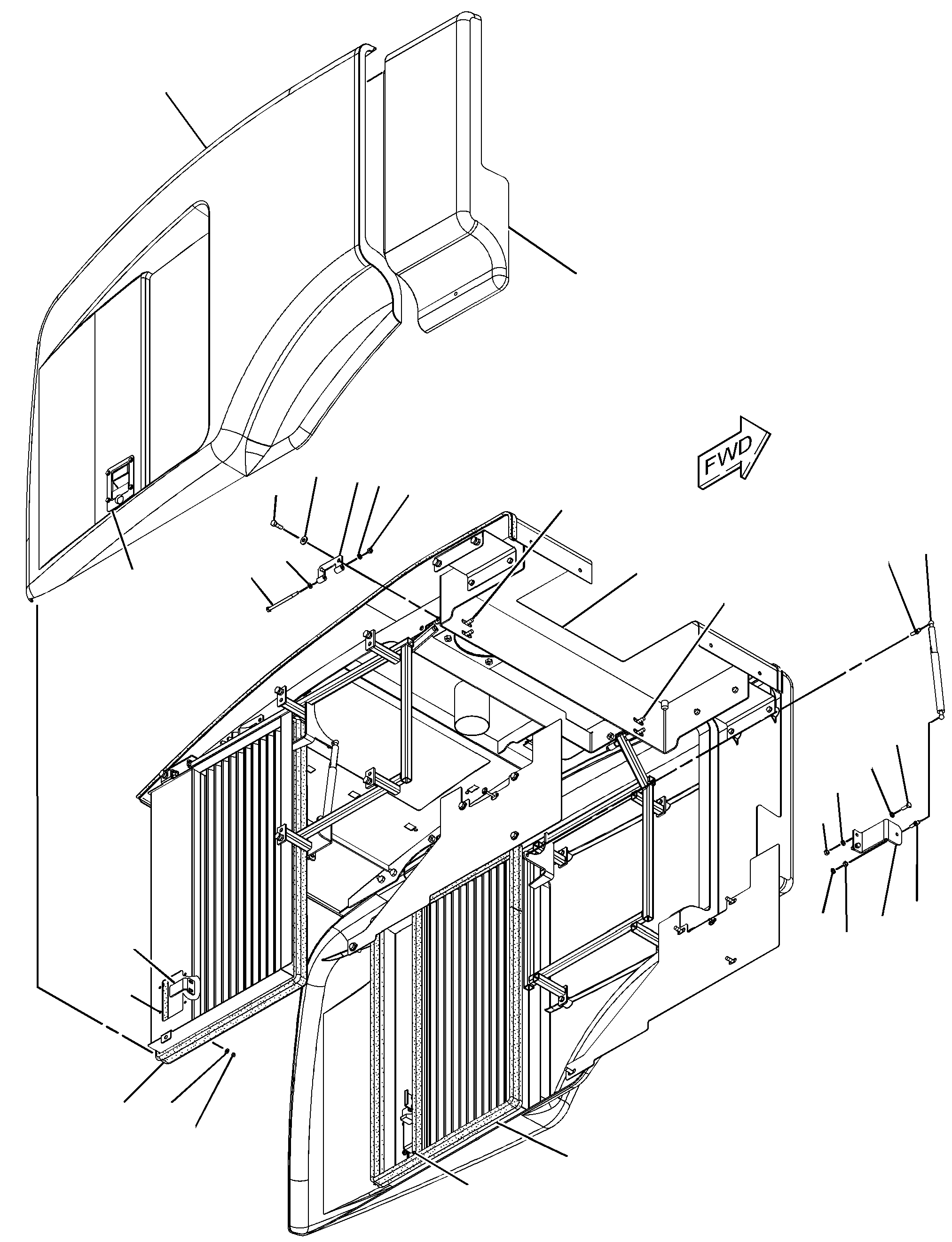

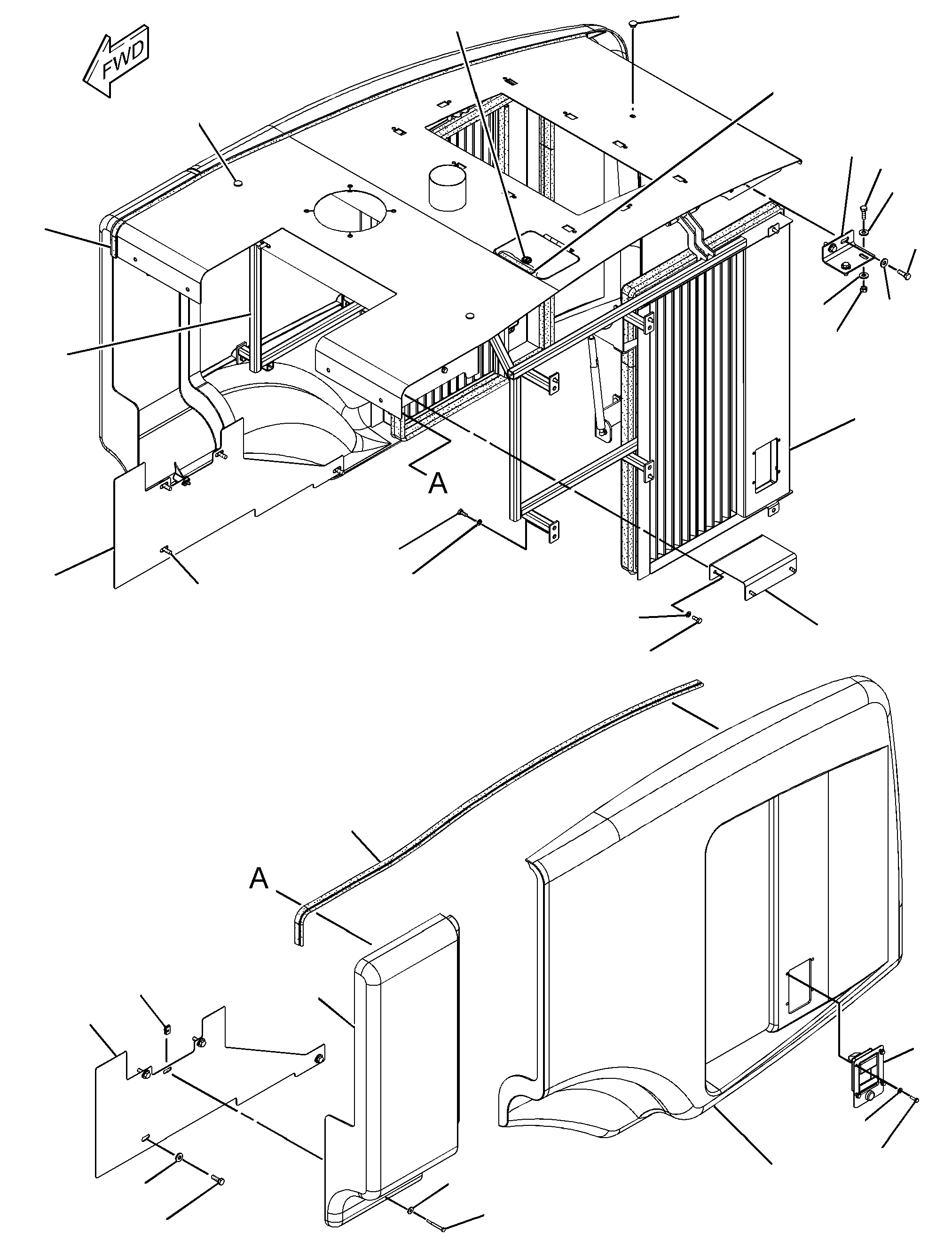

198-8970 HOOD & GUARD GPS/N WAC451-UP; WLG510-UP

Group No: 198-8970 · Commonality
Part NumberPart NameQty
5P56371 SEAL (1-M)
12520862 LOCK GP1
2260294LOCK AS1
2260339CAM1
13019163 STUD-BALL (M8X1.25X20-MM)4
17285914 NUT-CLIP (M6X1-THD)2
19889335 HINGE4
19889426 BRACKET2
19889437 BRACKET2
19889448 PLATE2
19889459 DOOR AS-HOOD (RH)1
198894610 DOOR AS-HOOD (LH)1
198895411 PANEL AS-HOOD (RH)(RH)1
198895512 PANEL AS-HOOD (LH)(LH)1
198895913 PLATE2
198896114 PLATE2
202037015 HOOD AS1
9X229916 LATCH AS (PADDLE)2
225380017 HINGE AS-HOOD (RH)1
225380118 HINGE AS-HOOD (LH)1
228769619 SPRING AS-GAS (HOOD)2
131354020 LOCKNUT (M8X1.25-THD)4
5C289021 NUT (M6X1-THD)(HEX)8
5C726122 NUT (M8X1.25-THD)12
5P411523 WASHER-HARD (7.2X19X2-MM THK)2
7X253524 BOLT (M6X1X60-MM)2
7X254025 BOLT (M8X1.25X120-MM)4
7X772926 WASHER (11X25X3-MM THK)32
8T413327 NUT (M10X1.5-THD)4
8T413828 BOLT (M6X1X20-MM)8
8T418929 BOLT (M8X1.25X20-MM)18
8T419530 BOLT (M10X1.5X30-MM)28
8T420531 WASHER-HARD (7.2X14.5X2-MM THK)16
8T422432 WASHER-HARD (8.8X16X2-MM THK)42
8T490833 BOLT (M8X1.25X25-MM)4
136772834 SEAL (180-CM EACH)
9X869935 SEAL (306-CM EACH)
9X869935A SEAL (91-CM EACH)
193591436 PLUG (PROTECTION)3
