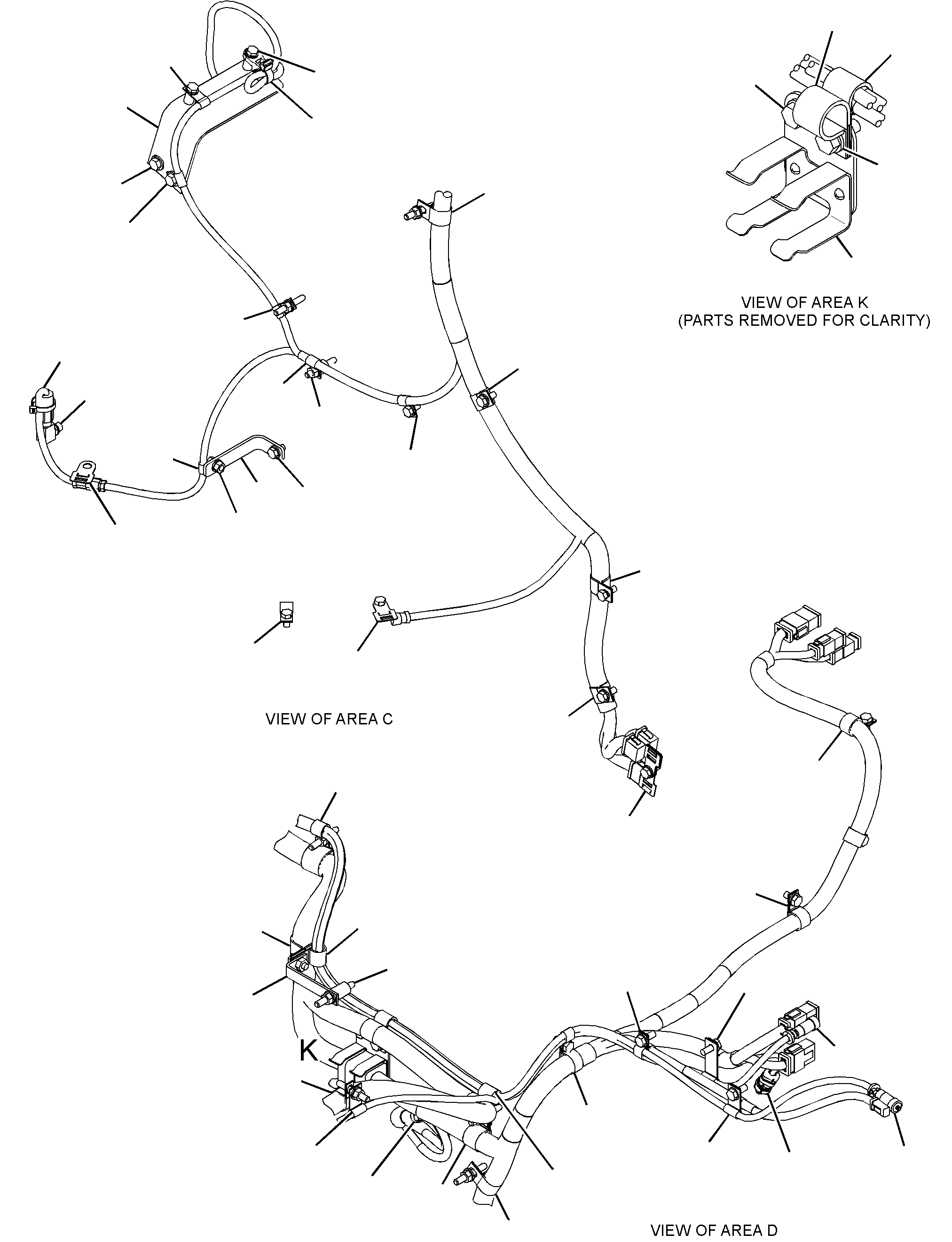

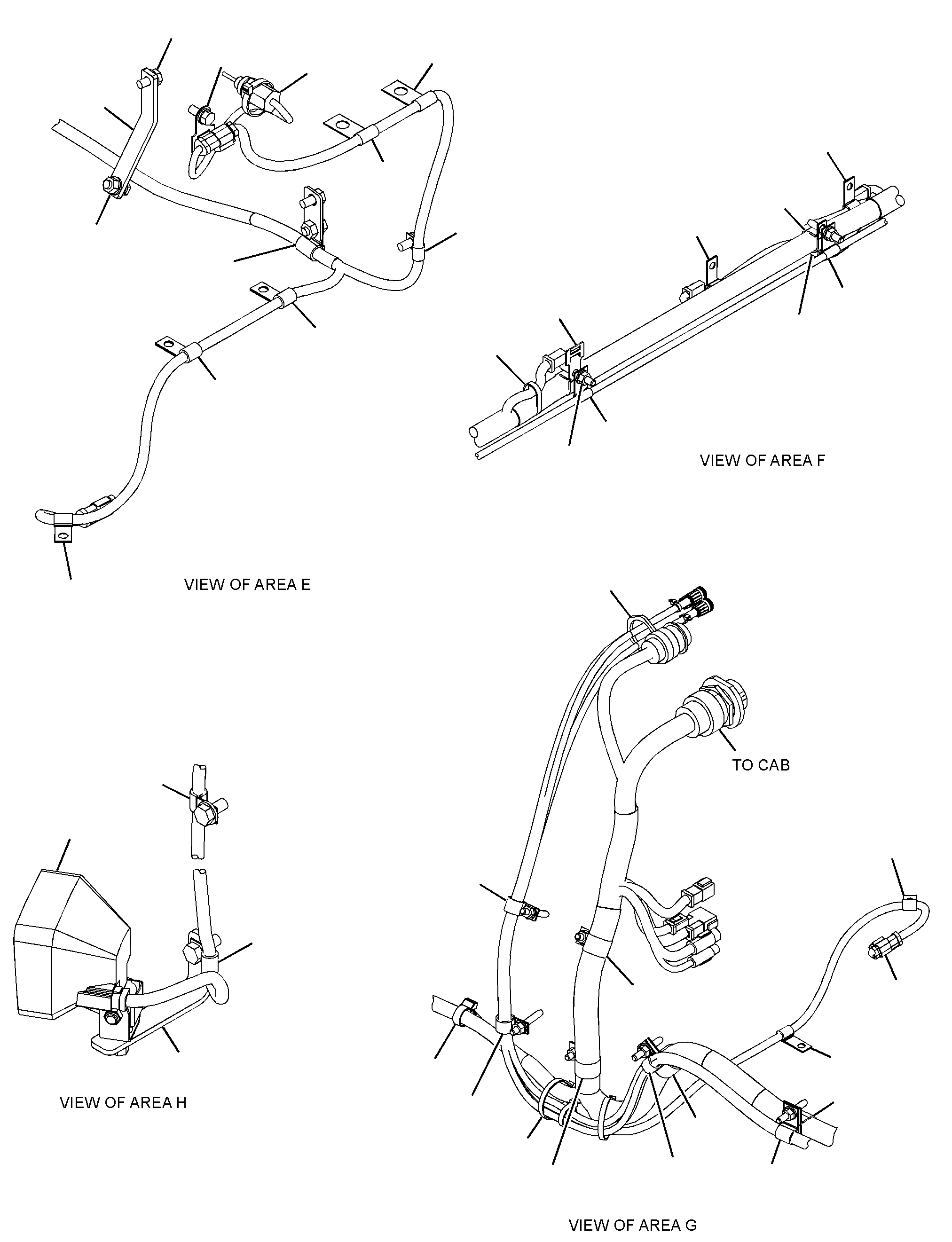

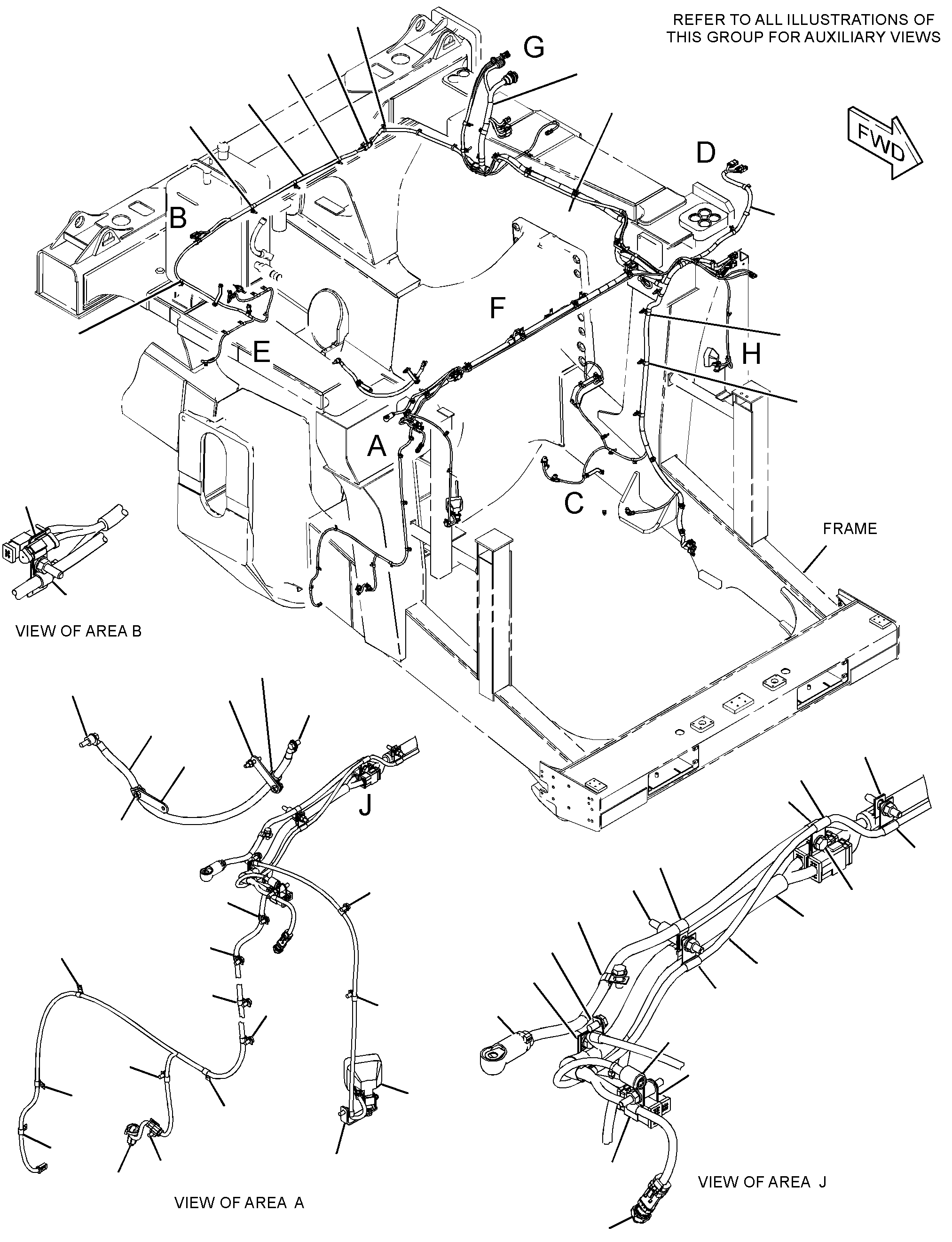

288-5656 WIRING GP-LIGHTING -FRONTS/N SHH1-319
Group No: 288-5656
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7K1181 | 1 STRAP-CABLE | 9 | |
| 1342252 | 2 SENSOR GP-TEMPERATURE (8-VOLT)(STEERING OIL) | 1 | |
| 1421657 | 3 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 1446302 | 4 BRACKET | 3 | |
| 2293177 | 6 PLATE AS | 1 | |
| 6V6716 | RIVET-TRUSS HEAD | 2 | |
| 1091645 | CLIP | 1 | |
| 2435821 | 7 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 2726641 | 8 LAMP GP-FLOOD (24-VOLT) | 2 | |
| 2744477 | 9 CABLE AS (VIDEO, 5-M) | 2 | |
| 2830658 | 10 CABLE AS (VIDEO, 7.5-M) | 1 | |
| 2975513 | 11 CABLE AS | 1 | |
| 3L7634 | TERMINAL-RING (0000-GA, 1/2-IN SCREW) | 2 | |
| 1598054 | CABLE-ELECTRICAL (0000-GA, BLACK)(84-CM) | ||
| 2942319 | COVER-TERMINAL (BLACK) | 2 | |
| 3019810 | 12 BRACKET AS | 1 | |
| 8T3851 | BOSS-WELD (M10X1.5X17.5-MM) | 2 | |
| 3076719 | 13 SWITCH AS-PRESSURE (HIGH PRESSURE, STEERING) | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 9X1813 | SLEEVE (28-CM) | ||
| 3155391 | 14 NUT (M50X1.5-THD) | 1 | |
| 3203063 | 15 SENSOR GP-PRESSURE (AIR INLET) | 2 | |
| 3309764 | 16 ELBOW AS | 1 | |
| 8C6712 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 3489226 | 19 GROMMET AS | 1 | |
| 3516021 | 20 PLATE | 1 | |
| 3524202 | 21 STRAP-CABLE | 2 | |
| 3524204 | 22 STRAP-CABLE | 2 | |
| 3535307 | 23 HARNESS AS-LIGHTING (PEDESTAL, LH) | 1 | |
| 3553726 | 24 HARNESS AS-LIGHTING (MAIN BEAM) | 1 | |
| 3845345 | 25 HARNESS AS-FRONT CHASSIS | 1 | |
| 3845346 | 26 HARNESS AS-LIGHTING (WORK LIGHT, RH) | 1 | |
| 0338248 | 27 CLIP (LOOP) | 7 | |
| 1093001 | 28 STUD-TAPERLOCK (M10X1.5X65-MM) | 19 | |
| 1305300 | 29 CLIP | 16 | |
| 1305301 | 30 CLIP | 1 | |
| 1470385 | 31 CLIP | 6 | |
| 1497738 | 32 CLIP (LOOP) | 1 | |
| 1860357 | 33 CLIP | 7 | |
| 1860359 | 34 CLIP | 2 | |
| 1S0994 | 35 CLIP (LOOP) | 3 | |
| 2049734 | 36 SPACER (11X18X25-MM THK) | 1 | |
| 2147566 | 37 SEAL-O-RING | 1 | |
| 2147568 | 38 SEAL-O-RING | 2 | |
| 2746085 | 39 STUD-TAPERLOCK (M10X1.5X100-MM) | 1 | |
| 2T3019 | 40 CLIP (LOOP) | 1 | |
| 3076718 | 41 SWITCH AS-PRESSURE (LOW PRESSURE, STEERING) | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 9X1813 | SLEEVE (28-CM) | ||
| 3524200 | 42 STRAP-CABLE | 2 | |
| 4D7388 | 43 CLIP | 5 | |
| 4D7735 | 44 CLIP | 6 | |
| 4D7794 | 45 CLIP | 13 | |
| 4K6177 | 46 CLIP | 1 | |
| 4K8864 | 47 CLIP (LOOP) | 3 | |
| 4S1962 | 48 CLIP (LOOP) | 9 | |
| 8T4835 | 49 BOLT (1/2-13X2-IN) | 1 | |
| 5P7854 | 50 CLIP (LOOP) | 2 | |
| 6D3479 | 51 CLIP (LOOP) | 1 | |
| 6D4244 | 52 CLIP (LOOP) | 1 | |
| 6D4246 | 53 CLIP (LOOP) | 5 | |
| 6V3265 | 54 CLIP | 3 | |
| 6W6672 | 55 SPACER (10.5X20X38-MM THK) | 1 | |
| 7N3718 | 56 CLIP | 2 | |
| 2287100 | 57 SEAL-O-RING | 2 | |
| 8M2770 | 58 CLIP (LOOP) | 7 | |
| 8M2773 | 59 CLIP (LOOP) | 3 | |
| 8T4121 | 60 WASHER-HARD (11X21X2.5-MM THK) | 75 | |
| 3445675 | 61 NUT (M10X1.5-THD) | 29 | |
| 8T4136 | 62 BOLT (M10X1.5X25-MM) | 19 | |
| 8T4137 | 63 BOLT (M10X1.5X20-MM) | 27 | |
| 8T4192 | 64 BOLT (M12X1.75X25-MM) | 4 | |
| 8T4223 | 65 WASHER-HARD (13.5X25.5X3-MM THK) | 5 | |
| 9C5344 | 66 SPACER (10.5X20X18-MM THK) | 1 | |
| 3023908 | 67 SPACER (11X20X30-MM THK) | 1 | |
| 9M4972 | 68 CLIP (LOOP) | 4 | |
| 9X8250 | 69 CLIP (LOOP) | 3 | |
| 9X8582 | 70 CLIP (LOOP) | 2 | |
| 2597140 | 71 STUD-TAPERLOCK (M10X1.5X80-MM) | 2 | |
| 2310336 | 72 STUD-TAPERLOCK (M10X1.5X70-MM) | 4 | |
| 8T4896 | 73 WASHER-HARD (10.2X18.5X2.5-MM THK) | 1 | |
| 5S7379 | 74 BOLT (3/8-16X0.875-IN) | 1 | |
| 2048000 | 75 MOUNTING-CABLE TIE | 3 | |
| 2042281 | 76 STRAP-CABLE | 3 | |
| 6H7062 | 77 SPACER (13.5X25X19-MM THK) | 1 | |
| 2884402 | 78 STUD-TAPERLOCK (M10X1.5X60-MM) | 1 | |
| 1258534 | 79 PLATE AS | 2 | |
| 8T1890 | 80 CLIP (TAB) | 2 | |
| 8T1889 | 81 CLIP (SLOT) | 2 | |
| 5G3676 | 82 GROMMET | 2 | |
| 1064155 | KIT-RETAINING BOLT | 1 |
