System And Components

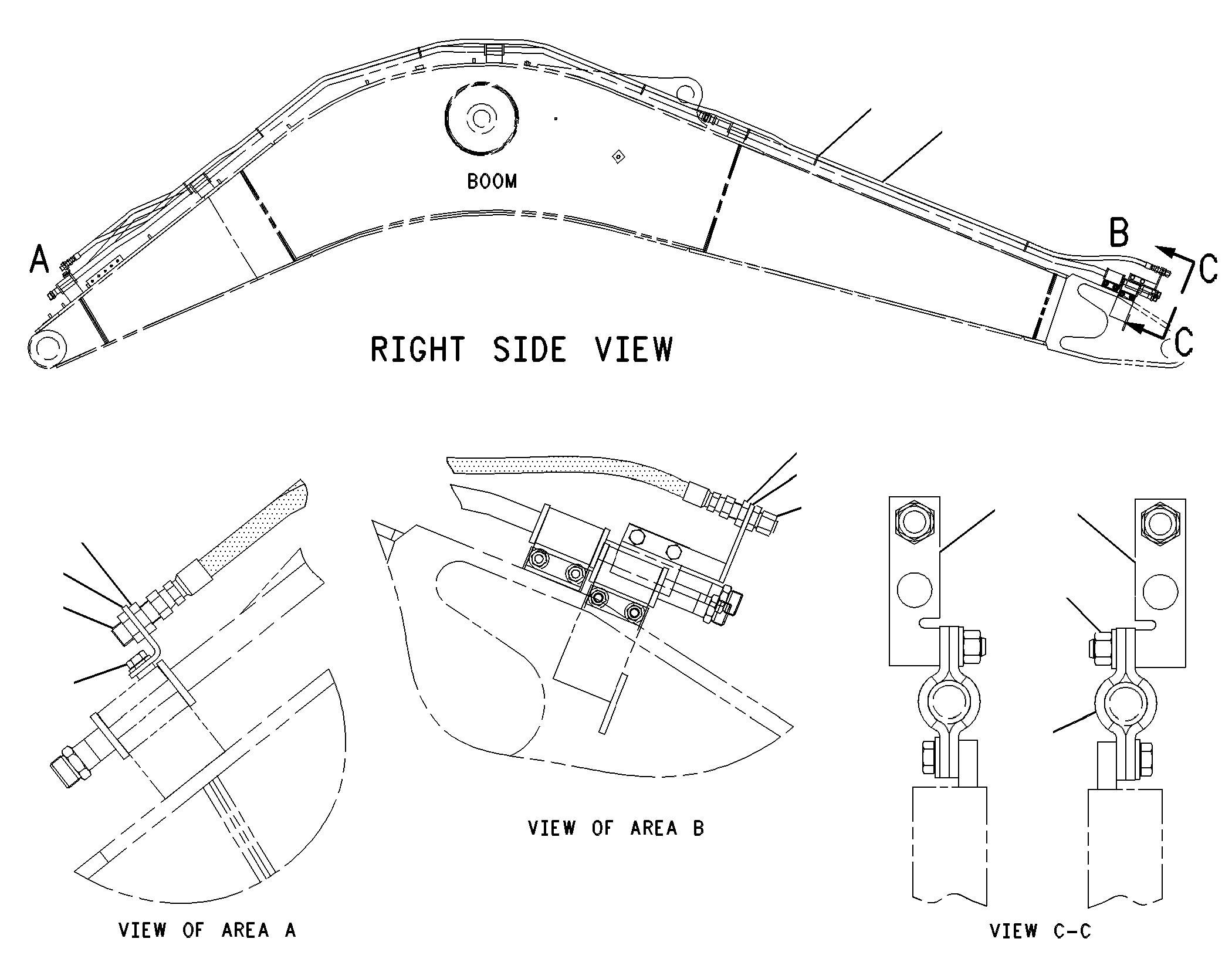

152-5636 LINES AR-BOOMS/N ADC1-UP; AEJ1-UP
Group No: 152-5636
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6V8995 | 1 UNION (STRAIGHT) | 4 | |
| 8T4223 | 2 WASHER-HARD (13.5X25.5X3-MM THK) | 5 | |
| 8T4648 | 3 BOLT (M12X1.75X70-MM) | 1 | |
| 6V9169 | 4 NUT (13/16-16-THD) | 4 | |
| 6V9830 | 5 CAP (ORFS) | 2 | |
| 6V8398 | 6 SEAL-O-RING | 2 | |
| 3J1907 | 7 SEAL-O-RING | 4 | |
| 1525637 | 8 HOSE AS | 2 | |
| 7K1181 | 9 STRAP-CABLE | 12 | |
| 1649232 | 10 BRACKET | 1 | |
| 1649233 | 11 BRACKET | 1 | |
| 8T4244 | 12 NUT (M12X1.75-THD) | 4 | |
| 8T4956 | 13 BOLT (M12X1.75X35-MM) | 4 | |
| 7Y4531 | 14 CLAMP-HALF | 4 | |
| 1236152 | 15 SUPPORT AS | 1 |
