System And Components

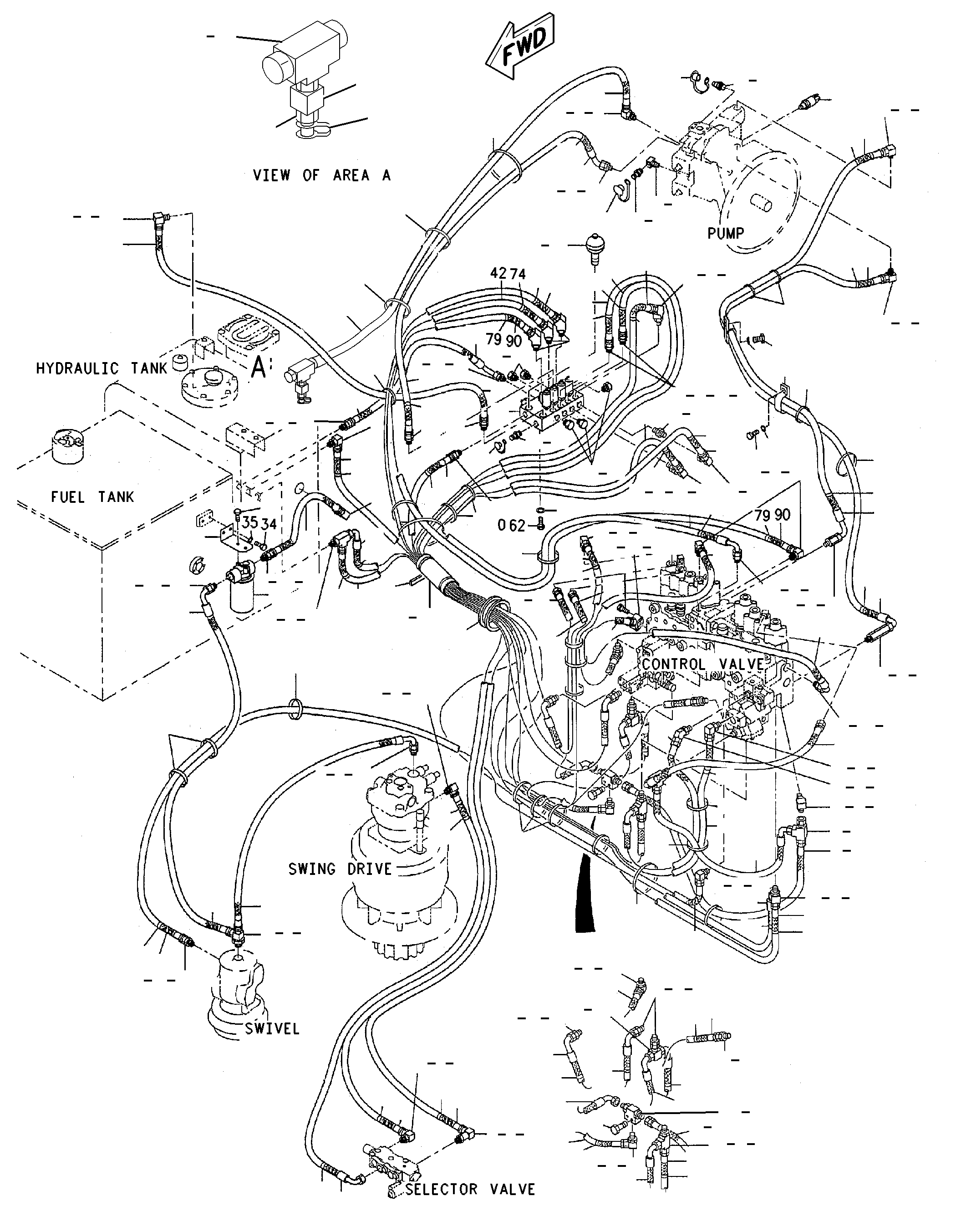

115-9036 LINES GP-PILOTS/N 1YS1-UP
Group No: 115-9036
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1335748 | 1 HOSE AS | 1 | |
| 1335751 | 2 HOSE AS | 1 | |
| 1488364 | 3 ELBOW AS | 3 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8625 | ELBOW | 1 | |
| 3K0360 | 4 SEAL-O-RING | 2 | |
| 6V8398 | 5 SEAL-O-RING | 3 | |
| 1158634 | 6 TEE-O-RING | 1 | |
| 2M9780 | 7 SEAL-O-RING | 1 | |
| 1021157 | 8 HOSE AS | 1 | |
| 1488338 | 9 CONNECTOR AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8T0075 | CONNECTOR | 1 | |
| 6V8397 | 11 SEAL-O-RING | 5 | |
| 7Y8478 | 12 HOSE AS | 1 | |
| 0875772 | 13 HOSE AS | 1 | |
| 1488435 | 14 TEE AS | 3 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8781 | TEE | 1 | |
| 0875758 | 15 HOSE AS | 1 | |
| 1488342 | 16 CONNECTOR AS | 2 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8632 | CONNECTOR | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1158834 | 18 HOSE AS | 1 | |
| 4I5997 | 19 HOSE AS | 1 | |
| 1488372 | 20 ELBOW AS | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8721 | ELBOW | 1 | |
| 1488345 | 21 CONNECTOR AS | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1060178 | 22 SENSOR AS-PRESSURE | 1 | |
| 1488328 | 23 CONNECTOR AS | 3 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8633 | CONNECTOR | 1 | |
| 1488378 | 25 ELBOW AS | 11 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8724 | ELBOW | 1 | |
| 4I1631 | 26 HOSE AS | 1 | |
| 1488340 | 27 CONNECTOR AS | 2 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8639 | CONNECTOR | 1 | |
| 1136758 | 28 HOSE AS | 1 | |
| 1645589 | 29 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8C0597 | CONNECTOR | 1 | |
| 1048973 | 30 HOSE AS | 1 | |
| 1488336 | 31 CONNECTOR AS | 9 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1232549 | 32 VALVE GP-SHUTTLE | 1 | |
| 1358972 | 33 HOSE AS | 1 | |
| 8T4137 | 34 BOLT (M10X1.5X20-MM) | 6 | |
| 8T4121 | 35 WASHER-HARD (11X21X2.5-MM THK) | 4 | |
| 6D1641 | 36 CLIP (LOOP) | 2 | |
| 1158647 | 37 GUARD | 1 | |
| 1158645 | 38 GUARD | 1 | |
| 0960061 | 39 STRAP-CABLE | 2 | |
| 0874587 | 40 GROMMET | 1 | |
| 1358976 | 41 HOSE AS | 1 | |
| 1048976 | 42 HOSE AS | 1 | |
| 4I3991 | 43 HOSE AS | 2 | |
| 0875765 | 44 HOSE AS | 1 | |
| 4I0800 | 45 HOSE AS | 3 | |
| 4I1780 | 46 HOSE AS | 1 | |
| 4I0833 | 47 HOSE AS | 1 | |
| 0875773 | 48 HOSE AS | 1 | |
| 4I0836 | 49 HOSE AS | 1 | |
| 0874532 | 50 HOSE AS | 1 | |
| 1645597 | 51 CONNECTOR AS | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8C6868 | CONNECTOR | 1 | |
| 1048771 | 52 HOSE AS | 1 | |
| 1645628 | 53 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1076631 | CONNECTOR-FILTER | 1 | |
| 5I8825 | 54 HOSE AS | 1 | |
| 4I5900 | 55 HOSE AS | 1 | |
| 1488433 | 56 TEE AS | 2 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V9836 | TEE-SWIVEL | 1 | |
| 0874480 | 57 HOSE AS | 1 | |
| 1645635 | 58 ELBOW AS | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1136699 | ELBOW | 1 | |
| 7J9933 | 59 SEAL-O-RING | 1 | |
| 8T4196 | 60 BOLT (M10X1.5X35-MM) | 2 | |
| 0874456 | 61 ACCUMULATOR GP-HYDRAULIC (CHARGED) | 1 | |
| 0994691 | 62 BOLT-LOCKING (M12X1.75X25-MM) | 3 | |
| 5P1076 | 63 WASHER-HARD (13.5X30X4-MM THK) | 3 | |
| 1119950 | 64 MANIFOLD GP-CONTROL | 1 | |
| 1645567 | 66 COUPLER AS-QUICK DISCONNECT (MALE) | 4 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 6V0852 | 67 CAP-DUST | 4 | |
| 1646874 | 68 FITTING AS-ELBOW (QUICK DISCONNECT, MALE) | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 0857356 | FITTING | 1 | |
| 1504043 | 69 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V9873 | CONNECTOR | 1 | |
| 1488407 | 70 PLUG AS | 5 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 1488353 | 71 ELBOW AS | 5 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9001 | ELBOW | 1 | |
| 1488367 | 72 ELBOW AS | 2 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9850 | ELBOW | 1 | |
| 4I9521 | 73 BAND-MARKER (RED, L1) | 6 | |
| 4I9522 | 74 BAND-MARKER (YELLOW, L2) | 6 | |
| 4I9523 | 75 BAND-MARKER (BLUE, L3) | 4 | |
| 4I9524 | 76 BAND-MARKER (BROWN, L4) | 2 | |
| 4I9525 | 77 BAND-MARKER (ORANGE, R1) | 4 | |
| 4I9526 | 78 BAND-MARKER (WHITE, R2) | 4 | |
| 4I9527 | 79 BAND-MARKER (GREEN, R3) | 6 | |
| 4I9528 | 80 BAND-MARKER (PURPLE, R4) | 4 | |
| 1335733 | 81 HOSE AS | 1 | |
| 1488346 | 82 ELBOW AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 8T1686 | ADAPTER-ELBOW | 1 | |
| 1358983 | 83 HOSE AS | 1 | |
| 1240988 | 84 ELBOW-FILTER | 1 | |
| 1262075 | 85 FILTER GP-OIL | 1 | |
| 1287509 | 86 PLATE | 1 | |
| 1232430 | 87 VALVE GP-SHUTTLE | 1 | |
| 0993649 | 88 BOLT (M8X1.25X40-MM) | 2 | |
| 7K1181 | 89 STRAP-CABLE | 24 | |
| 7Y4190 | 90 HOSE AS | 1 | |
| 1645586 | 91 TEE AS | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 7X0871 | TEE | 1 | |
| 8C3446 | 92 VALVE-SAMPLING | 1 | |
| 3J7354 | 93 SEAL-O-RING | 1 | |
| 8C3451 | 94 CAP-DUST (HYDRAULIC OIL) | 1 | |
| 1488305 | 95 ADAPTER AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 5P9617 | ADAPTER | 1 | |
| 8T4224 | 96 WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 1360207 | 97 STRAP-CABLE (BLACK) | 1 | |
| 1488370 | 98 ELBOW AS | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V9851 | ELBOW | 1 |
