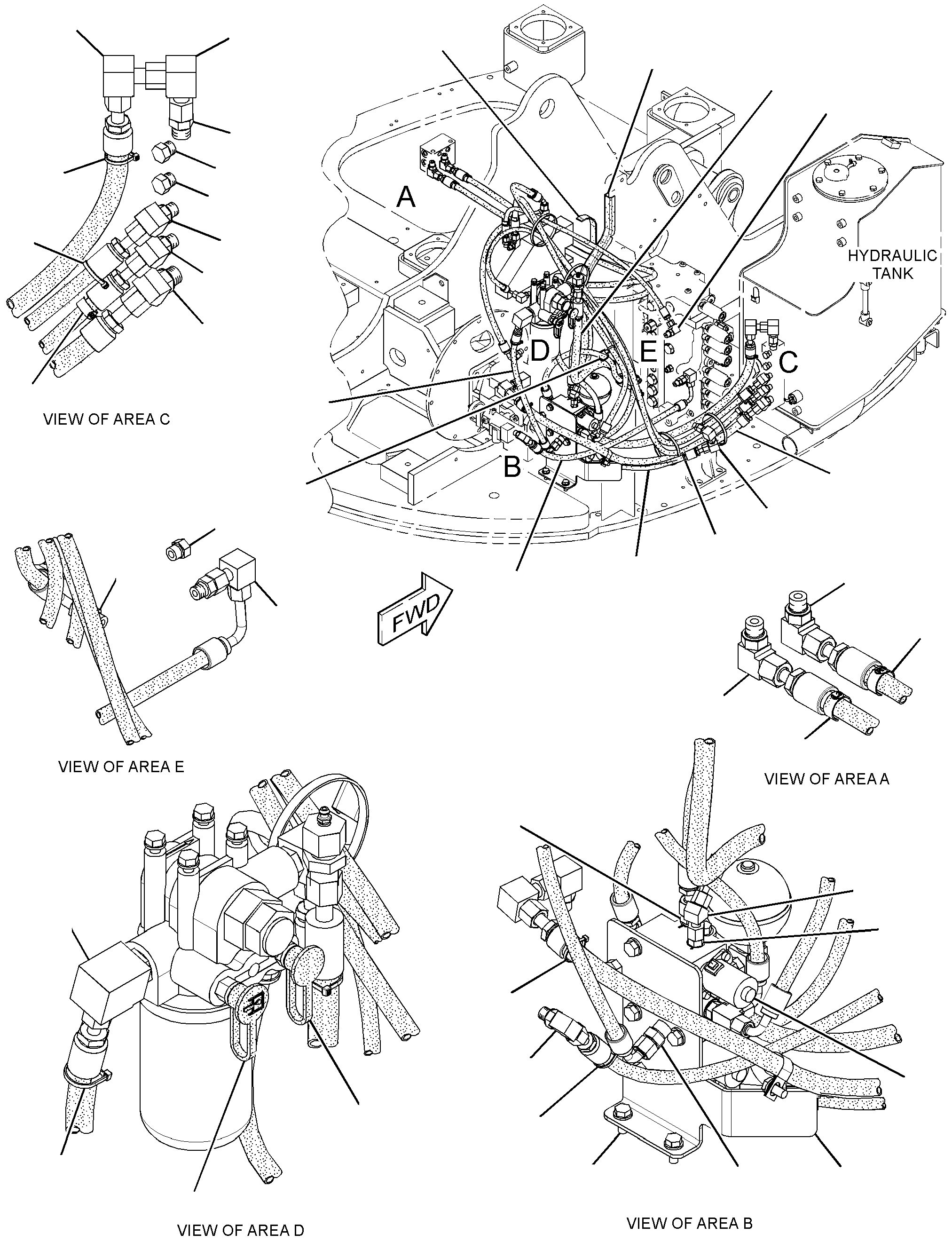

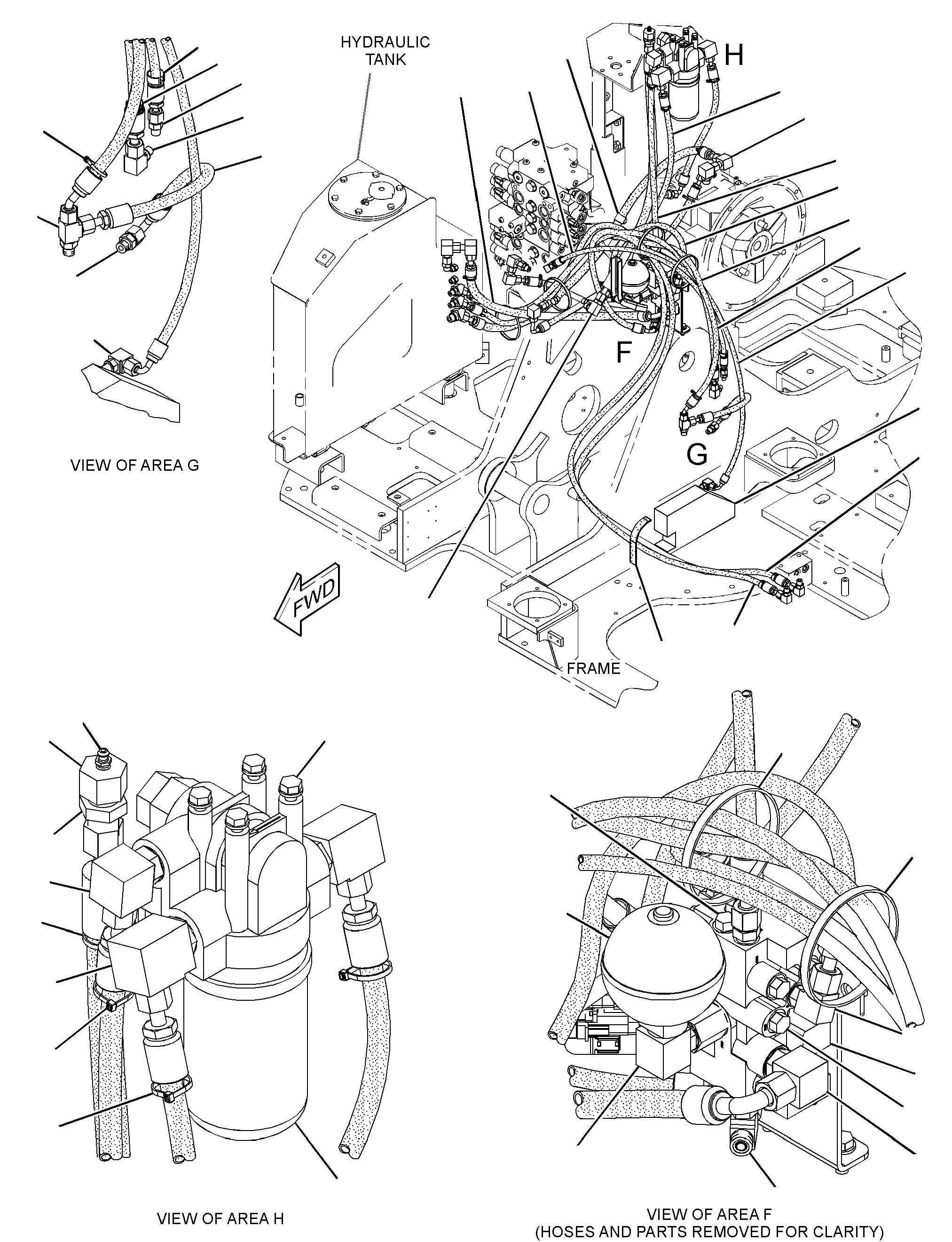

System And Components
305-6506 LINES GP-PILOTS/N FYC1-736
Group No: 305-6506
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3S2093 | 1 STRAP-CABLE | 1 | |
| 4I9523 | 2 BAND-MARKER (BLUE, L3) | 1 | |
| 4I9525 | 3 BAND-MARKER (ORANGE, R1) | 2 | |
| 4I9527 | 4 BAND-MARKER (GREEN, R3) | 1 | |
| 4I9528 | 5 BAND-MARKER (PURPLE, R4) | 1 | |
| 5I4396 | 6 HOSE AS | 1 | |
| 6V0852 | 7 CAP-DUST (FUEL QUICK DISCONNECT) | 1 | |
| 8C3451 | 8 CAP-DUST (HYDRAULIC OIL)(HYDRAULIC OIL) | 1 | |
| 9F2167 | 9 SCREW-PURGE (3/8-24X1.164-IN) | 1 | |
| 1087203 | 10 HOSE AS | 1 | |
| 1588987 | 11 FILTER & VALVE GP-PILOT (HYDRAULIC OIL) | 1 | |
| 1645628 | 12 CONNECTOR AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1076631 | CONNECTOR-FILTER | 1 | |
| 1646981 | 13 ACCUMULATOR GP-HYDRAULIC (CHARGED) | 1 | |
| 2667379 | 14 STRAP-CABLE | 1 | |
| 2681601 | 15 CONNECTOR AS-ORIFICE | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 1122628 | CONNECTOR | 1 | |
| 2794730 | 16 STRAP-CABLE (BLACK) | 1 | |
| 2794731 | 17 STRAP-CABLE (RED) | 1 | |
| 2794732 | 18 STRAP-CABLE (YELLOW) | 1 | |
| 2794733 | 19 STRAP-CABLE (BLUE) | 1 | |
| 2794734 | 20 STRAP-CABLE (BROWN) | 1 | |
| 2794735 | 21 STRAP-CABLE (ORANGE) | 1 | |
| 2794736 | 22 STRAP-CABLE (WHITE) | 1 | |
| 2794737 | 23 STRAP-CABLE (GREEN) | 2 | |
| 2794738 | 24 STRAP-CABLE (PURPLE) | 1 | |
| 2976657 | 25 HOSE AS | 1 | |
| 2999201 | 26 VALVE GP-MANIFOLD & REDUCING (HYD LOCKOUT, TRAVEL SPEED) | 1 | |
| 3057730 | 27 HOSE AS | 1 | |
| 3116696 | 28 HOSE AS | 1 | |
| 3116697 | 29 HOSE AS | 1 | |
| 3116700 | 30 HOSE AS | 1 | |
| 3116740 | 31 HOSE AS | 1 | |
| 3116761 | 32 HOSE AS | 1 | |
| 3122425 | 33 HOSE AS | 1 | |
| 3122437 | 34 BRACKET AS | 1 | |
| 3148971 | 35 INSULATION | 1 | |
| 3277362 | 36 HOSE AS | 1 | |
| 3183477 | 37 HOSE AS | 1 | |
| 3183494 | 38 SEAL | 1 | |
| 3183495 | 39 HOSE AS | 1 | |
| 3225333 | 40 HOSE AS | 1 | |
| 3225341 | 41 UNION AS | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 3225336 | UNION | 1 | |
| 3225377 | 42 HOSE AS | 1 | |
| 3225383 | 43 HOSE AS | 1 | |
| 3279610 | 44 SEAL | 1 | |
| 1488311 | 45 ADAPTER AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 8T1715 | ADAPTER | 1 | |
| 1488316 | 46 CONNECTOR AS | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 6V8647 | CONNECTOR | 1 | |
| 1488318 | 47 CONNECTOR AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8634 | CONNECTOR | 1 | |
| 1488326 | 48 CONNECTOR AS | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9872 | CONNECTOR | 1 | |
| 1488336 | 49 CONNECTOR AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1488340 | 50 CONNECTOR AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8639 | CONNECTOR | 1 | |
| 1488353 | 51 ELBOW AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9001 | ELBOW | 1 | |
| 1488354 | 52 ELBOW AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V9002 | ELBOW | 1 | |
| 1488361 | 53 ELBOW AS (90-DEG) | 2 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9200 | ELBOW | 1 | |
| 1488364 | 54 ELBOW AS | 2 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8625 | ELBOW | 1 | |
| 1488367 | 55 ELBOW AS | 3 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9850 | ELBOW | 1 | |
| 1488368 | 56 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 6V8627 | ELBOW | 1 | |
| 1488369 | 57 ELBOW AS | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 6V8628 | ELBOW | 1 | |
| 1488370 | 58 ELBOW AS | 3 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V9851 | ELBOW | 1 | |
| 1488374 | 59 ELBOW AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8723 | ELBOW | 1 | |
| 1488378 | 60 ELBOW AS | 3 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8724 | ELBOW | 1 | |
| 1488407 | 61 PLUG AS | 3 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 1488435 | 62 TEE AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8781 | TEE | 1 | |
| 1488439 | 63 TEE AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8774 | TEE | 1 | |
| 1503065 | 64 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V0484 | ELBOW | 1 | |
| 1504043 | 65 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V9873 | CONNECTOR | 1 | |
| 1553624 | 66 PLUG AS | 4 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 9S4182 | PLUG (7/16-20-THD) | 1 | |
| 1645567 | 67 COUPLER AS-QUICK DISCONNECT (MALE) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 1645590 | 68 VALVE AS-FLUID SAMPLING (HYDRAULIC OIL) | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 8C3446 | VALVE-SAMPLING (HYDRAULIC OIL) | 1 | |
| 1872120 | 69 ELBOW AS | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 8C8408 | ELBOW | 1 | |
| 1942903 | 70 ELBOW AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 8T0119 | ELBOW | 1 | |
| 1S0994 | 71 CLIP (LOOP) | 1 | |
| 2053692 | 72 ELBOW AS | 2 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 9X2134 | ELBOW | 1 | |
| 6V9169 | 73 NUT (13/16-16-THD) | 1 | |
| 7K1181 | 74 STRAP-CABLE | 4 | |
| 8T4121 | 75 WASHER-HARD (11X21X2.5-MM THK) | 6 | |
| 8T4136 | 76 BOLT (M10X1.5X25-MM) | 5 | |
| 8T4137 | 77 BOLT (M10X1.5X20-MM) | 1 | |
| 8T4189 | 78 BOLT (M8X1.25X20-MM) | 4 | |
| 8T4224 | 79 WASHER-HARD (8.8X16X2-MM THK) | 4 |
