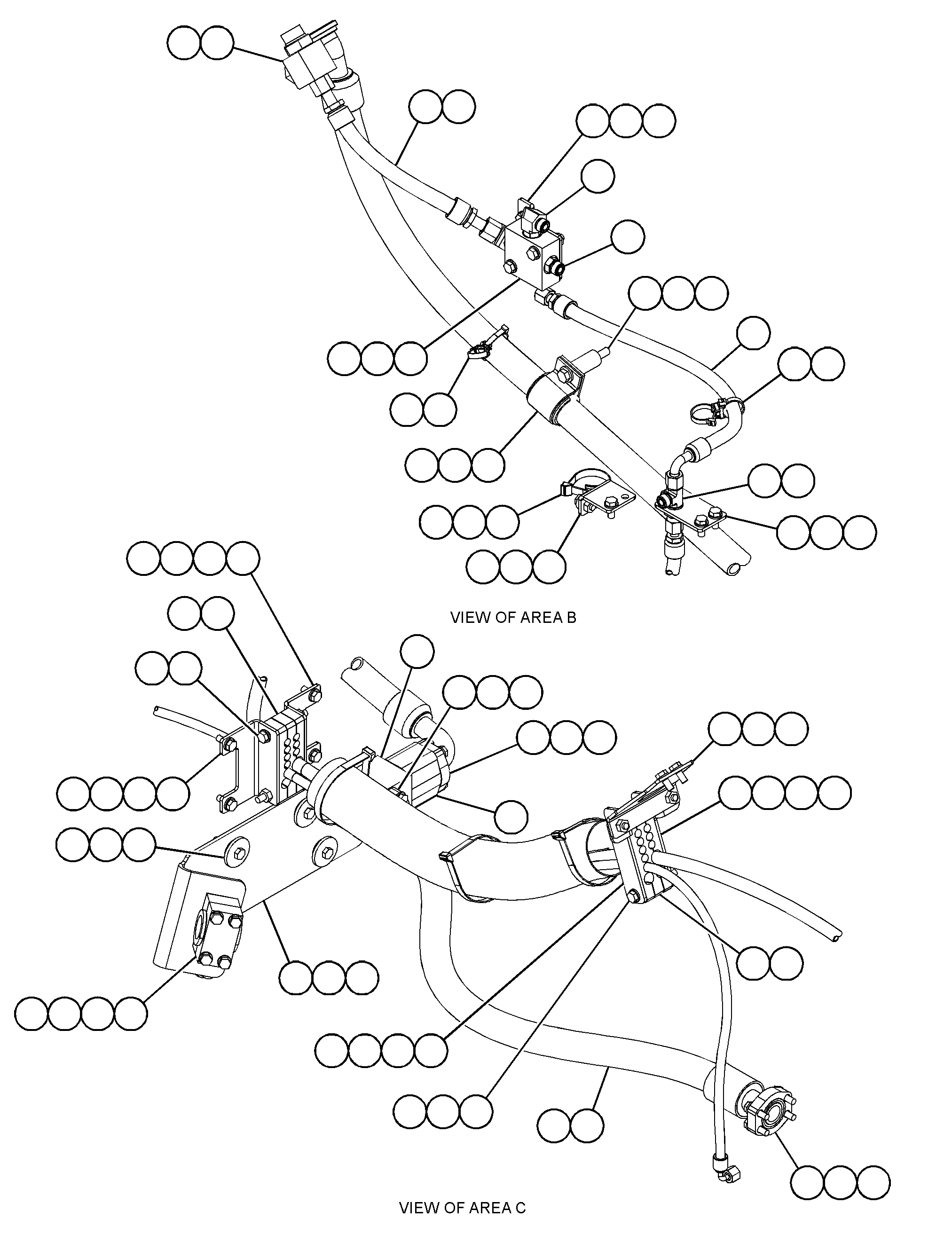

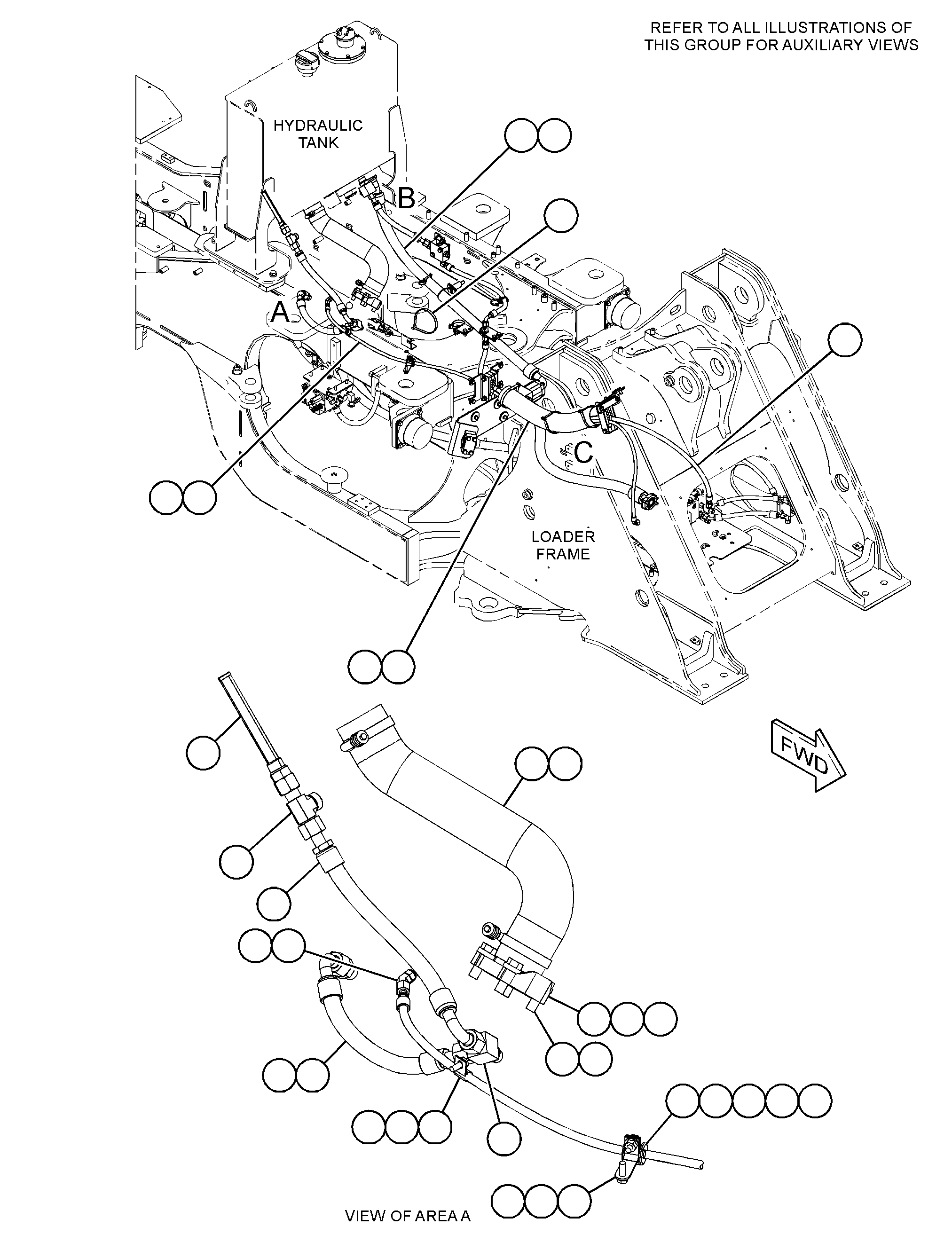

System And Components
536-5870 LINES GP-HYDRAULICS/N SGW1-UP
Group No: 536-5870
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1P4578 | 1 FLANGE-HALF | 6 | |
| 5P8444 | 2 GROMMET (37-MM ID) | 1 | |
| 7K1181 | 3 STRAP-CABLE | 4 | |
| 9X2306 | 4 WASHER (11X50X5-MM THK) | 8 | |
| 1060430 | 5 MANIFOLD | 1 | |
| 1488327 | 6 CONNECTOR AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8637 | CONNECTOR | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 3J1907 | 7 SEAL-O-RING | 1 | |
| 1488340 | 8 CONNECTOR AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8639 | CONNECTOR | 1 | |
| 1488364 | 9 ELBOW AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8625 | ELBOW | 1 | |
| 6V8397 | 10 SEAL-O-RING | 1 | |
| 1488427 | 11 TEE AS | 1 | |
| 6V8398 | SEAL-O-RING | 3 | |
| 8T6895 | TEE-UNION | 1 | |
| 1488449 | 12 TEE AS-SWIVEL | 1 | |
| 6V9746 | SEAL-O-RING | 2 | |
| 6V9839 | TEE-SWIVEL | 1 | |
| 1925017 | 13 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 1984780 | 14 WASHER-HARD (17.5X32X8-MM THK) | 4 | |
| 2758880 | 15 FLANGE | 1 | |
| 3498844 | 16 VALVE GP-CHECK | 1 | |
| 3568486 | 17 ELBOW | 1 | |
| 3768804 | 18 CLAMP | 2 | |
| 3821511 | 19 SCREEN AS (HYDRAULIC) | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 3874636 | 20 TUBE AS | 1 | |
| 3905958 | 21 SLEEVE | 4 | |
| 4590611 | 22 TEE AS | 1 | |
| 1229088 | TEE | 1 | |
| 2287092 | SEAL-O-RING | 2 | |
| 2385081 | SEAL-O-RING | 1 | |
| 4651669 | 23 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 5933182 | 24 HOSE AS | 1 | |
| 5215652 | 25 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 4 | |
| 6V9001 | 26 ELBOW | 1 | |
| 5366065 | 27 HOSE AS | 1 | |
| 5366066 | 28 HOSE AS | 1 | |
| 1152039 | 29 BOSS (13X18X50-MM THK) | 1 | |
| 1440367 | 30 CLAMP-HOSE | 2 | |
| 1503037 | 31 ELBOW AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 8T2530 | ELBOW | 1 | |
| 1645607 | 32 TEE AS | 1 | |
| 7J9108 | SEAL-O-RING | 2 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 8T1684 | TEE | 1 | |
| 2042281 | 33 STRAP-CABLE | 5 | |
| 2048000 | 34 MOUNTING-CABLE TIE | 1 | |
| 2062423 | 35 SADDLE-MOUNTING | 2 | |
| 2432289 | 36 MOUNT AS | 4 | |
| 2H6338 | 37 SEAL-O-RING | 1 | |
| 3445675 | 38 NUT (M10X1.5-THD) | 2 | |
| 4J0522 | 39 SEAL-O-RING | 4 | |
| 5365927 | 40 HOSE AS | 1 | |
| 5366038 | 41 HOSE | 1 | |
| 5366040 | 42 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 5366044 | 43 BRACKET | 1 | |
| 5366045 | 44 BRACKET | 1 | |
| 5366048 | 45 HOSE AS | 1 | |
| 3E6909 | 46 CLIP (LOOP) | 1 | |
| 5493176 | 47 HOSE AS | 1 | |
| 5493177 | 48 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 5493187 | 49 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 5493188 | 50 BRACKET AS | 2 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 5691720 | 51 CLAMP | 2 | |
| 5P7468 | 52 CLIP (SLOT) | 1 | |
| 5P7469 | 53 CLIP (TAB) | 1 | |
| 6V0545 | 54 GROMMET | 1 | |
| 6V0826 | 55 GROMMET | 1 | |
| 6V9169 | 56 NUT (13/16-16-THD) | 1 | |
| 6V9831 | 57 CAP (ORFS) | 1 | |
| 8T1889 | 58 CLIP (SLOT) | 1 | |
| 8T1890 | 59 CLIP (TAB) | 1 | |
| 8T4121 | 60 WASHER-HARD (11X21X2.5-MM THK) | 44 | |
| 8T4136 | 61 BOLT (M10X1.5X25-MM) | 15 | |
| 8T4176 | 62 BOLT (M12X1.75X90-MM) | 1 | |
| 8T4178 | 63 BOLT (M10X1.5X90-MM) | 4 | |
| 8T4185 | 64 BOLT (M10X1.5X50-MM) | 4 | |
| 8T4186 | 65 BOLT (M10X1.5X40-MM) | 4 | |
| 8T4193 | 66 BOLT (M16X2X50-MM) | 4 | |
| 8T4195 | 67 BOLT (M10X1.5X30-MM) | 6 | |
| 1837121 | 68 BOLT (M10X1.5X35-MM) | 4 | |
| 8T4198 | 69 BOLT (M10X1.5X100-MM) | 4 | |
| 8T4223 | 70 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 8T6466 | 71 BOLT (M10X1.5X60-MM) | 2 | |
| 8T6685 | 72 BOLT (M10X1.5X110-MM) | 4 | |
| 5691721 | 73 CLAMP | 2 | |
| 5366049 | 74 HOSE AS | 1 | |
| 5691722 | 75 CLAMP | 2 | |
| 5893940 | 76 HOSE AS | 1 | |
