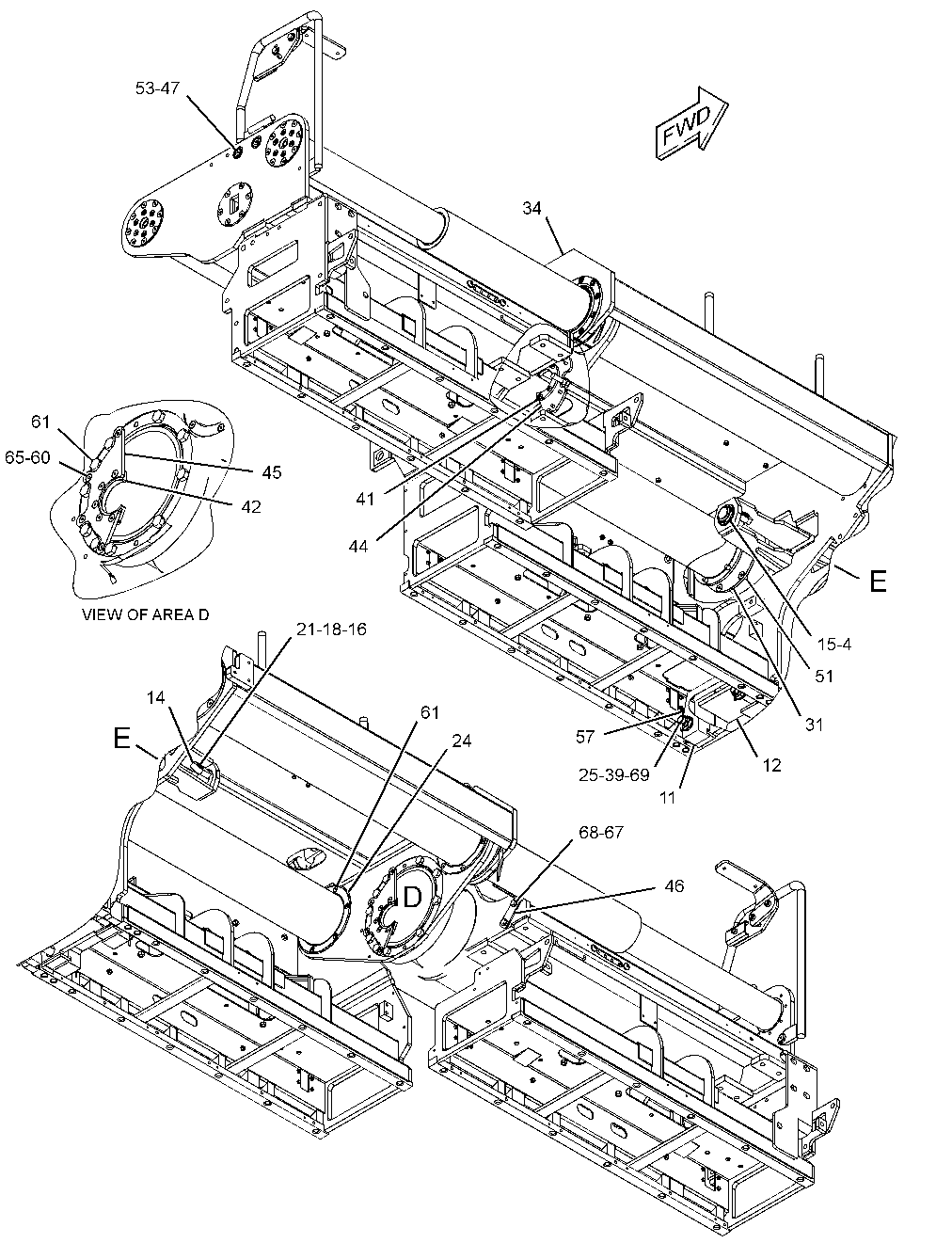

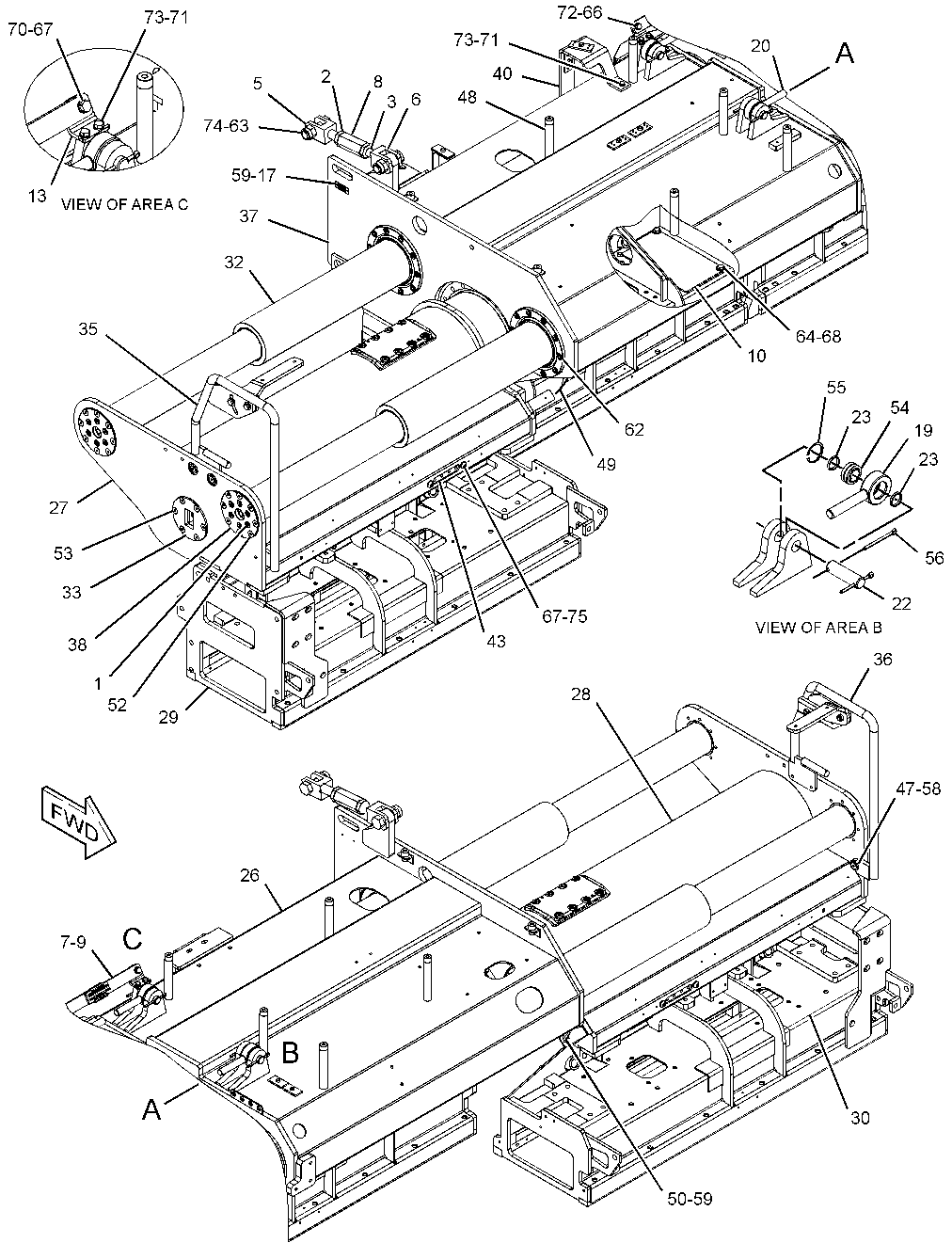

System And Components
250-3365 FRAME GP-SCREEDPART OF 240-8839 SCREED AR
Group No: 250-3365
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1533506 | 1 BOLT (M10X1.5X25-MM) | 24 | |
| 2015541 | 2 NUT (M27X2-THD) | 2 | |
| 2418253 | 3 NUT (M27X2-THD) | 2 | |
| 2422246 | 4 NUT (M40X1.5-THD) | 2 | |
| 2422647 | 5 CLEVIS AS | 2 | |
| 2422648 | 6 CLEVIS | 2 | |
| 2422650 | 7 BRACKET AS | 1 | |
| 2422808 | 8 NUT (M27X2-THD) | 2 | |
| 2422819 | 9 PLATE | 1 | |
| 2422821 | 10 COVER | 2 | |
| 2422822 | 11 HINGE | 2 | |
| 2422823 | 12 PLATE | 1 | |
| 2422827 | 13 SUPPORT | 2 | |
| 2422832 | 14 CLEVIS | 2 | |
| 2422833 | 15 RING | 2 | |
| 2422874 | 16 SEAL | 8 | |
| 2422893 | 17 PLATE | 2 | |
| 2422895 | 18 PIN | 4 | |
| 2422896 | 19 ROD | 2 | |
| 2422897 | 20 ROD | 2 | |
| 2422898 | 21 SPACER (20.1X26X4.4-MM THK) | 8 | |
| 2422899 | 22 PIN | 4 | |
| 2422900 | 23 SPACER (25.5X30X5-MM THK) | 8 | |
| 2422922 | 24 RISER GP-CAB | 8 | |
| 2422923 | 25 STUD (M24X3X295-MM) | 2 | |
| 2510742 | 26 FRAME AS | 1 | |
| 2510743 | 27 FRAME GP-SLIDING (FRONT, RH) | 1 | |
| 2510744 | 28 FRAME GP-SLIDING (FRONT, RH) | 1 | |
| 2510745 | 29 FRAME AS (REAR, LH) | 1 | |
| 2510746 | 30 FRAME AS (REAR, RH) | 1 | |
| 2510760 | 31 PLATE-RETAINER | 4 | |
| 2510767 | 32 TUBE GP-EXTENSION (TELESCOPING) | 4 | |
| 2510782 | 33 FLANGE AS | 2 | |
| 2510831 | 34 BUSHING | 4 | |
| 2510840 | 35 HANDRAIL AS (LH) | 1 | |
| 2510841 | 36 HANDRAIL AS (RH) | 1 | |
| 2575234 | 37 FRAME AS (LH) | 1 | |
| 2575275 | 38 FLANGE | 4 | |
| 2589917 | 39 NUT-CASTLE (M24X3-THD) | 4 | |
| 2635147 | 40 SUPPORT AS | 1 | |
| 2656497 | 41 SUPPORT-CYLINDER (LH)(LH) | 1 | |
| 2656499 | 42 SUPPORT-CYLINDER (RH)(RH) | 1 | |
| 2656506 | 43 BLOCK | 2 | |
| 2686158 | 44 PLATE-SUPPORT (LH)(LH) | 1 | |
| 2686159 | 45 PLATE-SUPPORT (RH)(RH) | 1 | |
| 2695137 | 46 SUPPORT | 2 | |
| 2711919 | 47 WASHER (17X30X4-MM THK) | 6 | |
| 2764286 | 48 DAMPER | 14 | |
| 2765618 | 49 INDICATOR (LH) | 1 | |
| 2765619 | 50 INDICATOR (RH) | 1 | |
| 2709438 | 51 SCREW-FLAT HEAD | 24 | |
| 1272909 | 52 SCREW-FLAT HEAD (M10X1.5X20-MM) | 32 | |
| 1570949 | 53 SCREW-FLAT HEAD (M10X1.5X25-MM) | 16 | |
| 2442295 | 54 BEARING-SPECIAL | 4 | |
| 2R1230 | 55 RING-RETAINING | 4 | |
| 2U0225 | 56 PIN-COTTER | 8 | |
| 3B4633 | 57 PIN-COTTER | 4 | |
| 3E4310 | 58 SCREW-HEX HEAD (M10X1.5X30-MM) | 2 | |
| 5C7261 | 59 NUT (M8X1.25-THD) | 10 | |
| 5W1341 | 60 BOLT-SOCKET HEAD (M8X1.25X16-MM) | 56 | |
| 5W2177 | 61 BOLT-SOCKET HEAD (M12X1.75X20-MM) | 40 | |
| 6V7676 | 62 NUT (M24X3-THD) | 4 | |
| 7X7729 | 63 WASHER (11X25X3-MM THK) | 6 | |
| 8C7505 | 64 SCREW-FLAT HEAD (M8X1.25X20-MM) | 10 | |
| 8T0389 | 65 LOCKNUT (M10X1.5-THD) | 2 | |
| 8T4121 | 66 WASHER-HARD (11X21X2.5-MM THK) | 10 | |
| 8T4137 | 67 BOLT (M10X1.5X20-MM) | 10 | |
| 8T4167 | 68 WASHER-HARD (26X44X4-MM THK) | 4 | |
| 8T4186 | 69 BOLT (M10X1.5X40-MM) | 1 | |
| 8T4189 | 70 BOLT (M8X1.25X20-MM) | 7 | |
| 8T4195 | 71 BOLT (M10X1.5X30-MM) | 1 | |
| 8T4224 | 72 WASHER-HARD (8.8X16X2-MM THK) | 7 | |
| 8T5878 | 73 BOLT (M24X3X80-MM) | 4 | |
| 9X2040 | 74 SCREW-TRUSS HEAD (M10X1.5X25-MM) | 4 |
