System And Components

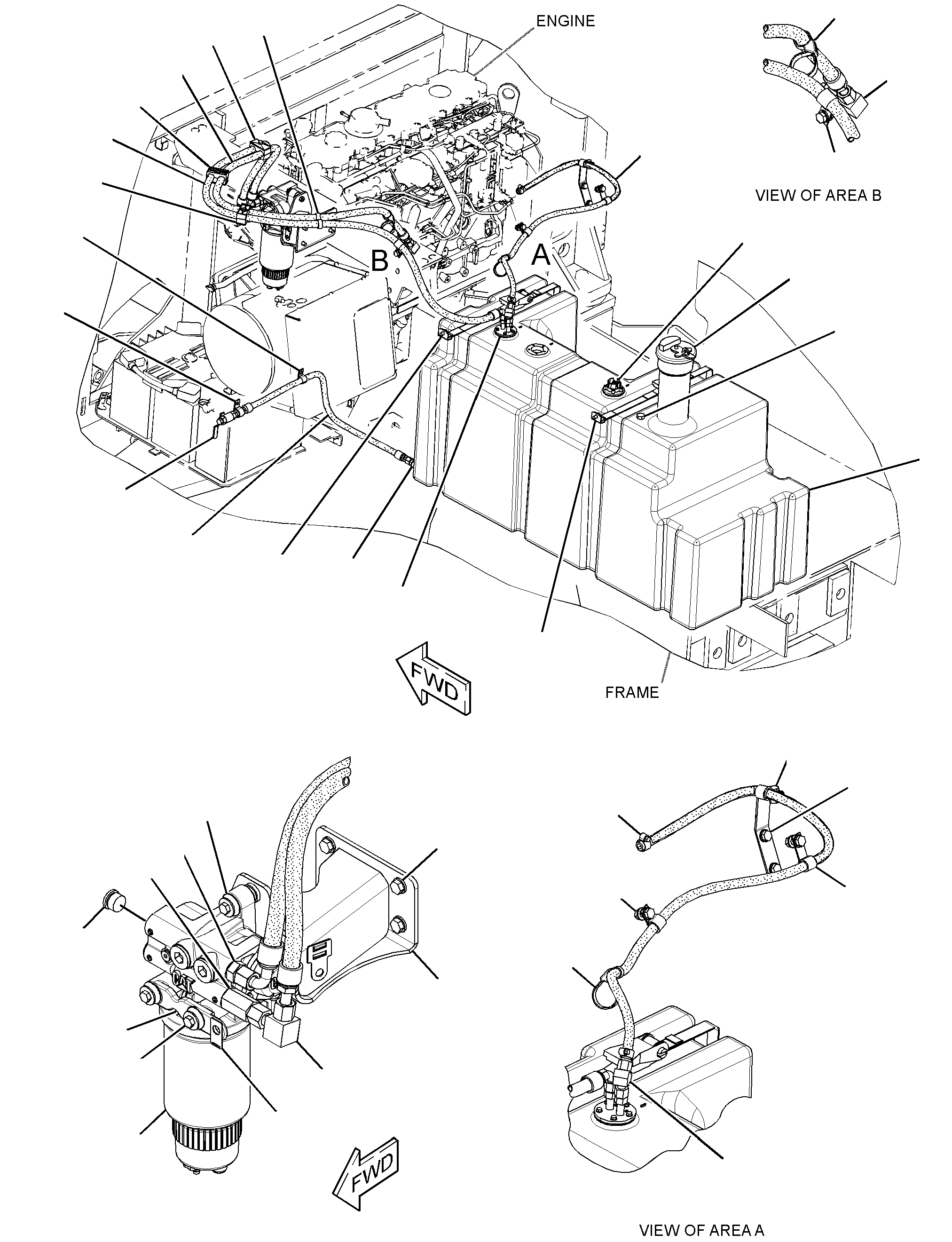

270-4256 LINES GP-FUELS/N MAN1-UP
Group No: 270-4256
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3056376 | 1 TANK & MTG GP-FUEL | 1 | |
| 9P7121 | 2 STRAINER-FUEL (TANK) | 1 | |
| 7X7700 | 3 CAP AS-FUEL (LOCKABLE, VENTED) | 1 | |
| 9X8600 | SEAL-O-RING | 1 | |
| 9X2205 | KIT-CAP FILTER (FUEL TANK) | 1 | |
| 2741472 | 4 SENDER-FUEL LEVEL | 1 | |
| 9R7240 | 5 GASKET | 1 | |
| 6D4244 | 6 CLIP (LOOP) | 1 | |
| 8M2773 | 7 CLIP (LOOP) | 3 | |
| 2T2524 | 8 HOSE AS | 1 | |
| 2032059 | 9 CONNECTOR AS | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8C6869 | CONNECTOR | 1 | |
| 1488336 | 10 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1246809 | 11 VALVE-BALL (FUEL SHUTOFF) | 1 | |
| 1488407 | 12 PLUG AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 2U6826 | 13 CONNECTOR AS | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9028 | SEAL-O-RING | 1 | |
| 6K8178 | 14 CLIP (LOOP) | 1 | |
| 2834289 | 15 PLATE | 1 | |
| 8T4121 | 16 WASHER-HARD (11X21X2.5-MM THK) | 18 | |
| 8T4137 | 17 BOLT (M10X1.5X20-MM) | 5 | |
| 8T4133 | 18 NUT (M10X1.5-THD) | 4 | |
| 5P4961 | 19 CLAMP-HOSE | 2 | |
| 8T4195 | 20 BOLT (M10X1.5X30-MM) | 2 | |
| 2741475 | 21 STRAP AS | 2 | |
| 8T4191 | 22 BOLT (M10X1.5X16-MM) | 6 | |
| 3080492 | 23 LINE AS-FUEL | 1 | |
| 6V8397 | 24 SEAL-O-RING | 2 | |
| 8T0328 | 25 WASHER-HARD (5.5X10X1-MM THK) | 5 | |
| 6V4298 | 26 BOLT (M5X0.8X16-MM) | 5 | |
| 1783620 | 27 STRAP-DUAL CLAMP | 1 | |
| 1488371 | 28 ELBOW AS | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8C8988 | ELBOW | 1 | |
| 5E9315 | 29 FITTING-HOSE | 1 | |
| 1488411 | 30 PLUG AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 9S4185 | PLUG (3/4-16-THD) | 1 | |
| 3056382 | 31 BRACKET AS | 1 | |
| 7X0613 | 32 WASHER-HARD (8.8X25.5X5-MM THK) | 3 | |
| 8T9655 | 33 MOUNT-ISOLATION | 8 | |
| 2123657 | 34 PUMP GP-FUEL PRM & WATER SEP (ELECTRIC) | 1 | |
| 2321374 | 35 BRACKET | 1 | |
| 2321376 | 36 SPACER (8.5X12.7X139.1-MM THK) | 2 | |
| 7X0579 | 37 WASHER-HARD (8.8X25.5X2-MM THK) | 3 | |
| 1911782 | 38 SPACER (8.5X12.7X38.2-MM THK) | 1 | |
| 8T7352 | 39 BOLT (M8X1.25X160-MM) | 2 | |
| 8T6869 | 40 BOLT (M8X1.25X60-MM) | 2 | |
| 2097659 | 41 PLATE-INFORMATION (FUEL PRIMING PUMP ON, OFF) | 1 | |
| 2014340 | 42 PLUG AS | 2 | |
| 6V4589 | SEAL-O-RING | 1 | |
| 9S8006 | PLUG (7/8-14-THD) | 1 | |
| 1488345 | 43 CONNECTOR AS | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8638 | CONNECTOR | 1 | |
| 1049054 | 44 CONNECTOR | 1 | |
| 6V8398 | 45 SEAL-O-RING | 1 | |
| 1772215 | 46 STRAP-DUAL CLAMP | 2 | |
| 8S0948 | 48 CLIP | 1 | |
| 1645544 | 49 ELBOW AS | 1 | |
| 3E2333 | ELBOW | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 2102277 | 50 HOSE AS | 1 | |
| 3056383 | 51 HOSE AS | 1 | |
| 1488370 | 52 ELBOW AS | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V9851 | ELBOW | 1 | |
| 1546583 | 53 CLAMP-HALF | 6 | |
| 1028705 | 54 PLATE (TOP) | 3 | |
| 7X0818 | 55 BOLT (M8X1.25X45-MM) | 2 | |
| 8T4136 | 56 BOLT (M10X1.5X25-MM) | 1 | |
| 5P1442 | 57 HOSE (135.9-CM) |
