System And Components

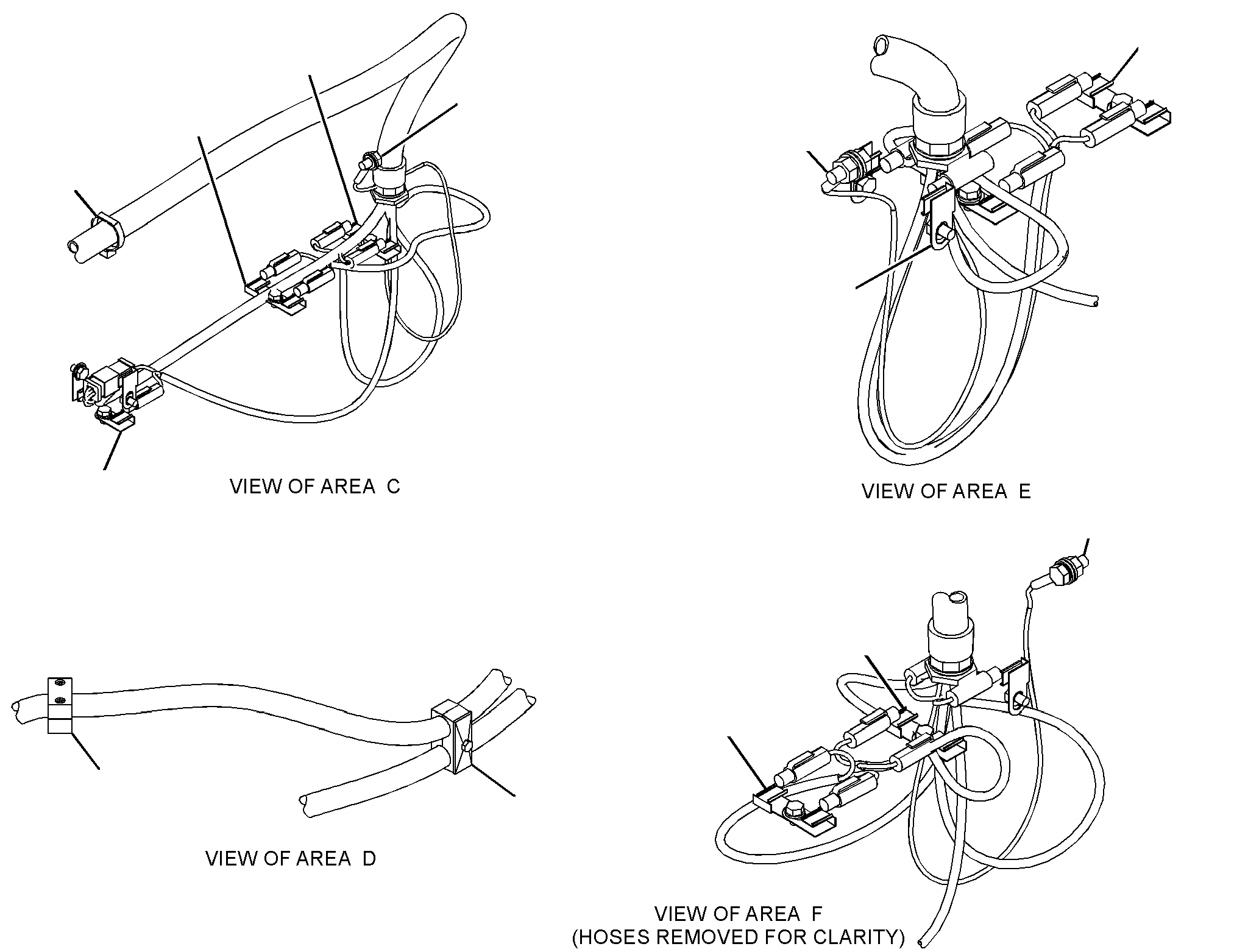

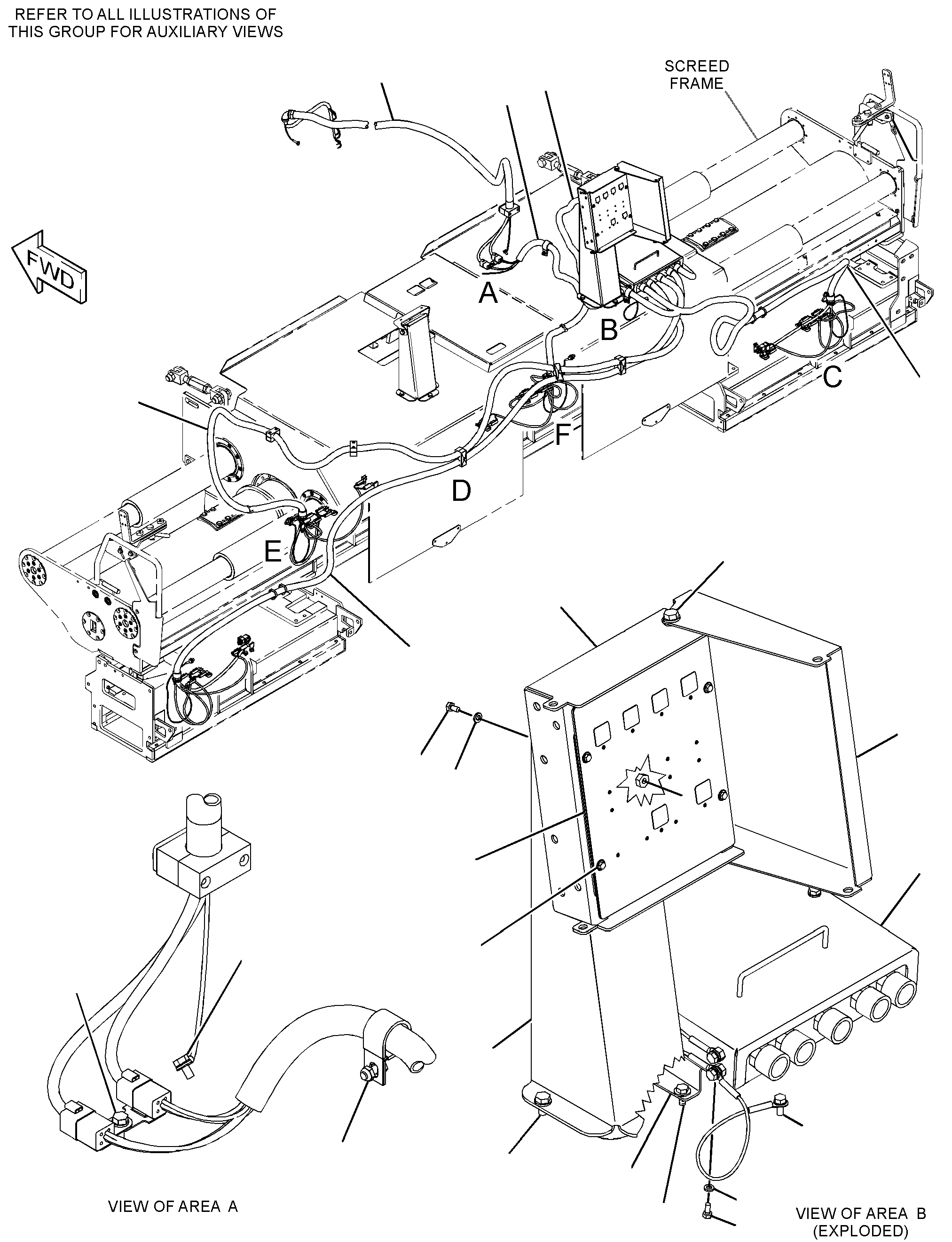

286-3633 WIRING GP-HEATERS/N DLB1-449
Group No: 286-3633
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1160118 | 1 CLIP | 31 | |
| 1384572 | 2 COVER | 3 | |
| 1480342 | 3 CLAMP | 6 | |
| 2913876 | 4 PANEL GP-CONTROL | 1 | |
| 2293128 | PANEL AS | 1 | |
| 3535256 | 5 SUPPORT | 1 | |
| 2889429 | 6 SUPPORT AS-CONTROL | 1 | |
| 7T1099 | LINK | 4 | |
| 3530442 | 7 BOX GP-RELAY | 1 | |
| 2967912 | 8 BOX AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 4 | |
| 8T8874 | NUT-WELD (M5X0.8-THD) | 4 | |
| 2967914 | 9 COVER | 1 | |
| 3032133 | 10 FASTENER GP-WIRING HARNESS | 1 | |
| 3079145 | 11 HARNESS AS-SCREED (EXTENDER, RH) | 1 | |
| 2319895 | CONDUIT-FLEXIBLE (21.9-MM ID)(260-CM) | ||
| 1297163 | PLUG AS-CONNECTOR (1-PIN) | 6 | |
| 1552274 | KIT-CONNECTING PLUG (6-PIN) | 1 | |
| 9G3695 | PLUG-SEAL | 6 | |
| 1028805 | KIT-RECEPTACLE (6-PIN) | 1 | |
| 1602250 | SLEEVE-ABRASION (103-IN) | ||
| 1148843 | SLEEVE-PLASTIC (160-CM) | ||
| 8N1541 | SOCKET-CONNECTOR (12-GA TO 14-GA) | 6 | |
| 1809340 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 6 | |
| 2L8069 | TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW) | 1 | |
| 3079146 | 12 HARNESS AS-SCREED (ELECTRIC HEAT, MAIN, RH) | 1 | |
| 2319895 | CONDUIT-FLEXIBLE (21.9-MM ID)(225-CM) | ||
| 1297163 | PLUG AS-CONNECTOR (1-PIN) | 8 | |
| 1148843 | SLEEVE-PLASTIC (180-CM) | ||
| 8N1541 | SOCKET-CONNECTOR (12-GA TO 14-GA) | 8 | |
| 2L8069 | TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW) | 1 | |
| 3079147 | 13 HARNESS AS-SCREED (ELECTRIC HEAT, MAIN, LH) | 1 | |
| 2319895 | CONDUIT-FLEXIBLE (21.9-MM ID)(440-CM) | ||
| 1297163 | PLUG AS-CONNECTOR (1-PIN) | 8 | |
| 1148843 | SLEEVE-PLASTIC (180-CM) | ||
| 8N1541 | SOCKET-CONNECTOR (12-GA TO 14-GA) | 8 | |
| 2L8069 | TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW) | 1 | |
| 3079148 | 14 HARNESS AS-SCREED (EXTENDER, LH) | 1 | |
| 2319895 | CONDUIT-FLEXIBLE (21.9-MM ID)(390-CM) | ||
| 1297163 | PLUG AS-CONNECTOR (1-PIN) | 6 | |
| 1552274 | KIT-CONNECTING PLUG (6-PIN) | 1 | |
| 9G3695 | PLUG-SEAL | 6 | |
| 1028805 | KIT-RECEPTACLE (6-PIN) | 1 | |
| 1602250 | SLEEVE-ABRASION (154-IN) | ||
| 1148843 | SLEEVE-PLASTIC (160-CM) | ||
| 8N1541 | SOCKET-CONNECTOR (12-GA TO 14-GA) | 6 | |
| 1809340 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 6 | |
| 2L8069 | TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW) | 1 | |
| 3079149 | 15 HARNESS AS-SCREED (GENERATOR) | 1 | |
| 7T0093 | PIN-CONNECTOR (12-GA TO 14-GA) | 8 | |
| 1779656 | KIT-CONNECTING PLUG (4-PIN) | 4 | |
| 9G3695 | PLUG-SEAL | 8 | |
| 1779653 | KIT-RECEPTACLE (4-PIN) | 2 | |
| 7T0094 | SOCKET-CONNECTOR (12-GA TO 14-GA) | 8 | |
| 2L8078 | TERMINAL-RING (14-GA TO 16-GA, 5/16-IN SCREW) | 1 | |
| 2L8069 | TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW) | 1 | |
| 8T2225 | TUBE-HEAT SHRINK (25.4-MM DIA)(12-CM) | ||
| 1305300 | 16 CLIP | 2 | |
| 1313540 | 17 LOCKNUT (M8X1.25-THD) | 2 | |
| 1390428 | 18 CLAMP | 6 | |
| 1R5396 | 19 BOLT (M6X1X35-MM) | 6 | |
| 5P4116 | 20 WASHER-HARD (8.8X20.5X2-MM THK) | 6 | |
| 5P7854 | 21 CLIP | 2 | |
| 6V4298 | 22 BOLT (M5X0.8X16-MM) | 4 | |
| 7K1181 | 23 STRAP-CABLE | 6 | |
| 8T4121 | 24 WASHER-HARD (11X21X2.5-MM THK) | 13 | |
| 8T4137 | 25 BOLT (M10X1.5X20-MM) | 3 | |
| 8T4171 | 26 BOLT (M6X1X12-MM) | 4 | |
| 8T4189 | 27 BOLT (M8X1.25X20-MM) | 7 | |
| 8T4199 | 28 BOLT (M8X1.25X12-MM) | 21 | |
| 8T4224 | 29 WASHER-HARD (8.8X16X2-MM THK) | 22 | |
| 8T4970 | 30 BOLT (M6X1X14-MM) | 4 | |
| 8T6912 | 31 BOLT (M8X1.25X50-MM) | 3 | |
| 9M1974 | 32 WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 9X8256 | 33 WASHER (6.6X12X2-MM THK) | 8 | |
| 5P4115 | 34 WASHER-HARD (7.2X19X2-MM THK) | 4 | |
| 8T4196 | 35 BOLT (M10X1.5X35-MM) | 2 | |
| 8T0389 | 36 LOCKNUT (M10X1.5-THD) | 2 | |
| 6V4248 | 37 BOLT (M10X1.5X25-MM) | 2 | |
| 6V5217 | 38 BOLT (M8X1.25X20-MM) | 1 | |
| 6V8212 | 39 BOLT (M10X1.5X16-MM) | 2 | |
| 7H3937 | 40 LOCKWASHER (EXTERNAL TOOTH) | 2 | |
| 8T4133 | 41 NUT (M10X1.5-THD) | 2 | |
| 2606676 | 42 BOLT (M8X1.25X16-MM) | 1 | |
| 4D1326 | 43 LOCKWASHER (EXTERNAL TOOTH) | 4 |
