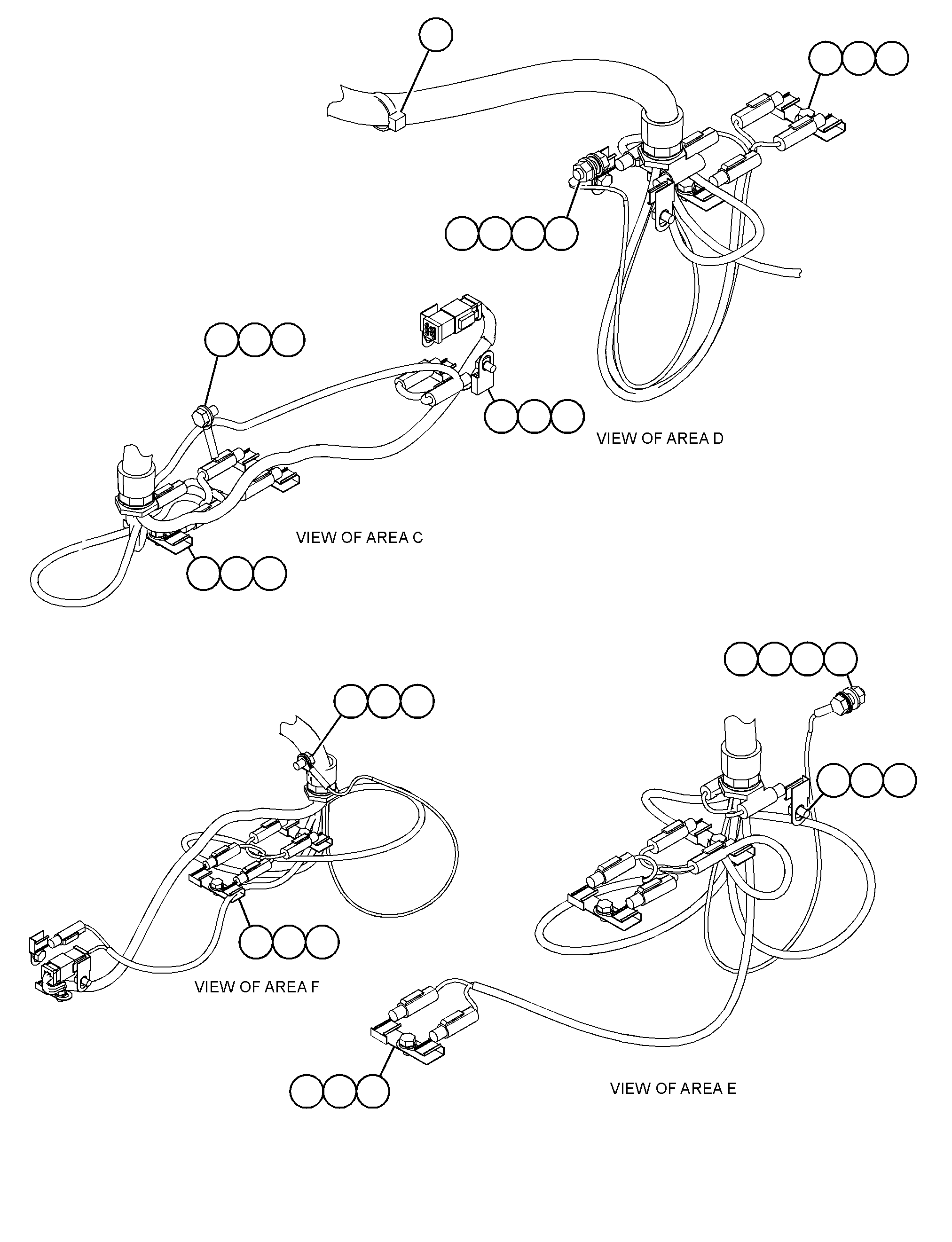

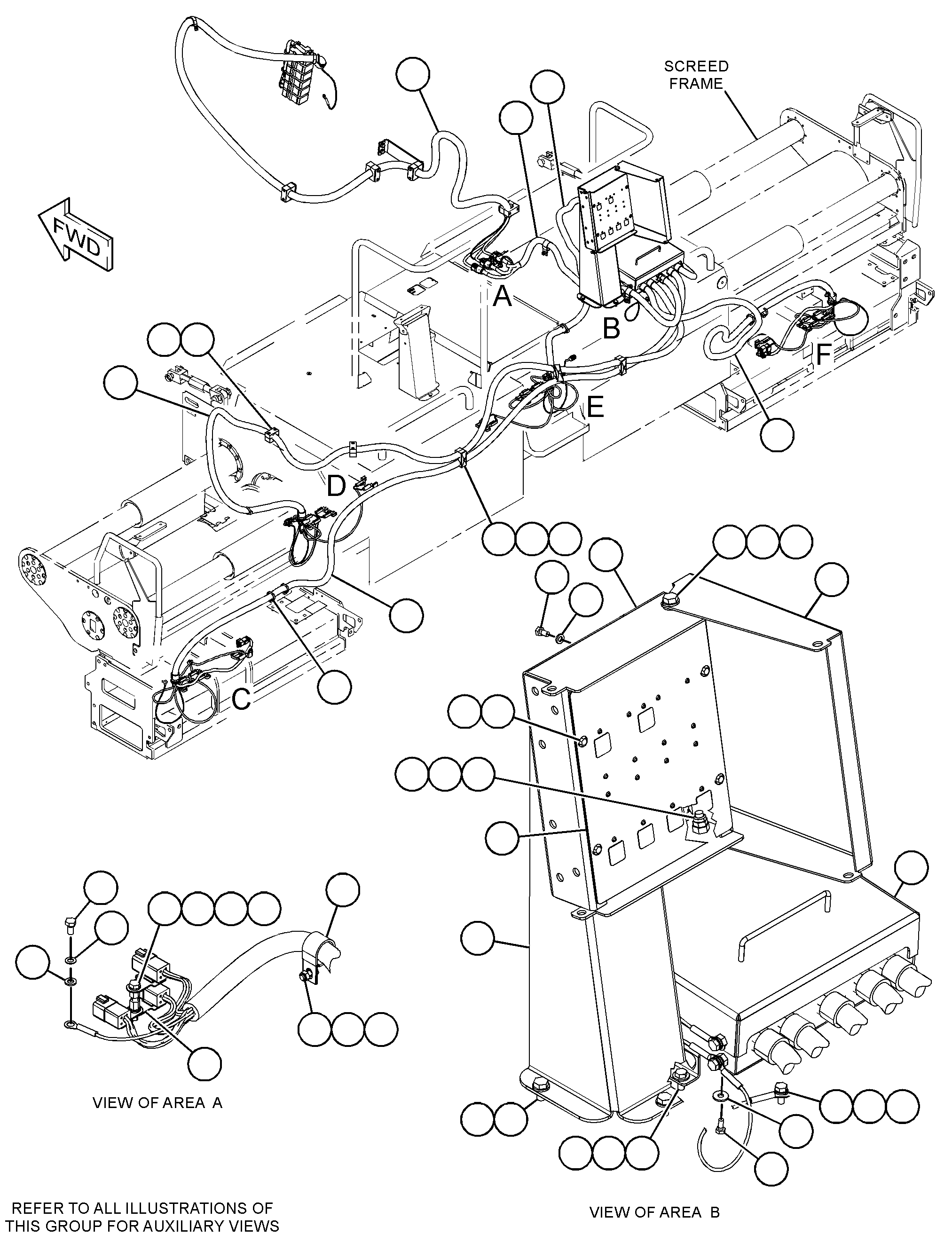

307-9155 WIRING GP-HEATERPART OF 320-2490 HEATER AR-SCREED
Group No: 307-9155
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4D1326 | 1 LOCKWASHER (EXTERNAL TOOTH) | 4 | |
| 7H3937 | 2 LOCKWASHER (EXTERNAL TOOTH) | 2 | |
| 7K1181 | 3 STRAP-CABLE | 6 | |
| 1160118 | 4 CLIP | 30 | |
| 1384572 | 5 COVER | 3 | |
| 1480342 | 6 CLAMP | 6 | |
| 1544890 | 7 BOLT-STACKING (M8X1.25X33-MM) | 2 | |
| 2889429 | 8 SUPPORT AS-CONTROL | 1 | |
| 7T1099 | LINK | 4 | |
| 2913876 | 9 PANEL GP-CONTROL | 1 | |
| 2293128 | PANEL AS | 1 | |
| 2967912 | 10 BOX AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 4 | |
| 2967913 | PLATE | 1 | |
| 2967914 | 11 COVER | 1 | |
| 3079146 | 12 HARNESS AS-SCREED (ELECTRIC HEAT, MAIN, RH) | 1 | |
| 8N1541 | SOCKET-CONNECTOR (12-GA TO 14-GA) | 8 | |
| 1297163 | PLUG AS-CONNECTOR (1-PIN) | 8 | |
| 2L8069 | TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW) | 1 | |
| 3079147 | 13 HARNESS AS-SCREED (ELECTRIC HEAT, MAIN, LH) | 1 | |
| 8N1541 | SOCKET-CONNECTOR (12-GA TO 14-GA) | 8 | |
| 1297163 | PLUG AS-CONNECTOR (1-PIN) | 8 | |
| 2L8069 | TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW) | 1 | |
| 3197146 | 14 HARNESS AS-SCREED (MOUNTING) | 1 | |
| 2319895 | CONDUIT-FLEXIBLE (21.9-MM ID)(140-CM) | ||
| 7T0093 | PIN-CONNECTOR (12-GA TO 14-GA) | 12 | |
| 1779656 | KIT-CONNECTING PLUG (4-PIN) | 6 | |
| 9G3695 | PLUG-SEAL | 12 | |
| 1779653 | KIT-RECEPTACLE (4-PIN) | 3 | |
| 7T0094 | SOCKET-CONNECTOR (12-GA TO 14-GA) | 12 | |
| 2L8069 | TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW) | 1 | |
| 2L8078 | TERMINAL-RING (14-GA TO 16-GA, 5/16-IN SCREW) | 1 | |
| 8T2225 | TUBE-HEAT SHRINK (25.4-MM DIA)(18-CM) | ||
| 3197147 | 15 MOUNTING GP | 1 | |
| 7R7941 | CLAMP | 2 | |
| 7R7951 | PLATE | 1 | |
| 7X2535 | BOLT (M6X1X60-MM) | 2 | |
| 3197149 | 16 HARNESS AS-SCREED (EXTENDER, RH) | 1 | |
| 1297163 | PLUG AS-CONNECTOR (1-PIN) | 6 | |
| 1552274 | KIT-CONNECTING PLUG (6-PIN) | 1 | |
| 9G3695 | PLUG-SEAL | 6 | |
| 1028805 | KIT-RECEPTACLE (6-PIN) | 1 | |
| 1602250 | SLEEVE-ABRASION (102.4-IN) | ||
| 8N1541 | SOCKET-CONNECTOR (12-GA TO 14-GA) | 6 | |
| 1809340 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 6 | |
| 2L8069 | TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW) | 1 | |
| 3197150 | 17 HARNESS AS-SCREED (EXTENDER, LH) | 1 | |
| 1297163 | PLUG AS-CONNECTOR (1-PIN) | 6 | |
| 1552274 | KIT-CONNECTING PLUG (6-PIN) | 1 | |
| 9G3695 | PLUG-SEAL | 6 | |
| 1028805 | KIT-RECEPTACLE (6-PIN) | 1 | |
| 1602250 | SLEEVE-ABRASION (153.6-IN) | ||
| 8N1541 | SOCKET-CONNECTOR (12-GA TO 14-GA) | 6 | |
| 1809340 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 6 | |
| 2L8069 | TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW) | 1 | |
| 3535256 | 18 SUPPORT | 1 | |
| 3564233 | 19 BOX GP-RELAY | 1 | |
| 1305300 | 20 CLIP | 3 | |
| 1313540 | 21 LOCKNUT (M8X1.25-THD) | 2 | |
| 1390428 | 22 CLAMP | 6 | |
| 2606676 | 23 BOLT (M8X1.25X16-MM) | 1 | |
| 1R5396 | 24 BOLT (M6X1X35-MM) | 6 | |
| 5P4115 | 25 WASHER-HARD (7.2X19X2-MM THK) | 4 | |
| 5P4116 | 26 WASHER-HARD (8.8X20.5X2-MM THK) | 6 | |
| 5P7854 | 27 CLIP | 2 | |
| 6V4248 | 28 BOLT (M10X1.5X25-MM) | 2 | |
| 7I2273 | 29 BOLT (M5X0.8X16-MM) | 4 | |
| 6V5217 | 30 BOLT (M8X1.25X20-MM) | 1 | |
| 6V8212 | 31 BOLT (M10X1.5X16-MM) | 2 | |
| 8T0389 | 32 LOCKNUT (M10X1.5-THD) | 2 | |
| 8T4121 | 33 WASHER-HARD (11X21X2.5-MM THK) | 13 | |
| 8T4133 | 34 NUT (M10X1.5-THD) | 2 | |
| 8T4137 | 35 BOLT (M10X1.5X20-MM) | 3 | |
| 8T4171 | 36 BOLT (M6X1X12-MM) | 4 | |
| 8T4189 | 37 BOLT (M8X1.25X20-MM) | 6 | |
| 8T4196 | 38 BOLT (M10X1.5X35-MM) | 2 | |
| 8T4199 | 39 BOLT (M8X1.25X12-MM) | 22 | |
| 8T4224 | 40 WASHER-HARD (8.8X16X2-MM THK) | 24 | |
| 8T4970 | 41 BOLT (M6X1X14-MM) | 4 | |
| 8T6912 | 42 BOLT (M8X1.25X50-MM) | 3 | |
| 9M1974 | 43 WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 9X8256 | 44 WASHER (6.6X12X2-MM THK) | 8 |
