System And Components

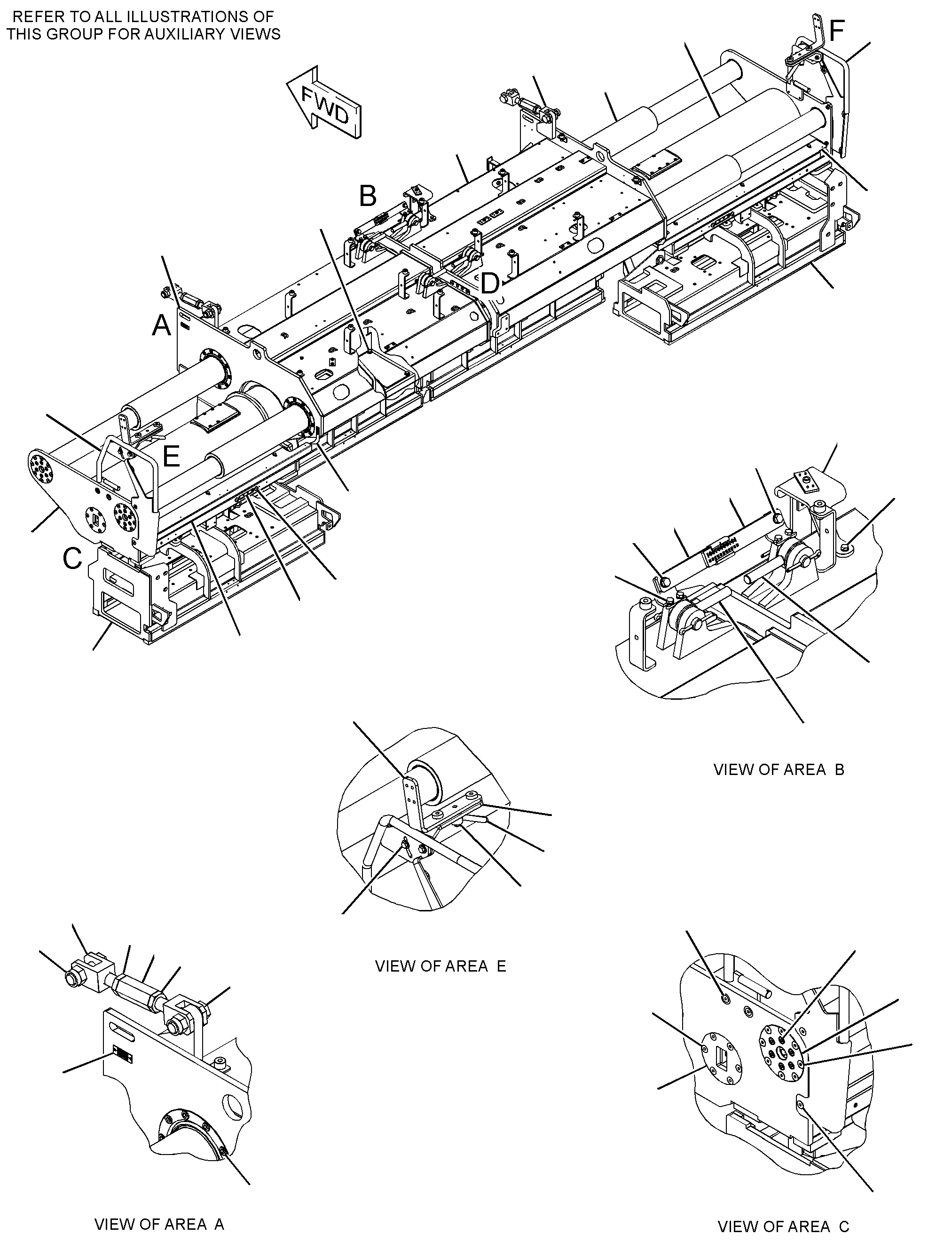

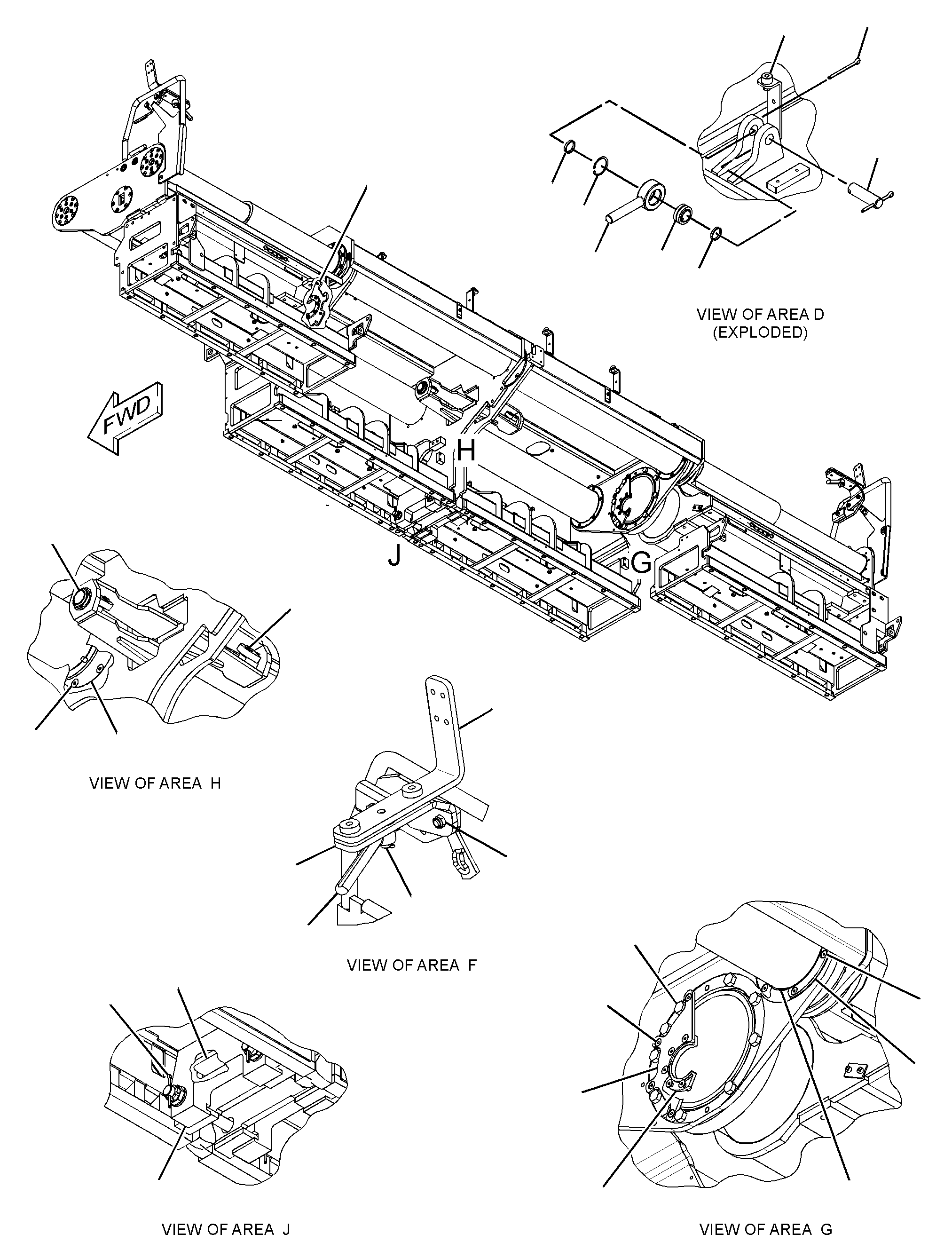

286-3490 FRAME GP-SCREED -LHPART OF 281-6251 SCREED AR
Group No: 286-3490
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1533506 | 1 BOLT (M10X1.5X25-MM) | 24 | |
| 0995217 | 2 PIN-COTTER | 8 | |
| 2015541 | 3 NUT (M27X2-THD) | 2 | |
| 2418253 | 4 NUT (M27X2-THD) | 2 | |
| 2422246 | 5 NUT (M40X1.5-THD) | 2 | |
| 2422647 | 6 CLEVIS AS | 2 | |
| 2422650 | 7 BRACKET AS | 1 | |
| 2422808 | 8 NUT (M27X2-THD) | 2 | |
| 2422819 | 9 PLATE | 1 | |
| 2422821 | 10 COVER | 2 | |
| 2422822 | 11 HINGE | 2 | |
| 2422823 | 12 PLATE | 1 | |
| 2422827 | 13 SUPPORT | 2 | |
| 2422832 | 14 CLEVIS | 2 | |
| 2422833 | 15 RING | 2 | |
| 2422893 | 16 PLATE | 2 | |
| 2422895 | 17 PIN | 4 | |
| 2422896 | 18 ROD | 2 | |
| 2422897 | 19 ROD | 2 | |
| 2422898 | 20 SPACER (20.1X26X4.4-MM THK) | 8 | |
| 2422899 | 21 PIN | 4 | |
| 2422900 | 22 SPACER (25.5X30X5-MM THK) | 8 | |
| 2422922 | 23 RISER GP-CAB | 8 | |
| 2422923 | 24 STUD (M24X3X295-MM) | 2 | |
| 2510760 | 25 PLATE-RETAINER | 4 | |
| 2510767 | 26 TUBE GP-EXTENSION (TELESCOPING) | 4 | |
| 2510782 | 27 FLANGE AS | 2 | |
| 2510831 | 28 BUSHING | 4 | |
| 2575275 | 29 FLANGE | 4 | |
| 2589917 | 30 NUT-CASTLE (M24X3-THD) | 4 | |
| 2643308 | 31 CLEVIS AS | 2 | |
| 2656497 | 32 SUPPORT-CYLINDER (LH) | 1 | |
| 2656499 | 33 SUPPORT-CYLINDER (RH) | 1 | |
| 2656506 | 34 BLOCK | 2 | |
| 2686158 | 35 PLATE-SUPPORT (LH) | 1 | |
| 2686159 | 36 PLATE-SUPPORT (RH) | 1 | |
| 2711919 | 37 WASHER (17X30X4-MM THK) | 4 | |
| 2764286 | 38 DAMPER | 14 | |
| 5C7261 | NUT (M8X1.25-THD) | 1 | |
| 2816224 | 39 SUPPORT (LH) | 1 | |
| 2816225 | 40 SUPPORT (RH) | 1 | |
| 2863491 | 41 FRAME GP-SCREED (RH) | 1 | |
| 2863492 | 42 FRAME GP-SCREED (LH) | 1 | |
| 2863646 | 43 SUPPORT AS | 1 | |
| 2928811 | 44 PLATE (RH) | 1 | |
| 2928812 | 45 PLATE (LH) | 1 | |
| 2928813 | 46 FRAME GP-SLIDING (LH) | 1 | |
| 2928814 | 47 FRAME GP-SLIDING (RH) | 1 | |
| 2928815 | 48 FRAME AS (LH) | 1 | |
| 2928816 | 49 FRAME AS (RH) | 1 | |
| 2928827 | 50 HANDRAIL AS (LH) | 1 | |
| 2928828 | 51 HANDRAIL AS (RH) | 1 | |
| 2928829 | 52 INDICATOR (WIDTH) | 2 | |
| 2709438 | 53 SCREW-FLAT HEAD | 24 | |
| 0950919 | 54 RING-RETAINING | 8 | |
| 0966166 | 55 WASHER-HARD (4.5X9X1-MM THK) | 4 | |
| 1272909 | 56 SCREW-FLAT HEAD (M10X1.5X20-MM) | 32 | |
| 1570949 | 57 SCREW-FLAT HEAD (M10X1.5X25-MM) | 16 | |
| 2442295 | 58 BEARING-SPECIAL | 4 | |
| 2R1230 | 59 RING-RETAINING | 4 | |
| 0950859 | 60 PIN-COTTER | 4 | |
| 3E4310 | 61 SCREW-HEX HEAD (M10X1.5X30-MM) | 4 | |
| 5C7261 | 63 NUT (M8X1.25-THD) | 10 | |
| 5W1341 | 64 BOLT-SOCKET HEAD (M8X1.25X16-MM) | 56 | |
| 5W2177 | 65 BOLT-SOCKET HEAD (M12X1.75X20-MM) | 40 | |
| 6V7676 | 66 NUT (M24X3-THD) | 4 | |
| 7X7729 | 67 WASHER (11X25X3-MM THK) | 10 | |
| 8C7505 | 68 SCREW-FLAT HEAD (M8X1.25X20-MM) | 10 | |
| 8T0389 | 69 LOCKNUT (M10X1.5-THD) | 6 | |
| 8T4121 | 70 WASHER-HARD (11X21X2.5-MM THK) | 6 | |
| 8T4133 | 71 NUT (M10X1.5-THD) | 4 | |
| 8T4137 | 72 BOLT (M10X1.5X20-MM) | 6 | |
| 8T4167 | 73 WASHER-HARD (26X44X4-MM THK) | 4 | |
| 8T4186 | 74 BOLT (M10X1.5X40-MM) | 1 | |
| 8T4189 | 75 BOLT (M8X1.25X20-MM) | 7 | |
| 8T4195 | 76 BOLT (M10X1.5X30-MM) | 1 | |
| 8T4196 | 77 BOLT (M10X1.5X35-MM) | 4 | |
| 8T4200 | 78 BOLT (M8X1.25X16-MM) | 6 | |
| 8T4224 | 79 WASHER-HARD (8.8X16X2-MM THK) | 13 | |
| 8T4647 | 80 SCREW-MACHINE (M4X0.7X20-MM) | 4 | |
| 8T5878 | 81 BOLT (M24X3X80-MM) | 4 | |
| 9X2040 | 82 SCREW-TRUSS HEAD (M10X1.5X25-MM) | 4 | |
| 3B4617 | 83 PIN-COTTER | 2 | |
| 8D5054 | 84 WASHER-HARD (17X30X3-MM THK) | 2 | |
| 3109830 | 85 SUPPORT AS | 2 | |
| 3109991 | 86 HANDLE | 2 | |
| 3153695 | 87 WASHER-SPECIAL | 4 |
