System And Components

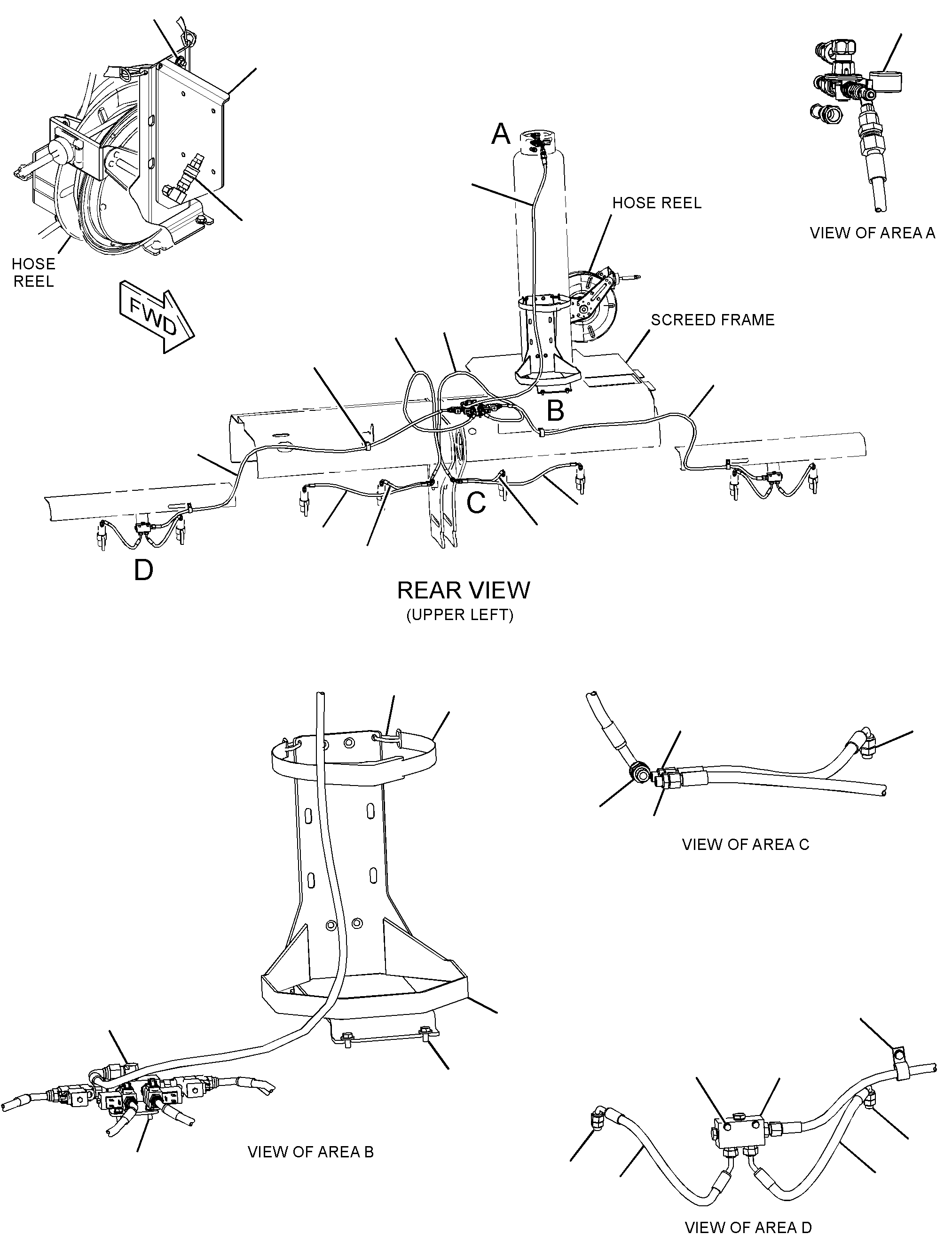

286-3631 LINES GP-BURNER -LPGS/N TFM1-UP
Group No: 286-3631
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2686140 | 1 FITTING GP-FUEL LINES | 2 | |
| 2686156 | 2 FITTING | 8 | |
| 2686147 | 3 WASHER (13X18X1.5-MM THK) | 4 | |
| 2686148 | 4 WASHER (17X23X1.5-MM THK) | 10 | |
| 2686152 | 5 FITTING | 1 | |
| 2686154 | 6 FITTING | 4 | |
| 2686155 | 7 FITTING | 2 | |
| 2695123 | 8 HOSE AS | 4 | |
| 2695124 | 9 HOSE AS | 1 | |
| 2952088 | 10 HOSE AS | 2 | |
| 2695129 | 11 HOSE AS | 1 | |
| 4461228 | 12 VALVE GP-PRESSURE CONTROL (BURNER) | 1 | |
| 4461226 | VALVE-SHUTOFF (GAS) | 1 | |
| 4461227 | REGULATOR-PRESSURE (GAS) | 1 | |
| 2734712 | 13 LINK | 2 | |
| 2780580 | 14 HOSE AS | 1 | |
| 2798037 | 15 STRAP AS | 1 | |
| 2952105 | 16 SUPPORT AS | 1 | |
| 3055869 | 17 MANIFOLD GP-FUEL | 1 | |
| 6D4244 | 18 CLIP (LOOP) | 2 | |
| 7D7233 | 19 CLIP (LOOP) | 2 | |
| 7X7729 | 20 WASHER (11X25X3-MM THK) | 8 | |
| 8T0275 | 21 BOLT (M6X1X50-MM) | 4 | |
| 5C2890 | 22 NUT (M6X1-THD) | 4 | |
| 8T4137 | 23 BOLT (M10X1.5X20-MM) | 4 | |
| 8T4189 | 24 BOLT (M8X1.25X20-MM) | 4 | |
| 8T4224 | 25 WASHER-HARD (8.8X16X2-MM THK) | 4 | |
| 9X8256 | 26 WASHER (6.6X12X2-MM THK) | 4 | |
| 2695126 | 27 HOSE AS | 2 | |
| 2695127 | 28 HOSE AS | 2 | |
| 3E4310 | 29 SCREW-HEX HEAD (M10X1.5X30-MM) | 4 | |
| 5R6867 | 30 COUPLER AS-QUICK DISCONNECT (MALE) | 1 | |
| 5R6868 | 31 COUPLER AS-QUICK DISCONNECT (FEMALE) | 1 | |
| 8T4133 | 32 NUT (M10X1.5-THD) | 4 | |
| 1488336 | 33 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1504050 | 34 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 8T0788 | ELBOW | 1 | |
| 3289611 | 35 SUPPORT-REEL | 1 |
