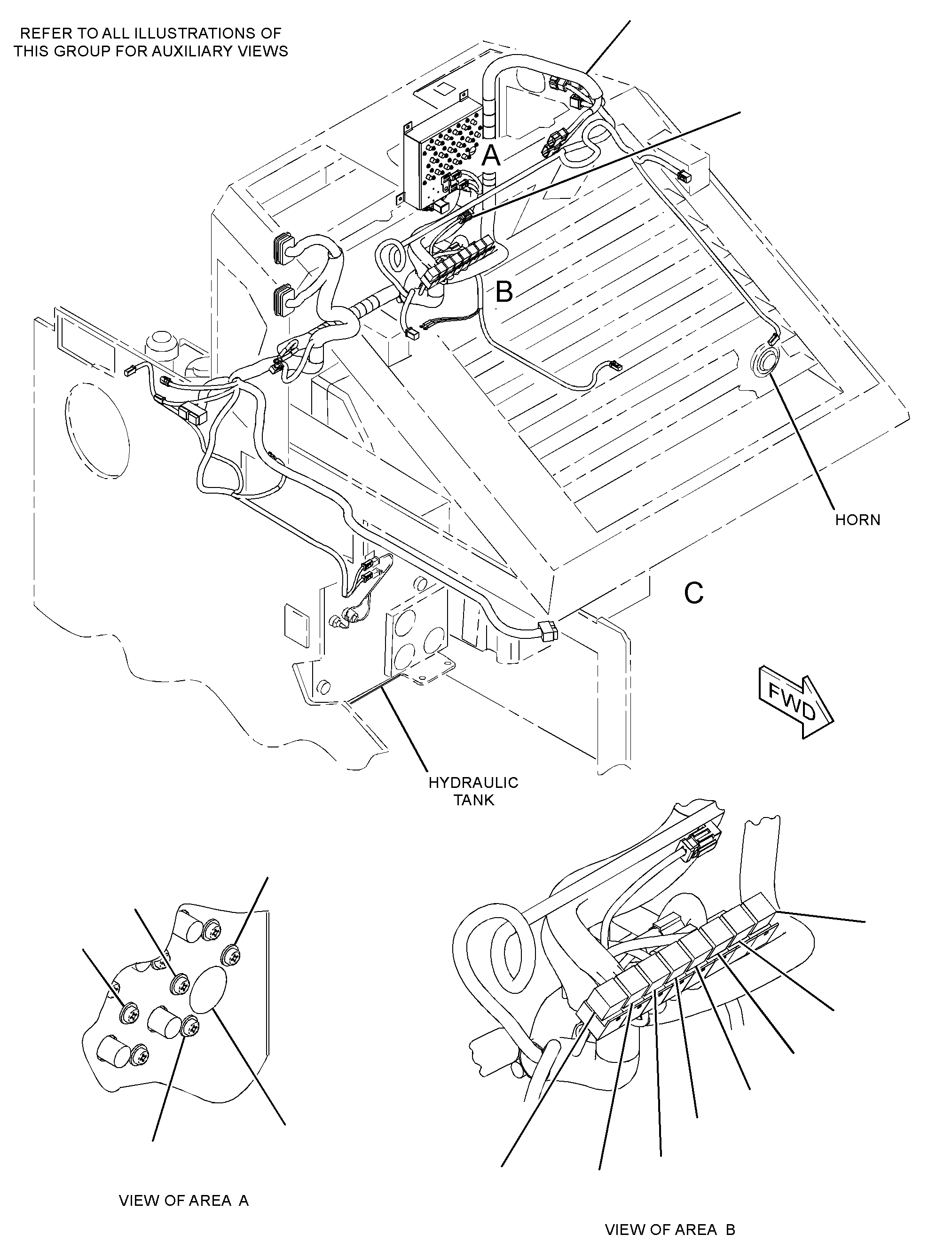

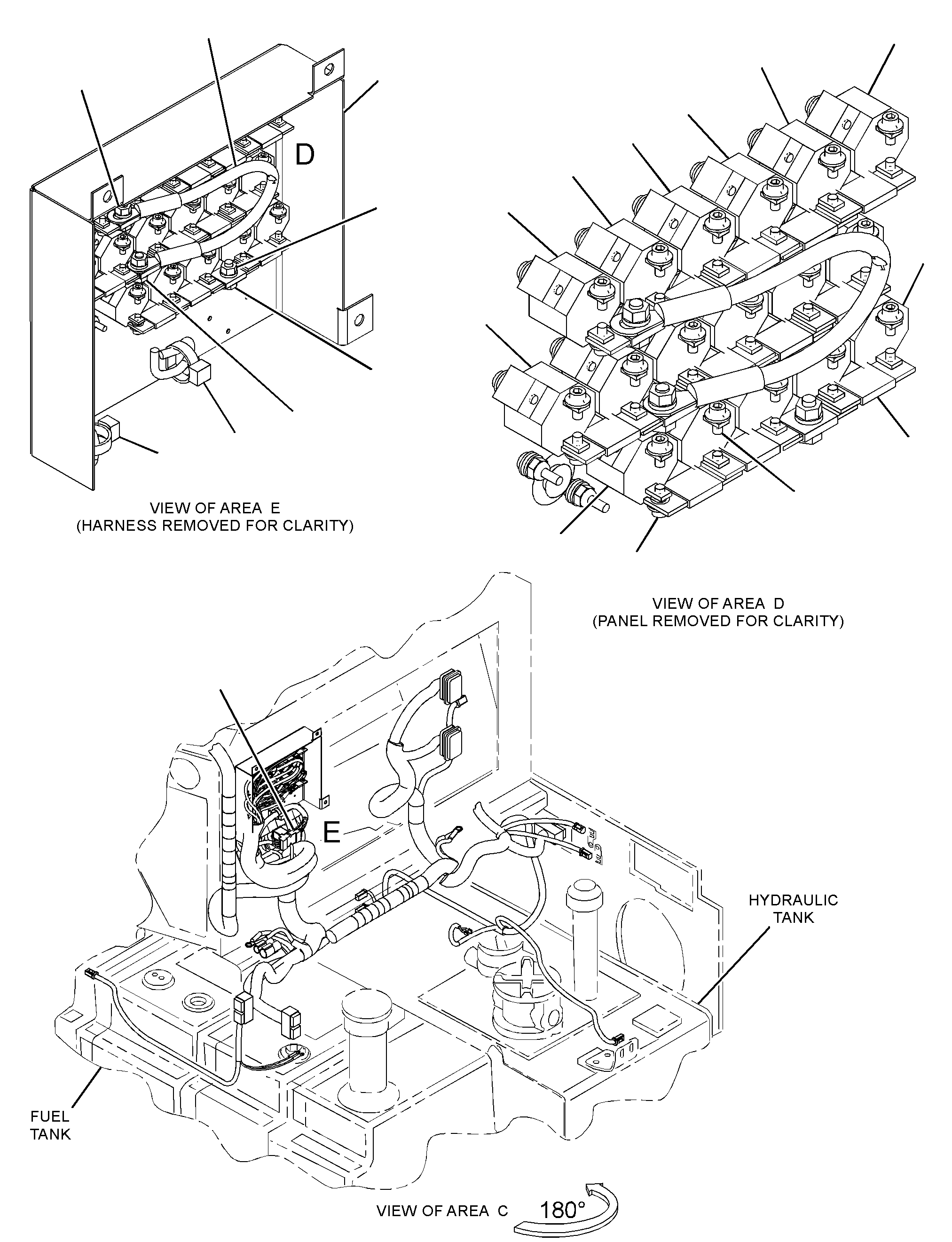

419-0789 PANEL GP-CIRCUIT BREAKERS/N TFM1-282

Group No: 419-0789
Part NumberPart NameQty
10546841 RELAY AS (24-VOLT)1
11579482 SOCKET-RELAY1
17292003 SUPPRESSOR-ARC1
22673004 CIRCUIT BREAKER AS (25-AMPERE)(HID LIGHTS, WARNING BEACON)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
23608725 STRAP AS14
28068346 WIRE AS (6-GA)1
29279437 PANEL AS-CIRCUIT BREAKER1
34833228 HARNESS AS-CONTROL1
36365309 RELAY AS (24-VOLT)(SUPPRESSION)1
36365309A RELAY AS (24-VOLT)(FUEL PUMP)1
36365309B RELAY AS (24-VOLT)(PARK LIGHTS)1
36365309C RELAY AS (24-VOLT)(WORK LIGHTS)1
36365309D RELAY AS (24-VOLT)(TRAVEL LIGHTS)1
36365309E RELAY AS (24-VOLT)(BRAKE LIGHTS)1
36365309F RELAY AS (24-VOLT)(LEFT BLINKER)1
36365309G RELAY AS (24-VOLT)(RIGHT BLINKER)1
419160510 SPRING-HOLDER1
2V372611 BUMPER1
4B486312 WASHER (4.7X11X1.2-MM THK)72
5C289013 NUT (M6X1-THD)3
5C955314 BOLT (M6X1X16-MM)3
6D303115 SCREW-SOCKET HEAD (8-32X0.375-IN)34
6D580116 LOCKNUT (8-32-THD)2
6T364317 CIRCUIT BREAKER AS (15-AMPERE)11
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
6T364418 CIRCUIT BREAKER AS (20-AMPERE)5
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
7K118119 STRAP-CABLE2
9X825620 WASHER (6.6X12X2-MM THK)6
9X848621 SCREW-MACHINE (8-32X0.75-IN)36
