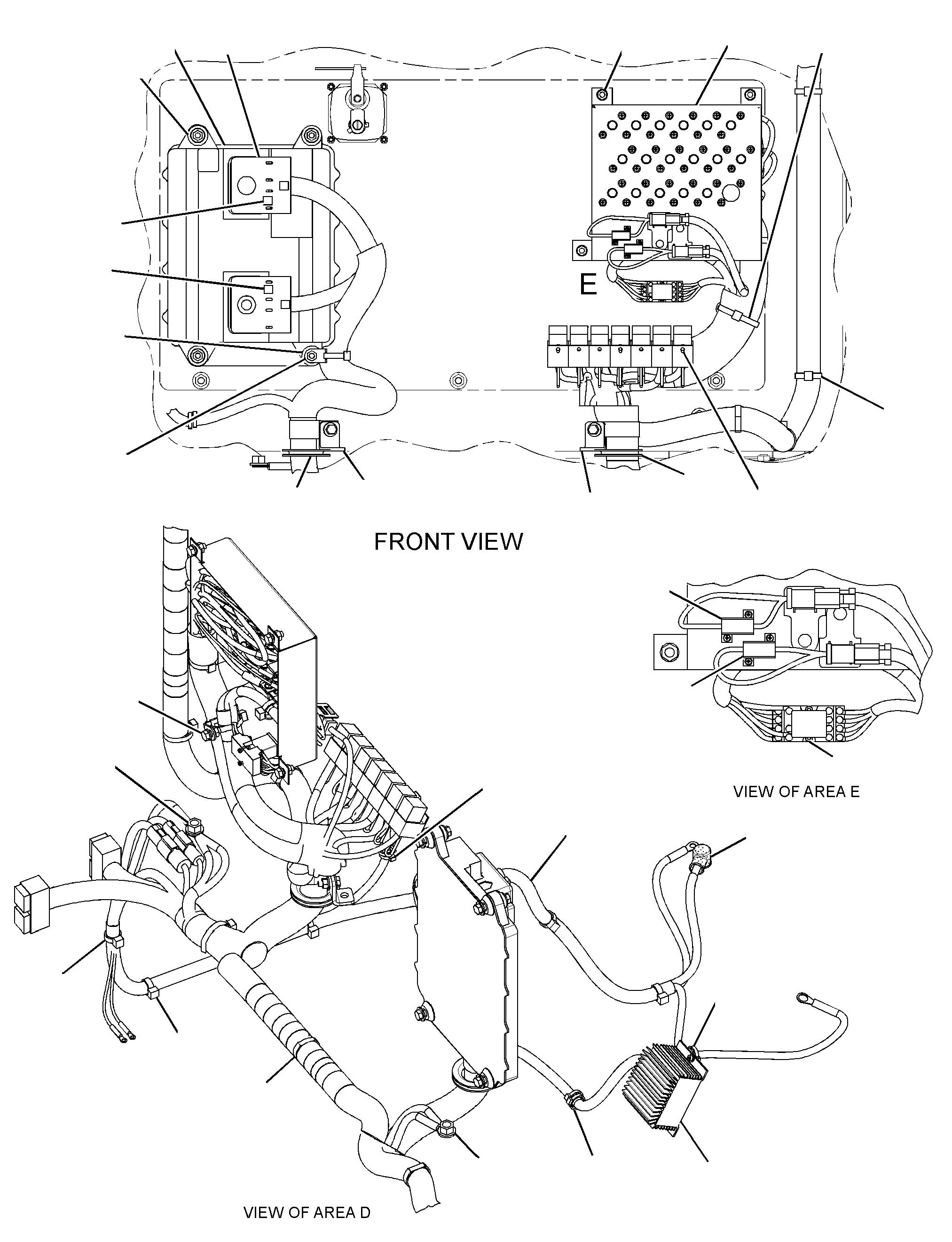

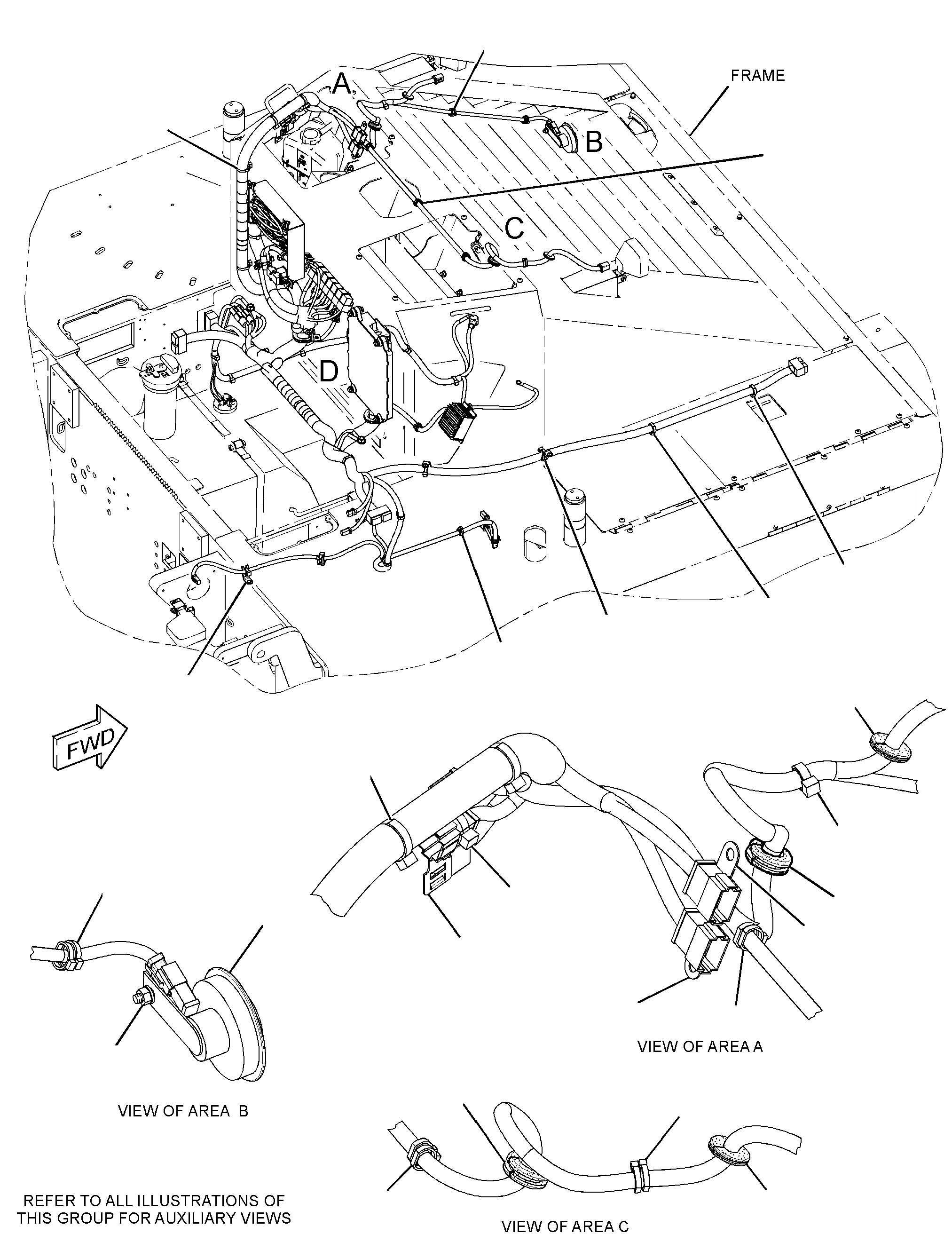

272-7061 WIRING GP-ELECTRONIC CONTROLS/N TFM1-UP

Group No: 272-7061

Part Number	Part Name	Qty
3483338	1 PANEL GP-CIRCUIT BREAKER	1
7K1181	2 STRAP-CABLE	34
3045687	3 CONTROL GP-UNPROGRAMMED (MACHINE)	1
1325789	4 CLIP (LADDER)	2
3S2093	6 STRAP-CABLE	22
4P7429	8 CLIP (LADDER)	4
2054285	9 CONVERTER-POWER (24-VOLT TO 12-VOLT)	1
2311389	10 RESISTOR AS (PROPEL, RH)	1
2311389	10A RESISTOR AS (PROPEL, LH)	1
1028802	KIT-RECEPTACLE (2-PIN)	1
1863735	PIN-CONNECTOR (16-GA TO 18-GA)	2
5P5623	WIRE-ELECTRICAL (16-GA, BLACK)(0.3-M)
8T4189	12 BOLT (M8X1.25X20-MM)	6
5P4116	13 WASHER-HARD (8.8X20.5X2-MM THK)	13
8T9655	14 MOUNT-ISOLATION	8
8T9658	15 SPACER (8.2X12.7X25.4-MM THK)	4
5C7261	16 NUT (M8X1.25-THD)	11
4B4863	17 WASHER (4.7X11X1.2-MM THK)	5
8T3998	18 BOLT (M4X0.7X12-MM)	2
8T4223	19 WASHER-HARD (13.5X25.5X3-MM THK)	2
8T4244	20 NUT (M12X1.75-THD)	2
9B1117	21 LOCKWASHER	8
6V9669	22 SCREW-MACHINE (M3X0.5X8-MM)	4
4P7581	23 CLIP (LADDER)	1
1261774	24 COVER-CONNECTOR	2
8T4224	25 WASHER-HARD (8.8X16X2-MM THK)	10
7X0818	26 BOLT (M8X1.25X45-MM)	4
3C6969	27 NUT (M3X0.5-THD)	6
1954973	28 BRACKET	2
7D7233	29 CLIP (LOOP)	1
8C8533	30 CLIP	1
8T4908	31 BOLT (M8X1.25X25-MM)	2
1305300	32 CLIP	5
1M4543	33 GROMMET	2
1P6522	34 GROMMET	2
1631201	35 HORN AS (24-VOLT, LOW TONE)	1
1209027	37 SCREW-PAN HEAD (M3X0.5X16-MM)	2
8T7852	38 BOLT (M4X0.7X10-MM)	3
8T8799	39 BOOT (RED)	1
2861830	40 HARNESS AS-POWER	1
1275483	PLUG AS-CONNECTOR (1-PIN)	1
1275485	PLUG AS-CONNECTOR (1-PIN)	1
8N1545	SOCKET-CONNECTOR (8-GA)	1
8N1547	SOCKET-CONNECTOR (6-GA)	1
1311489	TERMINAL AS-RING (6-GA TO 8-GA)	2
1311492	TERMINAL AS-RING (6-GA TO 8-GA)	2
1193662	TUBE-HEAT SHRINK (10.85-MM DIA)(4-CM)
6V5746	41 TRIM (0.2-M EACH)
