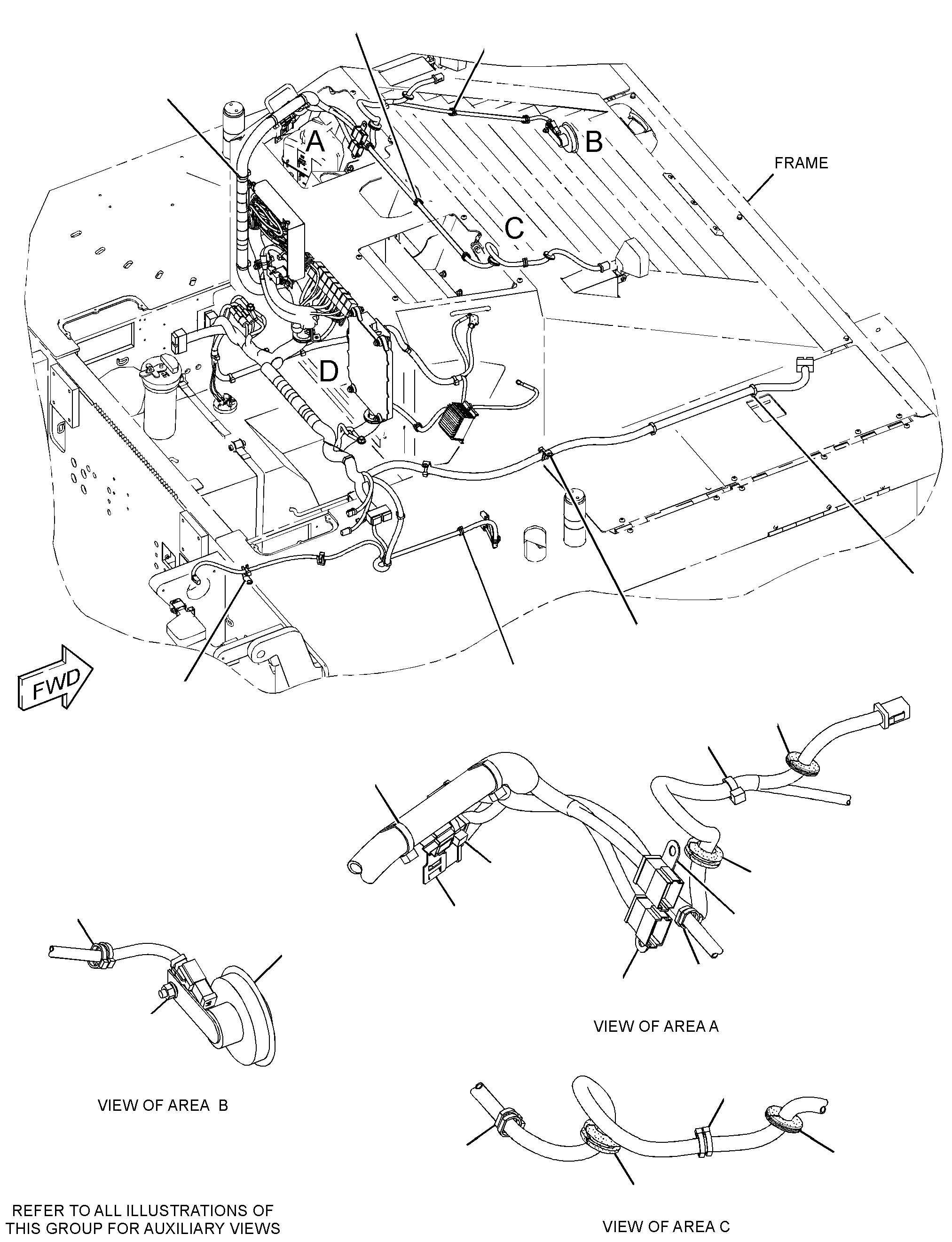

272-7061 WIRING GP-ELECTRONIC CONTROLS/N TFM1-282

Group No: 272-7061
Part NumberPart NameQty
41907891 PANEL GP-CIRCUIT BREAKER1
7K11812 STRAP-CABLE34
30456873 CONTROL GP-UNPROGRAMMED (MACHINE)1
13257894 CLIP (LADDER)2
3S20936 STRAP-CABLE22
4P74298 CLIP (LADDER)4
34071609 CONVERTER-POWER (24-VOLT TO 12-VOLT)1
231138910 RESISTOR AS (PROPEL, RH)1
231138910A RESISTOR AS (PROPEL, LH)1
1028802KIT-RECEPTACLE (2-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
8T418912 BOLT (M8X1.25X20-MM)6
5P411613 WASHER-HARD (8.8X20.5X2-MM THK)5
8T965514 MOUNT-ISOLATION8
6I141815 SPACER (8.2X12.7X28.7-MM THK)4
5C726116 NUT (M8X1.25-THD)11
4B486317 WASHER (4.7X11X1.2-MM THK)5
8T464718 SCREW-MACHINE (M4X0.7X20-MM)2
8T422319 WASHER-HARD (13.5X25.5X3-MM THK)2
8T424420 NUT (M12X1.75-THD)2
9B111721 LOCKWASHER8
6V966922 SCREW-MACHINE (M3X0.5X8-MM)4
4P758123 CLIP (LADDER)1
126177424 COVER-CONNECTOR2
8T422425 WASHER-HARD (8.8X16X2-MM THK)10
297100326 BOLT-SOCKET HEAD (M8X1.25X45-MM)4
3C696927 NUT (M3X0.5-THD)6
195497328 BRACKET2
7D155329 CLIP1
8C853330 CLIP1
8T490831 BOLT (M8X1.25X25-MM)2
130530032 CLIP5
1M454333 GROMMET2
1P652234 GROMMET2
163120135 HORN AS (24-VOLT, LOW TONE)1
6V932537 SCREW-MACHINE (M3X0.5X30-MM)2
116695238 BOLT (M4X0.7X10-MM)3
8T879939 BOOT (RED)1
286183040 HARNESS AS-POWER1
1275483PLUG AS-CONNECTOR (1-PIN)1
1275485PLUG AS-CONNECTOR (1-PIN)1
8N1545SOCKET-CONNECTOR (8-GA)1
8N1547SOCKET-CONNECTOR (6-GA)1
2L8051TERMINAL-RING (6-GA, 5/16-IN SCREW)2
5P3455TERMINAL-RING (8-GA, 5/16-IN SCREW)2
2L8054TERMINAL-RING (6-GA, 1/2-IN SCREW)2
2L8061TERMINAL-RING (8-GA, 1/2-IN SCREW)2
6V574641 TRIM (0.2-M EACH)4
352024442 WASHER-HARD (8.8X20.5X2-MM THK)8
419079143 PLATE1
