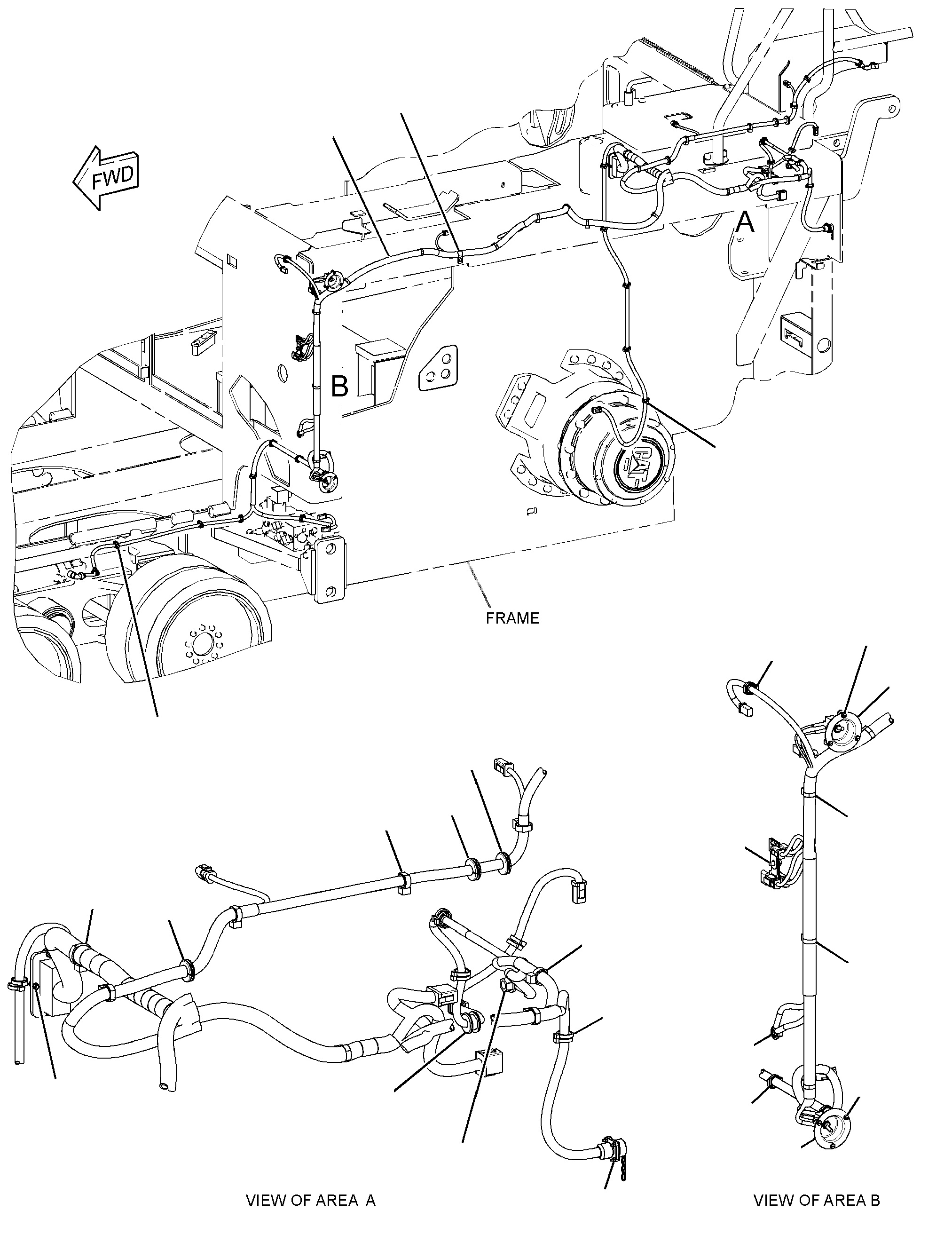

292-0974 WIRING GP-MACHINE -LHS/N TFM1-UP

Group No: 292-0974
Part NumberPart NameQty
29209731 HARNESS AS-CHASSIS1
1552255KIT-CONNECTING PLUG (12-PIN)2
1552260KIT-CONNECTING PLUG (3-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)12
1552271KIT-CONNECTING PLUG (4-PIN)2
1028802KIT-RECEPTACLE (2-PIN)5
1028803KIT-RECEPTACLE (3-PIN)1
1028804KIT-RECEPTACLE (4-PIN)1
1028805KIT-RECEPTACLE (6-PIN)1
1028801KIT-RECEPTACLE (12-PIN)2
9X0482PLUG AS-CONNECTOR (3-PIN)1
1835785RECEPTACLE AS (40-PIN)1
7R7029CONNECTOR-RECEPTACLE (6-PIN)1
1809339PIN-CONNECTOR (14-GA TO 18-GA)39
1809340SOCKET-CONNECTOR (14-GA TO 18-GA)54
7N7978TERMINAL-FORK (10-GA TO 12-GA, NO. 6 SCREW)2
5P2321TERMINAL-FORK (14-GA TO 16-GA, NO. 6 SCREW)3
1311492TERMINAL AS-RING (6-GA TO 8-GA)2
2L8071TERMINAL-RING (10-GA TO 12-GA, 1/2-IN SCREW)2
8T8737PLUG-SEAL56
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(13-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(40-CM)
11231012 PLATE-FACE2
7K11813 STRAP-CABLE19
8D95374 CAP-DUST1
3S20935 STRAP-CABLE44
13053006 CLIP4
5P41167 WASHER-HARD (8.8X20.5X2-MM THK)1
8T42008 BOLT (M8X1.25X16-MM)1
18931589 SUPPRESSOR-ARC2
8N069410 SWITCH AS-TOGGLE (SINGLE POLE)(GROUND LEVEL SHUTDOWN)1
3L8187LOCKWASHER3
6T3631NUT-HEX (15/32-32-THD)2
6T3632LOCKWASHER1
6T3633RING-LOCKING1
6V8374SCREW-MACHINE (6-32X0.25-IN)3
9G001111 SWITCH AS-TOGGLE (TOW POINT CONTROL)1
3L8187LOCKWASHER3
6T3631NUT-HEX (15/32-32-THD)2
6T3632LOCKWASHER1
6T3633RING-LOCKING1
6V8374SCREW-MACHINE (6-32X0.25-IN)3
5D763512 GROMMET1
9M840613 CLIP (LOOP)1
2N348014 SCREW-MACHINE (10-24X0.75-IN)6
4B427415 WASHER (5.5X13X1.2-MM THK)6
4B204716 NUT (10-24-THD)6
6V967217 SCREW-MACHINE (M4X0.7X16-MM)4
096616618 WASHER-HARD (4.5X9X1-MM THK)4
5C831219 NUT (M4X0.7-THD)4
8T422320 WASHER-HARD (13.5X25.5X3-MM THK)2
8T424421 NUT (M12X1.75-THD)2
9X734522 GROMMET3
6V967123 SCREW-MACHINE (M3X0.5X12-MM)4
9B111724 LOCKWASHER4
3C696925 NUT (M3X0.5-THD)4
