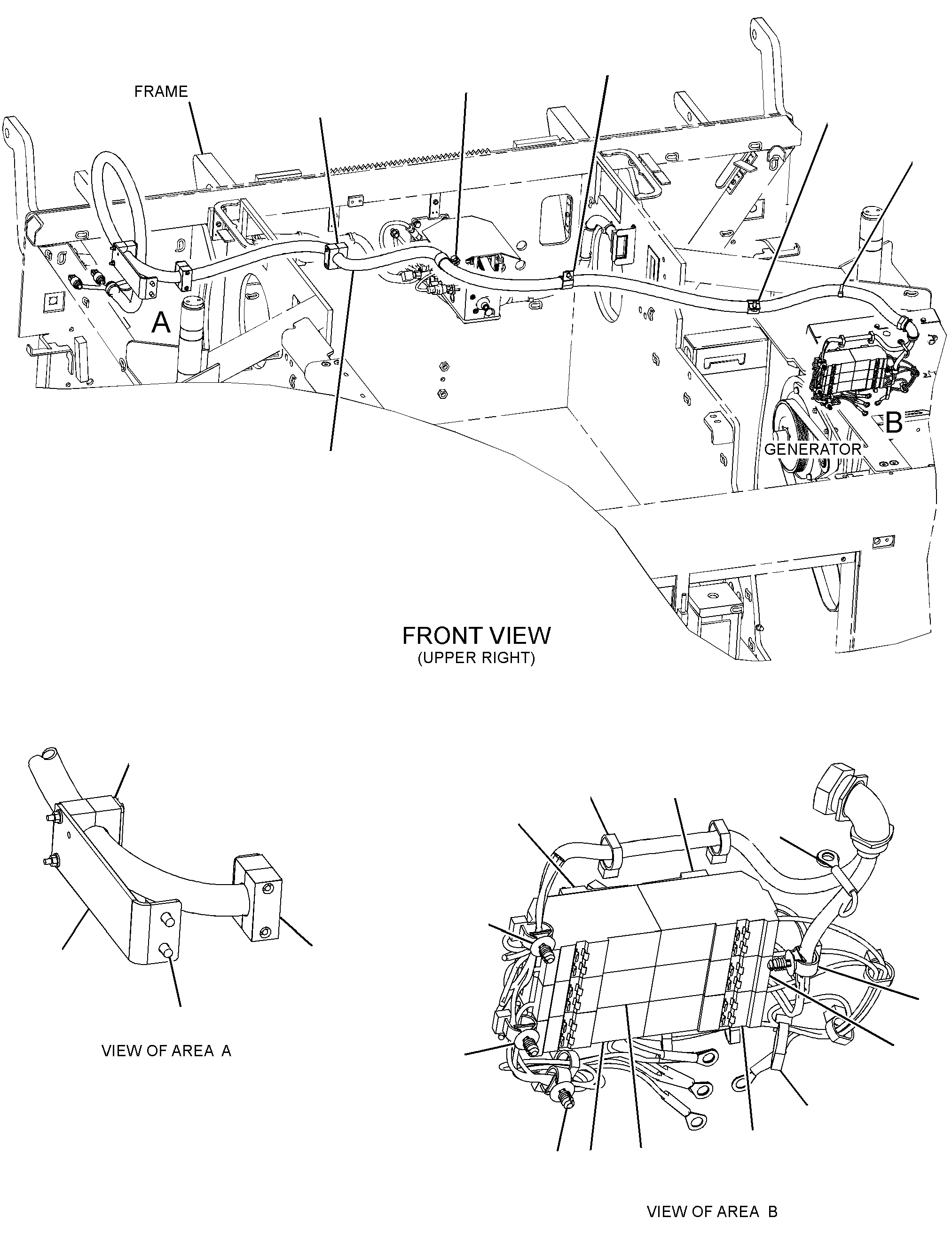

288-2631 WIRING GP-SCREED -ELECTRIC HEATS/N TFM267-284

Group No: 288-2631
Part NumberPart NameQty
7R79511 PLATE3
29726692 PLATE1
32703253 STRAP-CABLE4
36824194 CIRCUIT BREAKER AS (30-AMPERE)(EXTENDER HEATER, OUTSIDE, RH)1
36824194A CIRCUIT BREAKER AS (30-AMPERE)(EXTENDER HEATER, OUTSIDE, LH)1
36824194B CIRCUIT BREAKER AS (30-AMPERE)(MAIN HEATER, RH)1
36824194C CIRCUIT BREAKER AS (30-AMPERE)(EXTENDER HEATER, INSIDE, RH)1
36824194D CIRCUIT BREAKER AS (30-AMPERE)(EXTENDER HEATER, INSIDE, LH)1
36824194E CIRCUIT BREAKER AS (30-AMPERE)(MAIN HEATER, LH)1
39989585 HARNESS AS-AUXILIARY1
4D73886 CLIP3
5C28907 NUT (M6X1-THD)2
7K11818 STRAP-CABLE9
7R79419 CLAMP6
7X253510 BOLT (M6X1X60-MM)4
8T412111 WASHER-HARD (11X21X2.5-MM THK)6
8T413312 NUT (M10X1.5-THD)1
8T413713 BOLT (M10X1.5X20-MM)5
8T420514 WASHER-HARD (7.2X14.5X2-MM THK)2
8T697415 BOLT (M6X1X80-MM)2
8T489616 WASHER-HARD (10.2X18.5X2.5-MM THK)1
