System And Components

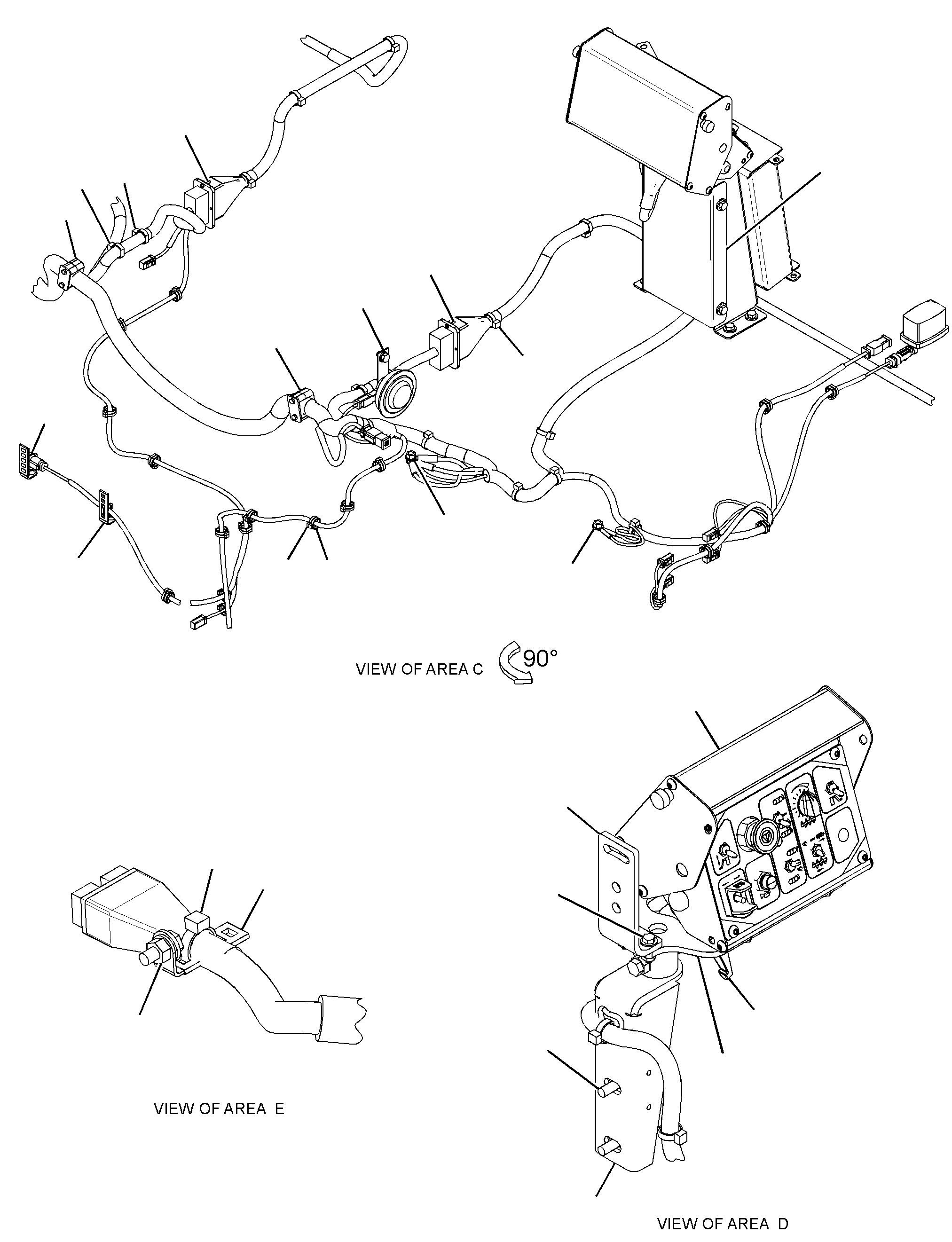

351-0903 WIRING GP-SCREEDS/N TFM1-UP
Group No: 351-0903
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3S2093 | 1 STRAP-CABLE | 70 | |
| 6I1418 | 2 SPACER (8.2X12.7X28.7-MM THK) | 4 | |
| 7R7951 | 3 PLATE | 1 | |
| 7V5628 | 4 PLATE (TOP) | 3 | |
| 8T9655 | 5 MOUNT-ISOLATION | 8 | |
| 1439644 | 6 PLATE-RETAINER | 3 | |
| 1631201 | 7 HORN AS (24-VOLT, LOW TONE) | 1 | |
| 3202845 | 8 LEVER | 2 | |
| 2365149 | 9 WASHER-NYLON (11.17X19.05X1.6MM THK) | 2 | |
| 2764615 | 10 COVER | 1 | |
| 3045687 | 11 CONTROL GP-UNPROGRAMMED (ACCUGRADE) | 1 | |
| 3276125 | 12 LAMP GP-SIGNAL (24-VOLT, RH) | 1 | |
| 3278515 | 13 LAMP GP-SIGNAL (24-VOLT, LH) | 1 | |
| 2304012 | RECEPTACLE AS-CONNECTOR (2-PIN) | 1 | |
| 3505943 | 14 SUPPORT AS | 1 | |
| 3520657 | 15 BOX GP-CONTROL (RH) | 1 | |
| 3520658 | 16 BOX GP-CONTROL (LH) | 1 | |
| 3520659 | 17 BOX GP-CONTROL (SCREED) | 1 | |
| 3520668 | 18 HARNESS AS-SCREED (PAVER TO SCREED) | 1 | |
| 3565491 | 19 COVER AS | 1 | |
| 3567861 | 21 PLATE AS | 2 | |
| 3626636 | 22 HARNESS AS-CONTROL (SCREED) | 2 | |
| 3626637 | 23 HARNESS AS-SCREED (EXTENDER, LH) | 1 | |
| 3626638 | 24 HARNESS AS-SCREED (EXTENDER, RH) | 1 | |
| 3877760 | 25 HARNESS AS-SCREED (MAIN) | 1 | |
| 3628408 | 26 MOUNT AS | 2 | |
| 3628411 | 27 BRACKET AS | 2 | |
| 3671953 | 28 BRACKET | 2 | |
| 0618844 | 29 GROMMET | 1 | |
| 0966166 | 30 WASHER-HARD (4.5X9X1-MM THK) | 10 | |
| 8T4197 | 31 BOLT (M8X1.25X40-MM) | 4 | |
| 1G9959 | 33 CLAMP | 6 | |
| 2061511 | 34 CLAMP-HALF | 4 | |
| 2080075 | 35 CLAMP-HALF | 2 | |
| 3523968 | 36 CLIP (LADDER) | 1 | |
| 3523969 | 37 CLIP (LADDER) | 2 | |
| 4B4863 | 38 WASHER (4.7X11X1.2-MM THK) | 8 | |
| 5C8312 | 39 NUT (M4X0.7-THD) | 8 | |
| 5P4116 | 40 WASHER-HARD (8.8X20.5X2-MM THK) | 10 | |
| 6V7978 | 41 SCREW-MACHINE (10-32X0.375-IN) | 4 | |
| 6V9491 | 42 SCREW-MACHINE (M4X0.7X20-MM) | 12 | |
| 6V9672 | 43 SCREW-MACHINE (M4X0.7X16-MM) | 2 | |
| 7K1181 | 44 STRAP-CABLE | 49 | |
| 7R7941 | 45 CLAMP | 2 | |
| 7X2534 | 46 BOLT (M6X1X50-MM) | 4 | |
| 7X2535 | 47 BOLT (M6X1X60-MM) | 2 | |
| 7X7729 | 48 WASHER (11X25X3-MM THK) | 13 | |
| 8C8451 | 49 BOLT (M6X1X40-MM) | 2 | |
| 8T4121 | 50 WASHER-HARD (11X21X2.5-MM THK) | 3 | |
| 8T4133 | 51 NUT (M10X1.5-THD) | 6 | |
| 8T4136 | 52 BOLT (M10X1.5X25-MM) | 3 | |
| 8T4137 | 53 BOLT (M10X1.5X20-MM) | 2 | |
| 8T4139 | 54 BOLT (M12X1.75X30-MM) | 4 | |
| 8T4179 | 55 BOLT (M12X1.75X20-MM) | 2 | |
| 8T4189 | 56 BOLT (M8X1.25X20-MM) | 6 | |
| 8T4191 | 57 BOLT (M10X1.5X16-MM) | 1 | |
| 8T4195 | 58 BOLT (M10X1.5X30-MM) | 10 | |
| 8T4223 | 59 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 8T4224 | 60 WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 8T4908 | 61 BOLT (M8X1.25X25-MM) | 2 | |
| 8T7547 | 62 BOLT (M8X1.25X30-MM) | 4 | |
| 9X2480 | 63 BOLT (M6X1X45-MM) | 6 | |
| 3515775 | 64 ELECTRONICS GP-IMPLEMENT | 1 | |
| 3913128 | 65 ELECTRONICS GP-MONITOR | 1 | |
| 7P1695 | 66 WASHER (10.5X19X3-MM THK) | 7 |
