System And Components

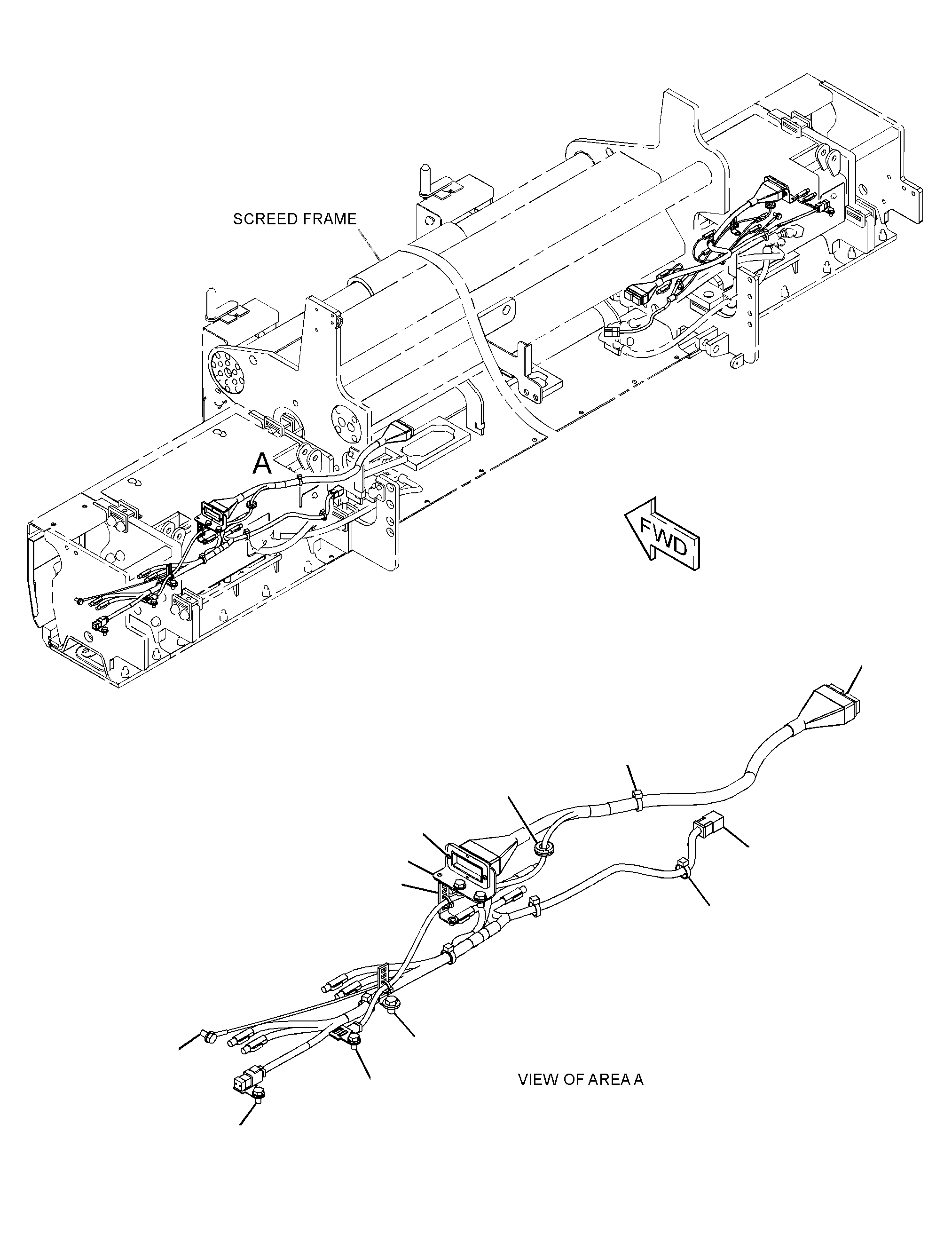

359-1037 WIRING GP-SCREED -ELECTRIC HEAT, 7-MS/N TFM1-283
Group No: 359-1037
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3S2093 | 1 STRAP-CABLE | 3 | |
| 3542413 | 2 HARNESS AS-HEATER | 2 | |
| 7T0093 | PIN-CONNECTOR (12-GA TO 14-GA) | 3 | |
| 1297163 | PLUG AS-CONNECTOR (1-PIN) | 8 | |
| 1779648 | KIT-CONNECTING PLUG (2-PIN) | 1 | |
| 8T8737 | PLUG-SEAL | 1 | |
| 1779653 | KIT-RECEPTACLE (4-PIN) | 1 | |
| 7T0094 | SOCKET-CONNECTOR (12-GA TO 14-GA) | 2 | |
| 8N1541 | SOCKET-CONNECTOR (12-GA TO 14-GA) | 8 | |
| 2L8069 | TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW) | 1 | |
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(13-CM) | ||
| 3542414 | 3 HARNESS AS-SCREED | 2 | |
| 6I4348 | BOOT (40-PIN) | 2 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 31 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 1 | |
| 9X0141 | PLUG AS-CONNECTOR (40-PIN) | 1 | |
| 3E4367 | RING-RETAINING | 1 | |
| 3E8557 | BOLT (M5X0.8X39.37-MM) | 1 | |
| 9X3490 | SEAL-CONNECTOR (40-PIN) | 2 | |
| 8T8737 | PLUG-SEAL | 14 | |
| 9X1343 | RECEPTACLE AS-CONNECTOR (40-PIN) | 1 | |
| 1809340 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 37 | |
| 1081304 | TUBE-HEAT SHRINK (33-MM DIA)(32-CM) | ||
| 3542415 | 4 PLATE AS | 2 | |
| 0618844 | 5 GROMMET | 2 | |
| 0966166 | 6 WASHER-HARD (4.5X9X1-MM THK) | 4 | |
| 1305300 | 7 CLIP | 6 | |
| 3523969 | 8 CLIP (LADDER) | 3 | |
| 5P1076 | 9 WASHER-HARD (13.5X30X4-MM THK) | 1 | |
| 6V9491 | 10 SCREW-MACHINE (M4X0.7X20-MM) | 4 | |
| 7K1181 | 11 STRAP-CABLE | 9 | |
| 8T4121 | 12 WASHER-HARD (11X21X2.5-MM THK) | 9 | |
| 8T4137 | 13 BOLT (M10X1.5X20-MM) | 9 | |
| 8T4179 | 14 BOLT (M12X1.75X20-MM) | 1 |
