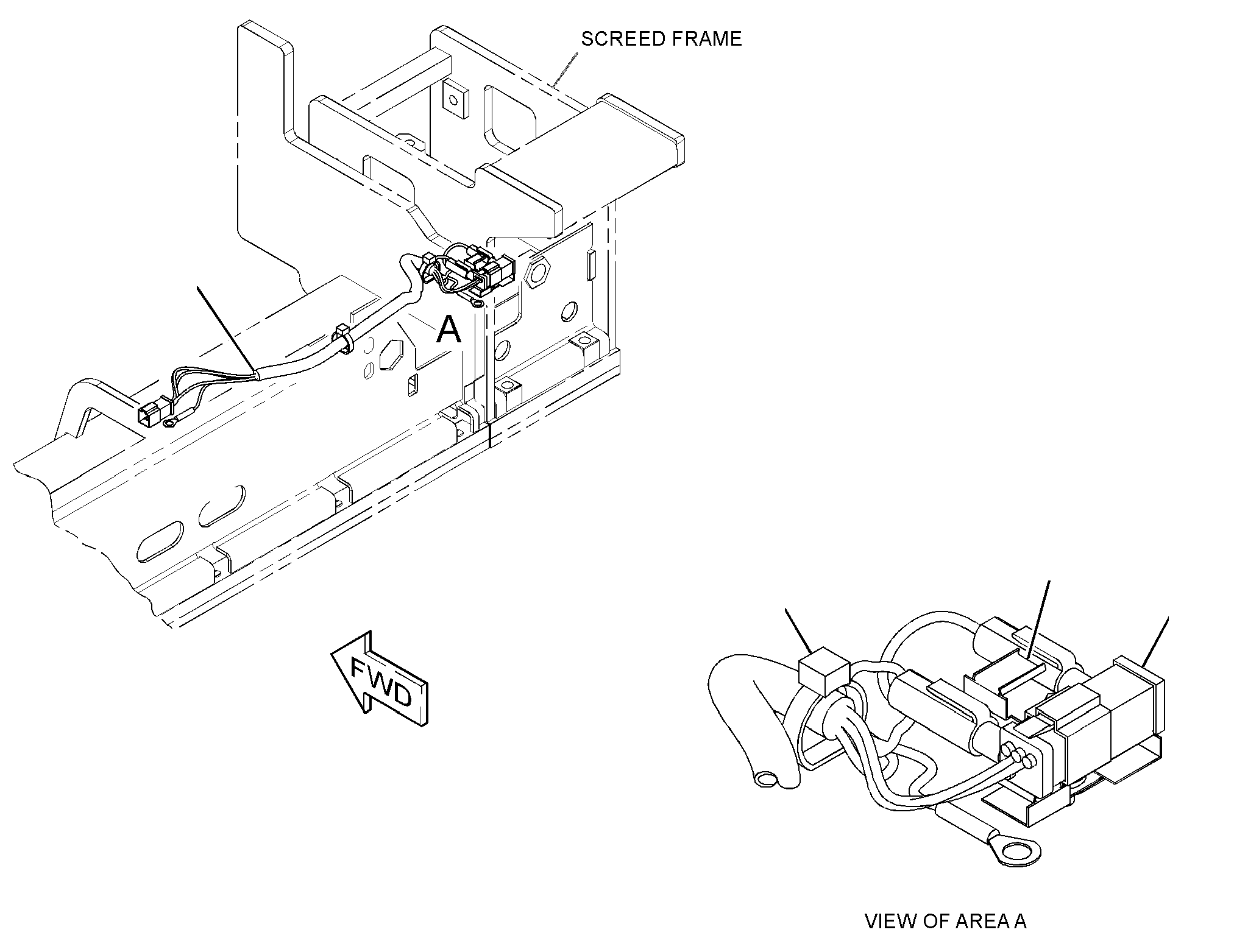

Assembly
100%

319-7153 WIRING GP-SCREED HEATER -250-MM EXTENSION, LHS/N TFM1-UP

Group No: 319-7153
Part NumberPart NameQty
8T87371 PLUG-SEAL6
11601182 CLIP4
32256933 HARNESS AS-SCREED1
1552274KIT-CONNECTING PLUG (6-PIN)1
1028805KIT-RECEPTACLE (6-PIN)1
1441636PIN-CONNECTOR (14-GA TO 18-GA)4
1297163PLUG AS-CONNECTOR (1-PIN)2
8T8737PLUG-SEAL6
8N1541SOCKET-CONNECTOR (12-GA TO 14-GA)2
1809340SOCKET-CONNECTOR (14-GA TO 18-GA)2
2L8069TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW)1
2L8079TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW)1
1602250SLEEVE-ABRASION (18-IN)
10288054 KIT-RECEPTACLE (6-PIN)1
5C72615 NUT (M8X1.25-THD)2
6V52186 BOLT (M8X1.25X35-MM)1
7K11817 STRAP-CABLE2
8T42248 WASHER-HARD (8.8X16X2-MM THK)5
