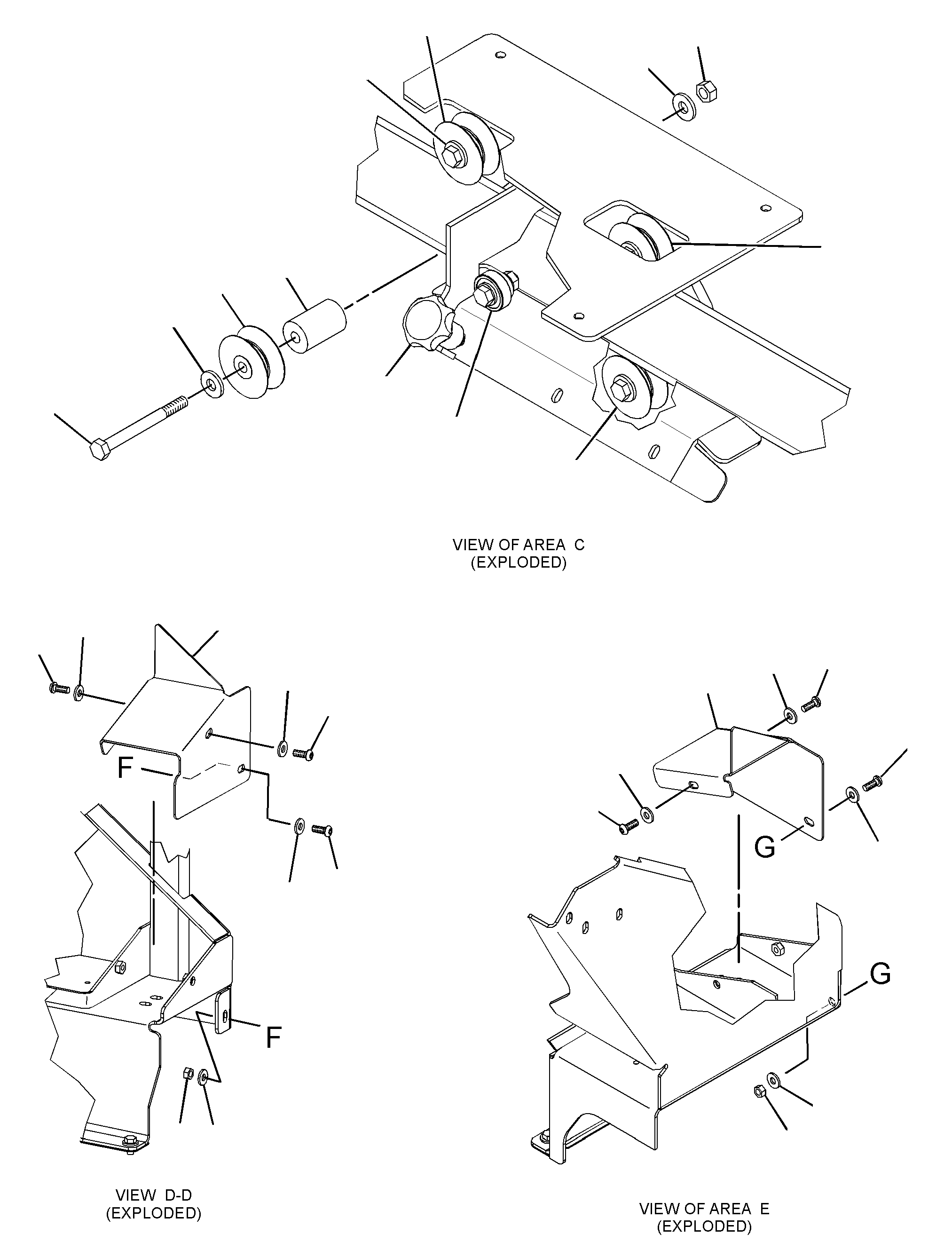

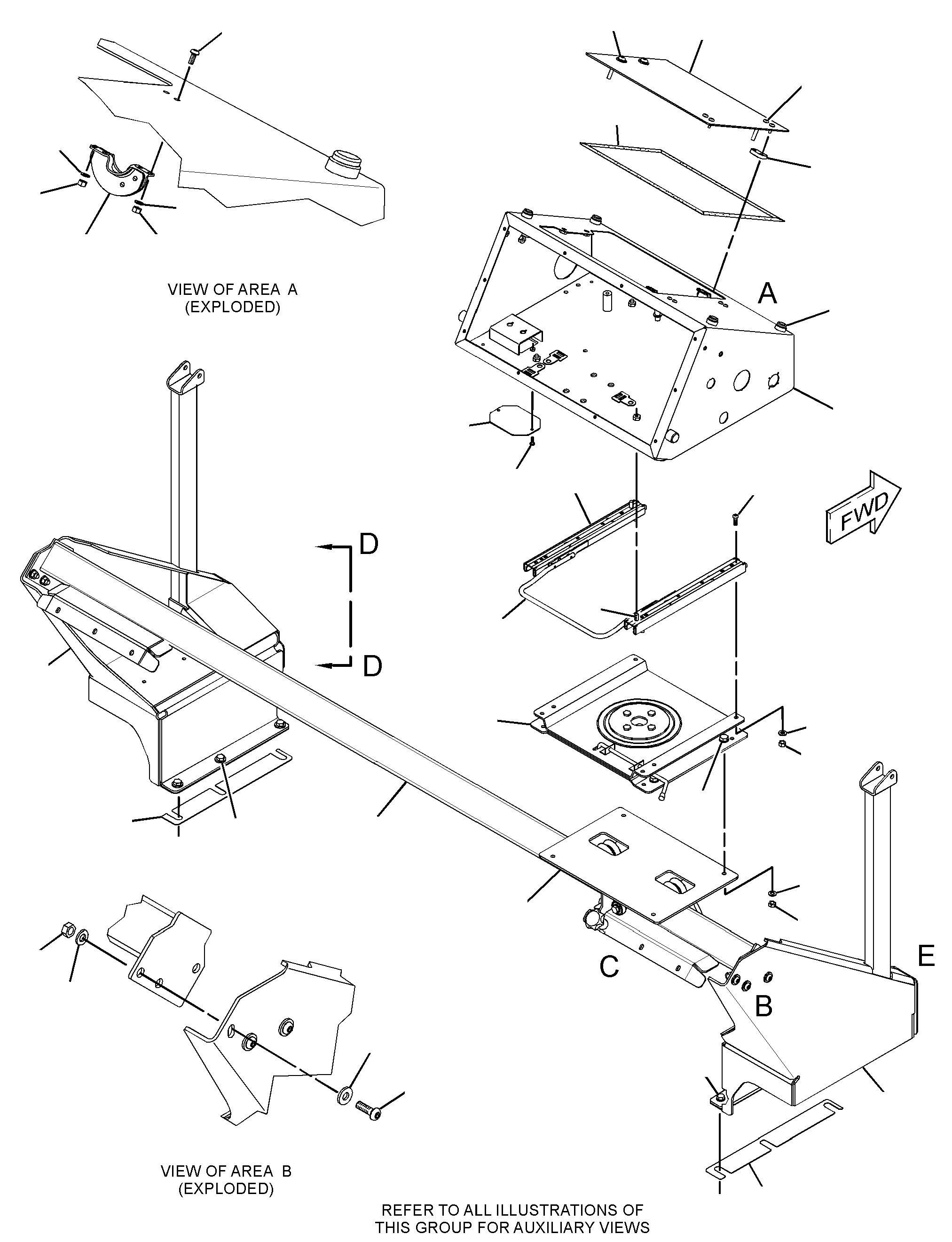

269-2817 CONSOLE GP-OPERATORS/N TFM1-258

Group No: 269-2817
Part NumberPart NameQty
7X33701 BOLT (M8X1.25X20-MM)8
11117772 BUMPER-RUBBER4
16022263 BALL BEARING1
26929144 BALL BEARING4
27150945 CONSOLE AS1
27646416 PIN AS1
27707347 COVER1
28444848 KIT-ADJUSTER1
28637589 PLATE AS1
286376210 PLATE AS1
286376311 COVER1
286376412 COVER1
286376913 SPACER (10.5X30X47-MM THK)2
286377014 PLATE AS1
286377115 RAIL AS1
286377216 SHIM (1-MM THK)4
286377617 HANDLE1
287758818 SWIVEL GP1
292095819 HINGE AS2
292095920 SPACER2
292096021 COVER AS1
141920322 SCREW-BUTTON HEAD (M10X1.5X30-MM)6
238025123 SCREW-BUTTON HEAD (M10X1.5X25-MM)6
5C287424 NUT (M5X0.8-THD)8
5C726125 NUT (M8X1.25-THD)8
5P411626 WASHER-HARD (8.8X20.5X2-MM THK)2
7X772927 WASHER (11X25X3-MM THK)26
7Y738828 SCREW-BUTTON HEAD (M5X0.8X12-MM)4
7Y738929 SCREW (M5X0.8X16-MM)4
7Y739430 SCREW-BUTTON HEAD (M8X1.25X25-MM)2
8T032831 WASHER-HARD (5.5X10X1-MM THK)8
8T412132 WASHER-HARD (11X21X2.5-MM THK)9
8T413333 NUT (M10X1.5-THD)11
8T413734 BOLT (M10X1.5X20-MM)6
8T418235 BOLT (M10X1.5X45-MM)2
8T418936 BOLT (M8X1.25X20-MM)4
8T419637 BOLT (M10X1.5X35-MM)1
8T419838 BOLT (M10X1.5X100-MM)2
8T422439 WASHER-HARD (8.8X16X2-MM THK)12
9X104640 SCREW (M4X0.7X18-MM)2
145566441 SEAL (142-CM)
