System And Components

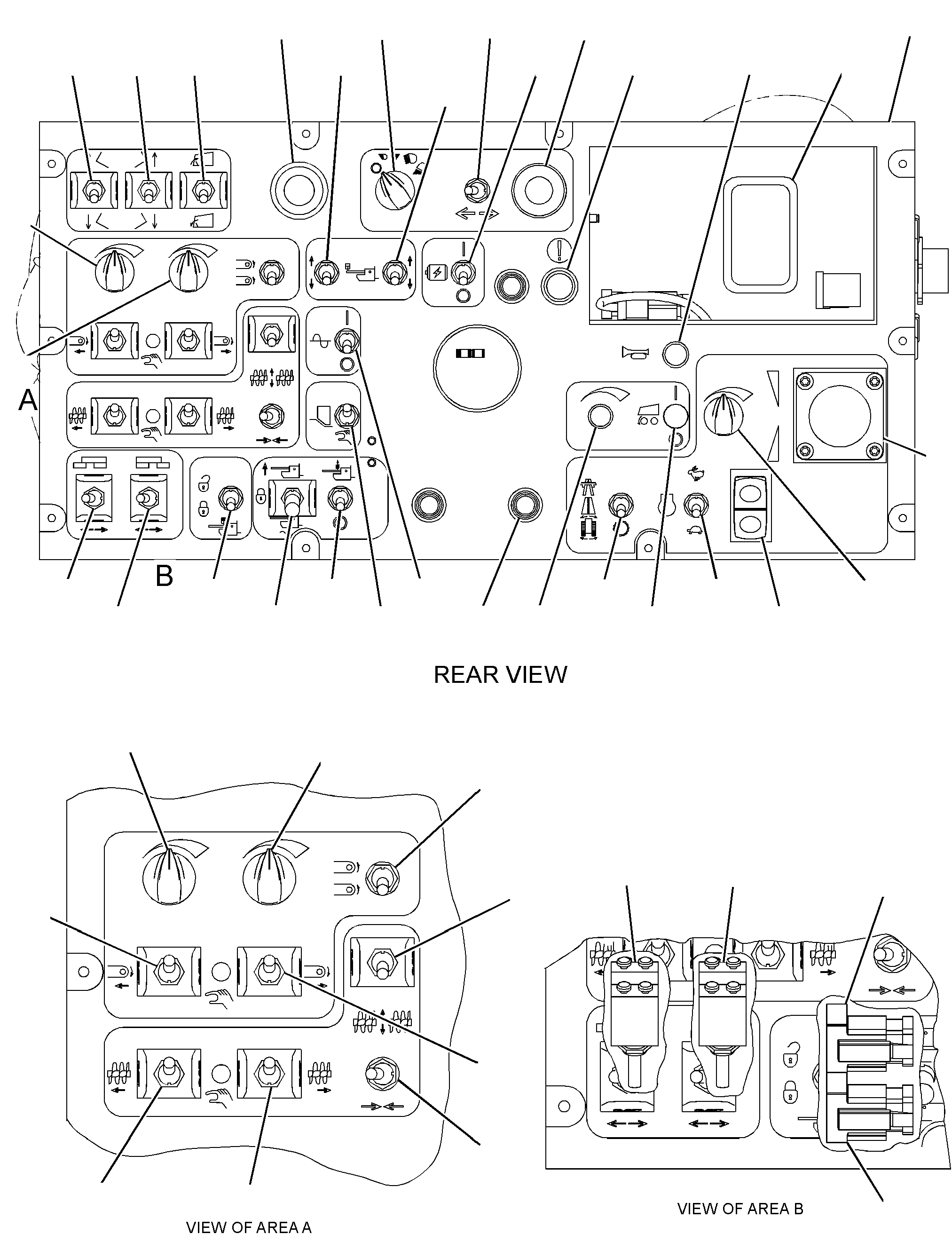

295-0996 PANEL GP-INSTRUMENTS/N TFM1-201
Group No: 295-0996
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2728437 | 1 PANEL-OPERATOR | 1 | |
| 3266138 | 2 HARNESS AS-PANEL | 1 | |
| 1552255 | KIT-CONNECTING PLUG (12-PIN) | 1 | |
| 1552256 | KIT-CONNECTING PLUG (12-PIN) | 1 | |
| 1552265 | KIT-CONNECTING PLUG (8-PIN) | 2 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 5 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 2 | |
| 1552271 | KIT-CONNECTING PLUG (4-PIN) | 3 | |
| 1552274 | KIT-CONNECTING PLUG (6-PIN) | 2 | |
| 2457434 | KIT-CONNECTING PLUG (10-PIN) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 2 | |
| 1028801 | KIT-RECEPTACLE (12-PIN) | 1 | |
| 1907614 | KIT-RECEPTACLE (12-PIN) | 1 | |
| 1471444 | PLUG AS-CONNECTOR (70-PIN) | 1 | |
| 1471445 | PLUG AS-CONNECTOR (70-PIN) | 1 | |
| 1471446 | PLUG AS-CONNECTOR (70-PIN) | 1 | |
| 1599322 | SEAL-O-RING | 1 | |
| 1624171 | TERMINAL AS (18-GA TO 20-GA) | 59 | |
| 5P1475 | TERMINAL-FORK (14-GA TO 16-GA, NO. 8 SCREW) | 1 | |
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(4-CM) | ||
| 1311492 | TERMINAL AS-RING (6-GA TO 8-GA) | 2 | |
| 5P5618 | TERMINAL-BLADE (10-GA TO 12-GA) | 4 | |
| 5P4571 | TERMINAL-BLADE (14-GA TO 16-GA) | 8 | |
| 6V0491 | TERMINAL-BLADE (14-GA TO 18-GA) | 4 | |
| 7N7978 | TERMINAL-FORK (10-GA TO 12-GA, NO. 6 SCREW) | 4 | |
| 5P3059 | TERMINAL-FORK (18-GA TO 22-GA, NO. 6 SCREW) | 5 | |
| 5P2321 | TERMINAL-FORK (14-GA TO 16-GA, NO. 6 SCREW) | 18 | |
| 2354123 | TERMINAL (18-GA TO 20-GA) | 7 | |
| 1809339 | PIN-CONNECTOR (14-GA TO 18-GA) | 30 | |
| 1809340 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 165 | |
| 8T8737 | PLUG-SEAL | 139 | |
| 1851861 | SEAL-WIRE | 7 | |
| 9W1951 | RECEPTACLE AS-CONNECTOR (9-PIN) | 1 | |
| 1257874 | TUBE-HEAT SHRINK (5.72-MM DIA)(75-CM) | ||
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM) | ||
| 2659984 | 3 BRACKET | 11 | |
| 1323090 | 4 LEVER GP-PROPEL | 1 | |
| 2468912 | 5 SWITCH GP-TOGGLE (APRON FOLD) | 1 | |
| 2468912 | 5A SWITCH GP-TOGGLE (HOPPER HOIST, RH) | 1 | |
| 2468912 | 5B SWITCH GP-TOGGLE (HOPPER HOIST, LH) | 1 | |
| 2468912 | 5C SWITCH GP-TOGGLE (EXTENDER CONTROL, LH) | 1 | |
| 2468912 | 5D SWITCH GP-TOGGLE (EXTENDER CONTROL, RH) | 1 | |
| 3L8187 | LOCKWASHER | 3 | |
| 6T3631 | NUT-HEX (15/32-32-THD) | 2 | |
| 6T3632 | LOCKWASHER | 1 | |
| 6T3633 | RING-LOCKING | 1 | |
| 6V8374 | SCREW-MACHINE (6-32X0.25-IN) | 3 | |
| 8C9812 | 6 SWITCH AS-TOGGLE (AUGER, RH) | 1 | |
| 8C9812 | 6A SWITCH AS-TOGGLE (AUGER, LH) | 1 | |
| 8C9812 | 6B SWITCH AS-TOGGLE (CONVEYOR, RH) | 1 | |
| 8C9812 | 6C SWITCH AS-TOGGLE (CONVEYOR, LH) | 1 | |
| 3L8187 | LOCKWASHER | 3 | |
| 6T3631 | NUT-HEX (15/32-32-THD) | 2 | |
| 6T3632 | LOCKWASHER | 1 | |
| 6T3633 | RING-LOCKING | 1 | |
| 6V8374 | SCREW-MACHINE (6-32X0.25-IN) | 3 | |
| 9G0011 | 7 SWITCH AS-TOGGLE (TOW POINT CONTROL, LH) | 1 | |
| 9G0011 | 7A SWITCH AS-TOGGLE (TOW POINT CONTROL, RH) | 1 | |
| 9G0011 | 7B SWITCH AS-TOGGLE (THROTTLE) | 1 | |
| 9G0011 | 7C SWITCH AS-TOGGLE (AUGER REVERSE) | 1 | |
| 9G0011 | 7D SWITCH AS-TOGGLE (AUGER RAISE, LOWER) | 1 | |
| 3L8187 | LOCKWASHER | 3 | |
| 6T3631 | NUT-HEX (15/32-32-THD) | 2 | |
| 6T3632 | LOCKWASHER | 1 | |
| 6T3633 | RING-LOCKING | 1 | |
| 6V8374 | SCREW-MACHINE (6-32X0.25-IN) | 3 | |
| 9D3721 | 8 SWITCH-TOGGLE (SINGLE POLE)(CONVEYOR) | 1 | |
| 2138147 | 9 POTENTIOMETER AS (PROPEL SPEED) | 1 | |
| 2138147 | 9A POTENTIOMETER AS (CONVEYOR SPEED, LH) | 1 | |
| 2138147 | 9B POTENTIOMETER AS (CONVEYOR SPEED, RH) | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 5P5677 | WIRE (18-GA, BLACK)(0.6-M) | ||
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 9X1813 | SLEEVE (25-CM) | ||
| 1V6652 | 10 SWITCH AS-TOGGLE (TURN SIGNAL) | 1 | |
| 1V6652 | 10A SWITCH AS-TOGGLE (TRANSMISSION) | 1 | |
| 1V6652 | 10B SWITCH AS-TOGGLE (TAMPER CONTROL) | 1 | |
| 3L8187 | LOCKWASHER | 3 | |
| 6T3631 | NUT-HEX (15/32-32-THD) | 2 | |
| 6T3632 | LOCKWASHER | 1 | |
| 6T3633 | RING-LOCKING | 1 | |
| 6V8374 | SCREW-MACHINE (6-32X0.25-IN) | 3 | |
| 4D1836 | 11 SWITCH-TOGGLE (GENERATOR) | 1 | |
| 4D1836 | 11A SWITCH-TOGGLE (SCREED) | 1 | |
| 4D1836 | 11B SWITCH-TOGGLE (COUNTERBALANCE) | 1 | |
| 4D1836 | 11C SWITCH-TOGGLE (VIBRATORY) | 1 | |
| 1097187 | 12 SWITCH AS-TOGGLE (SCREED HOIST) | 1 | |
| 3L8187 | LOCKWASHER | 3 | |
| 6T3631 | NUT-HEX (15/32-32-THD) | 2 | |
| 6T3632 | LOCKWASHER | 1 | |
| 6T3633 | RING-LOCKING | 1 | |
| 6V8374 | SCREW-MACHINE (6-32X0.25-IN) | 3 | |
| 1165275 | 13 SWITCH GP-PUSH BUTTON (OPERATOR)(MACHINE FUNCTION STOP) | 1 | |
| 1166565 | 14 BLOCK AS (LIGHT) | 1 | |
| 8L9801 | LAMP (12-VOLT) | 1 | |
| 1165277 | 15 BLOCK (CONTACT) | 2 | |
| 1165270 | 16 LAMP (24-VOLT) | 1 | |
| 1165273 | 17 KNOB (RED) | 1 | |
| 2814678 | 18 SWITCH AS-PUSH BUTTON (HAZARD) | 1 | |
| 7G9730 | 19 LAMP AS (120-VOLT, 3-WATT) | 3 | |
| 6V8367 | LOCKWASHER | 1 | |
| 6V8382 | NUT-HEX (11/16-27-THD) | 1 | |
| 3D9718 | 20 SWITCH AS-PUSH BUTTON (HORN) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 6V8832 | NUT (5/8-32-THD) | 1 | |
| 9B7233 | LOCKWASHER | 2 | |
| 7N5876 | 21 LAMP (24-VOLT, 0.2-AMPERE) | 4 | |
| 9D3127 | 22 BASE AS-INDICATOR LIGHT | 1 | |
| 6V8367 | LOCKWASHER | 1 | |
| 6V8382 | NUT-HEX (11/16-27-THD) | 1 | |
| 9D2868 | 23 LENS-RED | 1 | |
| 1753950 | 24 SWITCH AS-ROTARY (WORK LIGHTS) | 1 | |
| 9W0852 | PIN-CONNECTOR (14-GA TO 16-GA) | 7 | |
| 1028806 | KIT-RECEPTACLE (8-PIN) | 1 | |
| 7N8008 | 25 SWITCH AS-TOGGLE (LIMP HOME, RH) | 1 | |
| 7N8008 | 25A SWITCH AS-TOGGLE (LIMP HOME, LH) | 1 | |
| 3L8187 | LOCKWASHER | 6 | |
| 6T3631 | NUT-HEX (15/32-32-THD) | 2 | |
| 6T3632 | LOCKWASHER | 1 | |
| 6T3633 | RING-LOCKING | 1 | |
| 6V8374 | SCREW-MACHINE (6-32X0.25-IN) | 6 | |
| 1729200 | 26 SUPPRESSOR-ARC | 2 | |
| 7C4550 | 27 SEAL (ROTATING SHAFT) | 3 | |
| 3165717 | 28 KNOB AS | 4 | |
| 2753398 | 30 FILM-IDENTIFICATION (INSTRUMENT PANEL) | 1 | |
| 2227890 | 31 SWITCH AS-ROCKER (PARKING BRAKE ON, OFF) | 1 | |
| 2182529 | 32 PLUG | 1 | |
| 3V4694 | 33 PLUG-BUTTON | 1 |
